General UV512C Bedienungsanleitung

UV512C

USER’S MANUAL

Digital UVC Light Meter

Thank you for urchasing this Digital UVC Light Meter. Read through this instruction manual

before o erating the unit.

Please also store and retain this instruction manual for future reference.

UV512C-FINAL-092608:Layout 1 9/26/08 4:28 PM Pa e 1

STORAGE FOR SENSOR

The UV sensor is an extremely precise detection instrument. When not in use, store it in a dry

environment.

Please keep the manual for future reference.

DANGER WHEN USING THE EQUIPMENT

ATTENTION

mproper use may endanger the health of third parties! t may also result in damage to the

equipment or other material damage.

FEATURES:

The UV-Meter is a mobile, hand-held device for measuring UV irradiation.

• Socket for tripod mounting

• High and Low measurements range in a unit mW/cm2or µW/cm2

• Backlit LCD and 4 Digits dual display

• 20 points memory

• Low battery indication

• Operation with “9V” battery

• Magnetic mount

SAFETY SYMBOLS

ndicates CE conformity

The device may not be disposed of with the trash. t promotes re-use recycling and other

forms of recovery of used materials and components, and improves the environmental

performance of all operators (manufacturers, traders and treatment facilities) involved in

the life cycle of products. Dispose of the product appropriately in accordance with the

regulations in force in your Country.

SPECIFICATIONS:

Range ndication ‘ -H - ’

Zero Adjust Yes

Auto Record Yes

Sample Time Approx. 0.3 sec

Display Backlit LCD and Dual Display

Memory 20 points and 1 for interval time

Operation

Temperature 32° to 122°F (0° to 50°C),10 to 90% RH

Battery Source “9V”

Weight Approx. 3.2 (90g) without battery and detector

Dimensions 5.51 x 1.93 x 1.14" (140 x 49 x 29mm)

UV512C-FINAL-092608:Layout 1 9/26/08 4:28 PM Pa e 2

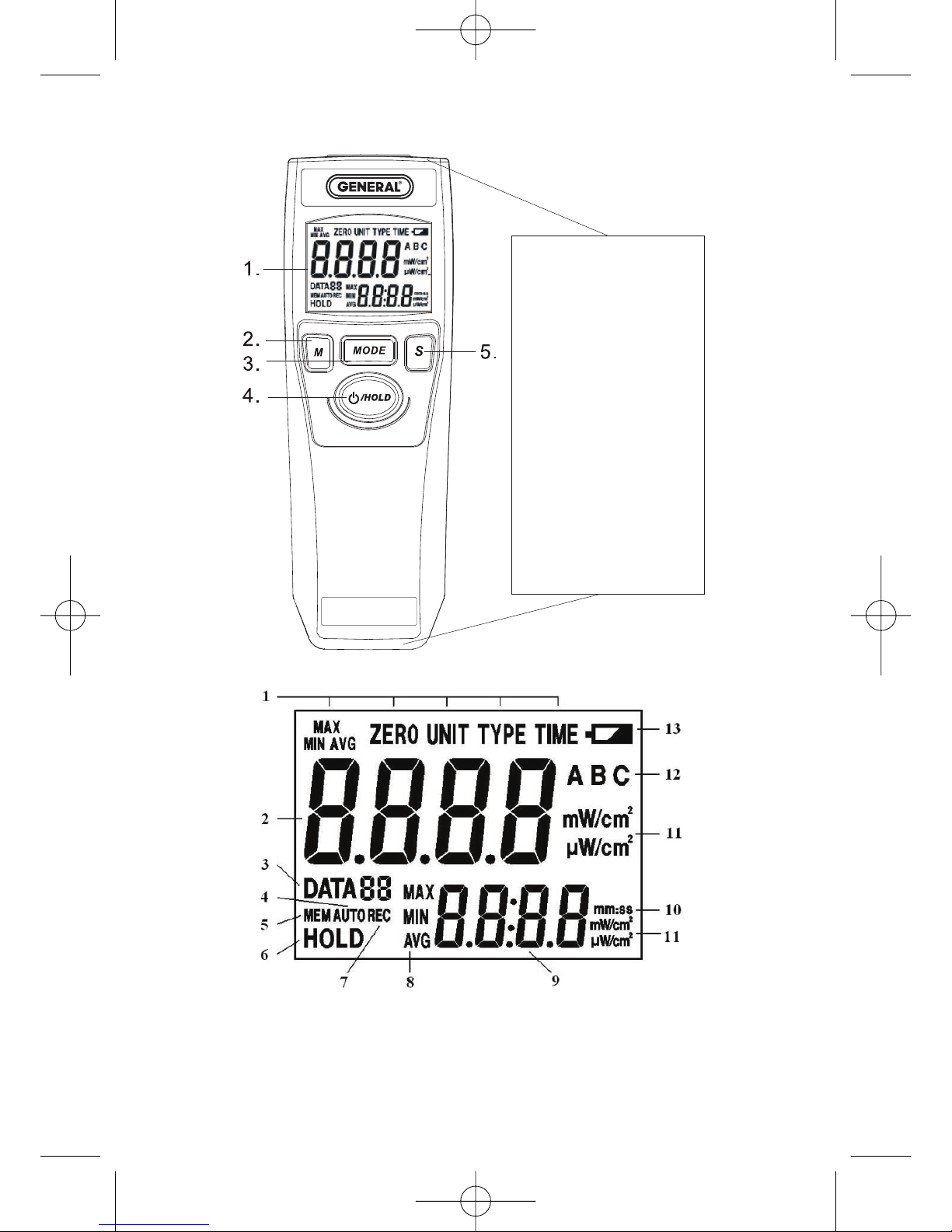

CONTROL PANEL

LCD DISPLAY

1. LCD Display

2. Memory button

3. Mode button

4. Power On/Off and

Hold Button

5. Select Button

1 Main Functions

2 Primary Reading

3 Data Log

4 Auto Mode

5 Memory Review

6 Data Hold

7 Record

8 M N/MAX/AVG

9 Secondary Reading

10 Time Unit

11 Unit

12 UV Type

13 Low Battery

UV512C-FINAL-092608:Layout 1 9/26/08 4:28 PM Pa e 3

OPERATIONS OF INSTRUMENT

POWER ON

Press button and hold for 2 seconds. Release the button after power on. All

symbols of LCD will appear for 1 second.

POWER OFF

Press button and hold for 2 seconds. All symbols of LCD will appear and shut down after

releasing button.

MEASUREMENT VALUE

The primary reading always displays the value of measuring. The secondary reading displays the

outcomes of the advanced functions or data recording.

MAIN FUNCTION

Press Mode button to choose the main functions (M N/MAX/AVG) has several extended programs

as indicated in the diagram, please read the following descriptions to know how to press S,

or Mbuttons to move to next level!)

MAIN FUNCTION DIAGRAM

MAX MIN

AVG

MAX/MIN/AVG MEASURING FUNCTION

There are 4 modes of the measuring function. Press the Sbutton to change the mode of

measuring:

None →Max →Min →Avg.

DATA HOLD

Press the button, the value at Secondary Display will be held and the LCD will show the

HOLD symbol. To cancel the hold mode, press the button again.

UV512C-FINAL-092608:Layout 1 9/26/08 4:28 PM Pa e 4

Data Rev ew

Press the Mbutton during the hold mode, it will get into the data memory review mode. The LCD

will show MEM symbol.

Press the Sbutton to review data 0 to 20. Data 0 is always at stored the interval time after auto

recording activated. f the data are automatically recorded, the AUTO symbol appears next to MEM

during the review.

DATA STORE

Normal

Press the Mbutton to store the current measurement displayed at Primary Display. The flashing

DATA(01~20) icon becomes steady for 2 seconds, and moves to next storage location.

Auto

f automatically recording is required, press the Mbutton and hold for 2 seconds. The LCD will

show AUTO symbol next to REC symbol. As show AUTO symbol next to REC symbol. As soon as it

reaches 20 data, the system will turn off.

The following record contents will be stored:

1. rradiation intensity

2. Maximum, Minimum, Average or none

3. Unit

To cancel auto record mode, press the Mbutton again.

ZERO

Zero Adjust

Cover the sensor and press the Sbutton to zero adjust. The Secondary Display will display adjust

value*. Press the Sbutton again and hold for 1 second to clear the adjust value.

*When the adjust value is over the range. The Secondary dis lay will dis lay “-Err”.

Please follow the zero adjust ste and do it again.

Memory Clear

n Zero Mode, press the Mbutton to clear data 0 to 20.

UNIT

Un t Funct on

Press the Sbutton to change the unit, µ 2W cm/ or 2mW/cm

TIME

T me Funct on

Press the Sbutton to set the interval time of auto recording.

This function allows you to set 9 different time intervals by pressing the Sbutton.

The 9 time intervals are: 1, 2, 5, 10, 30 second or 1, 3, 5, 10 minutes.

MAINTENANCE

Clean the hous ng: Use soap and water on a damp sponge or soft cloth. Care should be taken to

prevent any liquids or moisture from getting inside the unit.

When the battery is low, the battery symbol will be displayed.

UV512C-FINAL-092608:Layout 1 9/26/08 4:28 PM Pa e 5

UV512C-FINAL-092608:Layout 1 9/26/08 4:28 PM Pa e 6

Note:

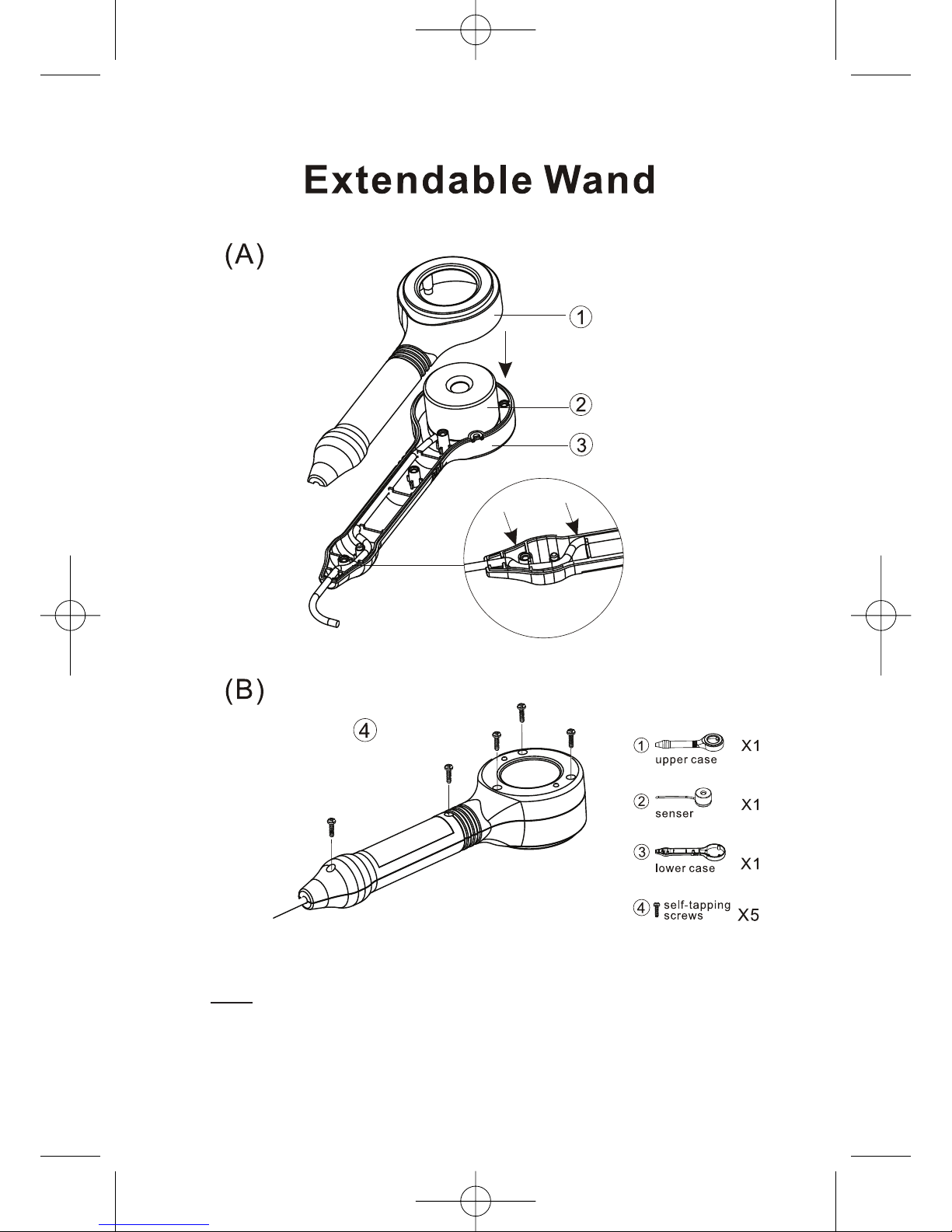

It is recommended not to assemble and disassemble the wand too

many times to avoid wearing out the screw holes.

UV512C-FINAL-092608:Layout 1 9/26/08 4:28 PM Pa e 7

GENERAL TOOL & IN TRUMENT ™

80 White treet, New York,NY10013-3567

PHONE (212) 431-6100

FAX (212) 431-6499

TOLL FREE (800) 697-8665

e-mail: [email protected]

www.generaltools.com

UV512C User’s Manual

Speci ications subject to change without notice

NOT CE - WE ARE NOT RESPONS BLE FOR TYPOGRAPH CAL ERRORS.

MAN#UV512C 10/08
