Professional Installation Guide
This vehicle specific technical installation information sheet must only be used with the GO device installation
manual (https://goo.gl/rkLRiA) and is only for use by Geotab Authorised Installers. It is based on Geotab’s
suggested best practice, valid at time of publishing. There may be differences or revisions between specific vehicle
models, trim-levels, equipment or accessories made by the vehicle manufacturer and these are beyond Geotab’s
control. To ensure you have the latest available version of this document, or if you require any assistance please
contact your Authorised Reseller before proceeding with the installation.
MANUFACTURER:
Mercedes Benz
DOCUMENT DATE:
03/10/2017
MODEL &
GENERATION:
Viano
Vito
Gen 3
W447
PRODUCTION
PERIOD:
2014 - Present
T-HARNESS REQUIRED:
HRN-GS16K2
Adaptor-5
OPTIONAL:
SPR-INSTALLBAG
For more information on the HRN-GS16K2 harness, please refer to the technical document:
https://goo.gl/tNoQh4 or to the instructional video: UNIVERSAL VIDEO
The vehicle’s OBD-Port is located below the
steering wheel in the driver's footwell
Copyright © Geotab Inc. 2017 - All Rights Reserved | www.geotab.com | email: [email protected]
TM denotes a trademark of Geotab Inc., which may be registered in certain countries
Use a size T20 Torx-driver to remove the 2
screws, then unclip and remove the kick-panel
underneath the dashboard
Use a size T20 Torx-driver to remove the 2
screws, as shown
Carefully unclip and remove the OBD-Port
Slide open the retaining-clip at the top of the
mounting-bracket, and remove the OBD-Port
Fit ADAPTOR-5 to the "short" connector of the
Geotab harness, and secure with the metal clips.
Clip the connector into the bracket, in place of
the vehicle’s original OBD-Port
This vehicle specific technical installation information sheet must only be used with the GO device installation manual
(https://goo.gl/rkLRiA) and is only for use by Geotab Authorised Installers. It is based on Geotab’s suggested best practice, valid
at time of publishing. There may be differences or revisions between specific vehicle models, trim-levels, equipment or accessories
made by the vehicle manufacturer and these are beyond Geotab’s control.
To ensure you have the latest available version of this document, or if you require any assistance please contact your Authorised
Reseller before proceeding with the installation.
_____________________________________________________________________________________________________________________________
Copyright © Geotab Inc. 2017 - All Rights Reserved | www.geotab.com | email: [email protected]
TM denotes a trademark of Geotab Inc., which may be registered in certain countries
2

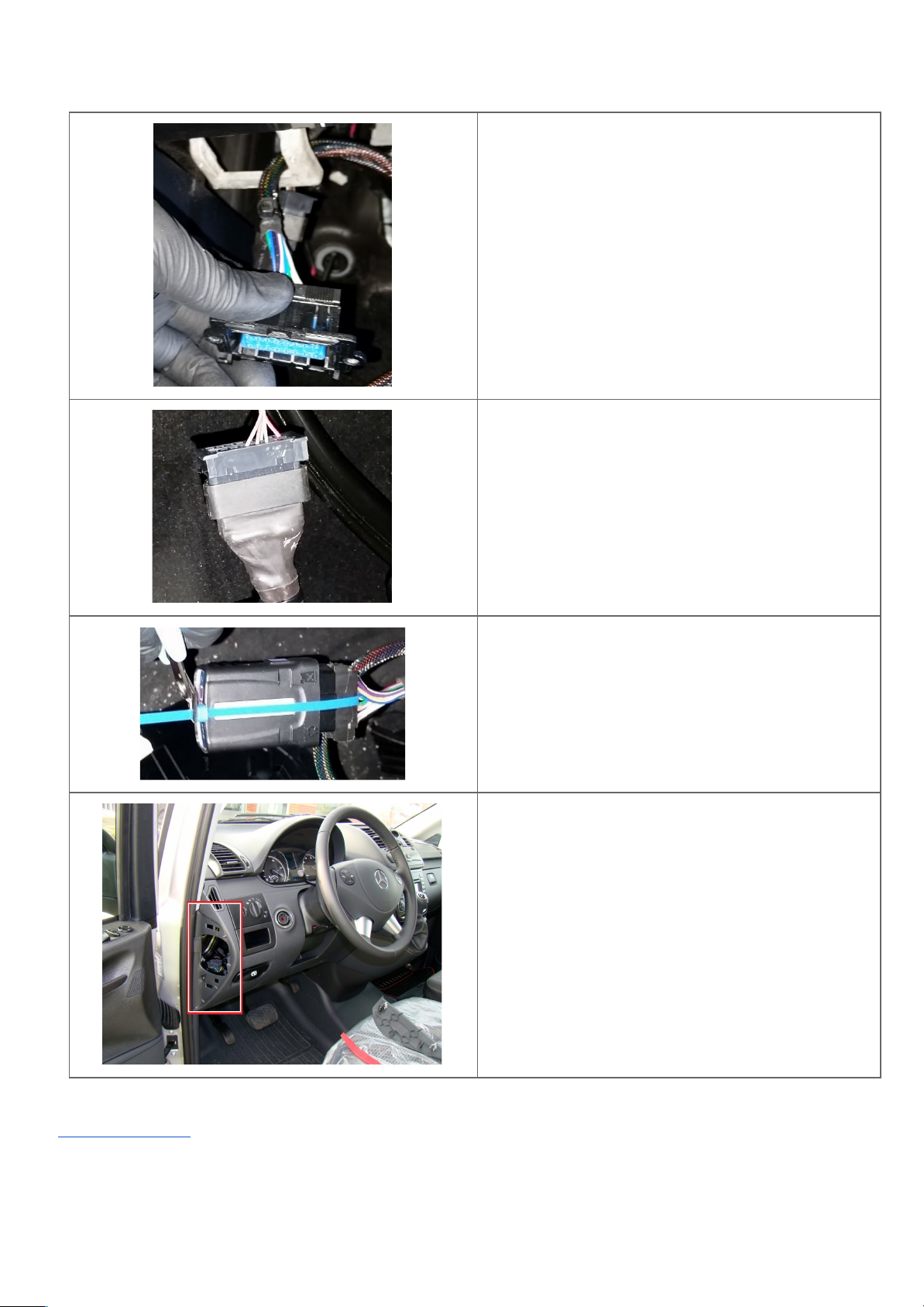

Clip the connector into the bracket in place of the
vehicle’s original OBD-Port
Slide closed the the retaining-clip to lock it in
place.
Plug the vehicle’s OBD-Port into CONNECTOR-1
of the Geotab harness.
Plug the Geotab unit into the remaining connector, and
secure with a cable-tie as shown
Using a flat-bladed screwdriver or suitable tool, remove
the side-panel of the dashboard
This vehicle specific technical installation information sheet must only be used with the GO device installation manual
(https://goo.gl/rkLRiA) and is only for use by Geotab Authorised Installers. It is based on Geotab’s suggested best practice, valid
at time of publishing. There may be differences or revisions between specific vehicle models, trim-levels, equipment or accessories
made by the vehicle manufacturer and these are beyond Geotab’s control.
To ensure you have the latest available version of this document, or if you require any assistance please contact your Authorised
Reseller before proceeding with the installation.
_____________________________________________________________________________________________________________________________
Copyright © Geotab Inc. 2017 - All Rights Reserved | www.geotab.com | email: [email protected]
TM denotes a trademark of Geotab Inc., which may be registered in certain countries
3
Secure the Geotab unit to a suitable bracket
inside the dashboard, using at least two
cable-ties.
Ensure that the harness does not obstruct any
moving parts or equipment
Finally, replace all panels, screws and clips in the
reverse order they were removed
The GPS-antenna is located at the “underside” of
the Geotab device. Take care when securing the
device into the vehicle, that this side is facing
away from any metal surface
Finally, replace all panels, screws and clips in the
reverse order they were removed
Start the engine, leaving it to idle. All three
LED’s will flash red briefly - wait until you see all
three LED’s: Red (Power), Green (GSM) and Blue
(GPS). These tell you the unit has connected
successfully.
During this five-minute process the unit will also
beep repeatedly as it updates to the latest
settings.
Log on to: https://installmygps.com
Enter your details including the serial number of
the Geotab device. Select “Log Install
” and wait
for the green notification of a successful
installation.
This vehicle specific technical installation information sheet must only be used with the GO device installation manual
(https://goo.gl/rkLRiA) and is only for use by Geotab Authorised Installers. It is based on Geotab’s suggested best practice, valid
at time of publishing. There may be differences or revisions between specific vehicle models, trim-levels, equipment or accessories
made by the vehicle manufacturer and these are beyond Geotab’s control.
To ensure you have the latest available version of this document, or if you require any assistance please contact your Authorised
Reseller before proceeding with the installation.
_____________________________________________________________________________________________________________________________
Copyright © Geotab Inc. 2017 - All Rights Reserved | www.geotab.com | email: [email protected]
TM denotes a trademark of Geotab Inc., which may be registered in certain countries
4
