GV-AS8111 Kit March 8, 2023
-1-

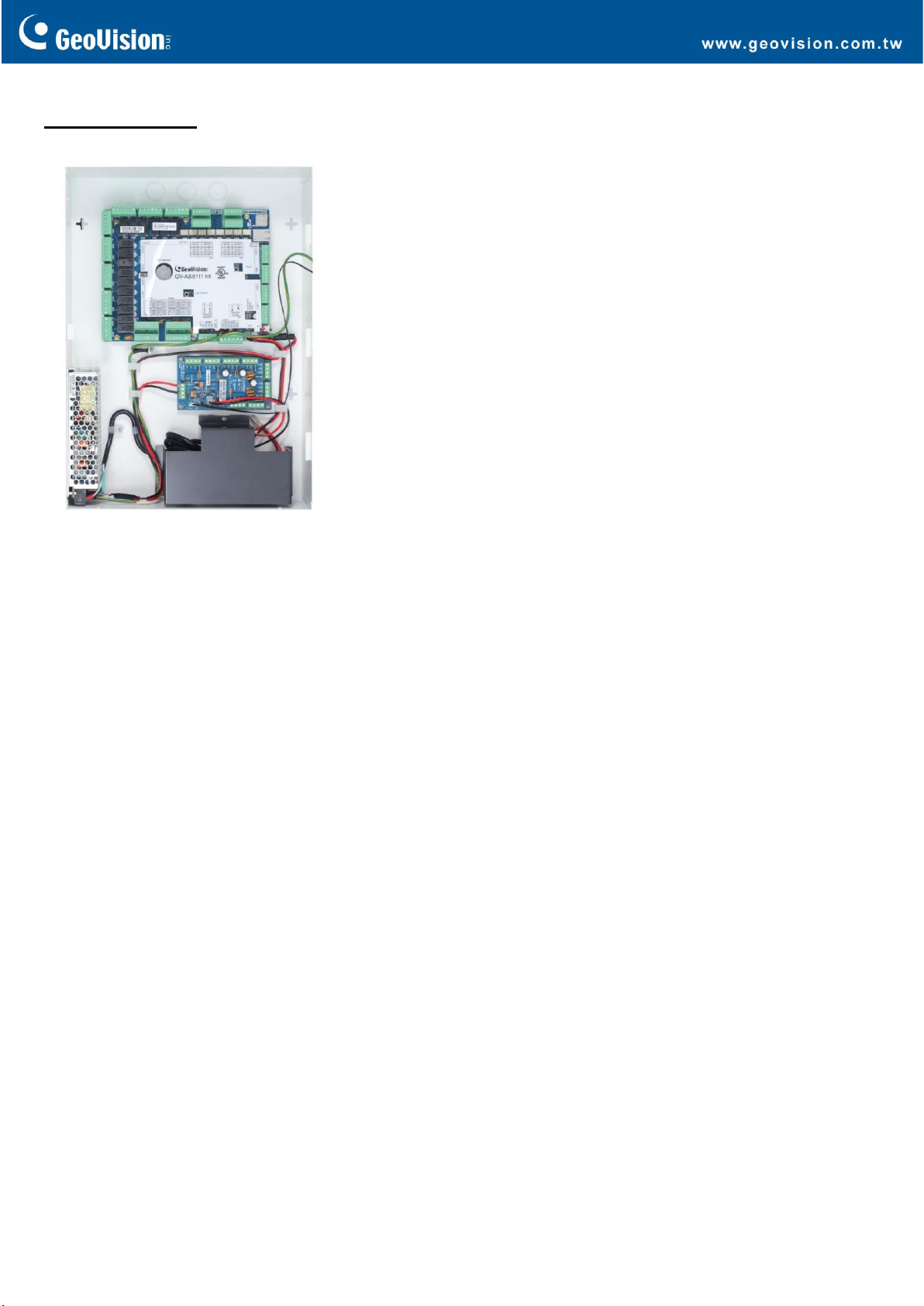

GV-AS8111 Kit
The GV‐AS8111 Kit is a cabinet that contains a GV-AS8111 control panel, a power adapter board, a power supply and a backup battery
case. The power supply powers the GV-AS8111 Kit as well as up to 8 output devices (12V, 0.5A per device).
Key Features
•One-way control: 8 doors
•Two-way control:
- 4 doors by Wiegand only;
- 8 doors by RS-485 or network;
- 8 doors with max 4 doors by Wiegand and other doors by RS-485 or network
•8 Wiegand card readers of 26 to 64 bits
•16 GV-Readers and GV-GF Fingerprint Readers through RS-485 or network
•Built-in 16 digital inputs and 24 relay outputs
•Suitable for doors, parking gates ,and elevator call buttons
•Tampering alarm
•UL 294 compliance
Packing List
•GV-AS 8111 Kit (US standard or EU standard)
•Iron box key
•Iron box screw x 6
•Self-adhesive cable tie mounts x 6
•Battery wiring
•Micro SD Card 2 GB
•Software CD
•Warranty Card
GV-AS8111 Kit March 8, 2023
-2-
GV-AS8111 Kit Standard Application
Black
Red
Connect each reader to the power terminal
or Wiegand connectors for power supply
Up to 8
GV-Readers
RS485_A
RS485_B
J37 J35
Network
PC
Input
Device
GND
IN
GV-AS4111 / 8111 Kit
Micro SD
Ethernet
OUT2
OUT1
OUT11 OUT12 OUT13 OUT14 OUT15 OUT16
OUT17
OUT18
OUT20
OUT19
OUT21
OUT22
OUT24
OUT23
J13 J14
Reset
GND
IN16
IN15
GND
IN14
IN13
GND
IN12
IN11
GND
IN10
IN09
GND
IN08
IN07
GND
IN06
IN05
GND
IN04
IN03
GND
IN02
IN01
12V
D0
D1
GND
12V
D0
D1
GND
12V
D0
D1
GND
12V
D0
D1
GND
12V
D0
D1
GND
12V
D0
D1
GND
12V
D0
D1
GND
12V
D0
D1
GND
Dis-Charging
Charging
Power
CON11 CON10
Load Default
(BAT)
- +
12V OUTPUT
RS485
12V
A+
A-
B+
B-
GND
12V
GND
12V
GND
12V
GND
CON9J2
RS
485
_A
RS
485
_B
Terminal
Resistor
J37 J35
SW1
ON OFF
SW1
Ethernet
Enable
OUT4
OUT3
OUT6
OUT5
OUT8
OUT7
OUT10
OUT9
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
RTC Battery
Connect to Wiegand
compatible readers
Output
Device
NC/NO
COM
External
Power
Supply
Internal
Power
Supply
> 100ft
< 100ft
External
Adapter
12V
Battery
+
+
-
-
ED -
ED+
COM
NC / NO
ED -
ED+
COM
NC / NO
NC / NO
COM
ED+
ED -
NC / NO
COM
ED+
ED -
NC / NO
COM
ED+
ED -
NC / NO
COM
ED +
ED -
ED -
ED+
COM
NC / NO
NO
COM
NC
Output
Device
GV-AS4111 / 8111
Power Adapter Board
ED -
ED+
COM
NC / NO
(BAT)
-+
Internal
Power
Supply
Output
Power Source Limitation
Output 1 ~ 24
Class 2
Con 10 ~ Con 11
Class 2
J2
Class 2
Con 9
Class 2
J8 ~ J11 (Power board)
Class 2
J16 ~ J19 (Power board)
Class 2
GV-AS8111 Kit March 8, 2023
-3-
Specifications
System Requirements
GV-ASManager Version
GV-ASManager V4.2.3 or later
Software
One-Way Control
8 doors
Two-Way Control
4 doors by Wiegand only
8 doors by RS-485 / network
8 doors with max 4 doors by Wiegand and other doors by RS-485 / network
Hardware
CPU
32-bit ARM7TDMI
Number of User Cards
100,000 cards
Event Buffer
1,000,000 events and log data
Power
100 ~ 120V AC, 50 ~ 60 Hz, 1.7A
RS-485 Interface
2 RS-485 interface for GV-Readers and GV-GF Fingerprint Readers (max. 16
Readers)
Distance 600 m (1968.50 ft), 24 AWG, 13V DC min., 85 °C min.
Wiegand Interface
8 Wiegand interfaces, 26 ~ 64 bit format, distance 100 m (328.1ft), 24 AWG,
13V DC min., 85 °C min.
TCP/IP Interface
1 TCP/IP interface for GeoVision network readers
Communication
TCP/IP
Battery
Built-in battery, replaceable button cell (CR2032)
Input
16 inputs, dry contact, NO/NC
Output
1~16 relay output / 30V DC, 3A
17~24 relay output / 30V DC, 1A
Operating Temperature
0 ~ 65 °C / 32 ~ 149 °F
Operating Humidity
10% ~ 90% RH (non-condensing)
Dimensions (W x H x D)
420 x 300 x 110 mm / 16.5 x 11.8 x 4.33 in
Weight
4.4 kg / 9.68 lb
Certification
UL 294, CE, FCC, RoHS
Power Adaptor Board
Output
DC Voltage Range
12V
Rated Current
0.5A
Rated Power
6W
Number of connectors
Input
2
Output
8
Wire Size (AWG)
12 - 22
Power Supply
Output
DC Voltage Range
11V ~ 13V (Nominal 12V)
Rated Current
13A
Rated Power
150 W
Input
US Standard (UL)
110 ~ 120V, 50 Hz / 60 Hz, 1.7 A
EU Standard
200 ~ 240V, 50 Hz / 60 Hz
Note:
1. RS485 and TCP/IP interfaces only support GeoVision readers, while Wiegand interface supports both GeoVision and 3rd party
readers (Wiegand 26~64 Bits).
2. GV‐AS Controllers do not support 3rd-party access control software.
3. UL 294 Attack Class Level 1 depends on other connected equipment.
4. The interruption of power supply on the controller's Circuit Board or the Power Adaptor Board will damage the two boards
when the main power is supplied. Before unplugging the power adapter (connected to the controller’s Circuit Board), or
connecting any devices to the two boards, please disconnect the main power.
5. Specifications are subject to change without notice.
GV-AS8111 Kit March 8, 2023
-4-
Options
Optional devices can expand the capabilities and versatilities of your GV-AS Controllers. Consult your sales representative for more
information.
GV-AS ID Card / Key
Fob & GV-UHF Tag
125 KHz and 13.56 MHz cards / key fobs, 900 MHz UHF Tag are available.
GV-CR420
GV-CR420 is a card reader with a built-in 4MP wide angle IP camera. The card reader recognizes
identification cards and transmits live view through network connection.
GV-CR1320
GV-CR1320 is a card reader with a built-in 2MP wide angle IP camera. The card reader recognizes
identification cards and transmits live view through network connection.
GV-DFR1352
GV-DFR1352 is a card reader that uses a 13.56 MHz frequency. The reader has both Wiegand and RS-485
outputs that can be connected to any standard access control panel.
GV-FWC
GV-FWC integrates GeoVision face-recognition-based cameras, software and readers into access control
systems by sending access card data, paired to Face IDs, to controllers either through TCP/IP or Wiegand
connection.
GV-FR2020
GV‐FR2020 is a 13.56 MHz face recognition reader. The reader supports various credentials for access
control: Face, Card, Card + Face and Password + Face.
GV-GF Fingerprint
Readers
GV-GF1921 / 1922 is a fingerprint reader, supporting three operation modes: Fingerprint Only,
Fingerprint + Card and Card Only. Readers with optical and capacitance sensors are available.
GV-IB25 / 65 / 85
Infrared Button
The GV‐IB25 / 65 / 85 Infrared Button detects infrared movement within 3 to 12 cm and allows you to
open the door with a wave of hand.
GV-Reader 1251
GV-Reader 1251 is a card reader that uses a 125 kHz frequency. The reader has both Wiegand and
RS-485 outputs that can be connected to any standard access control panel.
GV-R1352
GV-R1352 is a card reader that uses a 13.56 MHz frequency. The reader has both Wiegand and RS-485
outputs that can be connected to any standard access control panel.
GV-RK1352
GV-RK1352 is a card reader with keypad that uses a 13.56 MHz frequency. The reader has both Wiegand
and RS-485 outputs that can be connected to any standard access control panel.
GV-RU9003
GV‐RU9003 is a Radio Frequency Identification (RFID) reader of ISO 18000‐6C (EPC GEN2) standard.
Designed for parking lot management, the reader can read RFID tag within 10 m (32.8 ft).
GV-SR1251
GV‐SR1251 is a card reader that uses a 125 kHz frequency. It has both Wiegand and RS‐485 outputs that
can be connected to any standard access control panel.
GV-WTR
GV-WTR is a converter designed for converting Wiegand interface to RS-485 interface, and vice versa. It
enables 3rd party readers to be connected to RS-485 GV-Controllers, as well as allowing GV-AI FR
(software) and GV-RS1320 (RS-485 camera reader) to be connected to 3rd-party Wiegand controllers.
Electric Lock
Three types of electric locks are available: electromagnetic lock, electric bolt and electric strike.
Power Adapter
Contact our sales representatives for the countries and areas supported.
Push Button Switch
The push button switch can be integrated with any standard access control systems, allowing door exit
by activating or deactivating the electric locking device. Both American standard and European standard
push buttons are available.
