Pinhole Camera
ICH264TG2V10
Hardware Manual
GV-IPCam H.264
© 2015 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in
part, without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any
kind and assumes no responsibility for errors or omissions. No liability is
assumed for incidental or consequential damages arising from the use of
the information or products contained herein. Features and specifications
are subject to change without notice. Note: no memory card slot or local
storage function for Argentina.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: +886-2-8797-8377
Fax: +886-2-8797-8335
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows and Windows
XP are registered trademarks of Microsoft Corporation.
September 2015
Contents
Contents ..............................................................................i
Options ...............................................................................ii
Chapter 1. Pinhole Camera..............................................1
1.1 Packing List..............................................................................2
1.2 Features...................................................................................3
1.3 Overview ..................................................................................4
6
10
11
1.4 Installation................................................................................
1.5 Connecting the Camera..........................................................
1.6 Loading Factory Default..........................................................
i
ii
Options
Optional devices can expand your camera’s capabilities and versatility.
Contact your dealer for more information.
Device Description
GV-PA191 PoE
Adapter
The GV-PA191 PoE adapter is designed to provide
power and network connection to the cameras
over a single Ethernet cable.
GV-POE Switch
The GV-POE Switch is designed to provide power
along with network connection for IP devices. The
GV-POE Switch is available in various models with
different numbers and types of ports.
10 m (32.8 ft) RJ-
12 Cable A 10 m (32.8 ft) RJ-12 Cable can be purchased to
connect the camera lens and the main body.
Pinhole Camera
1
Chapter 1. Pinhole Camera
The Pinhole Camera consists of a main body for processing and a
separate camera lens for capturing images. The compact camera lens can
be installed in surveillance sites with limited space such as behind the
panel of an ATM machine. The Pinhole Camera is also ideal for locations
where discreet surveillance is desirable, such as at the banks, hotels,
museums, stores, and offices.
Model No. Specification Description
GV-UNP2500 Fixed
Lens
Fixed Iris, f:3.7 mm,
F/2.8, 1/2.7” M12
mount
2 MP Super Low
Lux, H.264, D/N,
Pinhole Camera
1

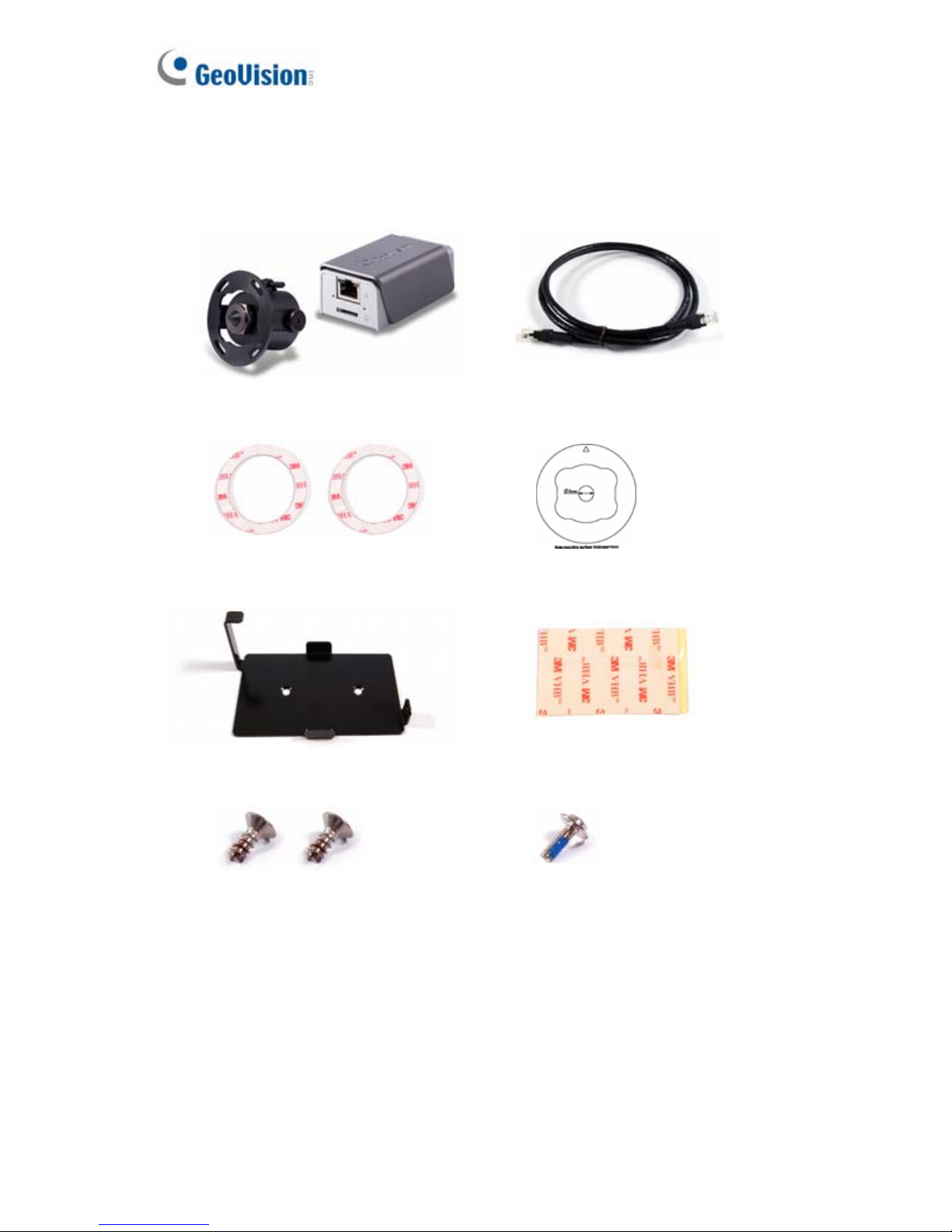

1.1 Packing List
Pinhole Camera 1 m (3.28 ft) RJ-12 Cable
Camera Adhesive Tape x 2
Installation Sticker
Main Body Mount
Main Body Adhesive Tape
M3 Screw x 2
M2 Screw
GV-IPCAM H.264 Software
DVD GV-NVR Software DVD
Warranty Card
2
Pinhole Camera
1
1.2 Features
1/2.8" progressive scan super low lux CMOS
Dual streams from H.264 or MJPEG
Up to 30 fps at 1920 x 1080
Megapixel lens
Day and night function (electronic)
Micro SD card slot (SD/SDHC) for local storage
NAS recording
Recording assigned by GV-Edge Recording Manager (Windows &
Mac)
One-way audio
3D DNR (Digital Noise Reduction)
Wide Dynamic Range (WDR)
Defog
Motion detection
Tampering alarm
Visual automation
Text overlay
Privacy mask
IP address filtering
PoE (IEEE 802.3af)
Support for iPhone, iPad, Android and 3GPP
31 languages on Web interface
ONVIF (Profile S) conformant
3
1.3 Overview
Camera Lens
1
2
3
4
Main Body
6
7
89
4
5
Figure 1-1
No. Name Description
1 Lens Receives images.
2 Microphone Receives sounds.
3 Lens Screw Loosens to adjust the camera lens.
4 RJ12 Port Use the supplied RJ12 cable to connect the
camera lens and main body.
4
Pinhole Camera
1
No. Name Description
5 RJ12 Status
LED Turns on (green) when the camera lens and
main body are connected.
6 PoE Connects to a PoE adapter.
7 Status LED Turns on (green) when the system is ready.
8 Memory Card
Slot Inserts a micro SD card (SD/SDHC, version
2.0, Class 10) to store recording data.
9 Default Button Restores the camera to factory default. For
details, see 1.6 Loading Factory Default.
5
