GeoVision GV-VD1530 Handbuch
Hardware Installation Guide
GV-Vandal Proof IP Dome
GV-VD1530 / 1540 / 2430 / 2440 / 2530 / 2540
GV-VD2540-E / 3430 / 3440 / 5340 / 5340-E
© 2014 GeoVision Inc. All rights reserved.
Thank you for purchasing GV-Vandal Proof IP Dome. For advanced information
on how to use the GV-Vandal Proof IP Dome, please refer to GV-IPCam H.264
User's Manual and Quick Start Guide online.
2014/11
English
VDV3-QG-A
61-DMVDV3Q-0001
Important
Note for Connecting to GV-System / GV-VMS
The GV-IPCAM H.264 is designed to work with GV-System / GV-VMS, a
video management system. Note the following when GV-IPCAM H.264 is
connected to GV-System / GV-VMS:
1. By default, the images are recorded to the memory card inserted to the
GV-IP Camera H.264.
2. Once the camera is connected to GV-System / GV-VMS, the resolution
set on GV-System / GV-VMS will override the resolution set on the
camera’s Web interface. You can only change the resolution settings
through the Web interface when the connection to GV-System / GV-VMS
is interrupted.
Note for Recording
1. By default, the images are recorded to the memory card inserted to the
GV-IP Camera H.264. Make sure the Write recording data into local
storage option is enabled. If this option is disabled, the camera will stop
recording to the memory card while the live view is accessed through
Web browsers or other applications. For details, see Video Settings,
Administrator Chapter, GV-IPCam H.264 User’s Manual online.
2. Mind the following when using a memory card for recording:
●Recorded data on the memory card can be damaged or lost if the
data are accessed while the camera is under physical shock, power
interruption, memory card detachment or when the memory card
reaches the end of its lifespan. No guarantee is provided for such
causes.
●To avoid power outage, it is highly suggested to apply a battery
backup (UPS).
●For better performance, it is highly suggested to use Micro SD card of
MLC NAND flash, Class 10.
●Replace the memory card when its read/write speed is lower than 6
MB/s or when the memory card is frequently undetected by the
camera.
Note for Installing Camera Outdoor
3. It is recommended to use memory cards of the following setting and
specifications:

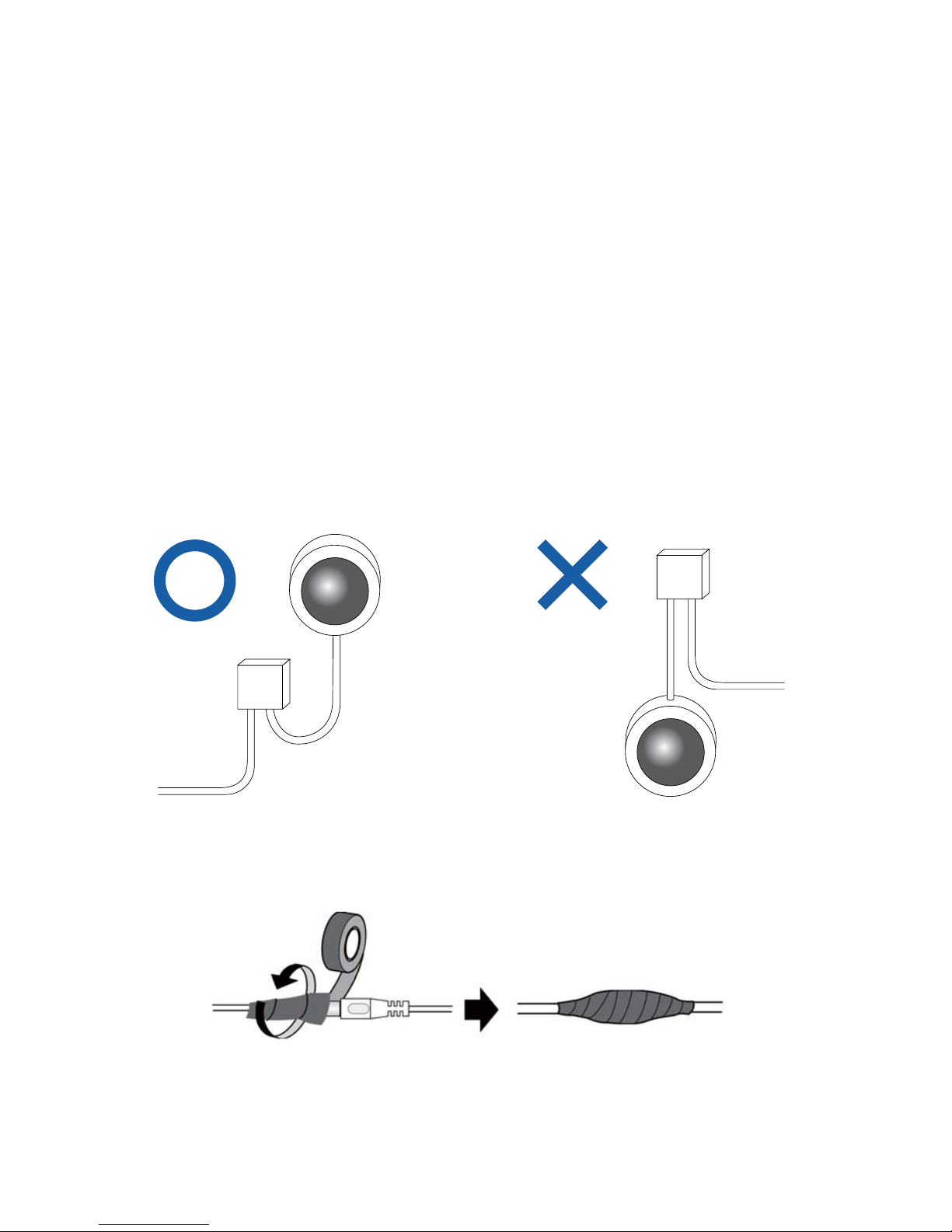

1. The camera is set up above the junction box to prevent water from
entering the camera along the cables.
2. Any PoE, power, audio and I/O cables are waterproofed using waterproof
silicon rubber or the like.
●Apply a battery backup (UPS) to avoid power outage.
●Use Micro SD card of MLC NAND flash, Class 10 for better
performance.
Packing List
●Vandal Proof IP Dome
●3-Pin Terminal Block
●Torx Wrench
●RJ-45 Connector x 2
●Screw Anchor x 4
●TV out wire
●Power Adapter
●Back Plate
●Audio wires
●Long Screw x 4
●Installation sticker
e
s
ou
t
wi
●Focus Adjustment Cap
(for GV-VD1530 / 2430 / 2530 /
3430 only)
1
1
1
Ceiling mount template
●Short Screw x 2 ●Flat Screw
●PG21 Conduit Connector ●Conduit Converter
●Silica Gel Bag
●Sticker (for Silica Gel Bag)
●Ruler
Note:
1. Power adapter can be purchased upon request.
2. You can choose to run the wires through a conduit pipe. After you
have threaded all the wires, install the supplied conduit converter and
plastic PG21 conduit connector with a self-prepared 1/2’’ conduit
pipe to the camera. Power will have to be supplied through a PoE
adapter because the power adapter wire does not fit in a 1/2” pipe.
You will have to purchase your own PG21 conduit connector if you
want to use a 3/4” or 1” pipe.
Plastic PG21 conduit connector
Conduit pipe
Conduit converter
Video Out
Rotational Screw
Cable Seal
Tilt Screw
Conduit Connector
Memory Card Slot
Audio Out
DC12V / AC24V
Default Button
LED Indicator
Audio In
LAN / PoE
IO Terminal Block
Silica Gel Bag
Overview
Wiring the Camera
3
1
2
3
The Vandal Proof IP Dome is designed for outdoors. With the standard
package, you can install the camera on the ceiling.
Rotate to remove the
indicated cap and the
plug inside.
Thread an Ethernet cable (the end with no RJ-45 connector) from
the back panel through the cable seal and re-install the cap.
Use the supplied ruler and
leave about 11 cm of the
Ethernet cable between
the connector and the
cable seal. 11 cm
Installation
1 2 3 4
Conduit Connector
4Thread wires into the camera.
A. Unscrew the conduit
connector from the back.
B. Unplug the conduit connector inside the housing and
disassemble the connector composed of 4 parts.
C. Remove the terminal block from the power adapter.
D. Thread the audio wires (optional), TV out wire (optional),
adapter wires and I/O wires (optional) through the conduit entry
and then through part 1, 2, 3 and 4 of the conduit connector.
Continued on the reverse
-
+
1.8mm
1.8mm
1.8mm
2mm
2mm
2.6mm
2.6mm
2.6mm
For part 2, there are 8 holes each labeled with its diameter.
Remove the plugs and push the wires to the corresponding
holes listed below:
plug
2.6 mm: Audio, BNC
2 mm: DC12V / AC24V
1.8 mm: DIDO
Use the supplied ruler and leave about 10 cm of power and I/O
wires between their connectors and the cable seal; leave at
least 11 cm of audio/TV-out wires between their connectors and
the cable seal.
10 cm
11 cm
5
A. Install the terminal blocks to the power adapter and I/O devices.
For details, see 4. Connecting the Camera later in the
Installation Guide
B. Install the supplied RJ-45 connector to the Ethernet cable.
C. Plug all the connectors to the camera panel.
D. Arrange the wires in the conduit connector and re-install it to the
camera.
IMPORTANT:
1. Keep the unused holes plugged to waterproof the camera and
save the removed plugs.
2. Only thread the wires through their designated holes on the
conduit connector to make sure the wires are properly sealed.
Tip:
1. To make the threading easier, it is advised to thread the wires
in the order described here.
2. Use a pair of pliers to help you pull the wires through the
camera.
Tip: Unscrew the indicated screws and lift the camera to help you
connect the wires.
Connect the wires to the camera.
6
