Quick Start Guide
GV-QFER12700
© 2021 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part,
without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind
and assumes no responsibility for errors or omissions. No liability is assumed
for incidental or consequential damages arising from the use of the information
or products contained herein. Features and specifications are subject to
change without notice.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: +886-2-8797-8377
Fax: +886-2-8797-8335
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows is the registered
trademark of Microsoft Corporation.
October 2021
Scan the following QR codes for product warranty and technical support
policy:
[Warranty] [Technical Support Policy]
i
Contents
Note for Connecting to GV-VMS / DVR / NVR.................................................................... ii
Note for Recording.............................................................................................................. ii
1. Introduction................................................................................................................... 1
1.1 Packing List............................................................................................................................. 1
1.2 Overview................................................................................................................................. 1
1.3 Wire Definitions....................................................................................................................... 2
2. Installation..................................................................................................................... 3
3. Connecting the Camera................................................................................................ 5
3.1 Power Connection................................................................................................................... 5
3.2 Waterproofing the Cable......................................................................................................... 5
4. Accessing the Camera ................................................................................................. 7
4.1 System Requirements............................................................................................................. 7
4.2 Looking Up the Dynamic IPAddress ...................................................................................... 8
4.3 Configuring the IP Address..................................................................................................... 9
5. The Web Interface........................................................................................................10
5.1 Viewing Live View Video....................................................................................................... 10
6. Upgrading System Firmware ......................................................................................12
7. Restoring to Factory Default.......................................................................................13
ii
Note for Connecting to GV-VMS / DVR / NVR
The GV-QFER12700 is designed to work with GV-VMS / DVR / NVR, a video management
system. Note the following when the camera is connected to GV-VMS / DVR / NVR:
Once the camera is connected to the GV-VMS / DVR / NVR, the resolution set on the GV-VMS
/ DVR / NVR will override the resolution set on the camera’s Web interface. You can only
change the resolution settings through the Web interface when the connection to the GV-VMS
/ DVR / NVR is interrupted.
Note: Currently, only GV-VMS, applied with the patches, supports GV-QFER12700.
Note for Recording
Mind the following when using a memory card for recording:
Recorded data on the memory card can be damaged or lost if the data are accessed
while the camera is under physical shock, power interruption, memory card detachment
or when the memory card reaches the end of its lifespan. No guarantee is provided for
such causes.
The stored data can be lost if the memory card is not accessed for a long period of time.
Back up your data periodically if you seldom access the memory card.
Memory cards are expendable and their durability varies according to the conditions of
the installed site and how they are used. Back up your data regularly and replace the
memory card annually.
To avoid power outage, it is highly recommended to apply a battery backup (UPS).
For better performance, it is highly recommended to use Micro SD card of MLC NAND
flash, Class 10.
Replace the memory card when its read/write speed is lower than 6 MB/s or when the
memory card is frequently undetected by the camera.
To ensure smooth network usage, do not access the live view from more than 20
connections.
Introduction
1
1
1. Introduction
Welcome to the GV-QFER12700 Quick Start Guide. In the following sections, you will learn the
basic installations and configurations. For a detailed user manual, see the GV-QFER12700
User’s Manual.
1.1 Packing List
• GV-QFER12700
• Self-Tapping Screw x 3
• Plastic Anchor x 3
• Torx Wrench
• Waterproof Rubber Set
• 4-Pin Alarm I/O Terminal Block
• Download Guide
• Warranty Card

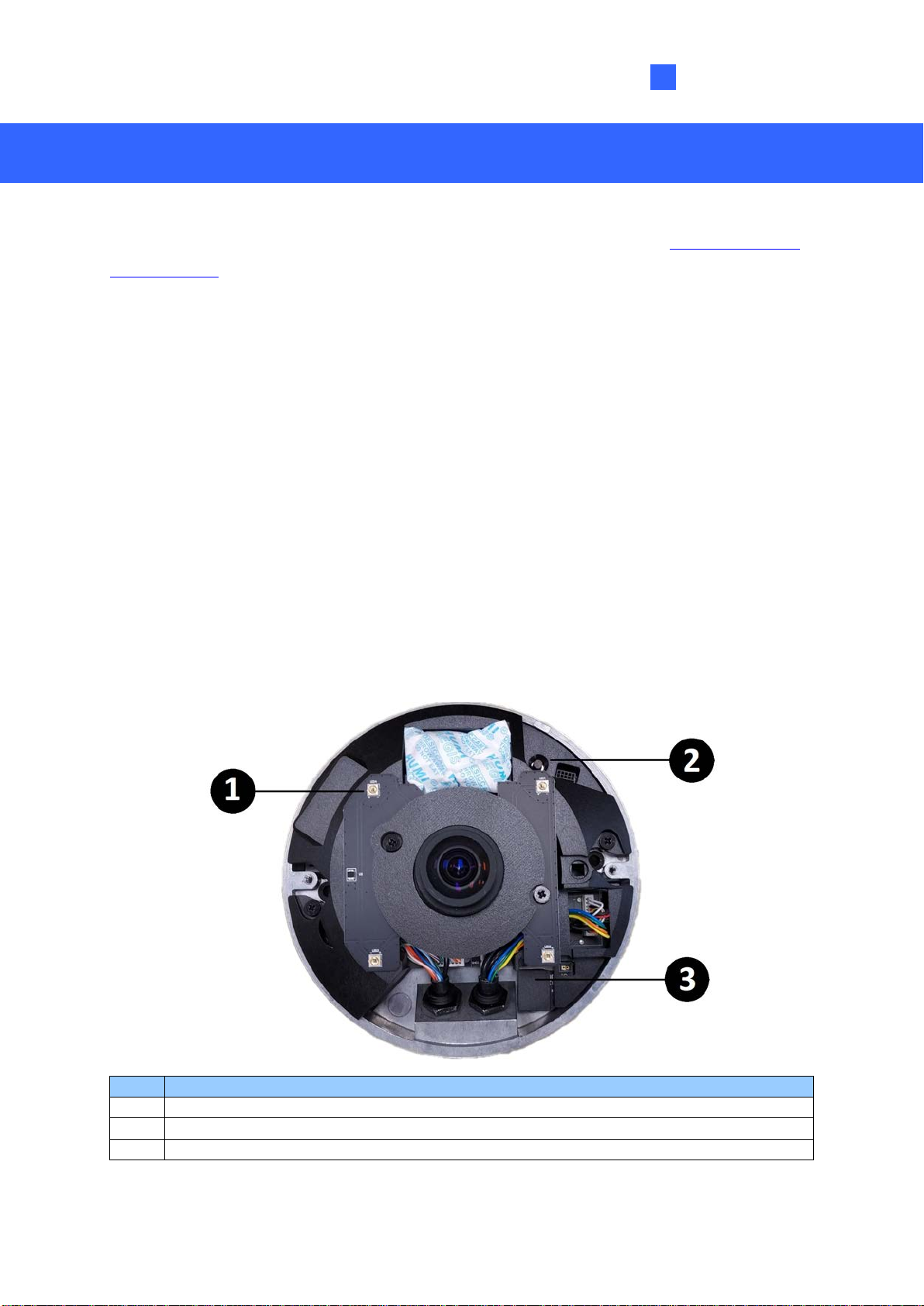

1.2Overview
No.
Description
1
IR LED x 4
2
Default Button
3
Micro SD card slot
2
1.3Wire Definitions
No.
Description
1
Audio In (Pink)
Audio Out (Green)
2
4-Pin Alarm I/O Terminal Block
3
Power (DC 12V)
4
RJ-45 / PoE
Installation
3
2
2. Installation
In this chapter, you will learn how to install GV-QFER12700 with standard package.
Required Items
Tool for drilling a hole on the ceiling (user-prepared)
M4 Crosshead Screw Driver (user-prepared)
SD card (user-prepared)
1. Loosen the two screws on the dome cover with the supplied torx wrench, and remove the
dome cover by pulling it apart from the camera.
2. Place the camera on the desired ceiling or wall and mark the two screw holes.
3. Drill the marked screw holes and insert the supplied plastic anchors.
4. Align the two screw holes on the camera with the inserted plastic anchors. Fasten the
camera with the supplied self-tapping screws.
5. Close and secure the dome cover.
4
Note: GV-QFER12700 can be installed to the wall or ceiling with GV-Mount206-1 / 903-2 /
904-2 / 912-1 / 919. Refer to the following sections and documents.
•GV-Mount 206-1 (5.4.2 GV-FER5701 / FER12203 / FER12700 / EFER3700 /
EFER3700-W / QFER12700, GV-Mount Accessories Installation Guide)
•GV-Mount903-2 (5.1.2 GV-EFER3700 / GV-EFER3700-W / GV-QFER12700, GV-Mount
Accessories Installation Guide)
•GV-Mount904-2 (5.6.2 GV-Mount904-1, GV-Mount Accessories Installation Guide)
•GV-Mount912-1 (5.12 Power Box Mount, GV-Mount Accessories Installation Guide)
•GV-Mount919 (Appendix C: In-Ceiling Mount Installation, GV-
QFER12700 User’s Manual)
Connecting the Camera
5
3
3. Connecting the Camera
3.1 Power Connection
To power up the camera, choose one of the following options below.
Connect the DC 12V power adaptor (optional accessory) to the power connector of the
camera and the power outlet.
Connect an Ethernet cable to the RJ-45 connector of the camera and a GV-PA191 PoE
Adapter (optional accessory).
3.2 Waterproofing the Cable
Audio / Alarm I/O Cable
Follow the steps below to waterproof the Audio / Alarm I/O cables.
1. Connect the required devices to the camera and apply sealant such as silicone on holes,
voids and gaps which have potential risk to water leakage. There should be no gap
between the connectors and the cables.
2. Seal the end of the rubber coating of the cables as indicated in the figure below. Use
enough silicone gel to fill in the hose and wrap around each wire; otherwise, waterproof
function cannot be guaranteed.
RJ-45 Cable
Follow the steps below to waterproof the RJ-45 cable.
1. Insert the waterproof components through the Ethernet cable as shown below.
1
2
3
Insert in order
6
2. Insert the cable into the RJ-45 plug.
3. Assemble the waterproof rubber set.
4. If the DC cable is not in use, you can waterproof it by inserting the supplied plug into the DC
interface.
DC interface
Plug
