Gerber XLp Bedienungsanleitung
1XLp Installation & Configuration, June 2010
GERBERSERVICE
XLp GERBERplotter Family
Installation & Configuration
Presented by Ronny Sprangers
2XLp Installation & Configuration, June 2010
Training Outline
• Overview of XLp Plotter
• Hardware Installation
• Software Installation
• Gerber Device Configuration
• The XLp Interface
• Calibrations
• Maintenance
3XLp Installation & Configuration, June 2010
Overview
• The XLp 50/95 plotters are easy to use, wide format,
inkjet plotters that provide features such as high
reliability, accuracy and low operation costs.
• They have a multi-functional operator panel with
large LCD display
• They are compatible with existing Gerber products
and they offer a Windows based graphical interface
for intuitive control and status messaging.
• Like the Infinity range, the XLp is also based on the
HP 51645 inkjet cartridge.
4XLp Installation & Configuration, June 2010
Overview
1.Nip Bar Lever : This
lever controls the Nip
Bar and Pinch Rollers.
2.Front Cover
3.Control Panel : Allows
the operator to perform
manual functions.
Currently only English
and Chinese
4.Feed Roll Bar
5.Paper Take-Up Bar : The
paper can be dropped
onto the floor or wound
up on the Paper Take-
Up Bar (CW or CCW)
5XLp Installation & Configuration, June 2010
Overview: Technical Specifications
6XLp Installation & Configuration, June 2010
Hardware Installation
• Unpack and assemble the plotter.
• Assembly is fairly simple and you should refer
to the XLp Getting Started Manual and the
XLp Installation Instructions available on
GERBERnet technical library.
• For a live demonstration you can view the
XLp Installation Video, also available on
GERBERnet.
7XLp Installation & Configuration, June 2010
Hardware Installation (step by step)
1. Upon reception of the
system, please check the
crate for visible damage
and report back to your
local Gerber representative.
2. Remove the top and front
of the plotter crate.
8XLp Installation & Configuration, June 2010
Hardware Installation (step by step)
3. Remove foam blocks,
paper roll, cross member
and paper bars from the
crate.
Also remove the cardboard
box that is glued on the
bottom of the crate
4. Remove the left and
right base assy from the
crate.
9XLp Installation & Configuration, June 2010
Hardware Installation (step by step)
5. Unpack and assemble
the plotter stand, using the
M6 screws and 5mm Allen
wrench supplied in the
cardboard box.
6. Remove all protective
plastic from the plotter top
and place it on the stand.
2 persons will be needed
for the lifting
10XLp Installation & Configuration, June 2010

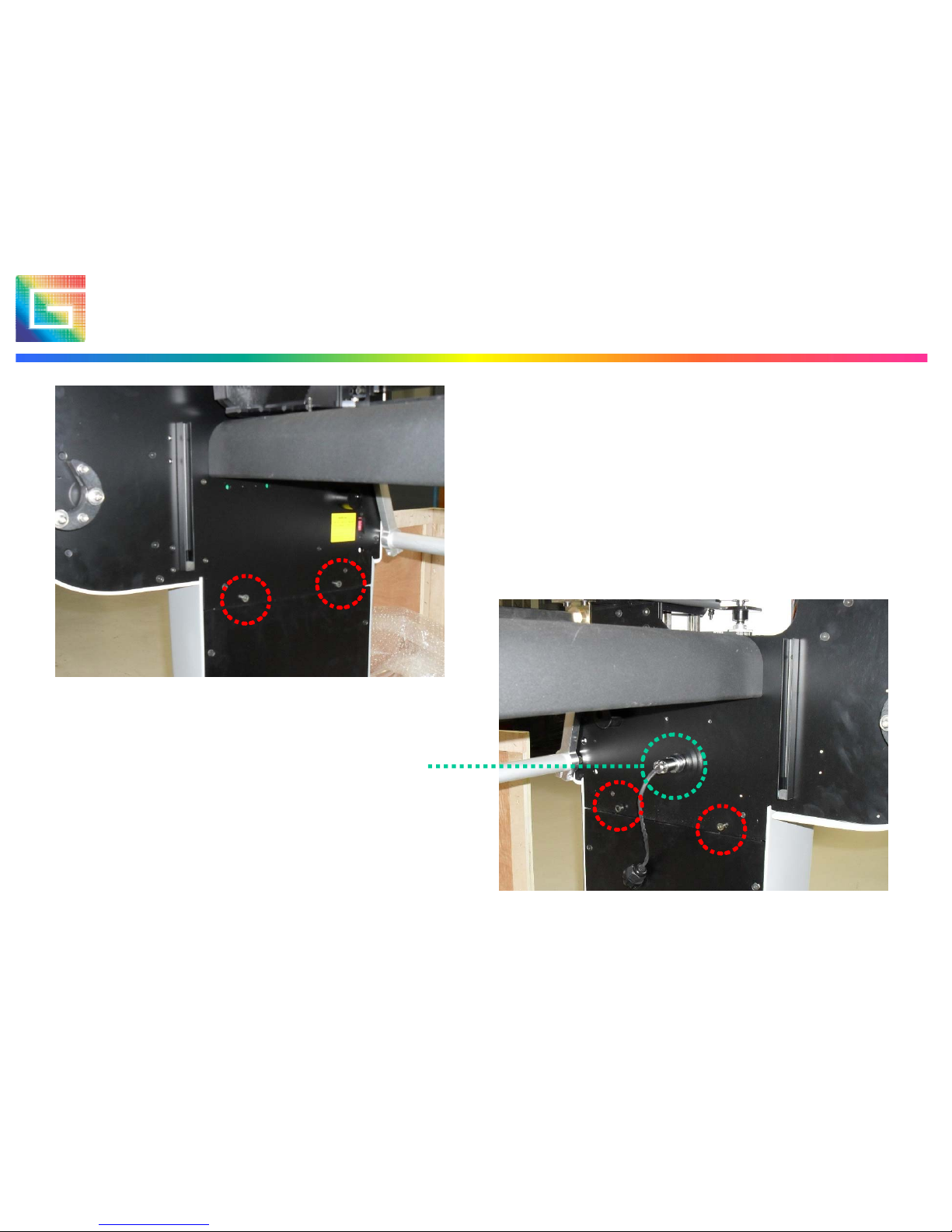

Hardware Installation (step by step)
7. Secure the plotter top to the
base using the 4 remaining M6
screws and 5mm Allen wrench
supplied.
8. Do not forget to plug in the
connector for the paper supply
motor in the right base assembly
