在使用之前請詳細閱讀「使用說明書」及「保用條例」

，並妥為保存。

Please read these instructions and warranty information carefully

before use and keep them handy for future reference.

Central Storage Electric Water Heater

中央系統儲水式電熱水器

型號 Model No.:

機身號碼 Serial No.:

購買商號 Purchase From:

發票號碼 Invoice No.:

購買日期 Purchase Date:

以下資料供貴戶維修時作核對之用，請妥善保存本保用證明書及產品發票正本。

The following information is required when you call in for repair services. Please save this

warranty handbook and the original purchase invoice for future reference.

貴戶須在購買本產品十天內，以下列其中

一種方式向本公司登記資料，保用手續方

正式生效﹕

1) 填妥本公司網頁內之保用登記表格

www.germanpool.com/warranty。

2) 填妥保用登記卡，連同發票副本一併郵

寄到客戶服務部 (本公司將不發還發票

副本或登記卡)。

This warranty is not valid until Customer’s

registration information is returned to and

received by our Service Centre within 10 days

of purchase via one of the following methods:

1) Visit our website and register online:

www.germanpool.com/warranty.

2) CompletealleldsontheattachedWarranty

Card and mail it back to our Customer Service

Centre along with a photocopy of the purchase

 invoice(WarrantyCardandinvoicecopywill

not be returned to Customer).

P.3

目錄 Table of Contents

產品特點 Features 04

產品規格 Specications 05

產品結構 Product Structure 06

安裝說明 Installation Instructions 08

使用說明 Operating Instructions 10

電路圖 Wiring Diagram 11

保用條款 Warranty Terms & Conditions 14

內膽結構

Inner Tank Material

採用長期耐高溫及受高壓容器專用之日本特殊不銹鋼製造，內膽結構堅

固，保證防銹、耐壓及不受水質侵蝕。

Constructed of Japanese heavy gauge stainless steel, specially made for high

temperature and pressure applications. It is durable and free of rust, corro-

sion, deformity and hassle.

保溫

Thermal Insulation

完密噴注式保溫層，採用高密度合成樹脂纖維絕熱法保持溫度，失溫程

度達至最低，保持熱水溫度。

Maximum thermal insulation is achieved by high-density polyurethane foam

injectionmouldedorbya2”thickbreglassblanketbetweentheinnertank

and outside casing.

發熱管

Heating Element

德國原廠優質不銹鋼發熱管，獨立功率由 1.5千瓦至 12千瓦，符合各

種不同之熱水要求。

Prime quality stainless steel heating element from Germany ensures maxi-

mumthermalefciencyeveninplaceswheredifferentvoltageapplies.

來水要求

WaterSupplySource

直接自來水供應或水箱供應均可。

Main supply or water tank supply.

來水壓力

WaterSupplyPressure

500 kPa (5 bar) 或以下。

500 kPa (5 bar) or below.

試水壓力

Test Pressure

2,000 kPa (20 bar).

超溫感應

Temperature Relief

當水溫達到90℃時，超溫感應排放閥門便會自動打開。

Whenwatertemperaturereaches90°C,waterwillbereleasedthroughthe

Temperature Relief Valve.

溫度調節器

Thermostat

法國原廠高靈敏度溫度調節器，可隨時調校水溫(最高溫度75℃)。

HighsensitivitythermostatimportedfromFrance.Watertemperaturecanbe

convenientlyadjustedupto75˚C.

防水等級

WaterResistance

IPX4.

符合規格

Conformity

機電工程署電氣產品﹙安全﹚條例。

Electrical Products (Safety) Regulation, Hong Kong.

認證標準

Certications

IEC 60335-2-21

IEC 60335-1

P.4

德國寶GPU系列中央儲水式電熱水器採用先進

科技及根據國際標準(IEC)生產而成，同時可

接駁多個出水位使用，符合世界所有國家有關

之安全標準及水務條例。除設有水線防止漏電

外，更配備「五重保險裝置」，確保安全︰

•自動恆溫設備

•超溫斷路設備

•超溫感應排放閥

•超壓感應排放閥

•防倒流裝置

產品特點 Features

German Pool GPU Series Central Storage Electric

WaterHeaterisdesignedformulti-pointapplication.

It conforms to the Standards of International

Electro-technical Commission (IEC Standards) and

complies with safety standards and waterworks

regulations worldwide. GPU is built-in with “5-Tier

Safety Device” for absolute safety:

•AutomaticThermostaticControl

•ThermalCutout

•TemperatureReliefValve

•PressureReliefValve

•Anti-VacuumDevice

P.5

產品規格 Specications

型號

Model

容量

Capacity

電壓

Voltage

功率

Power

參考重量

Weight

加侖

Gallon

公升

Litre

伏特

(單相)

Volt

(1 Phase)

伏特

(三相)

Volt

(3 Phase)

千瓦

(單相)

kW

(1 Phase)

千瓦

(三相)

kW

(3 Phase)

千克

(淨重)

(NetWeight)

千克

(滿水)

(Filled)

GPU-3.5 3.5 15 220 N/A 2N/A 7 20

GPU-6.5 6.5 25 220 N/A 3/4 N/A 9.5 34.5

GPU-8SL 8 30 220 N/A 3/4 N/A 16 46

GPU-10 10 40 220 380 3/4 6 13.8 51.8

GPU-15 15 60 220 380 3/4 6/9 18.5 75.5

GPU-20 20 80 220 380 3/4 6/9 22 98

GPU-25 25 100 220 380 3/4 6/9 25.5 120.5

GPU-30 30 120 220 380 3/4 6/9/12/18 31 145

GPU-40 40 150 220 380 3/4 6/9/12/18 39 190

GPU-50 50 200 220 380 3/4 6/9/12/18/

24/27/36

46.5 235.5

GPU-60 60 230 220 380 3/4 6/9/12/18/

24/27/36

55 275

GPU-80 80 300 N/A 380 N/A 6/9/12/18/

24/27/36/48

63.6 302.8

GPU-100 100 400 N/A 380 N/A 6/9/12/18/

24/27/36/

48/60

75.6 454.6

GPU-150 150 600 N/A 380 N/A 6/9/12/18/

24/27/36/

48/60/72

94 662

GPU-200 200 800 N/A 380 N/A 6/9/12/18/

24/27/36/

48/60/72/84

120 877

GPU-260 260 1000 N/A 380 N/A 6/9/12/18/

24/27/36/48

60/72/84/96

152 1152

產品規格及設計如有變更，恕不另行通知。

Specicationsaresubjecttochangewithoutpriornotice.

中英文版本如有出入，一概以中文版為準。

If there is any inconsistency or ambiguity between the English version and the Chinese version,

the Chinese version shall prevail.

P.6

產品結構 Product Structure

456 4 7

防倒流裝置

超溫及超壓排放閥

發熱線

排水管

出水位 (熱)

入水位 (冷)

恆溫器

GPU-8SL

Anti-VacuumDevice

Pressure & Temperature Relief Valve (PTV)

Heating Element

Drain

Outlet (Hot)

Inlet (Cold)

Thermostat

P.7

4 6

防倒流裝置

超溫及超壓排放閥

發熱線

排水管

出水位 (熱)

入水位 (冷)

恆溫器

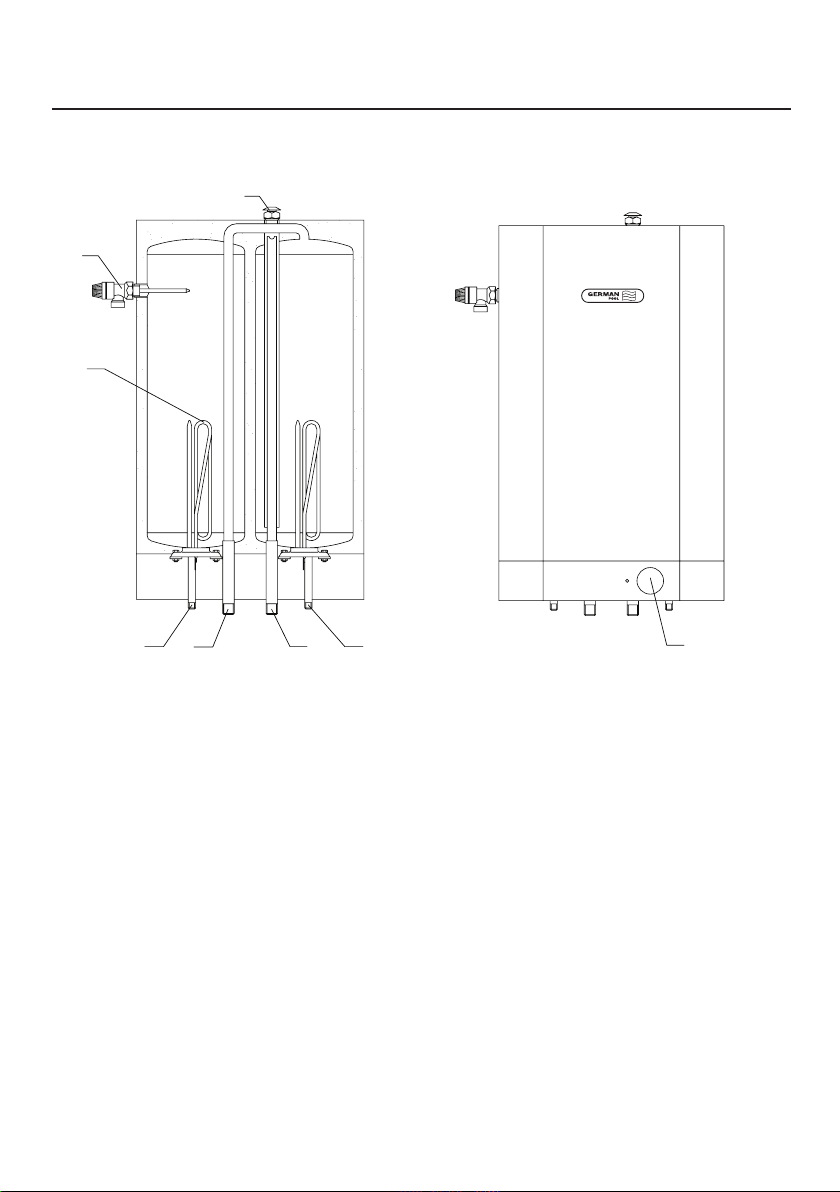

產品結構 Product Structure

GPU (垂直掛牆型 — 8SL型號除外 Vertical Wall-Mount Style — Except 8SL)

Anti-VacuumDevice

Pressure & Temperature Relief Valve (PTV)

Heating Element

Drain

Outlet (Hot)

Inlet (Cold)

Thermostat

P.8

Positioning

Position water heater near water tap / point of use

in order to minimize heat loss. For wall-mount style,

appropriate anchor screws must be used and wall

should be strong enough to withstand the weight

of water heater. Keep a minimal distance between

wall and water heater.

Connecting PTV and Inlet/Outlet Pipes

APressure&TemperatureReliefValve(PTV)is

suppliedwitheachGPUwaterheater.Waterwillbe

released through the PTV when water temperature

reaches90˚Corwhenwaterpressurereaches

1000 kPa in the inner tank.

PTV and water inlet & outlet must be installed

according to the following instructions:

1. Fit PTV to the marked position (normally it is

located on the upper side of the water heater

and is labeled “PTV”).

2. Connect the inlet pipe (blue) with water supply.

Then connect the outlet pipes (red) with supply

pipe leading to points of use. The diameter of

piping should be 1/2” BSP.

3. Turn on the hot water tap. Turn on water supply

 switchuntiltheinnertankhasbeenlledup

 withwater.Theinnertankhasbeenlledup

 whenwaterowsfromthewatertap.

安裝定位

熱水器應盡量安裝於接近出水龍頭之位置，以

減省熱量損耗。

掛牆型號須以膨脹螺絲安裝於能負重之牆壁位

置上，並調整至緊貼牆壁為佳。

排放閥及水喉接駁

每部GPU熱水器均附上超溫及超壓感應排放閥

(簡稱PTV) 一枚，當內膽水溫升至90℃或水壓

達至1000 kPa 時，熱水會經PTV排出。

PTV及出入水喉必須按照以下指示安裝︰

1. 取出PTV，安裝於指定位置(通常設在熱水器

上半部側面，並貼有PTV標示) 。

2. 將自來水喉接駁到入水喉 (藍色)，再由出水

喉(紅色) 接駁水喉通往各個出水龍頭。水喉

管件直徑應為½”英吋。

3. 接駁妥當後，打開出水龍頭 (紅色熱水掣)，

然後打開水源總掣讓自來水注入熱水器內。

當水從龍頭流出，表示內膽滿溢，此時可關

掉紅色熱水掣。

安裝說明 Installation Instructions

安裝前注意

安裝必須使用原廠配件。若不按指示方法安

裝及使用而引致任何損壞，本公司概不負責。

安裝工作應由專業持牌水電技術人員負責。

Pre-Installation Notice

Installation should be done by a licensed

technician using the supplied parts. German Pool

is not responsible for any defect or damage

caused by incorrect or unauthorized installation.

P.9

安裝說明 Installation Instructions 安裝說明 Installation Instructions

接電方法

由電箱獨立伸延一條適合之電線(見下表)至浴室

門外接駁獨立開關掣，再將電線伸延至熱水器

穿進灰色線夾接到電線排上分別接上水線(N)，

火線(L)，及地線( )等。

Electric Wiring

Use an independent wire (refer to table below)

leading from the meter box and connect it to an

independent on/off switch outside bathroom.

Extend the wire through the grey wire grip on the

water heater. Dismount the bottom plate and wire

up Neutral (N), Life (L) and Earth ( ) terminals.

發熱線功率 (千瓦)

HeatingElementRating(kW)

所需電源(安培)

ElectricCurrent(A)

電源線最低要求(平方毫米)

Wiring(mm²)

1.5kW 8A(單相1PE) 1.5mm²

2kW 10A(單相1PE) 2.5mm²

3kW 15A(單相1PE) 2.5mm²

4kW 20A(單相1PE) 4.0mm²

6kW 30A(單相1PE) 6.0mm²

8kW 40A(單相1PE) 10.0mm²

9kW 15A(三相3PE) 2.5mm²

12kW 20A(三相3PE) 4.0mm²

電源開關掣

設於熱水器外用以切斷電源供應之開關掣，應全

極切斷電源，兩極之間應保持最少3mm距離。

測試使用

水喉與電源接駁妥當及內膽注滿水後，便可進

行通電。此時指示燈會亮著，用戶便可將自動

恆溫旋鈕調校至最高度數。當溫度達到75℃

時，恆溫器即會自動停止加熱。選擇適當溫度

後不應以恆溫旋鈕當作開關掣使用，因此舉會

縮減該配件之使用壽命。

Power Switch

The external switch is used to completely

disconnect water heater from power supply.

It should disconnect all poles, and a contact

separation of at least 3 mm must be present.

Testing

Whenthepipingandwiringareconnectedand

innertankhasbeenlledupwithwater,switchon

the power. The indicator on the water heater will

be lit. Turn control knob to the desired temperature

(Max.temperatureis75°C).Donotusethecontrol

knob as an on/off switch.

P.10

超溫及超壓排放閥(PTV)

- 接駁PTV之排水喉出口必須向下垂，並保

持開放與大氣接觸，且須確保周圍環境不

會結霜。

- 超溫及超壓排放閥(PTV)之手動掣須定時

撥動，以防止被水中之沉澱及礦物積聚而

阻塞。

- 如發覺水從PTV之排水喉排出，請立即關

掉電源及水源供應，然後致電本公司維修。

正常情況下，如供水系統之來水水壓超過500

kPa (5 Bar)，用戶必須額外加裝減壓器將水壓

調低。

Pressure & Temperature Relief Valve (PTV)

- The discharge pipe connecting to the PTV must

be pointing downward and in a frost-free

environment.

- Turn the lift handle or rotational cup of the PTV

regularly in order to prevent deposits in water

causing blockage to the easing gear.

- WhenwaterisdischargedthroughPTVpipe,

shut off power and water supply immediately.

Then contact our Customer Service Centre

for repair.

Under normal working conditions, incoming pressure

should not exceed 500 kPa (5 Bar). Otherwise, a

separate pressure control device is necessary.

使用說明 Operating Instructions

警告

1. 必須嚴密看管兒童，防止他們接觸及把玩

熱水器，以免燙傷、觸電或受傷。

2. 嚴禁兒童及殘疾人士在無監護人看管的情

況下單獨使用熱水器，他們應在成人指導

下使用本產品。

3. 若設置溫度超過50°C，會有燙傷危險，所

以必須混合冷水後才使用。

4. 電源進線段應加裝漏電保護裝置，漏電保

護裝置的額定動作電流應不大於30mA。

Warning

1. Do not allow children to touch or play with the

water heater. Supervision is required during

use, in order to prevent the danger of a scald,

electrical shock or any other injuries.

2. This water heater is not intended to be operated

by children or disabled persons alone. They must

be supervised by adults responsible for their safety.

3.Ifthetemperatureissetabove50˚C,coldwater

must be mixed in to prevent the danger of a scald.

4.Anelectric-leakageprotectiondevicemustbe

installed to the power inlet. The electric current

ofthisprotectiondeviceshouldbebelow30mA.

! !

注意

如來水壓力超過500 kPa而用戶未有安裝減壓

器，本公司有權拒絕為熱水器進行任何維修。

Note

Whenincomingwaterpressureexceeds500kPa,

German Pool will not provide any repair service

until a pressure control device is installed.

內膽排水

如要將內膽內的水排走，必須先關掉電源及水

源，待剩餘之熱水冷卻後，旋開排水喉之喉蓋

讓水排出。

水質問題

若來水水源為河水、井水、地下水或礦物質含

量較高，用戶必需經常定期清洗發熱線以確保

發熱線正常運作及發揮最佳製熱效能。

Draining

Todrainoutwaterfromtheinnertank,rstswitch

off both power and water supply. Let hot water

inside the inner tank cool down. Then unscrew the

drain pipe nut to release water.

Source of Water Supply

If the water source is a river, a well, underground

water or has relatively high mineral content, user

must clean the heating element regularly to ensure

itwilloperateatoptimumthermalefciency.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere German pool Boiler Handbücher

German pool

German pool DCX Bedienungsanleitung

German pool

German pool GPI-M5 Bedienungsanleitung

German pool

German pool GPU Series Bedienungsanleitung

German pool

German pool GPN Bedienungsanleitung

German pool

German pool cex9 Bedienungsanleitung

German pool

German pool DEX12 Bedienungsanleitung

German pool

German pool GPUB-6SSL Bedienungsanleitung

German pool

German pool GPI-M8 Bedienungsanleitung

German pool

German pool CRH9 Bedienungsanleitung

German pool

German pool CEX21 ELECTRONIC MPS Bedienungsanleitung

German pool

German pool GPI-M6 Bedienungsanleitung

German pool

German pool DSX Bedienungsanleitung

German pool

German pool GPI-M5 Bedienungsanleitung

German pool

German pool GPU Bedienungsanleitung

German pool

German pool DB Bedienungsanleitung

German pool

German pool GPU Series Bedienungsanleitung

German pool

German pool GPN Bedienungsanleitung

German pool

German pool GPU-6SSL Bedienungsanleitung

German pool

German pool GPU-6SSM Bedienungsanleitung

German pool

German pool cex9 Bedienungsanleitung

German pool

German pool GPN Series Bedienungsanleitung

German pool

German pool GPNB Series Bedienungsanleitung

German pool

German pool GPI-M6 Bedienungsanleitung

German pool

German pool GPS13 Series Bedienungsanleitung

Beliebte Boiler Handbücher anderer Marken

Kenmore

Kenmore 153.582400 Bedienungsanleitung

Applimo

Applimo Edel AIR Bedienungsanleitung

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Bedienungsanleitung

clage

clage E-Mini Series Bedienungsanleitung

Toyotomi

Toyotomi Oil Miser OM-180 Bedienungsanleitung

Bradford White

Bradford White EF Series Bedienungsanleitung

Eccotemp

Eccotemp 40-H Bedienungsanleitung

Dimplex

Dimplex ECSd125-580 Leitfaden

Dux

Dux 32FCR6N Bedienungsanleitung

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Fehlerbehebungshandbuch

Noritz

Noritz N-132M Gebrauchsanweisung

TESY

TESY GCV7/4S 10047 Technisches Datenblatt

A.O. Smith

A.O. Smith Gphe 50 Bedienungsanleitung

Koryo

Koryo KWHZF15Y Bedienungsanleitung

Pentair

Pentair PSC-14-4-02 Bedienungsanleitung

GE 40M06AAG Montageanleitung

Thermor

Thermor AEROMAX SPLIT 2 Bedienungsanleitung

American Hometec

American Hometec AHQ-B03X Bedienungsanleitung
