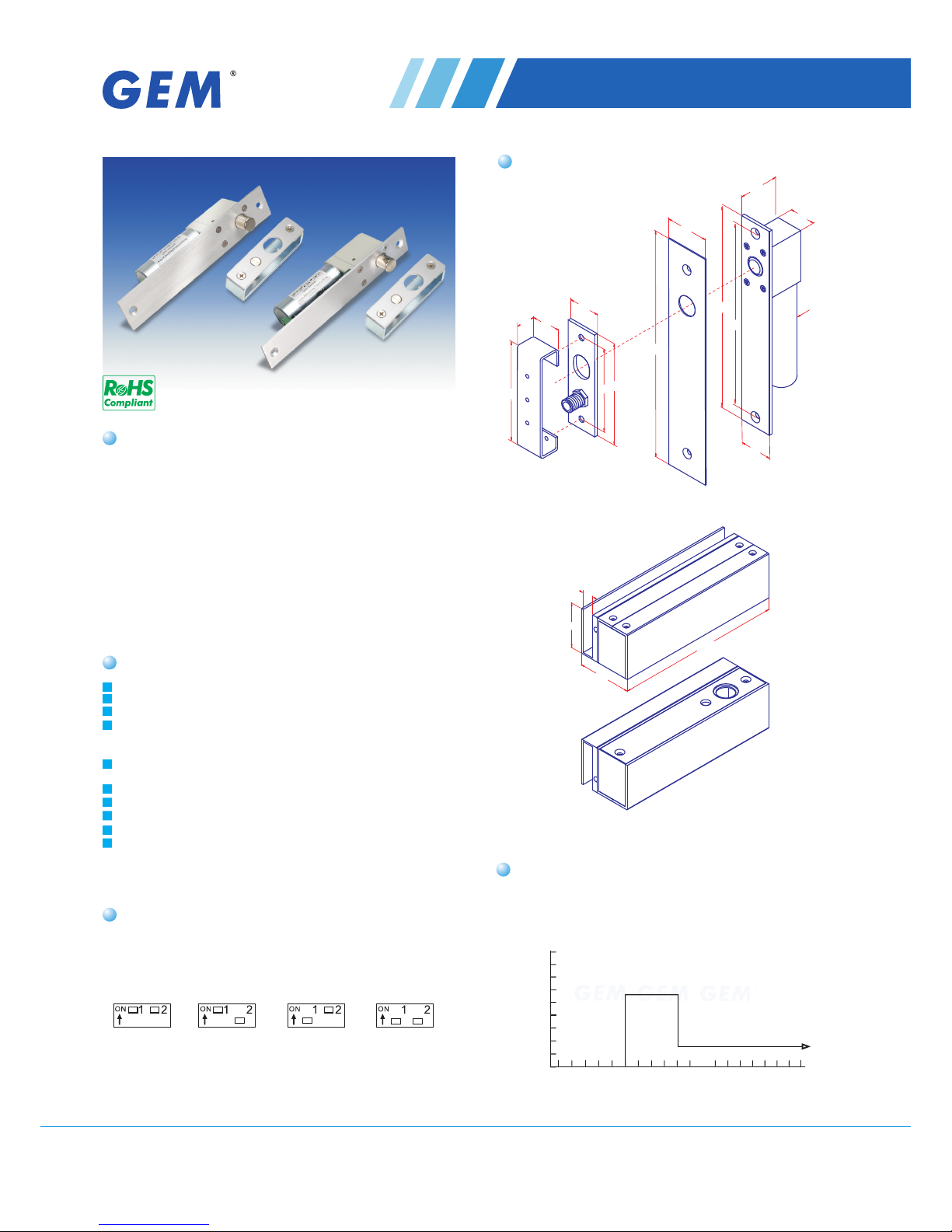

Gianni Industries EB-200N Bedienungsanleitung

Statement

Dimension

Specifications

EB-200N ELECTRIC DROPBOLT

EB-200N

EB-200NVGL

EB-200N-32EB-200N-38

Unit: mm

203

183

(38)

225

Ø30

100

Fail-Safe Version (Power to Lock)

Operating Voltage: 12 V DC

Voltage Tolerance: 10%

Current Draw:

Pull in: 0.9A, Holding: 0.3A/12VDC

(at temperature 20°C)

Door Position status output (Reed rated 0.25A/30VDC)

indicates door opened or closed status.

Operating Temperature: -10~+45°C

Humidity: 0~95% non-condensing.

Tested to 500000 cycles.

Auto-relocking Time Delay : 0, 3 ,6 ,9seconds

Net Weight: 1.2 Kg

The EB-200N electric dropbolt is one of

the most economical choices and it also

has a complete optional accessories

included. The EB-200N electric dropbolts

are available in 32 mm and 38 mm wide

faceplates. For the surface mount

application, it can be used with SMB-

200N surface mount back case. Also,

after the door installs with the UBK-200N-

Pull in

Holding

Current Draw (mA)

Time (seconds)

0 seconds 3 seconds 6 seconds 9 seconds

Relock Time Delay

205

Energy Saving Design

Adjustable Time Delay of 0,3,6,9 seconds with 2 way DIP

switch. (Default Value: 0 sec.)

Relock Time Delay

GIANNI INDUSTRIES, INC.

After the dropbolt is completely locked , the current draw

changes from 0.9A into 0.3A to prolong its lifetime.

DM-CA-EB-200N Ver. F Published on 2011.07.12 No. 13, Zhongxing Rd., Tucheng Dist., New Taipei

City 236,Taiwan (R.O.C.)

Tel: 886-2 2267 7986 / Fax: 886-2 2267 987 6

E-Mail: inquiry@gianni.com.tw

Website: gianni.tw

Horizontal or vertical installation

Horizontal Installation

(Frame Header)

Sensor

EB-200N ELECTRIC DROPBOLT

Solid bolt for superior strength

Greater security is provided by the 13.5mm diameter (

solid stainless steel bolt with hardened magnet

core, which has resistant to metal cutting saws. The bolt also

rotates freely, making attempts to tamper or cut extremely

difficult.

16mm

bolt throw)

The product is warranted against defects in material and

workmanship while used in normal service for a period of 1

year from the date of sale to the original customer. The GEM

policy is one of continual development and improvement;

therefore GEM reserves the right to change specifications

without notice.

Warranty

The KR-140 Key switch is also available to be installed

together with Electric Dropbolt Locks, which provide the

emerge ncy manual re lease capa bility to prevent any

unpredictable circumstances that disabled the Electric

Dropbolt Locks.

Optional Accessory

Optional Brackets

UBK-200N-38

(U-bracket )

EB-200NVGL

SMB-200N

(Completed housing )

The unit may also be fitted semi-flush with the use of the

SMB-200N completed housing. Or the EB-200N may also be

fitted to a full glass door and glass frame application, using

2pcs of the SMB-200 Bracket and 2pcs of the UBK-200N-38

mounting brackets (EB-200NVGL). The thickness of glass are

10~13 mm maximum.

Surface Installation

Installation on Full Frameless Glass Door

Special designed solenoid for strength and long life

operating lifetime with guaranteed 500,000 operations.

Long life solenoids

GEM's electric dropbolts can be installed either horizontally

at the top or bottom of the door frame or vertically on the side

of the door frame.

Smart Circuitry

The vandal resistant circuitry means the door close sensor

can't be fooled into projecting the electric dropbolt unless the

door is actually closed. The reed sensor automatically

disconnects after the bolt is projected to enhance security of

the lock.

(Cylinder is excluded)

GIANNI INDUSTRIES, INC.

No. 13, Zhongxing Rd., Tucheng Dist., New Taipei

City 236,Taiwan (R.O.C.)

Tel: 886-2 2267 7986 / Fax: 886-2 2267 987 6

E-Mail: info@gianni.com.tw

Website: gianni.tw

DM-CA-EB-200N Ver. F Published on 2011.07.12
