Gianni Industries ML-210 Bedienungsanleitung

ML-210

ML-210-SW

Operating Voltage» ML-210: 12 or 24VDC

ML-210-SW: 12~24VDC/AC

Voltage Tolerance» ±10%

Current Draw» ML-210: 280mA/12VDC; 140mA/24VDC

ML-210-SW: 210mA/12VDC; 150mA/24VDC

Version Changeable» Fail-safe or Fail-secure

Operating Temperature» -10~45°C

Humidity» 0~95% non-condensing

Lock bolt sensor switch output» SPDT rated 3A/125VAC

Solenoid testing» Tested to 1,000,000!cycles

Net Weight» ML-210: 540g / ML-210-SW: 555g

Just applicable to vertical installation Double swing door

Unit:mm

Double Swing Doors

Electromechanical Lock

Installation Instruction

Specifications

Fixing Lug

Allen wrench (1.6mm)

Nib

Lock bolt

Strike Plate

Packing Contents Template

Outswing Inswing

Version Changeable:

Take out the Screw 1 , release the screw 2 , move the

position and then tighten both screws.

“Fail-Safe”

(Power to Lock) “Fail-Secure”

(Power to Open)

Caution:

Do not completely remove screw 2 (as marked in the figure)

as the interior solenoid might fall off.

ø5.0

4-R2

210

253

150

206

Butt Splice (IDC) Connector

Using crimper or pliers and pressing the header of

connector down to even position.

Cut on dotted line

Alignment CL

4-4

ø5.0

210

ø5.0

150

ø5.0

Unit:mm

Installation Instructions

Door Loop

(Optional)

The door loop protects the wiring

from damage at the door hinge.

Attention! Please ensure that the

template is the correct way up

Alignment CL

oor

ø5.0

Cut out mortise holes for the lock

body and strike plate and drill Tighten the fixing lugs with

Doo

r Leaf

Connect power cable to the lock

and test before screwing to the Affix the strike plate.

ram

Align the center line (CL) of the lock

bodytemplate with the CLofthe door

leaf. Ensure the CL of the strike plate

templatematchesthelockbodyCLas

closely as possible. holes according to the templates. screws.

door leaf.

4-2

12VDC Power supply12VDC Power supply

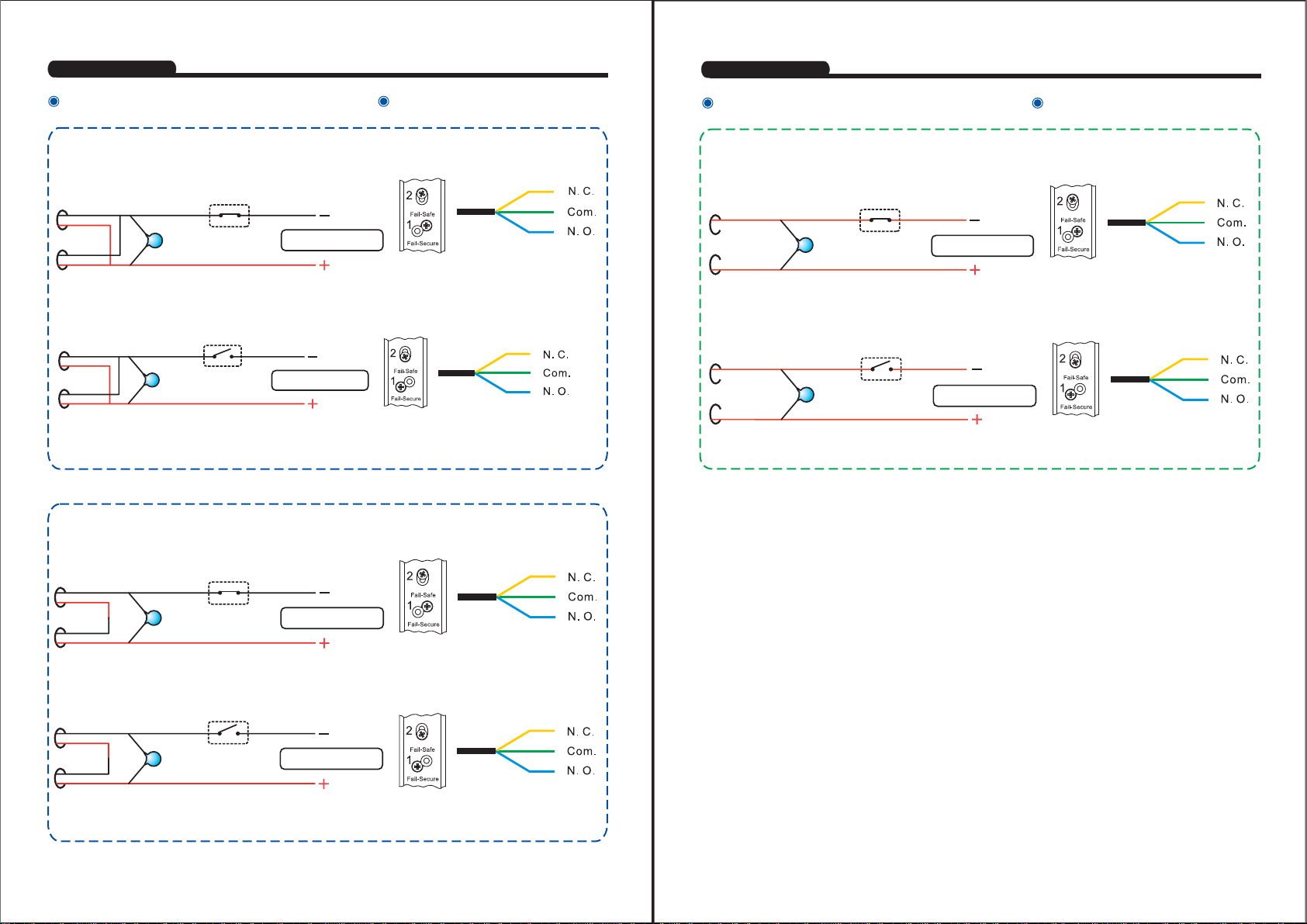

Wiring Diagram

ML-210 Voltage Input: 12 or 24VDC Lock bolt sensor status output

For 12VDC operation, the solenoid input wires

should be connected in parallel as shown.

Black

Red

Black

Red Varistor

Access Control Device

N.C. contact

(Power input is polarity free)

Yellow

Green

Blue

“Fail-Safe”

(Power to Lock)

“Fail-Secure”

(Power to Open)

Yellow

Green

Blue

Access Control Device

N.O. contact

Varistor

Black

Red

Black

Red (Power input is polarity free)

For 24VDC operation, the solenoid input wires

should be connected in series as shown.

12VDC Power supply

Black

Red

Black

Red Varistor

(Power input is polarity free)

24VDC Power supply

“Fail-Safe”

(Power to Lock)

Yellow

Green

Blue

Access Control Device

N.O. contact

Black

Red

Black

Red Varistor

(Power input is polarity free)

24VDC Power supply

Yellow

Green

Blue

“Fail-Secure”

(Power to Open)

Access Control Device

N.O. contact

4-3

Wiring Diagram

ML-210-SW Voltage Input: 12~24VDC/AC Lock bolt sensor status output

For the 12~24VDC/AC operation only

NOTE: The varistor (or diode) must be connected across the terminals as shown. This protects the electromechanical lock

from spikes and surges.

12~24VDC/AC Power supply

“Fail-Safe”

(Power to Lock)

Red

Red Varistor

(Power input is polarity free)

Yellow

Green

Blue

Access Control Device

N.O. contact

Red

Red Varistor

12~24VDC/AC Power supply

(Power input is polarity free) “Fail-Secure”

(Power to Open)

Yellow

Green

Blue

Access Control Device

N.O. contact
