1-1. Using AORUS Notebook for the First Time

DCIN

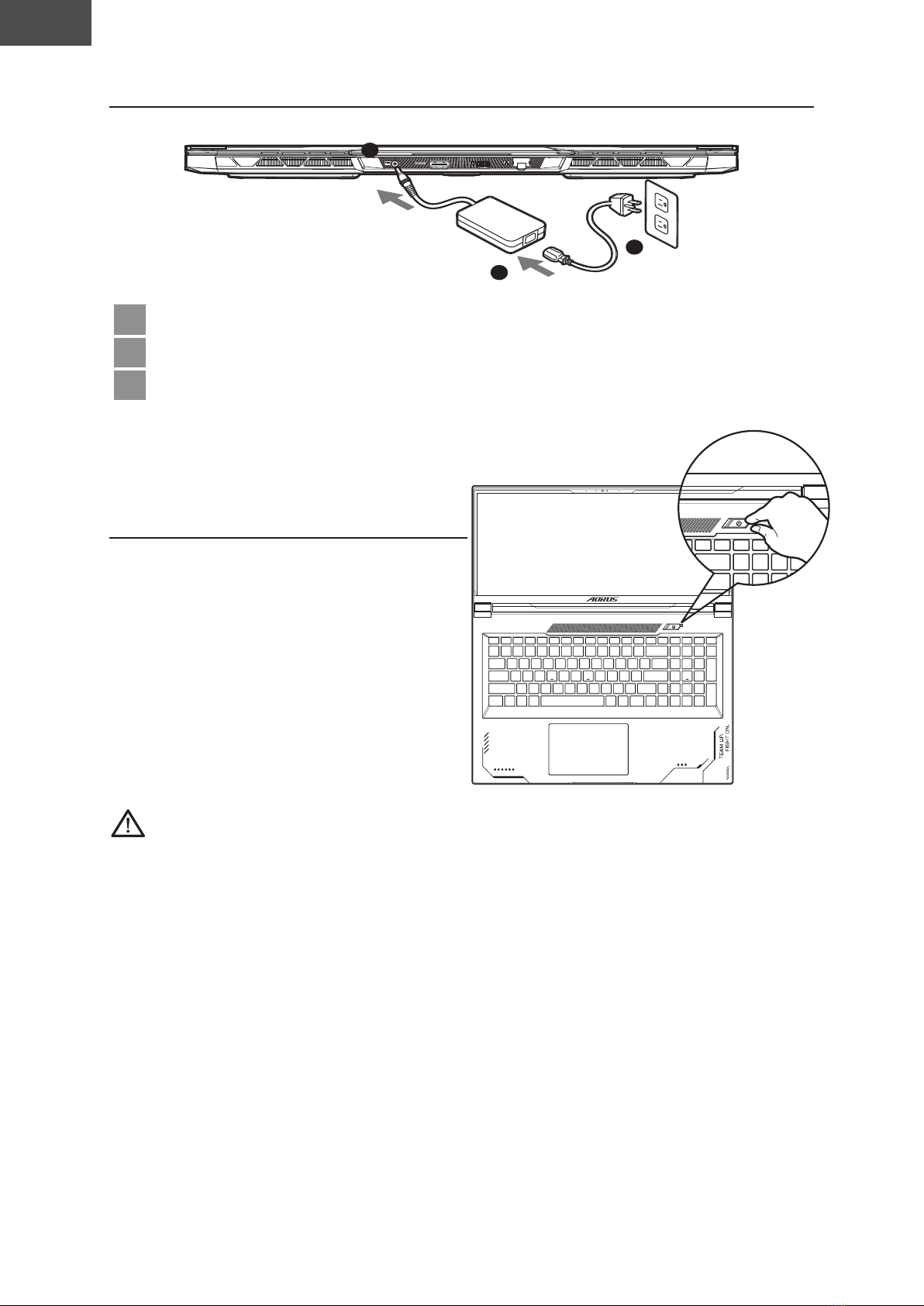

1Connect the power cord to the AC adapter.

2Connect the AC adapter to the DC-in jack of the notebook.

3Connect the power cord to the power outlet.

1-2. Switching on the Power

After you turn on the notebook for the

very rst time, do not turn it off until the

operating system has been congured.

Please note that the volume for the

audio will not function until Windows®

Setup has completed.

IMPORTANT:

● Ensure that your Notebook PC is connected to a grounded power adapter before turning it on for the first time.

● When using your Notebook PC on power adapter mode, the socket outlet must be near to the unit and easily

accessible.

● Locate the input/output mark on your Notebook PC and ensure that it matches the input/output rating informa-

tion on your power adapter. Some Notebook PC models may have multiple rating output currents based on the

available SKU.

● Power adapter information:

- Input voltage: 100-240Vac

- Input frequency: 50-60Hz

- Rating output voltage 19.5V, 16.92A

* Product specications and product appearance may differ from country to country.

We recommend that you check with your local dealers for the specications and appearance of the products available in your country.

* Although we endeavor to present the most accurate and comprehensive information at the time of publication,

we reserve the right to make changes without prior notice.

English

004

2. AORUS Notebook Tour

SS SS

DCIN

SS SS

DCIN

10 11

SS SS

DCIN

12 13 14 15

SS SS

DCIN

SS SS

DCIN

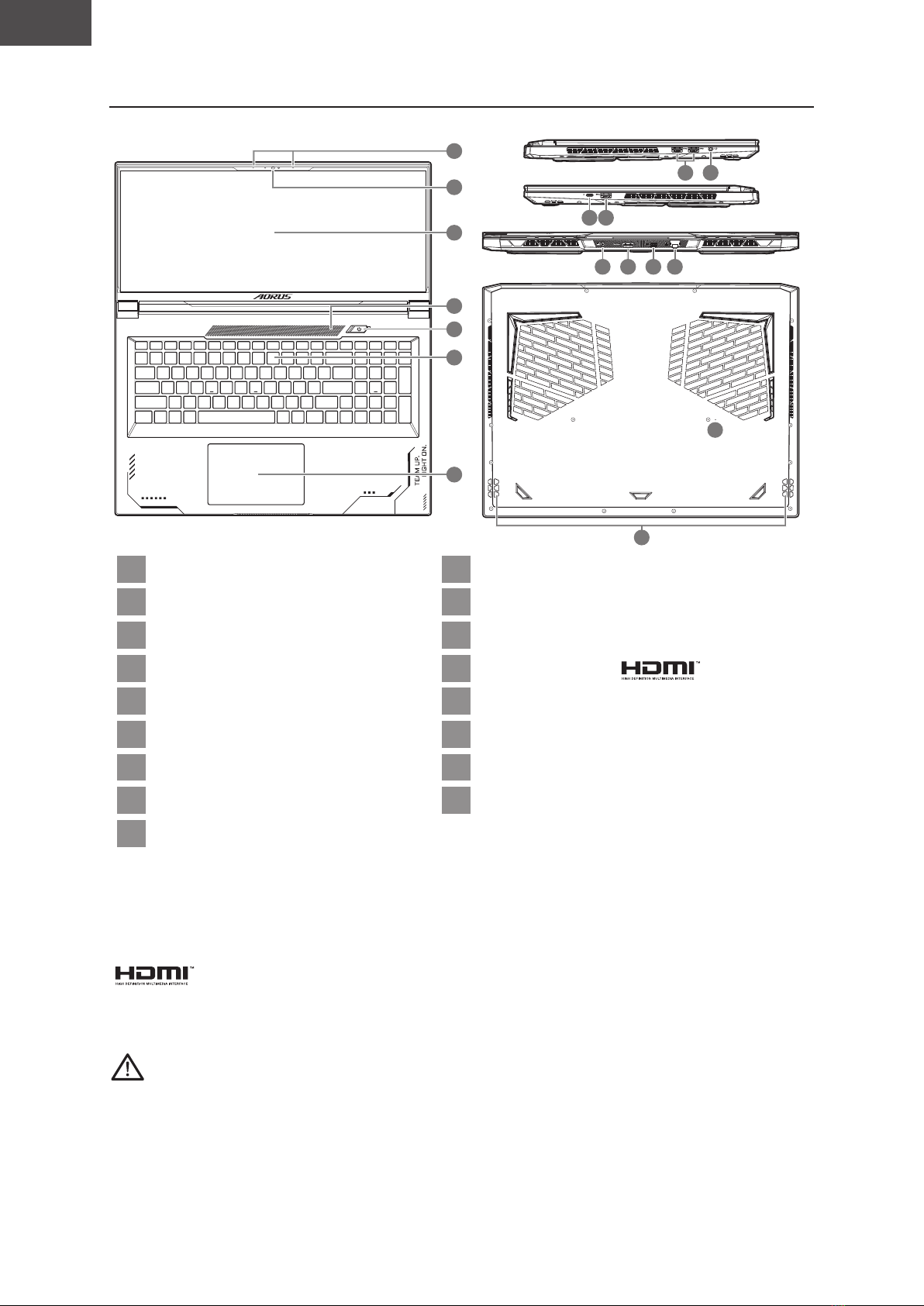

1Microphone 10 Thunderbolt 4 Port (USB type-C)

2Webcam 11 USB 3.2 Port (USB type-A)

3Display Panel 12 Power Input Port (DC)

4Light Sensor Area* 13 HDMI 2.1 Port

5Power Button 14 Mini DisplayPort 1.4

6Keyboard 15 Ethernet Port (LAN)

7Touchpad 16 Battery Reset Hole**

8USB 3.2 Port (USB type-A) 17 Speaker

9Audio Combo Jack

* The system will adjust the brightness of the screen automatically according to the ambient light, beware not

to cover this area.

** Whenever the system hangs , please:

(1) Power off the notebook; (2) Remove the AC power; (3) Use a straightened paperclip and insert it to this

hole for 4 secs; (4) Waiting for 15 secs then connect the AC power; (5) Power on the notebook.

The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress

and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator,

Inc. in the United States and other countries.

IMPORTANT:

● Do not remove the built-in lithium battery.

For any service needs, please contact your local GIGABYTE Authorized Service Center.

● Do not install the Notebook PC on a slant or a place prone to vibrations, or avoid using the Notebook PC in

that location for a long time.This increases the risk that a malfunction or damage to the product will occur.

● Do not store and use Notebook PC in direct sunlight or the location where temperatures exceed 112°F (45°C)

such as inside a vehicle.There is a danger of Lithium-ion battery expansion and aging.

● Do not use the Notebook PC in a badly ventilated location such as on bedding, on a pillow or cushion, etc,

and do not use it in a location such as room with floor heating as it may cause the computer to overheat.

Take care that the Notebook PC vents (on the side or the bottom) are not blocked especially in these environ-

ments. If the vents are blocked, it may be dangerous and cause the Notebook PC to overheat.

English

005

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer’s

controls like screen brightness and volume output. To activate hotkeys, press and hold the

<Fn> key before pressing the other key in the hotkey combination.

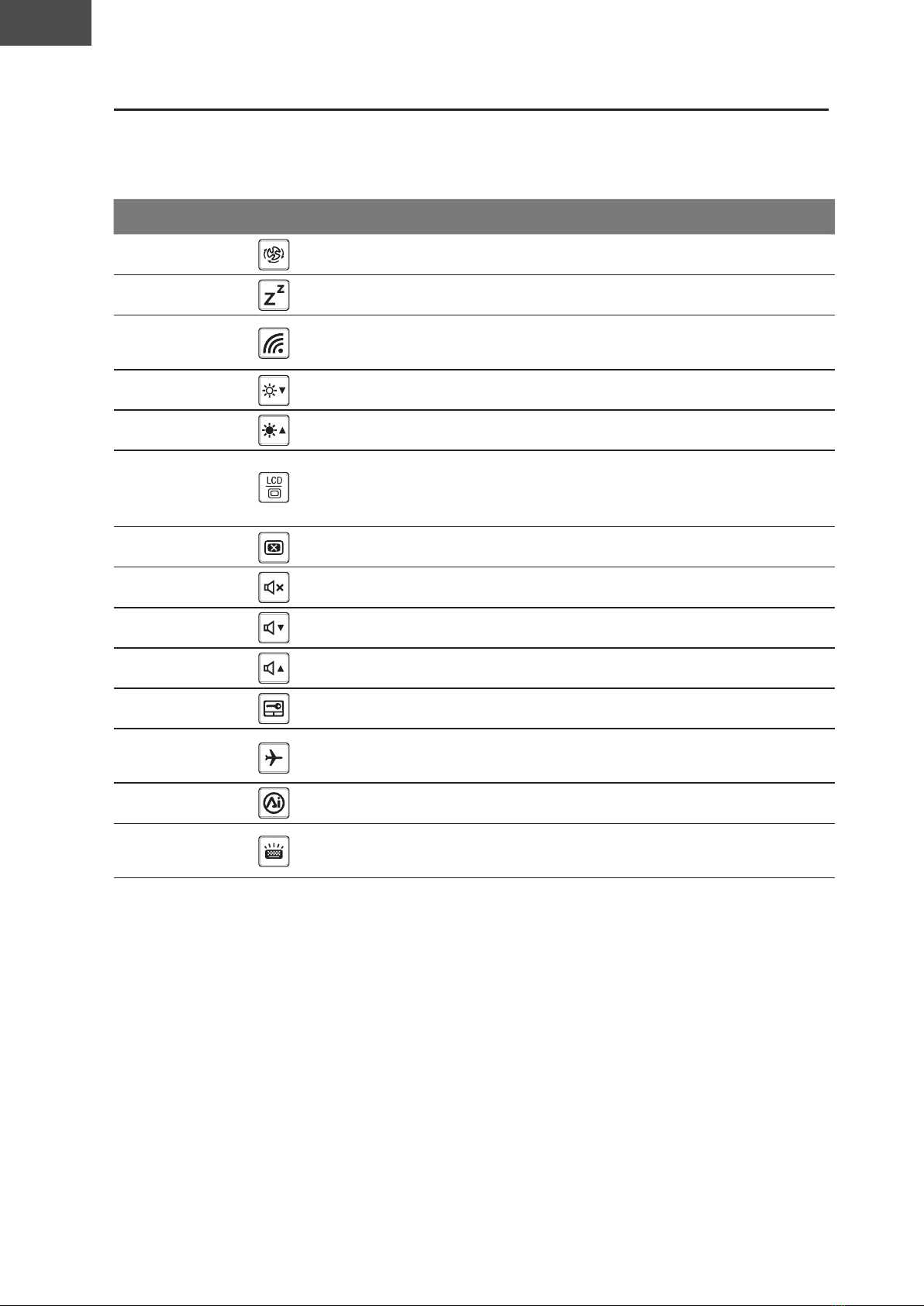

Hotkey Function Description

Fn+ESC Maximize Fan Speed To increase the fan speed to 100%.

Fn+F1 Sleep Put the computer in Sleep mode.

Fn+F2 Wireless LAN Enables / disable the Wireless LAN

function.

Fn+F3 Brightness Down Decrease the screen brightness.

Fn+F4 Brightness Up Increase the screen brightness.

Fn+F5 Display Toggle

Switche display output between the

display screen, external monitor

(if connected) and both.

Fn+F6 Screen Display Lock Lock your PC or switch accounts.

Fn+F7 Speaker Toggle Turn the speaker on and off.

Fn+F8 Volume Down Decrease the sound volume.

Fn+F9 Volume Up Increase the sound volume.

Fn+F10 Touchpad Toggle Turn the internal touchpad on and off.

Fn+F11 Airplane Mode Enable/disable the Airplane Mode

function.

Fn+F12 AI Mode AI Mode Switch.

Fn+Space Keyboard Backlight

Toggle Turn the keyboard backlight on and off.

English

006

Recovery Guide

System recovery ( Restore your laptop operating system )

When something is going wrong with the laptop operating system, the storage of the laptop

has a hidden partition containing a full back up image of the operating system that can be

used to restore the system to factory default settings.

Note

yIf the storage has been switched or the partition deleted, the recovery option will no

longer be available and a recovery service will be needed.

yThe recovery function is only available on devices with O/S preinstalled. Devices with

EFI SHELL do not have the recovery function.

Launch system recovery

The system recovery feature is preinstalled before the laptop is shipped from the factory.

The option menu allows you to launch the Windows recovery tool to reinstall the operating

system to factory default.

The brief introduction below will show you how to start the recovery tool and restore your system.

All ready to go

Make sure your PC is plugged in. This will take a few minutes.

English

007

Recovery Guide

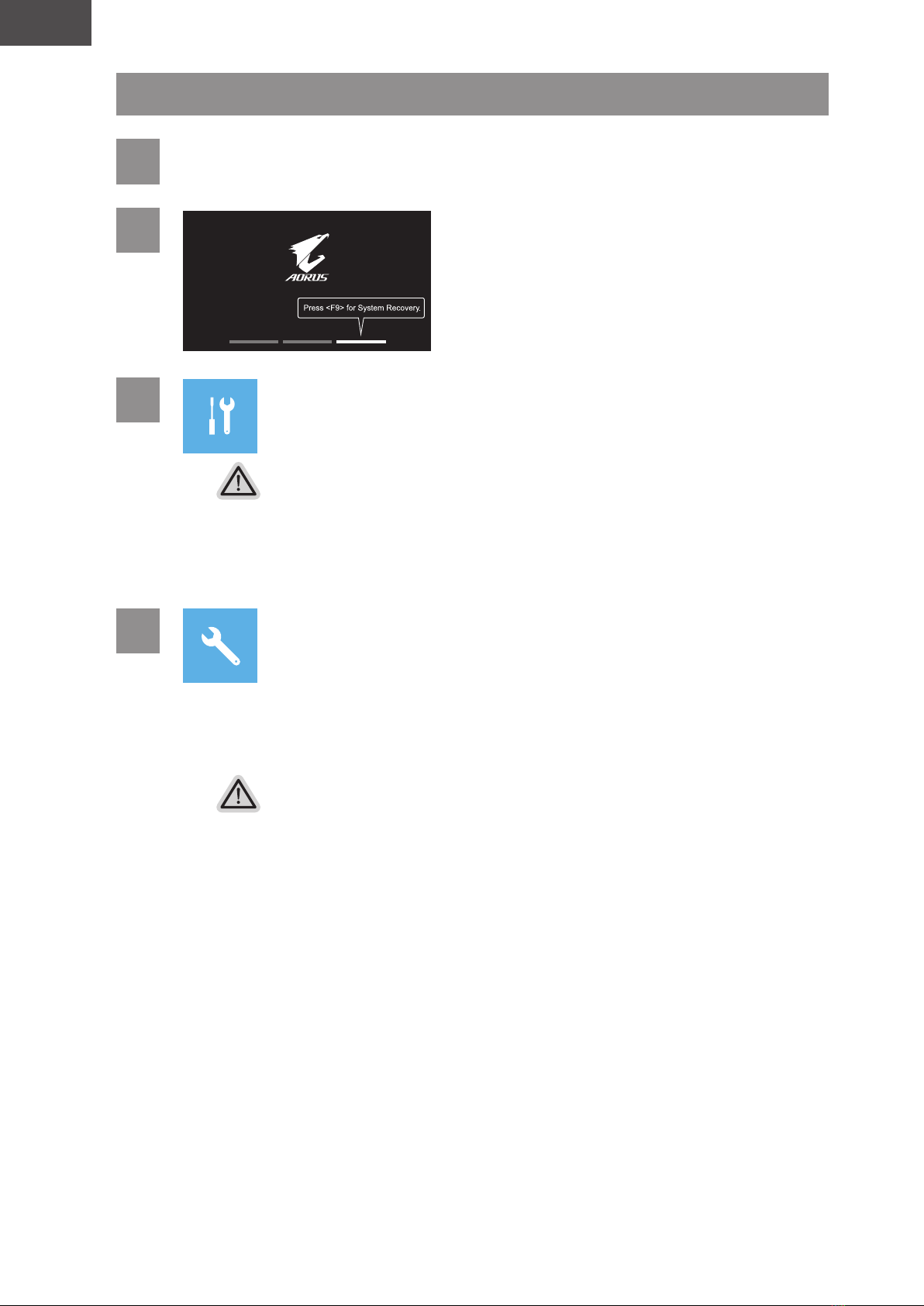

1Turn off and restart the laptop.

During the laptop turn on process,

press and hold F9 key to launch the tool.

3Choose "Troubleshoot" to enter the recovery settings.

( Also you can choose "Continue" to exit recovery system and continue to System for files or

data backup. )

There are two options for system recovery

yReset this PC -

You can choose to keep or remove your files and then reinstalls Windows without losing

your files.

y Smart Recovery -

Your PC settings will be restored to factory default settings.

Caution: All personal data and files will be lost.

4Smart Recovery

The recovery will be activated and you will see the option buttons on the window.

Click on "Yes" to start it.

Caution

yOnce the "Recovery" is selected, your personal data and files will be deleted after the

laptop starts restoring, and the operating system will be reset to factory default settings

yA progress indicator bar will show on the window when the recovery process is running.

Please make sure the AC-adapter is plugged in and do not turn off the laptop.

After the system recovery is completed, you will see the option button on the

window, please click on "Shutdown".

English

008

5Advanced options

System Restore

Use a restore point recorded on your PC to restore Windows.

System Image Recovery

Recover Windows using a specific system image file.

Startup Repair

Fix problems that keep Windows from loading.

Command Prompt

Use the Command Prompt for advanced trobleshooting.

UEFI Firmware Settings

Change settings in your PC’s UEFI firmware.

Startup Settings

Change Windows Startup behavior.

Appendix

■ Warranty & Service:

Warranty and service and related information please refer to the warranty card or

GIGABYTE service website as the below link:

https://www.gigabyte.com/Support/Laptop

■ FAQ:

FAQ (Frequent Asked Questions) please refer to the below link:

https://www.gigabyte.com/Support/Faq
