Godex RT700i Bedienungsanleitung
RT700i/RT730i BARCODE PRINTER
USER MANUAL
User Manual
Version
Issue Date
P/N
: RT700i series
: Rev. 1.3
: 2012.10.25
: 920-014811-00
Contents
RT700i/RT730i USER MANUAL
CONTENTS
1 Barcode Printer 001
1.1
1.2
Box Content
Getting to Know Your Printer
001
002
2 Printer Setup 006
2.1
2.2
2.3
2.4
2.5
Open the Printer
Loading the Ribbon
Loading the Label Roll Module
Connecting the Printer to the Host Computer
Installing Printer Driver and QLabel with Super
Wizard CD
006
007
012
014
016
3 Printer Setting and Control 021
3.1
3.2
3.3
3.4
3.5
3.6
Operation Panel
LCD Interface Introduction
LCD Interface Function
Label Calibration and Self Test
Error Alerts
USB Host
021
022
027
031
033
035
4
NetSetting for Ethernet
037
4.1
4.2
Installing the NetSetting Software
The Interface of NetSetting
037
038
5
Accessories
045
5.1
5.2
5.3
Preparation Steps
Installing the Label Dispenser
Installing the Cutter
045
047
053
6 Maintenance and Adjustment 057
6.1
6.2
Cleaning the Print Head
Troubleshooting
057
058
Appendix
Product Specifications
Interface
File Manipulation When Using USB Stick
Declaration
RT700i/RT730i USER MANUAL
FCC COMPLIANCE STATEMENT
FOR AMERICAN USERS
This equipment has been tested and found to comply with the limits for a CLASS A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at own expense.
EMS AND EMI COMPLIANCE STATEMENT
FOR EUROPEAN USERS
This equipment has been tested and passed with the requirements relating to electromagnetic
compatibility based on the standards EN 55022:1998+A1:2000+A2:2003, CISPR 22,
Class A EN 55024: 1998+A1: 2001+A2: 2003, IEC 61000-4 Series EN 61000-3-2/2000&EN 61000-3-3/1995.
The equipment also tested and passed in accordance with the European Standard EN55022 for the
both Radiated and Conducted emissions limits.
RT700i SERIES
TO WHICH THIS DECLARATION RELATES
IS IN CONFORMITY WITH THE FOLLOWING STANDARDS
EN55022: 1998, CLSPR 22, Class A/EN55024: 1998/IEC 61000-4 Serial/EN61000-3-2: 2000/EN 6100-3-3:
1995/CFR 47, Part 15/CISPR 22 3rd Edition: 1997, Class A/ANSI C63.4: 2001/CNS 13438/IEC60950-1: 2005
(EN 60950-1: 2006+A11: 2009)/ GB4943: 2001/ GB9254: 1998/GB17625.1: 2003/EN60950-1: 2001
**** Danger of explosion if battery is incorrectly replaced. Replace only with the equivalent type recommended by
the manufacturer.
**** Dispose of used batteries according to the manufacturer’s instructions.
****Only use with designated power supply adapter model.
**** Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
Caution
Safety instructions
RT700i/RT730i USER MANUAL
SAFETY INSTRUCTIONS
Please read the following instructions carefully.
1. Keep the equipment away from humidity.
2. Before you connect the equipment to the power outlet, please
check the voltage of the power source.
3. Make sure the printer is off before plugging the power connector
into the power jack.
4. It is recommended that you connect the printer to a surge
protector to prevent possible transient overvoltage damage.
5. Be careful not to get liquid on the equipment to avoid electrical
shock.
6. For safety and warranty reasons, ONLY qualified service personnel
should open the equipment.
7. Do not repair or adjust energized equipment under any
circumstances.
1Barcode Printer
1.1 Box Content
Please check that all of the following items are included with your printer.
001
USB Cable
RT700i/RT730i Barcode Printer
CD
Including GoLabel software
and RT700i/RT730i user manual.
Label Stock
Ribbon Module
Empty Ribbon Core
Ribbon
Ribbon Hubs
Set of 2.
Power Adapter
Power Cord
AC Adapter
RT700i/RT730i Quick Guide
RT700/RT700i/RT700xSeries
RT700i
Front View
1Barcode Printer
1.2 Getting to Know Your Printer
002
Device Overview
Rear View
RT700i
COVER RELEASE CATCHES
Pull catches for opening the printer cover
FRONT COVER
PRINTER COVER
OPERATION PANEL
RT700i
FEED BUTTON
POWER BUTTON
LCD SCREEN
DIRECTION KEY
RT700i
ETHERNET PORT
SERIAL PORT
POWER JACK
USB PORT
CALIBRATION BUTTON
USB HOST
FAN-FOLD LABEL INSERT
Feed slot for continuous labels
Bottom View
1Barcode Printer
003
COVER OF THE MODULE CONNECTION JACKS
**** Cut-outs are not intended for wall-mount use.
1Barcode Printer
The Internal View of Printer
004
RELEASE CATCH
Release catch for closing
the printer cover
LABEL SENSOR
MODULE
GUIDE TRACK
LABEL SENSOR
PLATEN MODULE
PLATEN
PLATEN LOCKERS
LABEL
SUPPLY
MODULE
RELEASE CATCH
Release catch for opening
the label supply hub
LABEL SUPPLY HUB
Set of 2
LABEL GUIDE
Set of 2
LABEL GUIDE PLATE
Set of 2
1Barcode Printer
005
The Printing Mechanism
RIBBON REWIND MECHANISM
COVER
The cover for Ribbon rewind mechanism
NOTCH OF RIBBON REWIND WHEEL
RIBBON REWIND WHEEL
PRINT HEAD
RIBBON
SUPPLY
MECHANISM
NOTCH OF RIBBON SUPPLY WHEEL
PAPER PRESS BAR
RIBBON SUPPLY WHEEL
2Printer Setup
2.1 Open the Printer
Open the Printer Cover and the Printing Mechanism
Place the printer on a flat surface. Open the printer cover by pulling the cover release catches on both sides of the
printer and lift the printer cover.
006
RT700i
Pull the catches toward the direction
COVER RELEASE CATCHES
Pull the catches for opening the printer cover
Pull the catches toward the direction
The printing mechanism is lifted up
with the printer cover
Andere Handbücher für RT700i
2
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Andere Godex Barcode-Lesegerät Handbücher
Godex
Godex GS200 Bedienungsanleitung
Godex
Godex RT700i Bedienungsanleitung
Godex
Godex G500 Bedienungsanleitung
Godex
Godex DT2 Bedienungsanleitung
Godex
Godex RT800i Series Bedienungsanleitung
Godex
Godex EZ2250i Bedienungsanleitung
Godex
Godex DT2 Bedienungsanleitung
Godex
Godex EZPi1000 Series Bedienungsanleitung
Godex
Godex GS220 Bedienungsanleitung
Godex

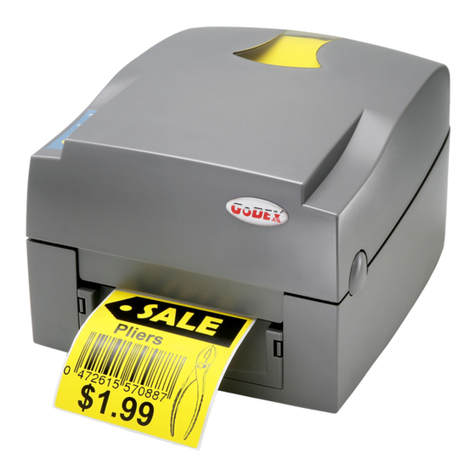

Godex EZ-1000 Plus Bedienungsanleitung
