Goodwe HK1000 Bedienungsanleitung
(HK1000/HK3000)
Quick Installation Guide
Smart Meter
V1.0-2022-01-25
1

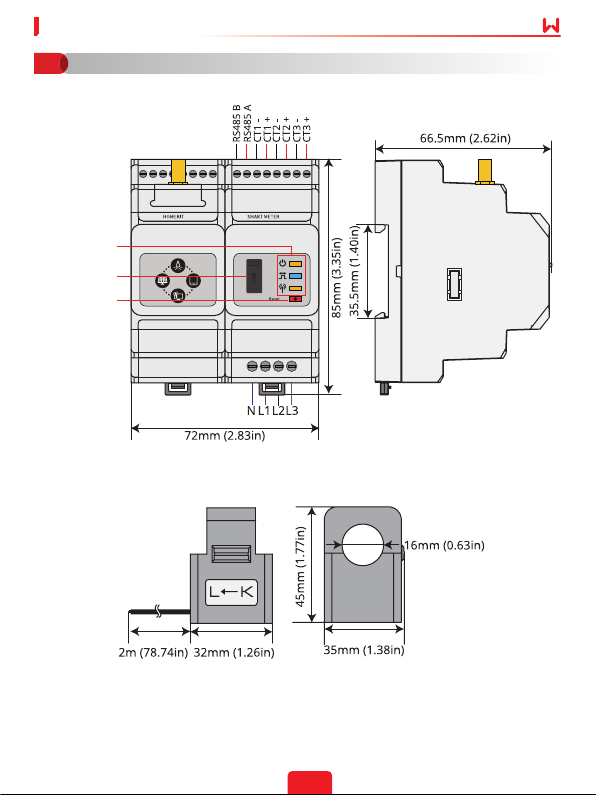

Quick Installation Guide V1.0 -2022 -01-25
CT
Indicators
Reserved Port
Reset Button
Note:
CT1 - and CT1 + only for HK3000.
Product Introduction
01
2
Quick Installation Guide V1.0 -2022 -01-25

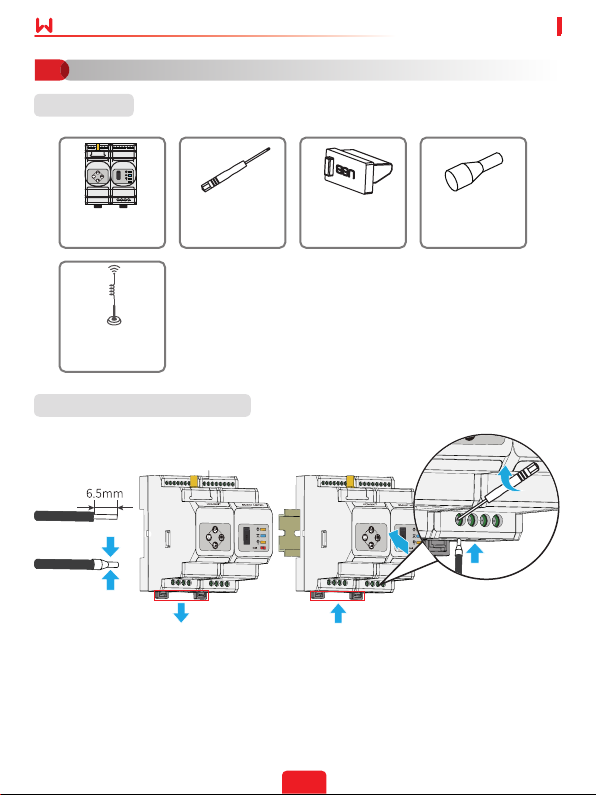

Packing List
Smart Meter x 1 Screwdriver x 1 USB Plug x 1 PIN terminal x 4
Antenna x 1
installation and Cable Connection
1
1
24
3
6
5
Reset
SMART METER
USB
HOMEKIT
Installation
02
3
Quick Installation Guide V1.0 -2022 -01-25

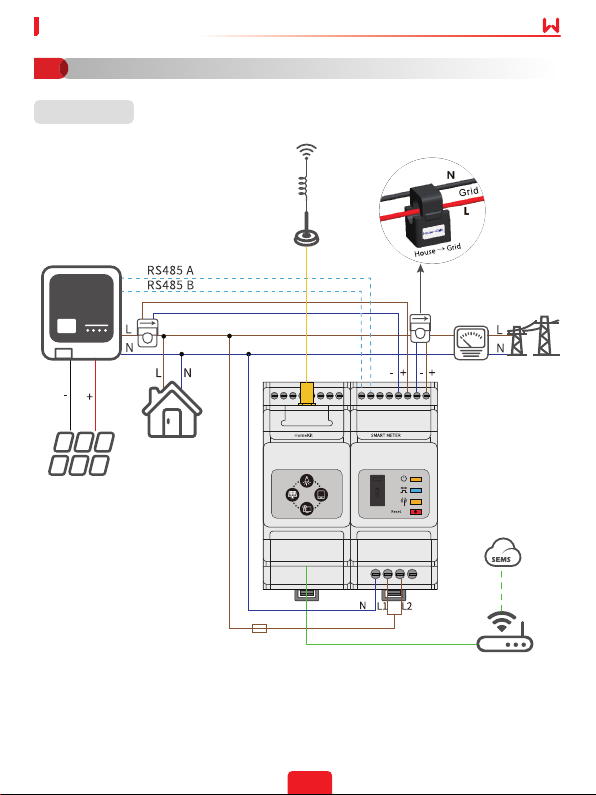

HK1000
• Recommended cable connected to the voltage input terminal: 1mm2(17AWG).
• Do not remove the short circuit wire between L1 and L2.
• CT direction: House (K)-->Grid (L).
Loads
Fuse 0.5A
Household
Meter
Utility
Grid
Inverter
PV
Router
CT2
CT1
Network Cable
Antenna
Wiring System
03
4
Quick Installation Guide V1.0 -2022 -01-25
HK3000
CT
Inverter
Loads
Utility Grid
Household
Meter
Fuse 0.5A
• Recommended cable connected to the voltage input terminal: 1mm2(17AWG).
• CT direction: House (K)-->Grid (L).
PV
Antenna
Router
Network Cable
5
Quick Installation Guide V1.0 -2022 -01-25
Indicators
Indicator Status Description
Steady on Power on
O Power o
Steady on Purchasing from the utility grid.
Blinking Selling to the utility grid. Or the communication between
HomeKit and the inverter is normal.
O No communication between HomeKit and the inverter.
Single Blink Communication between HomeKit and the inverter is
normal.
Double Blink HomeKit is trying to connect to the router.
Quadruple Blink HomeKit is trying to connect to the server.
Steady on HomeKit has been connected to the server successfully.
O Parameters for connecting HomeKit to the router or the
server have not been set.
Reset Button
Press Time Description
1-3s Reset the HomeKit communication module.
5s-10s Reset HomeKit congurations.
>15s Initialize HomeKit and clear the historical energy data.
Power ON
Step 1 Connect the HomeKit cables.
Step 2 Power on the inverter and make sure that the inverter is working normally. Then the
HomeKit is powered on.
Commissioning
04
6
Quick Installation Guide V1.0 -2022 -01-25
Model HK1000 HK3000
Application Household Loads Monitoring+ARCB
Voltage
Rated voltage 110V/230V 3x230V/400V
Voltage Range 100V~240V
Frequency 50Hz/60Hz
Current Input Rated Current CT in: 120A/40mA CT in: 120A/40mA,
200A/66.7mA
Current Range 0.48A~120A 0.48A~120A/200A
Self-Consumption <5W
Data Detection Active Power/Reactive Power/Power Factor/Frequency
Energy Calculation Active/Reactive Power Energy
Precision
Voltage/Current Class I
Active Power Class I
Reactive Power Class II
Communication 100M Ethernet
WiFi or LAN
Interface 3 LED (Power, Energy Consumption, Communication),
USB port, Reset button
Mechanical
Size (Lmm x Wmm
x Hmm) 36 x 85 x 66.5 -
Weight 440g -
Protection Class IP20 (For indoor use)
Installation
Method Mounting rack
Operating Temperature -25 ~ +60° C
Operating Humidity <95%, No condensation
Altitude <2000m
Technical Parameters
05
7
Quick Installation Guide V1.0 -2022 -01-25
The module sold in the European market meets the following directives and requirements:
• Electromagnetic compatibility Directive 2014/30/EU (EMC)
• Electrical Apparatus Low Voltage Directive 2014/35/EU (LVD)
• Restrictions of Hazardous Substances Directive 2011/65/EU and (EU) 2015/863 (RoHS)
• Waste Electrical and Electronic Equipment 2012/19/EU
• Registration, Evaluation, Authorization and Restriction of Chemicals (EC) No 1907/2006
(REACH)
You can download the EU Declaration of Conformity on https://en.goodwe.com.
For more detailed instructions, scan the QR codes below.
SEMS Portal User
Manual
SolarGo App User
Manual
HomeKit Network
Quick Conguration
Guide
HK3000 Quick
Installation
Instruction
EU Declaration of Conformity
06
GoodWe Technologies Co., Ltd.
No. 90 Zijin Rd., New District, Suzhou, 215011, China
www.goodwe.com
Ocial Website
Local Contacts
