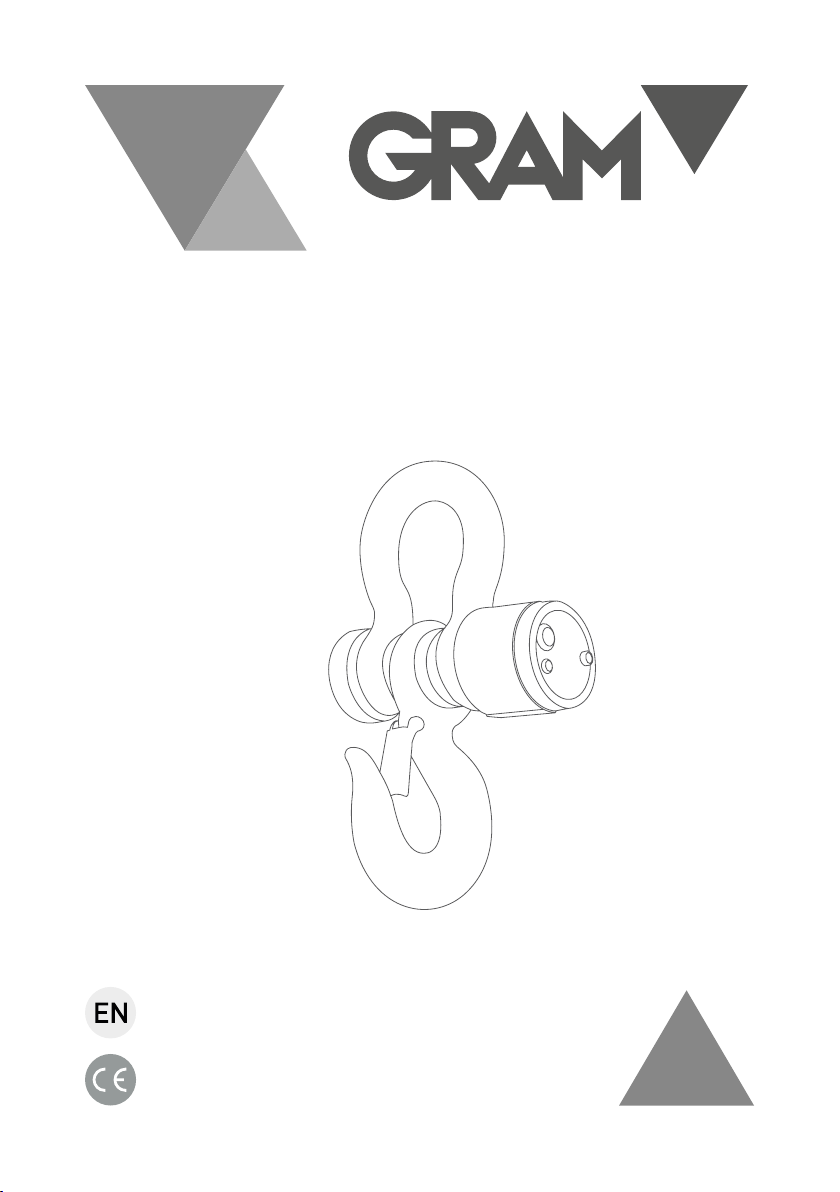

Gram C6 1T Bedienungsanleitung

SERIES

1T / 3T / 5T / 10T / 15T / 20T / 30T

OPERATION MANUAL

INDEX English

Main specification 3

Analog 3

Display 3

Ambient Environment 3

Front and back view of the indicator 4

Keys function 4

Operation 5

Turning on 5

Zero function 5

Tare 5

Manual accumulation 5

Check accumulation 6

Clear accumulation 6

Parameters setup 6

Calibration 8

Error indication 9

Rechargeable lithium battery 10

Maintenance 10

Guarantee 12

ENGLISH

MAIN SPECIFICATION

Analog

Accuracy: n=3000

Input Signal: 1.5~3mv/V

Converting Speed: 10 times/second

Display

Display: 0~999999

5 digits LCD/LED, 7 indicators

Division Value: 1/2/5/10/20/50 (optional)

Ambient Environment

Distance between scale and indicator: 150m

Power Supply: DC: 3.7V

Ambient Temperature: 0~40 ºC

Storing Temperature: -25 ºC ~55 ºC

Ambient Moisture: ≤ 85% RH

Warm-up Time: 10~15 分钟

FRONT AND BACK VIEW OF THE INDICATOR

KEYS FUNCTION

In weighing status hold the key for more than 5s, it enters setup mode

(All the setting in this mode should be recorded with the calibration

header on; or the data will lose).

Tare function in weighing status.

Zero function in weighing status.

For selecting.

Weighing accumulation

Long press for 1sec to turn on. Long Press for 3sec to turn off.

OPERATION

Turning on

Turn on the power, the indicator performs self-checking and go into weighing mode.

Zero function

Press for zero return, indicator returns to zero within the zero range 2%FS.

Please make sure the stabilization light is on when zero operation.

If obstruction occurs by more than 1 wireless indicator working at same time,

you can open both indicator and scale, change the number of transcoder

inside with same number and restart.

Tare

At weighing mode, press to deduct displaying weight while it is positive

and stabilization light is on. At no-load status of the scale, press to

deduct tare and then tare light is off.

Manual accumulation

At weighing mode, press , it displays “ADD-01”, “01” means times of

accumulation (the Max times is 99 and then it will return to 01). After then

it will display the value of accumulation for 3s and then back to normal

weighing mode by itself.

Check accumulation

At weighing mode, press , it will display the times and the value of current

accumulation, after then back to normal weighing mode automatically.

Clear accumulation

At weighing mode, press , it displays “ADD---” and back to weighing

mode which means clear the current accumulation.

PARAMETERS SETUP

In weighing status, hold for more than 5s and entering setup mode. (P

mode, all the setting in this mode should be recorded with the calibration

header on; or the data will lose.)

P1~P13 parameters are available, press to switch, and press to

select parameter. Detail for parameter:

1. P1 x kg Lb shift

X=1: kg mode (default)

X=2: Lb mode

2. P2 x Not available for this model

3. P3 x Baud rate setup

X=1: 9600 (default)

X=2: 4800

X=2: 2400

X=2: 1200

4. P4 x Not available for this model

5. P5 x Not available for this model

6. P6 x Power saving mode

X=1: No power saving

X=2: Power saving available

X=3: None

7. P7 x Zero-tracking Scope

X=1: 0.5e

X=2: 1.0e

X=3: 1.5e (default)

X=4: 2.0e

X=5: 2.5e

X=6: 3.0e

X=7: 3.5e

8. P8 x Zero key Scope

X=1: 2%FS

X=2: 4%FS

X=3: 10%FS (default)

X=4: 20%FS

9. P9 x Zero scope upon start

X=1: 2%FS

X=2: 4%FS

X=3: 10%FS (default)

X=4: 20%FS

10. P10 x Digital filtering intensity

X=1: Fast (default)

X=2: Middle

X=3: Slow

11. P11 x Stabile time

X=1: Fast (default)

X=2: Middle

X=3: Slow

12. P12 x Stabile extent

X=1: Low

X=2: Middle

X=3: High (default)

13. P13 x Select division value

X is division value

Press to select division value, then press to confirm.

CALIBRATION

Turn on the crane scale first, then hold key and power on the indicator

secondly, it enters calibration mode.

Step Operation Display Explanation

1Press to choose

division value (several times)

[d *]

Division value: 1, 2, 5, 10, 20, 50

optional, press to confirm

e.g.: 2

Press to choose

decimal point position

(several times)

[P *]

Decimal point optional: “0”,

”0.0”, ”0.00”, ”0.000”, press

to confirm. e.g.: 0.00

3Setup F.S. [FULL ]

Input F.S.:Press to choose

the digit bit; press to select

the digit; press to confirm

the input F.S. e.g.: 30000

4Zero point calibration:

Press when the stable

light is on

[noLoAd] Assure there’s no loading

5Load standard weights.

F.S. calibration: (Press

directly if the value to be

input is same as F.S. when

stable light is on)

[AdLoAd]

Input weight of standard weights

loaded: Press to choose

the digit bit; press to select

the digit. Until the input value is

same as the loaded weight and

the digit bit is at the highest bit,

press to confirm when the

stable light is on.

7Calibration finished.

ERROR INDICATION

1Err 1 AD value is too small when calibration.

2Err 2 Zero point is out of range when calibration.

3Err 3 Zero point is out of range when power on

4Err 5 Weight input is 0 when full scale calibration

5bAt-Lo Indicator out of battery, please charge!

6Err 8 Mistakes in inputting F.S.

7Err 10 Resolving capability is too high

8Err 11 Load-cell problem

9Err 13 Resolving capability is too high

10 Err 14 Damaged inside indicator

11 Loch Overload and locked

RECHARGEABLE LITHIUM BATTERY

Battery inside of scale is Lithium battery. Please charge it after running

down for 7 hours the first three times. Please charge the battery for timing

if not use it often.

The battery is an easily exhausted product. And it is not granted free

guarantee.

MAINTENANCE

1. To guarantee indicator clarity and using life, the indicator shouldn’t be

placed directly under sunshine and should be set in the plain space.

2. The indicator can’t be placed into the place where the dust pollution and

vibration are serious.

3. Load cell should connect with indicator reliably, and the system should

be well connected into ground. The indicator must be protected from

high electrical field and high magnetic field.

In order to protect the operator, indicator and relevant device, you should

mount lightning rod in thunderstorm frequently happening area.

• Load cell and indicator are static sensitive device, you must adopt

anti-static measures.

4. It is strictly forbidden to clean the case of indicator with intensive solvents

(for example: benzene and nitro oils).
