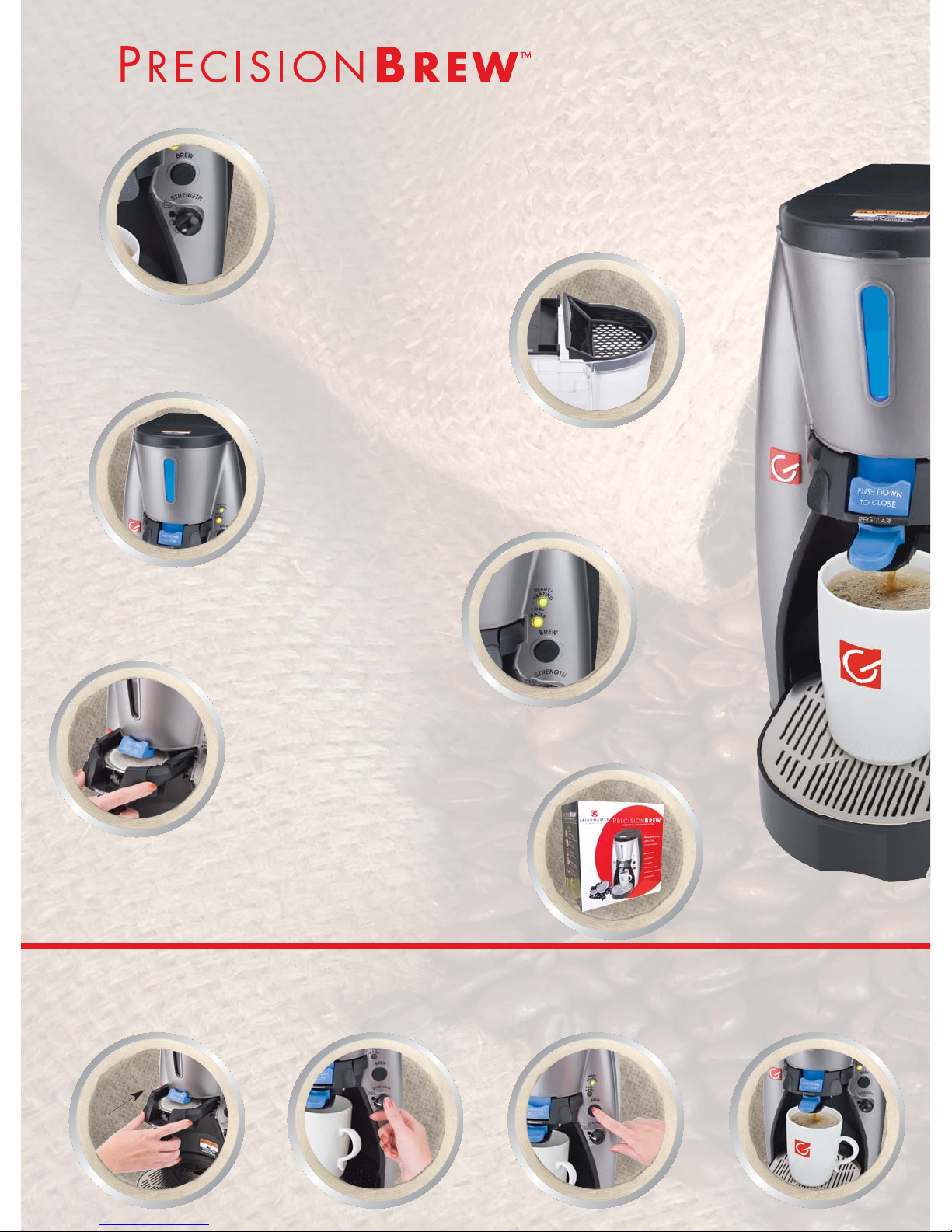

Precision Brew

Single Cup Pod Brewer

™

www.grindmaster.com

Step 1:

Place a pod in the pod holder, push

and lock the pod drawer into place.

Step 2:

Place your cup under the drawer. Select a

brew strength (mild, medium, strong, or tea).

Step 3:

Press and release

the BREW button.

Step 4:

Enjoy your perfect cup of coffee

or tea within one minute!

Easy Operation:

Brew Control™

Adjustable brew strength control: Mild, Medium, Strong,

and Tea, allows users to fine tune their flavor preference.

Dual Water System

Brewer can be plumbed into water line or

manually filled.

See-through Water Reservoir

Reservoir is back-lit with bright blue LED to see

water in reservoir.

Bright Feedback LEDs

Bright yellow LED alerts user when brewer is low on

water (manual refill mode) and bright green LED alerts

user when water is at correct brew temperature.

Variable Pod Size

Brewer can be used with Pods ranging from 55 to 61mm

and Pod weights ranging from 8.0 to 13.0 grams.

Gourmet Pod holder available for heavier, larger Pods

(Pods heavier than 10.5 grams).

12-Month Replacement Warranty (USA only*)

Brewer will be replaced for any material or workmanship defect for 12 months

after purchase. Field serviceable unit beyond warranty - service parts available.

Your Cup.

* 12 month part replacement warranty (outside USA).

Anti-scaling Water Tank Heater

Die-cast aluminum heater has two high-tech, baked-on,

anti-scaling coatings to prevent corrosion.

Color Coded Plumbing Connections

Internal tubing connections are color-coded for ease of reconnection.

Easy-Remove Hot Water Tank

Hot water tank can be easily removed by disconnecting electrical

and water connections and removing two no-tool fastening pins.

Cooling Fan

Cooling fan prolongs component life inside brewer and

spreads the coffee aroma throughout the room.

Patented Drawer Assembly

Drawer assembly rolls on permanently lubricated roller bearings.

Drawer can be easily changed by the removal of one screw.

Designed for Serviceability.

Accessories:

Water Pump

p/n 60568

Pod Holder Rack

p/n 92836

Pod Waste Bin

p/n 92837

External Control Board Connector

Allows field reprogramming without opening unit.

Gourmet Pod Tray

p/n 92835

Small Office Revenue Potential

The untapped small office segment of the market has the potential to

generate as much revenue as the existing OCS market.

Number of small offices in the US ........................ 11.5 M

(offices with 25 or fewer employees)

Daily Revenue Opportunity ................................... $28.8 M

(average 10 cups/day/office @ $0.25 cost/cup)

Annual Revenue Opportunity ............................... $7.2 B

(250 working days/year)

Profit by the Cup

36% of the 42 million cups of coffee

consumed in the office daily are

purchased outside the office.

Why?

• Tastes better

• Large variety of flavors

15M cups of coffee

per day from

outside office

27M cups of

coffee per day

from inside office

Market Opportunity

Revenue Potential to Capture

Number of cups brought from

outside the office per day ................................... 15 M

Daily Revenue ..................................................... $3.8 M

(15M cups/day x $0.25 cost/cup)

Annual Revenue ................................................ $950 M

(250 working days/year)

Revenue that is currently being lost!

Source: Q2 Brand Intelligence

Earl Grey Tea

Irish Cream

Breakfast Blend

Cappuccino

Tropical Citrus Tea

House Blend

Chocolate

Sumatra

English Breakfast Tea

Colombian

French Vanilla

Green Tea

French Roast

Hazelnut

Kona Blend

Gives Individual Flavor Selection

Specification Model OPOD Model OPOD-E

Electrical 120V, 1300W, 10.8A 230V, 1200W, 5.2A

Frequency 60 Hz 50/60 Hz

Water Inlet Pressure (plumbed units only) 10 -145 psi

Water Reservoir Capacity 80 fl. oz. (2.4 L)

Hot Water Tank Capacity 35 fl. oz. (1 L)

Maximum Brewing Water Temperature 200°F (93°C)

Minimum Brewing Water Temperature 185°F (85°C)

Brewing Volume Approx. 8 fl. oz. (237 ml) (programmable)

Dimensions (H x W x D) 14-1/4” (19” incl. reservoir lid upswing) H x 8-1/4” W x 14” D

36 cm (48 cm incl. reservoir upswing) x 21 cm x 36 cm

Ship Dimensions (H x W x D) 16” H x 9-3/4” W x 15-3/4“ D

41 cm x 25 cm x 40 cm

Weight 12 lbs. (5.4 kg)

Ship Weight 15 lbs. (6.8 kg)

Listings NSF, UL NSF, CE

Model OPOD

Side View

14”

(36 cm)

Front View

14-1/4”

(36 cm)

8-1/4”

(21 cm)

Features

PrecisionBrew™

Innovative precision pod brewing and infusion

technology provides the ideal cup every time

BrewControl™

Adjustable brew strength control allows users

to fine tune their flavor preferences

Smartstop™ Automatic Water Shutoff

Water shuts off when pod drawer is open

Programmable Cup Size

Control the volume of beverage

dispensed into the cup

Stylish, high performance design

Dual Water System

Brewer can be plumbed into a water

line or manually filled

Specifications are subject to improvement or change without notice.

Grindmaster® Coffee Grinders and Brewers • PrecisionBrew™ Brewing Systems • Espressimo® Espresso Machines

Crathco® Hot Beverage Dispensers • Crathco® Cold and Frozen Beverage Dispensers • AMW Coffee and Tea Systems

Tel (502) 425-4776 • Fax (502) 425-4664 • 1-800-695-4500 (USA & Canada only)

P.O. Box 35020 • Louisville, KY 40232 • USA

www.grindmaster.com • email: info@grindmaster.com

PRINTED IN USA

0106 Form # PD-250-01
