2" NAILER KIT

MODEL H7679

INSTRUCTION MANUAL

Safety Instructions For Pneumatic Tools

1. KEEP ALL SAFETY DEVICES IN

PLACE and in working order.

2. REMOVE ADJUSTING KEYS AND

WRENCHES. Form habit of check-

ing to see that keys and adjusting

wrenches are removed from tool

before operation.

3. KEEP WORK AREA CLEAN.

Cluttered areas and benches invite

accidents.

4. DO NOT USE IN DANGEROUS

ENVIRONMENT. Do not use pneu-

matic tools in damp or wet loca-

tions, or where any flammable or

noxious fumes may exist. Keep

work area well lighted.

5. KEEP CHILDREN AND VISITORS

AWAY. All children and visitors

should be kept at a safe distance

from work area.

6. MAKE WORKSHOP CHILD

PROOF by locking your shop and

shutting off air valves.

7. DO NOT FORCE TOOL. It will do

the job better and safer at the rate

for which it was designed.

8. USE THE RIGHT TOOL. Do not

force tool or attachment to do a job

for which it was not designed.

9. DO NOT USE UNDER THE

INFLUENCE OF DRUGS OR

ALCOHOL.

For Your Own Safety Read Instruction Manual

Before Operating This Equipment

The purpose of safety symbols is to attract your attention to possible hazard-

ous conditions. This manual uses a series of symbols and signal words which

are intended to convey the level of importance of the safety messages. The

progression of symbols is described below. Remember that safety messages by

themselves do not eliminate danger and are not a substitute for proper accident

prevention measures.

Indicates a potentially hazardous situation which, if

not avoided, MAY result in minor or moderate injury.

It may also be used to alert against unsafe practices.

Indicates a potentially hazardous situation which, if

not avoided, COULD result in death or serious injury.

Indicates an imminently hazardous situation which, if

not avoided, WILL result in death or serious injury.

This symbol is used to alert the user to useful infor-

mation about proper operation of the equipment.

SAFETY

NOTICE

H7679 2" Nailer Kit -1-

10. USE PROPER AIR HOSE for the

tool. Make sure your air hose is in

good condition and is long enough to

reach your work without stretching.

11. WEAR PROPER APPAREL. Do not

wear loose clothing, gloves, neck-

ties, rings, bracelets, or other jew-

elry which may get caught in moving

parts. Non-slip footwear is recom-

mended. Wear a protective hair cov-

ering to contain long hair.

12. ALWAYS USE ANSI APPROVED

SAFETY GLASSES. Also use a

face or dust mask if cutting operation

is dusty. Everyday eyeglasses only

have impact resistant lenses, they

are NOT safety glasses.

13. WEAR APPROVED HEARING

PROTECTION.

14. SECURE WORK. Use clamps or a

vise to hold work when practical. It is

safer than using your hand and frees

both hands to operate tool.

15. MAINTAIN TOOLS WITH CARE.

Keep tools lubricated and clean

for best and safest performance.

Follow instructions for lubricating

and changing accessories.

16. REDUCE THE RISK OF

UNINTENTIONAL STARTING. Do

not carry tool with hand on trig-

ger and always disconnect from air

when not in use.

17. DISCONNECT TOOLS before ser-

vicing, changing accessories, or

moving to another location.

18. DO NOT OVERREACH. Keep

proper footing and balance at all

times.

19. USE THE RECOMMENDED

ACCESSORIES. Consult owner’s

manual for recommended acces-

sories. The use of improper acces-

sories may cause risk of injury.

20. CHECK FOR DAMAGED PARTS

BEFORE USING. Check for bind-

ing and alignment of parts, broken

parts, part mounting, loose bolts,

and any other conditions that may

affect machine operation. Repair or

replace damaged parts.

21. NEVER LEAVE UNATTENDED

TOOL CONNECTED TO AIR.

Disconnect the air hose and do not

leave tool until it is relieved of any

built up pressure.

22. NEVER ALLOW UNTRAINED

USERS TO USE THIS TOOL

WHILE UNSUPERVISED.

23. IF YOU ARE UNSURE OF THE

INTENDED OPERATION, STOP

USING THE TOOL. Seek formal

training or research books or maga-

zines that specialize in pneumatic

tools.

Safety Instructions For Pneumatic Tools

H7679 2" Nailer Kit

-2-

1. HAND INJURIES: Do not place your

hands near the nail point of entry. A

nail can deflect and tear through the

surface of the workpiece, puncturing

your hand or fingers.

2. COMBUSTIBLE GASES: Never

connect the nailer to pressurized

oxygen or other combustible gases

as a power source. Only use fil-

tered, lubricated, and regulated

compressed air.

3. SAFE HANDLING: Never point the

nailer at others! Do not keep the

trigger pulled when loading fasten-

ers, carrying, or holding tool. Carry

the nailer only by the handle, never

by any other part. Do not carry the

nailer by the air hose. Disconnect

the nailer from the air hose when

going up and down ladders.

4. CLEANING: Never use gasoline or

other flammable liquids to clean the

nailer; vapors in the nailer will ignite

by a spark and cause it to explode.

Additional Safety Instructions for Nailers

5. HOSE: Make sure your air hose

is designed for the tool in use,

is in good condition, and is long

enough to reach your work with-

out stretching. However, an overly

long air hose in the work area may

be a tripping hazard.

6. OPERATING QUESTIONS: If you

are not sure about the intended

operation, stop using the nailer.

Seek formal training or research

books or magazines that special-

ize in pneumatic tools.

7. MAINTENANCE: Always discon-

nect air from the nailer when ser-

vicing or installing nails. During

maintenance, a nailer connected

to air may fire accidentally, caus-

ing serious personal injury.

8. COMPRESSED AIR RATING: Do

not connect the nailer to com-

pressed air that exceeds 120 PSI.

9. CHECK VALVE: Do not use a

check valve or any other fitting that

allows air to remain in the tool.

H7679 2" Nailer Kit -3-

Operating this nailer can propel

objects into the air, causing imme-

diate eye damage. To protect your-

self, always wear American National

Standards Institute (ANSI) approved

safety glasses or goggles when oper-

ating this equipment. In addition, this

nailer discharges at up to 90 deci-

bels. To protect your hearing, always

wear ANSI approved ear protection

when operating this nailer.

Never point this nailer at yourself or

another person! Always pay attention

to the direction this nailer is pointed.

Use this tool with respect and caution

to lessen the possibility of operator or

bystander injury. Ignoring this warning

may result in serious personal injury.

Nailer/stapler accidents routinely hap-

pen while moving the gun to another

location, such as up ladders, to anoth-

er room, or even another job site.

Always disconnect the gun immedi-

ately after use and never transport the

gun while connected to the air—even

if the air compressor is disconnected

from its power source!

No list of safety guidelines can be

complete. Every shop environment is

different. Always consider safety first,

as it applies to your individual working

conditions. Use this and other tools

with caution and respect. Failure to

do so could result in serious personal

injury, damage to equipment or poor

work results.

H7679 2" Nailer Kit

-4-

INTRODUCTION

If you have any comments regarding this

manual, please write to us at the following

address:

Grizzly Industrial, Inc.

C/O Technical Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Most importantly, we stand behind our

tools. If you have any service questions or

parts requests, please call or write us at

the location listed below.

Grizzly Industrial, Inc.

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: (570) 546-9663

Fax: (800) 438-5901

E-Mail: [email protected]

Web Site: http://www.grizzly.com

We are proud to offer the Grizzly Model

H7679 2" Nailer Kit. This model is part of

a growing Grizzly family of fine pneumatic

tools. When used according to the guide-

lines set forth in this manual, you can

expect years of trouble-free, enjoyable

operation and proof of Grizzly’s commit-

ment to customer satisfaction.

The Model H7679 features a 360° exhaust

port, comfort grip rubber handle, and eco-

nomical air consumption with low noise.

The specifications, details, and photo-

graphs in this manual represent the Model

H7679 as supplied when the manual was

prepared. However, owing to Grizzly’s pol-

icy of continuous improvement, changes

may be made at any time with no obliga-

tion on the part of Grizzly.

Foreword Contact Info

Specifications

Nail Size ..................................... 18 Gauge

Nail Length ........................................3⁄8"–2"

Magazine Capacity ...................... 100 Nails

Air Inlet ...........................................¼" NPT

Weight .............................................3.8 lbs.

Operating Pressure ................. 60–100 PSI

Read the manual before operation.

Become familiar with this nailer, its

safety instructions, and its operation

before beginning any work. Serious

personal injury may result if safety or

operational information is not under-

stood or followed.

H7679 2" Nailer Kit -5-

SET UP

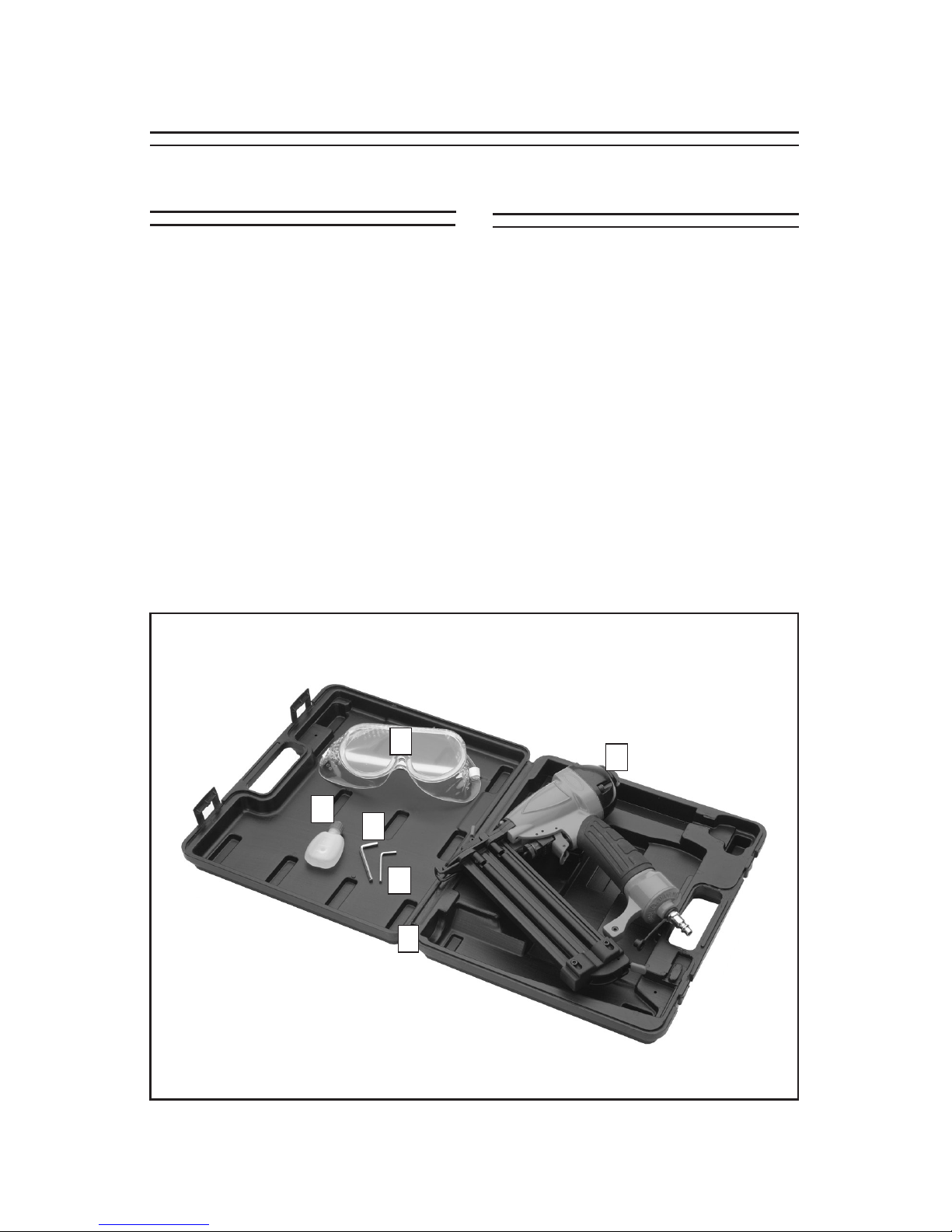

Figure 1. Model H7679 inventory.

Unpacking

Your Model H7679 left our warehouse in

a carefully packed box. If you discover

the nailer is damaged after you have

signed for delivery, please immediately

call Customer Service at (570) 546-9663

for advice.

Save the containers and all packing mate-

rials for possible inspection by the car-

rier or its agent. Otherwise, filing a freight

claim can be difficult.

When you are completely satisfied with

the condition of the shipment, you should

inventory the equipment.

Inventory

After you open the nailer box, you should

find the following.

Model H7679 Inventory (Figure 1)

A. Nailer .................................................. 1

B. Safety Goggles ................................. 1

C. Pneumatic Tool Oil ............................ 1

D. Hex Wrench 3MM .............................. 1

E. Hex Wrench 4MM .............................. 1

F. Carrying Case .................................... 1

H7679 2" Nailer Kit

-6-

Compressed Air

System

The Model H7679 is designed to be oper-

ated at 60–100 PSI using clean, dry, regu-

lated, compressed air. DO NOT exceed

the maximum operating pressure for

your model.

Before using your new nailer, regulate the

air pressure on your air compressor to the

minimum PSI for your model.

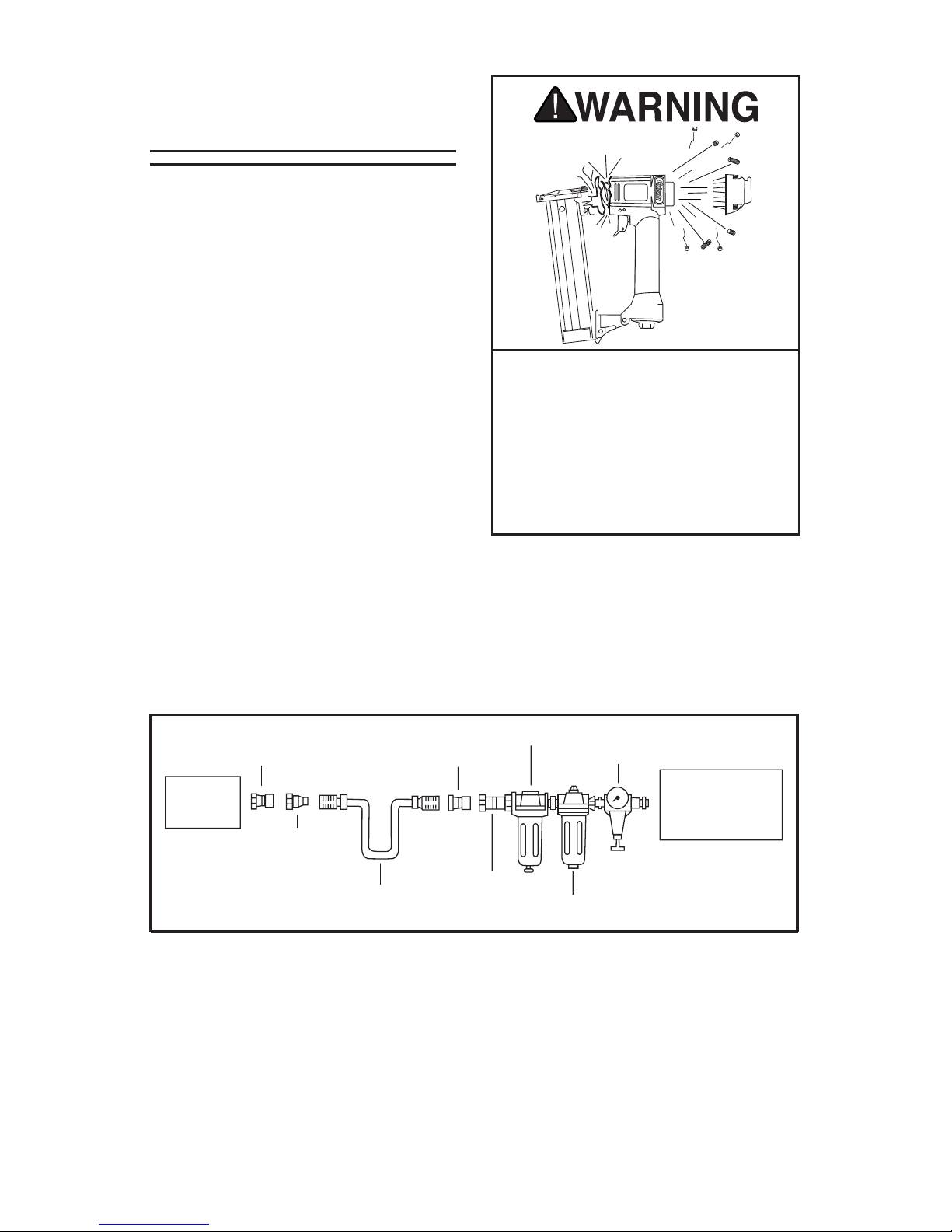

An in-line filter/lubricator/regulator unit,

depicted in Figure 2, can be installed and

should be located as close to the nailer

as possible.

This filter/lubricator/regulator unit will

protect your tool from damaging water

build-up, allow you to adjust and maintain

constant air pressure to your tool, and

save you the inconvenience of having to

manually lubricate your tool every time

you use it.

Quick

Connector

Quick

Coupler

Air Hose Quick

Coupler

Quick

Connector

Lubricator

Filter

Regulator

Air

Compressor

Your

Tool

Figure 2. Typical filter/lubricator/regulator installation order.

Check the current Grizzly catalog for avail-

ability of this unit. If you plan on install-

ing a filter/lubricator/regulator unit in your

compressed air system, always follow the

connection instructions that come with

the unit.

Exceeding the maximum permissible

operating pressure may cause the

nailer to explode, blowing metal frag-

ments in all directions. To protect

yourself from serious personal injury,

DO NOT allow your air compressor to

exceed the recommended pressure

when connected to this nailer!

H7679 2" Nailer Kit -7-

Safety Nose

Mechanism

A safety mechanism on the nose of the

nailer protects against accidental firing.

When the trigger is pressed, the nailer will

not fire until the safety nose mechanism is

depressed.

Before you use your nailer for the first

time, check the safety nose mechanism to

ensure proper function. To do this:

1. DISCONNECT NAILER FROM THE

AIR SUPPLY!

2. Make sure the magazine is empty and

contains no nails.

3. Make sure the trigger and the safety

nose mechanism move up and down

without sticking.

4. Connect the nailer to the air supply.

5. Without pressing the trigger, depress

the safety nose mechanism against a

scrap piece of wood that is clean and

free of any knots, nails, or other foreign

objects.

— If the nailer does not fire, then the

safety nose mechanism is working

correctly.

— If the nailer does fire when you

do this, immediately disconnect the

nailer from the air supply and call

Grizzly Technical Support at (570)

546-9663 for help.

— If the nailer fires when the trigger

is pulled, without the safety nose

mechanism being depressed, then

immediately disconnect the nailer

from the air supply and call Grizzly

Technical Support at (570) 546-

9663 for help.

— If you find that the safety nose

mechanism is not working properly,

check the lubrication of its sliding

components.

The safety mechanism is a mechanical

device that can fail. Never rely on this

mechanism as an excuse to point the

nailer at yourself or any bystanders.

Serious injury may occur.

H7679 2" Nailer Kit

-8-

OPERATIONS

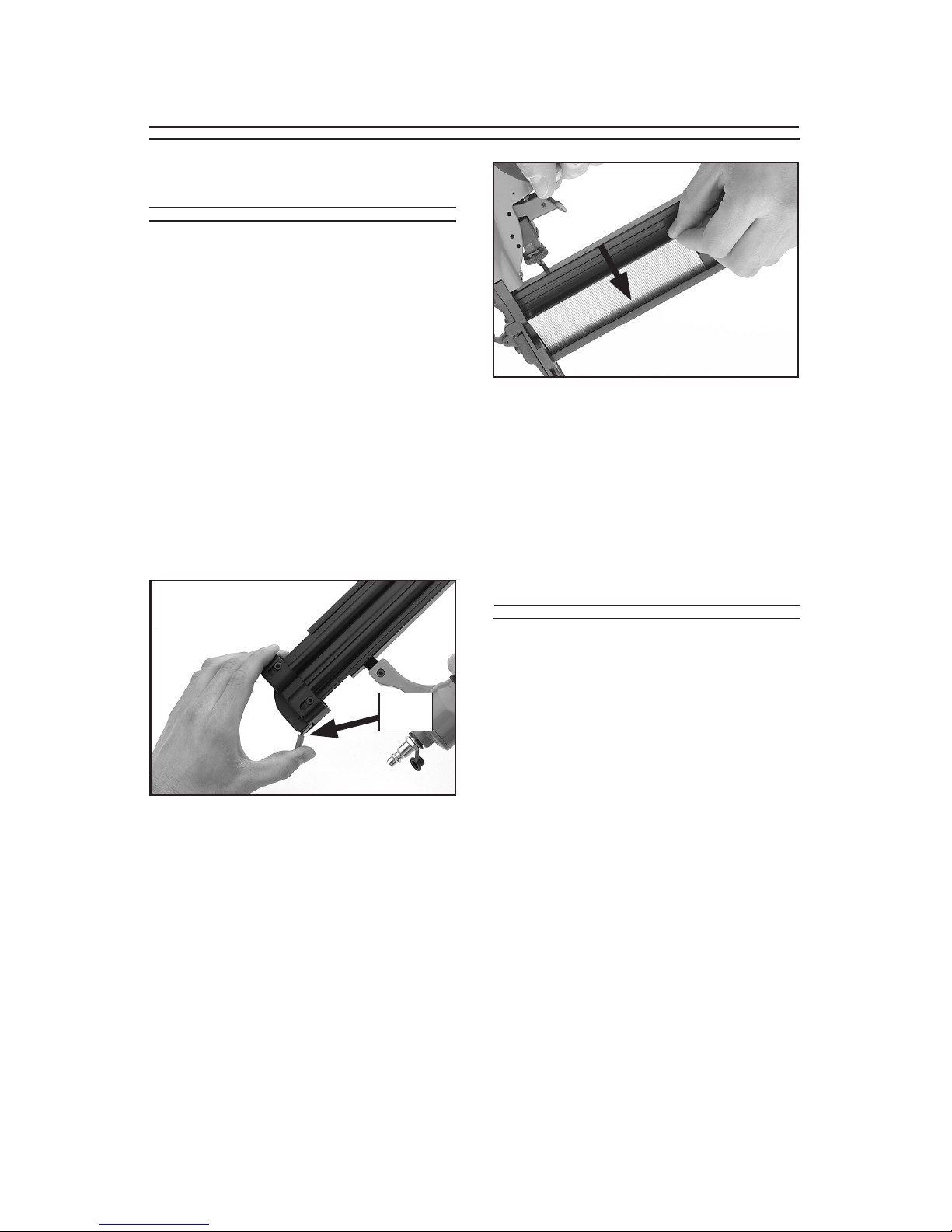

Figure 3. Sliding magazine pusher back

and locking catch lever in place.

When replacing nails in your Model

H7679, follow these guidelines:

Gauge: 18

Length: 3⁄8" – 2"

Capacity: 100

To load your nailer:

1. DISCONNECT NAILER FROM THE

AIR SUPPLY!

2. Sliding magazine pusher back, as

shown in Figure 3, to lock the catch

lever in place.

Figure 4. Loading nails into magazine.

3. Insert a strip of nails, pointed-end

down, into the magazine as shown in

Figure 4.

Operating

If you have not read the safety instruc-

tions in this manual, do not operate

the nailer.

Before you operate your nailer, place five

to six drops of the included oil into the

quick connect fitting where the nailer con-

nects to the air supply.

To operate your nailer:

1. Connect the air supply to the quick

connect fitting.

2. To test for proper nail penetration, hold

the nailer perpendicular to the surface

of a piece of clean scrap wood that is

thick enough for the length of nails you

have loaded.

4. Slide the nails all the way down to the

nose of the nailer.

5. Push the magazine pusher all the way

in until the catch lever locks.

Catch

Lever

Andere Handbücher für H7679

Inhaltsverzeichnis

Andere Grizzly Nagelpistole Handbücher

Grizzly

Grizzly H6143 Bedienungsanleitung

Grizzly

Grizzly 1 1/4" Brad Nailer T20568 Bedienungsanleitung

Grizzly

Grizzly G6050 Bedienungsanleitung

Grizzly

Grizzly G6048 Bedienungsanleitung

Grizzly

Grizzly H6144 Bedienungsanleitung

Grizzly

Grizzly G3690 Bedienungsanleitung

Grizzly

Grizzly H5527 Bedienungsanleitung

Grizzly

Grizzly H6146 Bedienungsanleitung

Grizzly

Grizzly H8235 Bedienungsanleitung

Grizzly

Grizzly H7664 Bedienungsanleitung

Grizzly

Grizzly H5570 Bedienungsanleitung

Grizzly

Grizzly G6049 Bedienungsanleitung

Grizzly

Grizzly G2420 Bedienungsanleitung

Grizzly

Grizzly G6049 Bedienungsanleitung

Grizzly

Grizzly G6050 Bedienungsanleitung

Grizzly

Grizzly H6146 Bedienungsanleitung

Grizzly

Grizzly G6045 Bedienungsanleitung

Grizzly

Grizzly G6048 Bedienungsanleitung

Grizzly

Grizzly H2912 Bedienungsanleitung

Grizzly

Grizzly H5571 Bedienungsanleitung

Grizzly

Grizzly H6144 Kurzanleitung

Grizzly

Grizzly H8233 Bedienungsanleitung

Grizzly

Grizzly H8234 Bedienungsanleitung

Grizzly

Grizzly G2413 Bedienungsanleitung

Beliebte Nagelpistole Handbücher anderer Marken

Performance Tool

Performance Tool M643 Bedienungsanleitung

Hitachi

Hitachi VH650 - Fencing Nailer, Full Head Bedienungsanleitung

Parkside

Parkside PET 25 B1 Bedienungsanleitung

Senco

Senco Fusion Technology F-35XP Bedienungsanleitung

Ryobi

Ryobi R18N18G Bedienungsanleitung

Black & Decker

Black & Decker 492848-00 Bedienungsanleitung

HOLZMANN MASCHINEN

HOLZMANN MASCHINEN TN90 Bedienungsanleitung

Metabo HPT

Metabo HPT NR 3690DC Bedienungsanleitung

Surtek

Surtek CN650 Abmessungen und Installationsanleitung

Makita

Makita GF600 Bedienungsanleitung

Parkside

Parkside PET 25 B1 Bedienungsanleitung

Senco

Senco AirFree 25 Bedienungsanleitung

Freeman

Freeman P50LSLW Bedienungsanleitung

Aicon PRO

Aicon PRO DAC4507 Bedienungsanleitung

DAJ

DAJ XR150A Bedienungsanleitung

Makita

Makita AN923 Bedienungsanleitung

Black & Decker

Black & Decker 90514937 Bedienungsanleitung

Alfamacchine

Alfamacchine Minigraf 4 Handbuch
