Grizzly H2912 Bedienungsanleitung

1821 VALENCIA ST., BELLINGHAM, WA 98227

PRINTED IN TAIWAN

PARTS LIST DISCLAIMER

THIS PARTS LIST AND DRAWINGS REPRESENT THE CONFIGURATION OF THE MACHINE AS IT IS CURRENTLY BEING

SHIPPED. THE MACHINE CONFIGURATION CAN CHANGE AS PRODUCT IMPROVEMENTS ARE INCORPORATED. IFYOU OWN

AN EARLIER VERSION OF THE MACHINE, THIS PARTS LIST MAY NOT DEPICT YOUR MACHINE EXACTLY. CONTACT

CUSTOMER SERVICE IF YOU HAVE ANY QUESTIONS ABOUT PART DIFFERENCES. PREVIOUS PARTS LIST VERSIONS ARE

NOT AVAILABLE ONLINE.

2-IN-1 NAILER/STAPLER KIT

MODEL H2912/H2913

PARTS LIST

Model H2913

Model H2912

H2912/H2913 2-IN-1 NAILER/STAPLER -B-

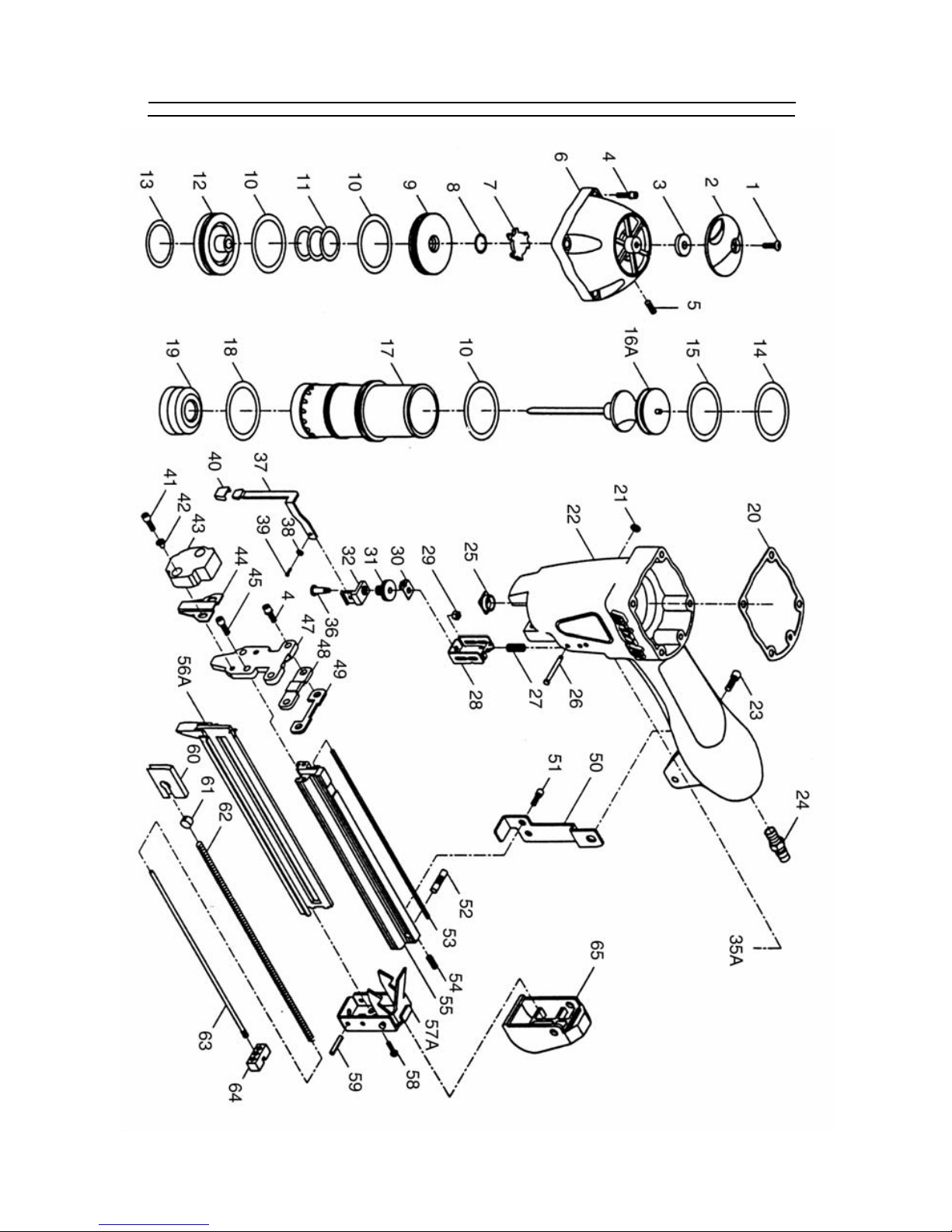

H2912 PART BREAKDOWN

H2912/H2913 2-IN-1 NAILER/STAPLER-C-

01 PH2912001 CAP SCREW

02 PH2912002 CAP COVER

03 PH2912003 SEAL

04 PH2912004 CAP SCREW

05 PH2912005 SETSCREW

06 PH2912006 CAP

07 PH2912007 PISTON STOPPER

08 PH2912008 O-RING

09 PH2912009 COLLAR

10 PH2912010 O-RING

11 PH2912011 SPRING

12 PH2912012 PISTON HEAD VALVE

13 PH2912013 O-RING

14 PH2912014 O-RING

15 PH2912015 O-RING

16A PH2912016A PISTON ASSEMBLY

17 PH2912017 CYLINDER

18 PH2912018 O-RING

19 PH2912019 BUMPER

20 PH2912020 GASKET

21 PH2912021 O-RING

22 PH2912022 BODY

23 PH2912023 CAP SCREW

24 PH2912024 AIR PLUG

25 PH2912025 JOINT GUIDE

26 PH2912026 STEPPED PIN

27 PH2912027 SPRING

28 PH2912028 SAFETY LEVER

29 PH2912029 LOCK NUT

30 PH2912030 POSITIONING PLATE

31 PH2912031 ADJUSTMENT NUT

32 PH2912032 GUIDE PLATE

35A PH2912035A BUMP FIREB SWITCH

36 PH2912036 SET SHAFT

37 PH2912037 SAFETY LEVER

38 PH2912038 LOCK WASHER

39 PH2912039 CAP SCREW

40 PH2912040 RUBBER PAD

41 PH2912041 CAP SCREW

42 PH2912042 SOCKET

43 PH2912043 NOSE COVER

44 PH2912044 NOSE COVER

45 PH2912045 CAP SCREW

47 PH2912047 NOSE

48 PH2912048 SET PLATE

49 PH2912049 SET PLATE

50 PH2912050 BRACKET

51 PH2912051 CAP SCREW

52 PH2912052 SHAFT

53 PH2912053 LINER

54 PH2912054 SET SCREW

55 PH2912055 MAGAZINE

56A PH2912056A STAPLE GUIDE UNIT

57A PH2912057A END CORE ASBLY.

58 PH2912058 CAP SCREW

59 PH2912059 ROLLED PIN

60 PH2912060 PUSHER

61 PH2912061 SLIDE BLOCK

62 PH2912062 SPRING

63 PH2912063 ROD

64 PH2912064 SET BLOCK

65 PH2909065 TAIL COVER

REF PART # DESCRIPTION REF PART # DESCRIPTION

H2912/H2913 2-IN-1 NAILER/STAPLER -D-

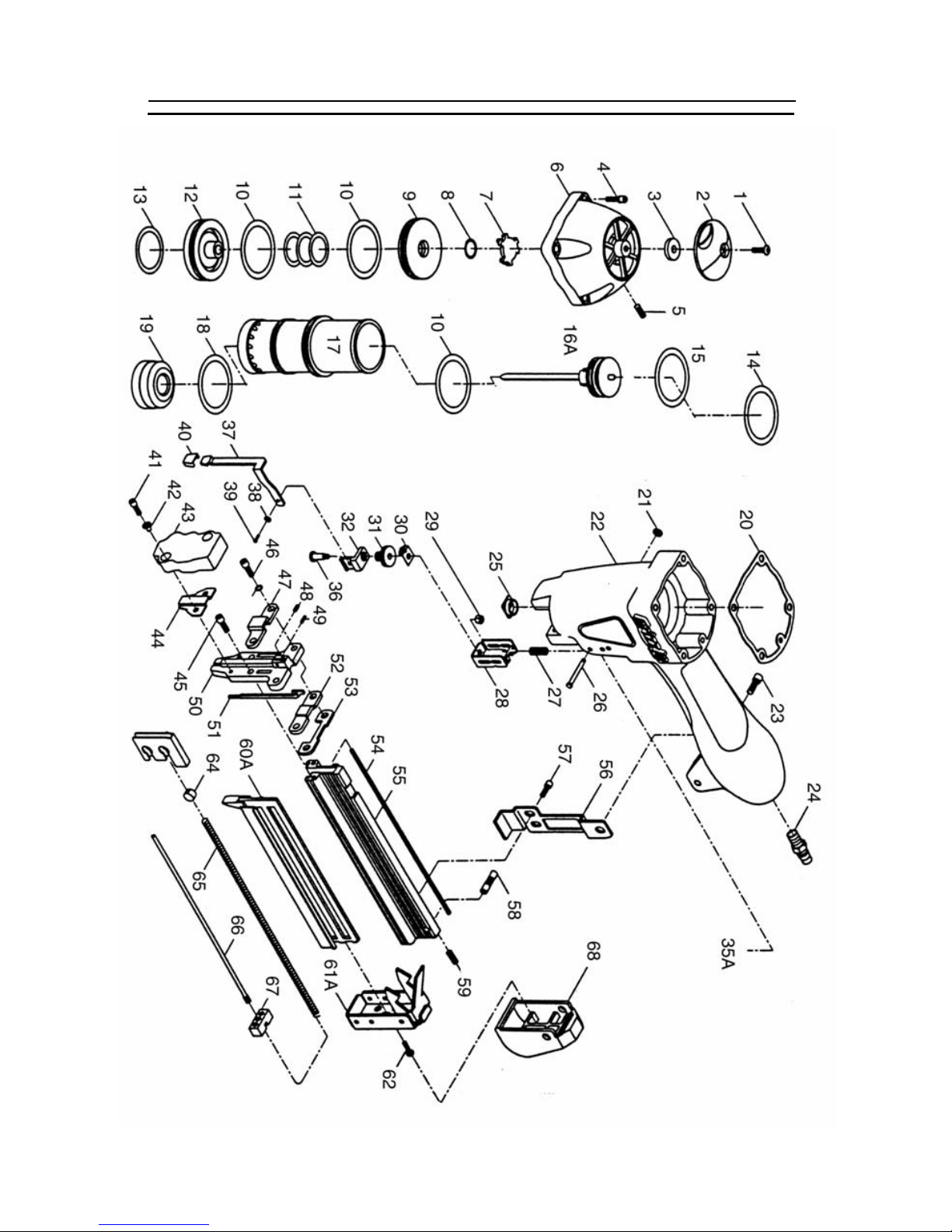

H2913 PART BREAKDOWN

H2912/H2913 2-IN-1 NAILER/STAPLER-E-

01 PH2913001 CAP SCREW

02 PH2913002 CAP COVER

03 PH2913003 SEAL

04 PH2913004 CAP SCREW

05 PH2913005 SETSCREW

06 PH2913006 CAP

07 PH2913007 PISTON STOPPER

08 PH2913008 O-RING

09 PH2913009 COLLAR

10 PH2913010 O-RING

11 PH2913011 SPRING

12 PH2913012 PISTON HEAD VALVE

13 PH2913013 O-RING

14 PH2913014 O-RING

15 PH2913015 O-RING

16A PH2913016A PISTON ASSEMBLY

17 PH2913017 CYLINDER

18 PH2913018 O-RING

19 PH2913019 BUMPER

20 PH2913020 GASKET

21 PH2913021 O-RING

22 PH2913022 BODY

23 PH2913023 CAP SCREW

24 PH2913024 AIR PLUG

25 PH2913025 JOINT GUIDE

26 PH2913026 STEPPED PIN

27 PH2913027 SPRING

28 PH2913028 SAFETY LEVER

29 PH2913029 LOCK NUT

30 PH2913030 POSITIONING PLATE

31 PH2913031 ADJUSTMENT NUT

32 PH2913032 GUIDE PLATE

35A PH2913035A BUMP FIRE SWITCH

36 PH2913036 SET SHAFT

37 PH2913037 SAFETY LEVER

38 PH2913038 LOCK WASHER

39 PH2913039 CAP SCREW

40 PH2913040 RUBBER PAD

41 PH2913041 CAP SCREW

42 PH2913042 SOCKET

43 PH2913043 NOSE COVER

44 PH2913044 NOSE COVER

45 PH2913045 CAP SCREW

46 PH2913046 CAP SCREW

46-1 PH2913046-1 LOCK WASHER

47 PH2913047 SET PLATE

48 PH2913048 SPRING

49 PH2913049 ROLLED PIN

50 PH2913050 NOSE

51 PH2913051 NAIL GUIDE PLATE

52 PH2913052 SET PLATE

53 PH2913053 SET PLATE

54 PH2913054 LINER

55 PH2913055 MAGAZINE

56 PH2913056 BRACKET

57 PH2913057 CAP SCREW

58 PH2913058 SHAFT

59 PH2913059 SET SCREW

60A PH2913060A STAPLE GUIDE UNIT

61A PH2913061A END CORE ASSY.

62 PH2913062 CAP SCREW

63 PH2913063 PUSHER

64 PH2913064 SLIDE BLOCK

65 PH2913065 SPRING

66 PH2913066 ROD

67 PH2913067 SET BLOCK

68 PH2913068 TAIL COVER

REF PART # DESCRIPTION REF PART # DESCRIPTION
