Growatt Lucas Bedienungsanleitung

GROWATT NEW ENERGY TECHNOLOGY CO.,LTD －Powering Tomorrow

Gorwatt Monitoring System

Lucas

GROWATT NEW ENERGY TECHNOLOGY CO.,LTD －Powering Tomorrow

Monitoring Devices

Content

Monitoring Platform

GROWATT NEW ENERGY TECHNOLOGY CO.,LTD －Powering Tomorrow

Growatt Shine WIFI-S

1. Growatt Shine WIFI-S

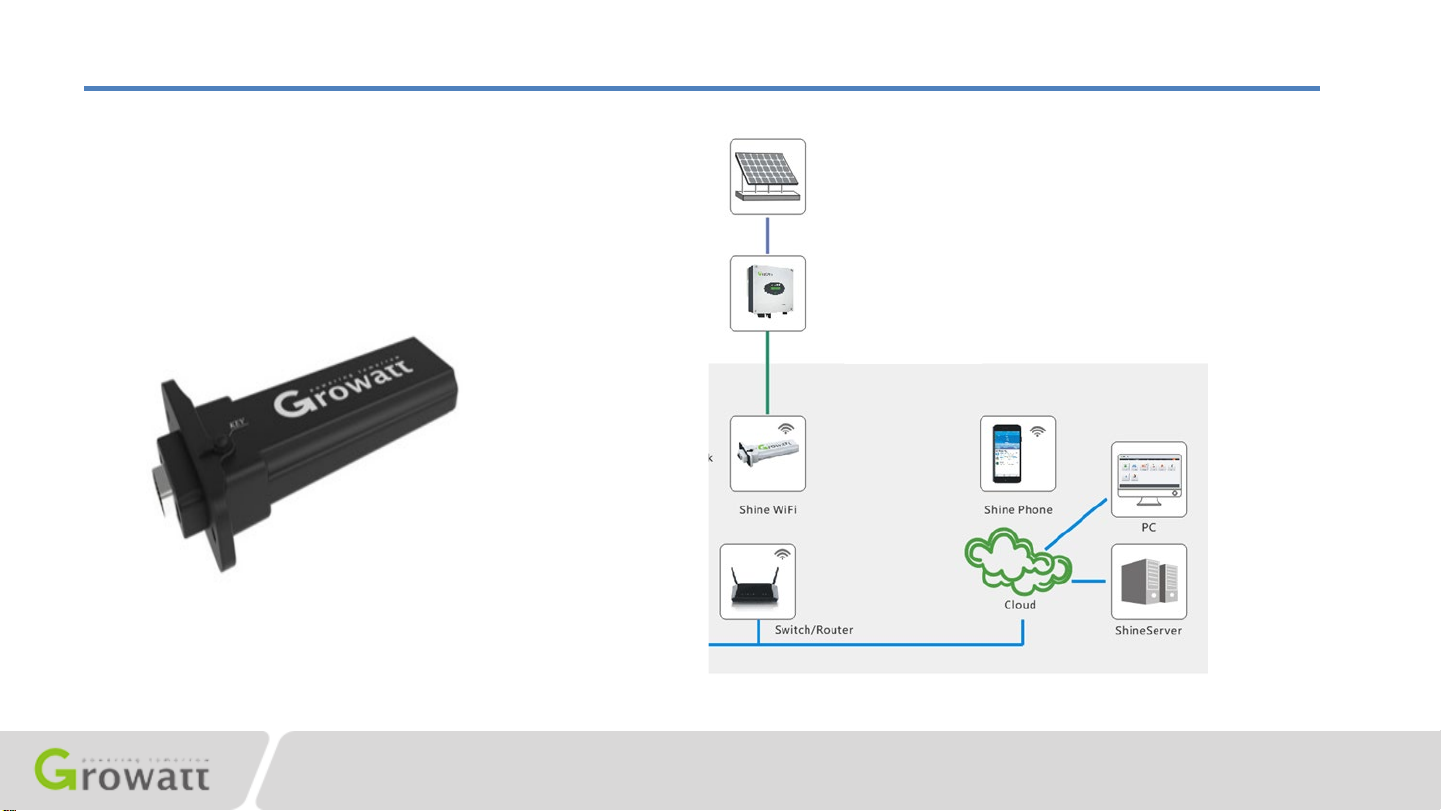

Growatt Shine WIFI-S Monitor System

Monitoring Devices

GROWATT NEW ENERGY TECHNOLOGY CO.,LTD －Powering Tomorrow

1. Growatt Shine WIFI-S

Monitoring Devices

Datasheet

WIFI

-S

Data Interface RS232/USB

Support Network 2.4G WIFI

Server Communication TCP(Modbus TCP Protocol)

MAX. Communication range 50m

Data Transfer Interval 5min

MAX Power Consumption 2W

Configure Type APP Configure

Some advantages:

1. Store data for more than 40 days

2. Update stored data to ShineServer

when Internet recover

3. Support remote service

GROWATT NEW ENERGY TECHNOLOGY CO.,LTD －Powering Tomorrow

Growatt Shine WIFI-S Installation Guideline

Monitoring Devices

Step.1. Connect WIFI-S with Inverter

1.1. If the inverter RS-232 port is like A, switch the DIP1 switch to “ON”.

If the inverter RS-232 port is like type B, remove the rubber plug.

1.2. Connect WiFi-S to RS-232 port, and fix it with the screws

GROWATT NEW ENERGY TECHNOLOGY CO.,LTD －Powering Tomorrow

Growatt Shine WIFI-S Installation Guideline

Monitoring Devices

Step.2. Turn on inverter and check WIFI-S state

GROWATT NEW ENERGY TECHNOLOGY CO.,LTD －Powering Tomorrow

Growatt Shine WIFI-S Installation Guideline

Monitoring Devices

Step.3. Registration and adding device

3.1. Connect your mobile phone to the WIFI of your

home router of which the WIFI-S module will be

connected.

3.2. Open ShinePhone AP P, click “Register” on

3.3. Select country and c i t y, in next page fill out the

required information, then click “Next”, it will guide

you to the “Add datalogger”page.

Note:If you select awrong country and city, the

system time maybe wrong.

GROWATT NEW ENERGY TECHNOLOGY CO.,LTD －Powering Tomorrow

Growatt Shine WIFI-S Installation Guideline

Monitoring Devices

Step.3. Registration and adding device

3.4. Scan or input the ShineWiFi

barcode and checkcode,then click

“Register”, it will move you to the

“Set ShineWifi”page.

GROWATT NEW ENERGY TECHNOLOGY CO.,LTD －Powering Tomorrow

Growatt Shine WIFI-S Installation Guideline

Monitoring Devices

Step.3. Registration and adding device

3.5. Fill out the wifi network and password,

then click “Configuration”, after successful

configuration, anote will pop up

“Configured successfully”, then it will move

to the “my plant” page.

Note:There are 3LEDs on WiFi-S, only the

blue LED flashing indicates the WiFi module

is successfully connected to the router and

ShineServer.

GROWATT NEW ENERGY TECHNOLOGY CO.,LTD －Powering Tomorrow

Growatt Shine WIFI-S Installation Guideline

Monitoring Devices

Step.3. Registration and adding device

3.6. Clicking “+” sign on the right top of the

page, select “Datalogger list” in the appearing

dialog window.

Push on the datalogger’s serial number for 3

suntil asmall dialog window appears, select

“Configure datalogger”.

It will move to the “Set ShineWifi”page,enter

the home router’s name and password, then

click “Set” the connection configuration

process will begin.
