Häfele EL6500-TCS Bedienungsanleitung
EL6500-TCS
User manual
Please keep your mechanical key well out of your room, and make sure can be
got easy for emergency.
www.hafele.com.vn
2
CONTENTS
Introduction
Reset
Add User
Delete User
Special Function
Unlock
......................................................................................................3
.............................................................................................................7
........................................................................................................8
....................................................................................................10
............................................................................................11
............................................................................................................13
3

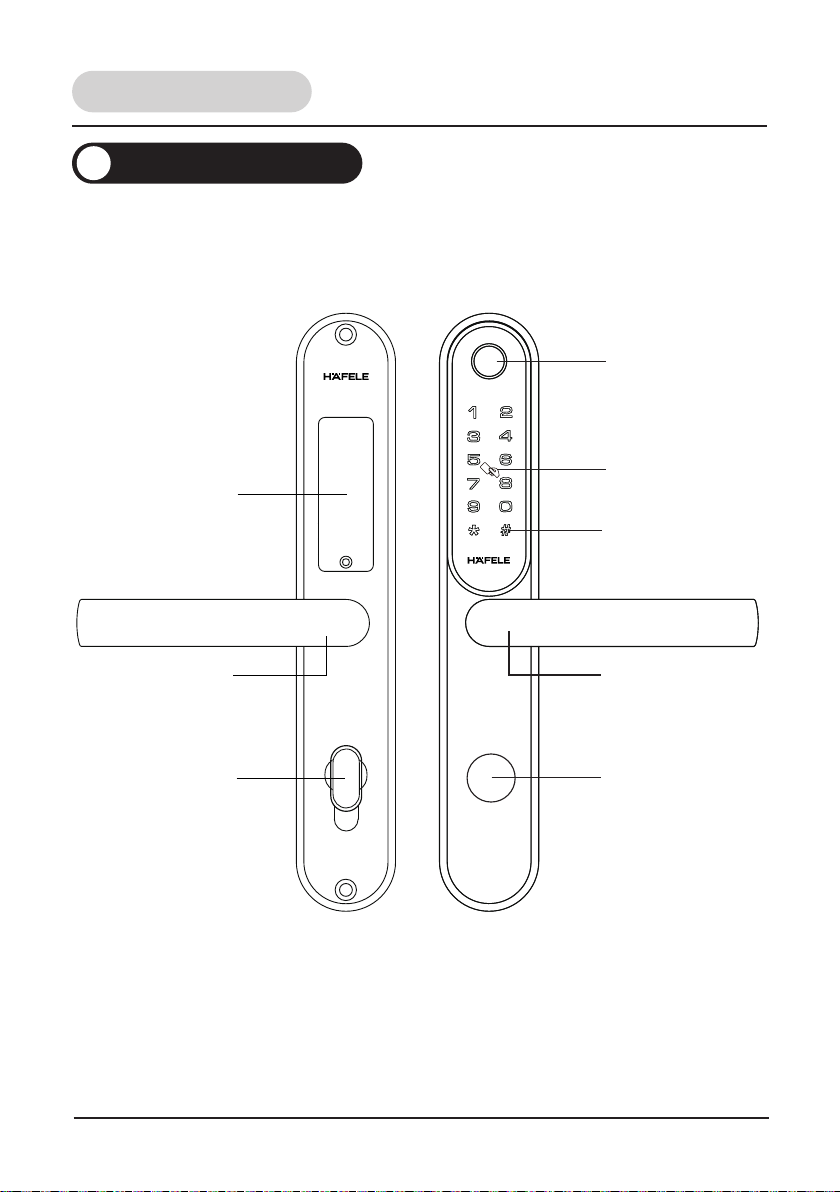

Fingerprint Reader
Card Reader
Touch Keypad
Front Handle
Mechanical Key HoleDeadbolt Knob
Back Handle
Battery Case Cover
Introduction
Product specification1
4
The lock has 2 levels of users: Master, User;
Master: Can access by Fingerprint/Password/Card, also can add or delete User;
User: Can access by Fingerprint/Password/Card;
Master: 9 Master Fingerprint/Password/Card (Master ID is 001-009)
User: 241 User Fingerprint/Password/Card(User ID is 010-250)
Unlock Ways: Fingerprint/Password/Card/Mechanical key
Main Material: Stainless Steel
Password Length: 3~12 digits password
Keypad Type: Touch Keypad
Fingerprint Reader: Semiconductor Fingerprint Reader
Power Supply Mode: 4 pieces AAA alkaline batteries
User Introduction
User Capacity
Lock Parameters
3
4
5
Introduction
[ ]: Return or quit [ #]: Enter
Key Introduction2
5
After assembling the lock, you should add at least 1 Master before adding User
The lock setting process as follow:
When run out of batteries, you can connect mobile
power Micro USB interface for emergency power
supply.
Temporary Master Password ‘1111 1111’.
The new lock at factory state is always open, it means you can unlock without Fingerprint/Password/
Card/Mechanical Key.
Cancel Always Open
Unlock with Fingerprint/Password/Card, the lock will lock;
Low Battery
When you unlock, you will hear Beep---, Beep---, Beep---, Battery Low ;
Run Out Of Batteries
When Low Battery, please replace 4 pieces of new AAA alkaline batteries in time.
Factory State
Low Battery/Run Out Of Batteries
Setting Process
6
8
7
Introduction
Reset Add Master Add User Unlock
Mobile Power
6
> Have not put the whole
finger
> Finger is not in the reader
centre
Introduction
Warning:
You must make sure you can unlock with Mechanical
key/Password/Fingerprint/Card before closing the door.
Attention On Registering/Reading Fingerprint9
There are some wrong operations
There are some right operations
> Finger is dirty
> Finger has water
> Fingers are clean
> Finger is injured badly
> Finger is in the reader
centre
> Put the whole finger onto
the centre
The finger too wet or too dry is not good for reading. If your finger is overdried, blow your
finger with mouth before putting your finger to unlock.
7
Reset
Note
Operation
1
2
After resetting, all the Fingerprint/Password/Card information will be deleted.
A new Temporary Master Password ‘1111 1111’ (8 times 1) will be created at the same time.
The Temporary Master Password will be invalid when you add the first Master successfully.
RL
Step 1
Disassemble the Front Panel
and find out the Reset Button
Step 2
Press the Reset Button 1 time,
you will hear ‘System Setting’
Step 3
Keep pressing the ‘#’ , when hear
‘Beep---, Success’, release ‘#’
8
Add User
Add Master1
Add User
Step 1
* Touch Palm to
awake Keypad,
Input ## (2 times #)
Input new Password+#
(If the password is 12 digits,
please do not press # to
end.)
Input Master
Beep---,
Success
Please
select
function
Add Master
Step 2
Input Master Password/
Fingerprint/Card
(When you add the first Master,
please input 1111 1111#)
Step 3
Input: 1
Step 4
Input new Password/Fingerprint/Card
(Details as following)
Back to Step 3
Press finger
(When hear Put finger again, remove
and press the same finger. Repeat
these operations for 3 times until
hear Beep---, Success)
Put the card onto
card reader
Stay for 2 seconds
Add Password Add Fingerprint Add Card
Tips
1. In setting process, if operation is failed, it will back to previous step.
* Please touch palm to awake the Keypad. *Awake Keypad
9
Add User
Add User2
Add User
Step 1
Touch Palm to
awake Keypad,
Input ## (2 times #)
Input new Password+#
(If the password is 12 digits,
please do not press # to
end.)
Input Master
Beep---,
Success
Please
select
function
Add User
Step 2
Input Master Password/
Fingerprint/Card
Step 3
Input: 2
Step 4
Input new Password/Fingerprint/Card
(Details as following)
Back to Step 3
Press finger
(When hear Put finger again, remove
and press the same finger. Repeat
these operations for 3 times until
hear Beep---, Success)
Put the card onto
card reader
Stay for 2 seconds
Add Password Add Fingerprint Add Card
Tips
1. In setting process, if operation is failed, it will back to previous step.
2. Before adding Master, you can not add User.
Add User
10
Delete User
Delete Master/User1
Step 1
Touch Palm to
awake Keypad,
Input ## (2 times #)
Input ID
Step 2
Input Master Password/
Fingerprint/Card
Step 3
Input: 3
Step 4
Input ID of Master or User which you want to delete
(Master ID is 001-009, User ID is 010-250)
Tips
1. In setting process, if operation is failed, it will back to previous step.
2. If you do not know ID, please try to unlock by Fingerprint/Password/Card, then the voice will
tell you the ID.
Input Master
Please
select
function
