H-KING SU-27 Bedienungsanleitung

INSTRUCTION MANUAL

2

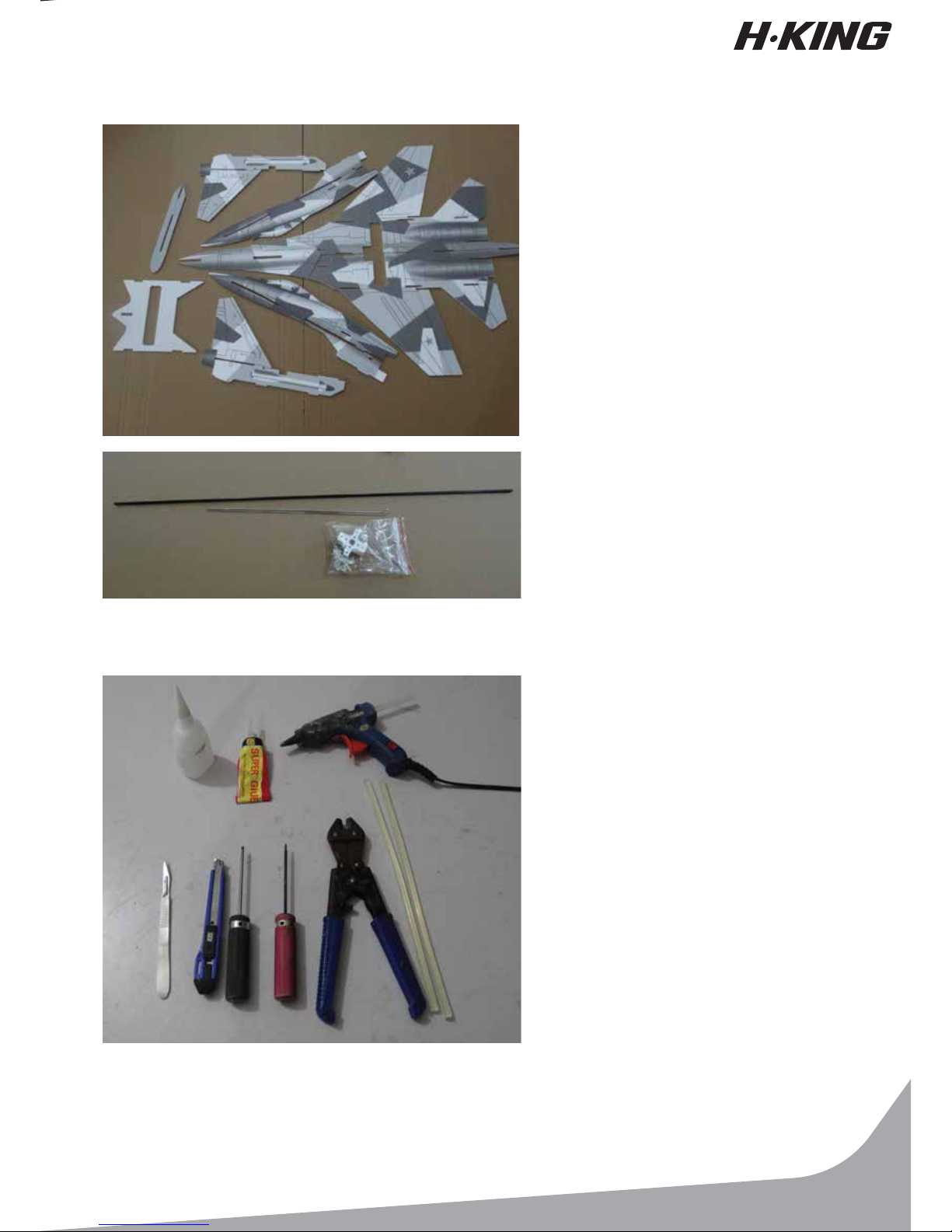

Packing list:

1: PP Su27 fuselage *1

2: Carbon tube 5*4*650mm*1

3: Pull rod *2

4: Motor mount *1

5: Quick rod adjuster *4

6: Hinge*4

7: M3 screws*4

8: Hook and loop tape*1

Tools:

1: 1.5mm allen wrench

2: Phillips screwdriver

3: Modelling knife

4: Wire cutters

5: Hot melt glue gun and glue sticks

6: Foam Glue

7: No.502 glue

Electronic equipment:

Motor：2208-2212-2216

1400KV-2600KV*1

Prop：5-8 inch *1

ESC：20-40A*1

Servo：8/9g *2

Battery：1300-2200mah 3S *1

1

2

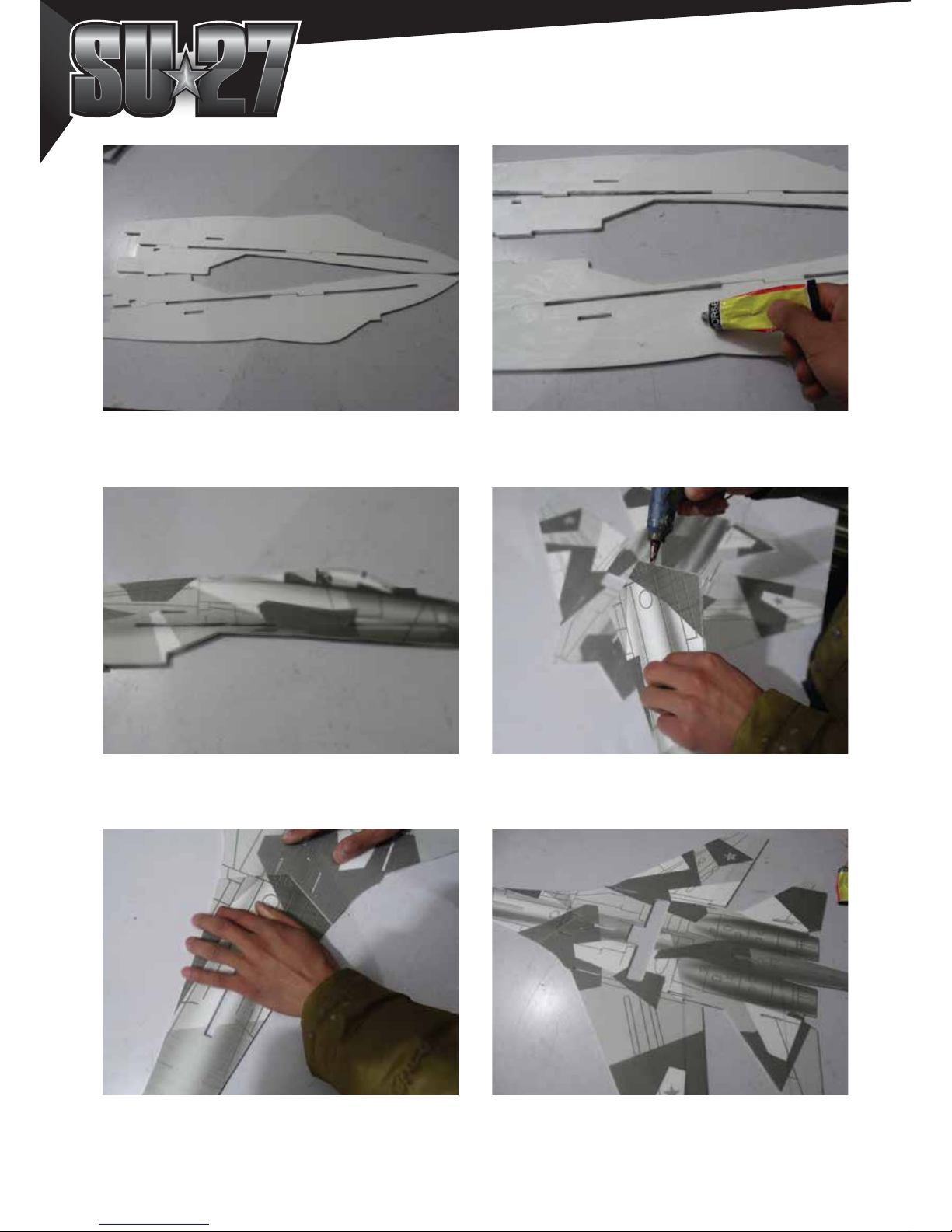

Applying foam glue on 2 pcs nose.

Important: Wait 3 mins after applying foam glue,

then assemble the 2 pcs nose. Make sure 2 pcs

nose trim. Especially for step.

Glue the 3 pcs horizontal fuselages using hot glue

sticks.

Glue the carbon tube on fuselage using hot glue

sticks.

Put the vertical tail on the fuselage and mark the hole

for carbon tube. Then put on the carbon tube on the

hole’s location.

Cut the horizontal tail using knife.

Assemble all vertical tail on fuselage using hot glue

sticks.

3

4

Make sure the vertical tail is vertical to fuselage.

Assemble the nose on fuselage using hot glue sticks,

make sure the motor mount location must be flat!

Reinforce nose using hot glue sticks after assemble.

Important: Don’t glue too much on motor mount

location to avoid influence the motor mount’s

assemble.

Assemble tail on fuselage using hot glue sticks.

Reinforce all parts from bottom using hot glue sticks

after assemble.

Assemble motor on motor mount using motor’s

screws.

Assemble prop on motor. Notice the prop’s direction. Assemble motor mount on fuselage, then reinforce

motor mount using a little hot glue sticks.

Applying foam glue on nose’s hook and loop tape

location, then cut suitable hook and loop tape and stick

on the location.

5

6

Connect the motor and ESC, then put ESC on hook

and loop tape.

Place the motor wire through the hole behind motor

mount .

Install arm on servo and electrify all servos to make

sure the arm perpendicular to servo. Then install arm

screws. Install servo in the hole using hot melt glue.

Also glue the servo’s wire on fuselage using hot glue

sticks.

Assemble baseboard using hot glue sticks. Applying foam glue on horizontal tail and fuselage,

wait 3 mins, then assemble horizontal tail on fuselage.

Reinforce the horizontal tail using hot glue sticks after

assemble.

Assemble hinge with foam glue.Assemble Quick rod adjuster and install it in hinge,

apply a little No.502 to the nuts.

Put on hook and loop tape on fuselage using foam

glue and then place another hook and loop tape

through the hole.

Assemble the battery and receiver using hook and

loop tape.

7

8

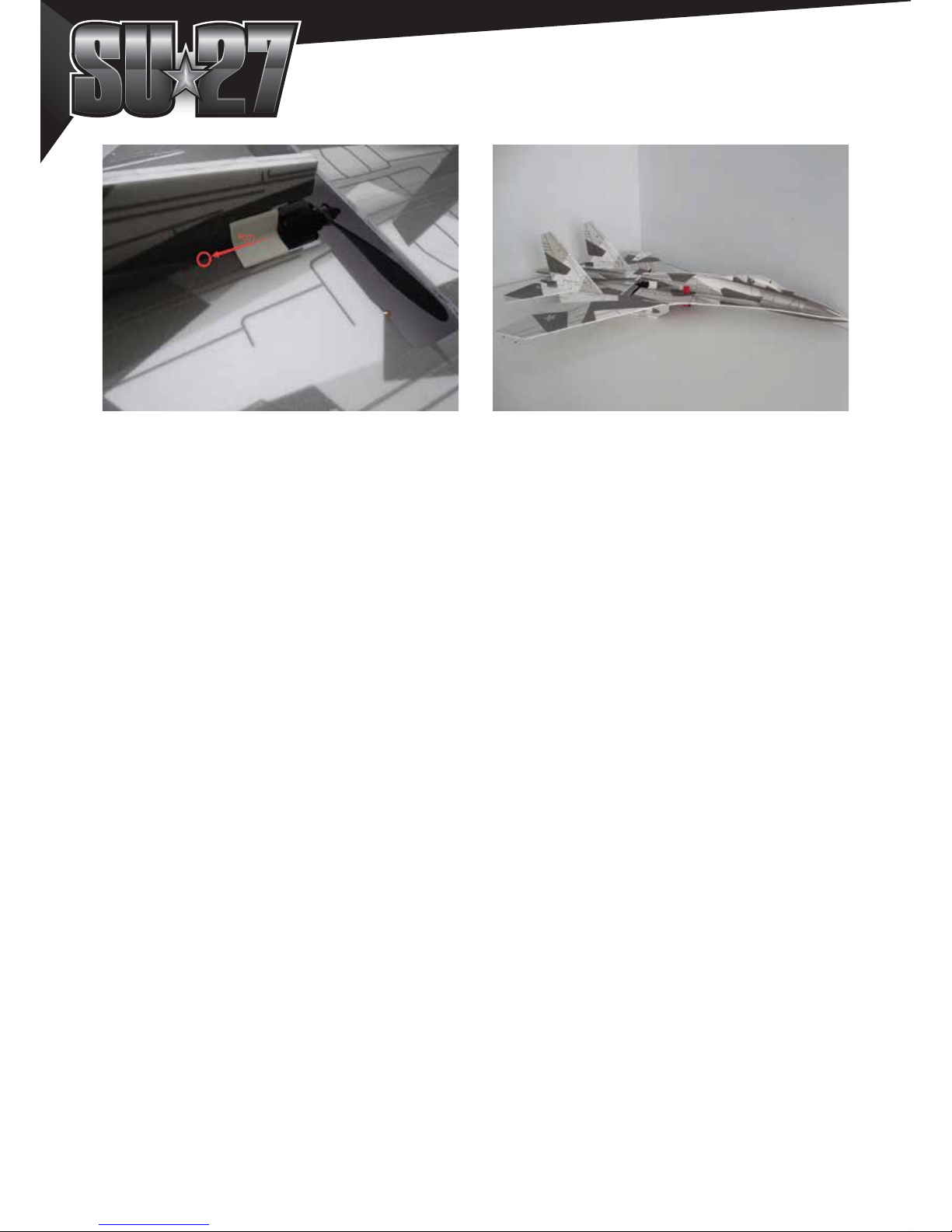

C of G is on the front of the motor mount 4cm as

shown in the picture above.

PP Su27’s elevator and aileron are linkage mode, so

we need set delta wing mixed control on radio. Then it

can super-maneuver flight.
