Haier HP200M3 Technisches Datenblatt

Heat pump Water Heater

Operation and Installation Manual

Model

HP200M3

HP250M3

HP250M3C

Please read this manual carefully prior to

your use of this water heater.

The appearance of the water heater given

in this manual is for reference only.

English

ELECTRICITE

Operation and functions

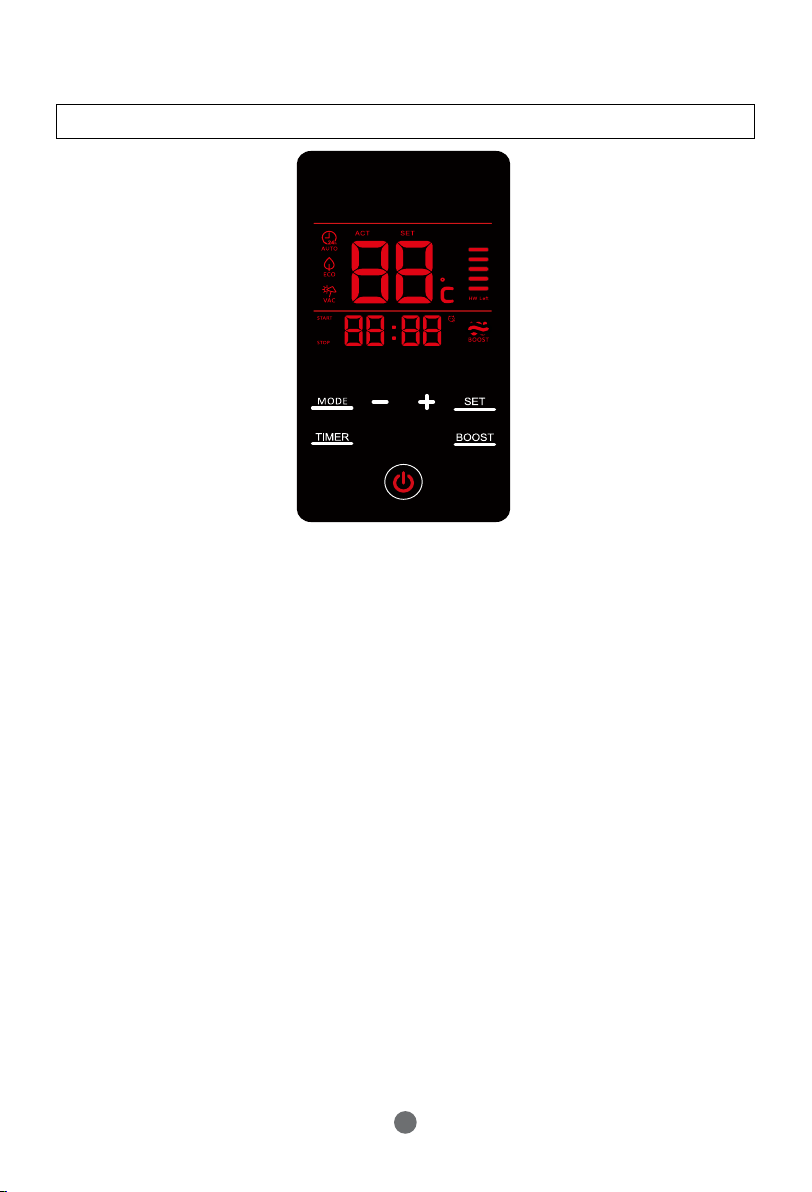

Display

Functions & Protections

Electrical leakage protection

The control system of this machine features an electricity leakage protection function.

10-minutes protection

Automatic defrosting function

Overload protection

Anti-freezing function

The heat pump starts heating to avoid freezing of the water tank if the temperature in

the water tank is too low.

The default temperature setting is 55°C.

When restarting the machine immediately after shutdown, the system goes into the

protection mode and starts after approximately 10 minutes, which is considered to be

normal.

The defrosting mode is automatically activated if the outdoor temperature is too low

and after the compressor already runs continuously for a certain period.

The working load of the compressor will be heavy if temperature is high in summer. In

order to meet hot water requirements of users and to lengthen service life of the

compressor, this product automatically adjusts the fan speed to ensure reliable

operation of the compressor.

3-minutes protection

When starting the machine after electricity input, the system will start after

approximately 3 minutes ,which is considered to be normal.

English

- According to the vacation dates in advance to prepare

hot water;

- For example, you leave home for vacation on January 1st and

return home on January 5th. The date shall be set as

(5-1) =4 days, and corresponding temperature shall also be set.

The heat pump will start heating on 00:00 o’clock of January

4th automatically.

Holiday mode

- Anti-legionella

Hot water volume display

- In this mode ,priority using heat pump;

- In two ways using heat pump,should set in the installer

settings;

1- timer refer to LP parameter;

2-switch signals by power companies.

ECO (oﬀ-peak) mode

Symbol Description

Timer adjust

Boost mode. Heat pump and auxiliary power are

activated at the same time.

Power ON/OFF switch

Working mode selection

Conﬁrm button

Auto mode

-Optimised management of the heat pump and the electrics

for guaranteed comfort；

- Prior using heat pump;

- If compressor works more than the default 8 hours , start

the auxiliary power；

- The compressor maximum continuous working time（　　　　　）

can be adjust in the installer settings.

Description of the pictograms

- Anti-legionella function will be activated every 7 days to

heat the tank to 65°C automatically .

Operating functions

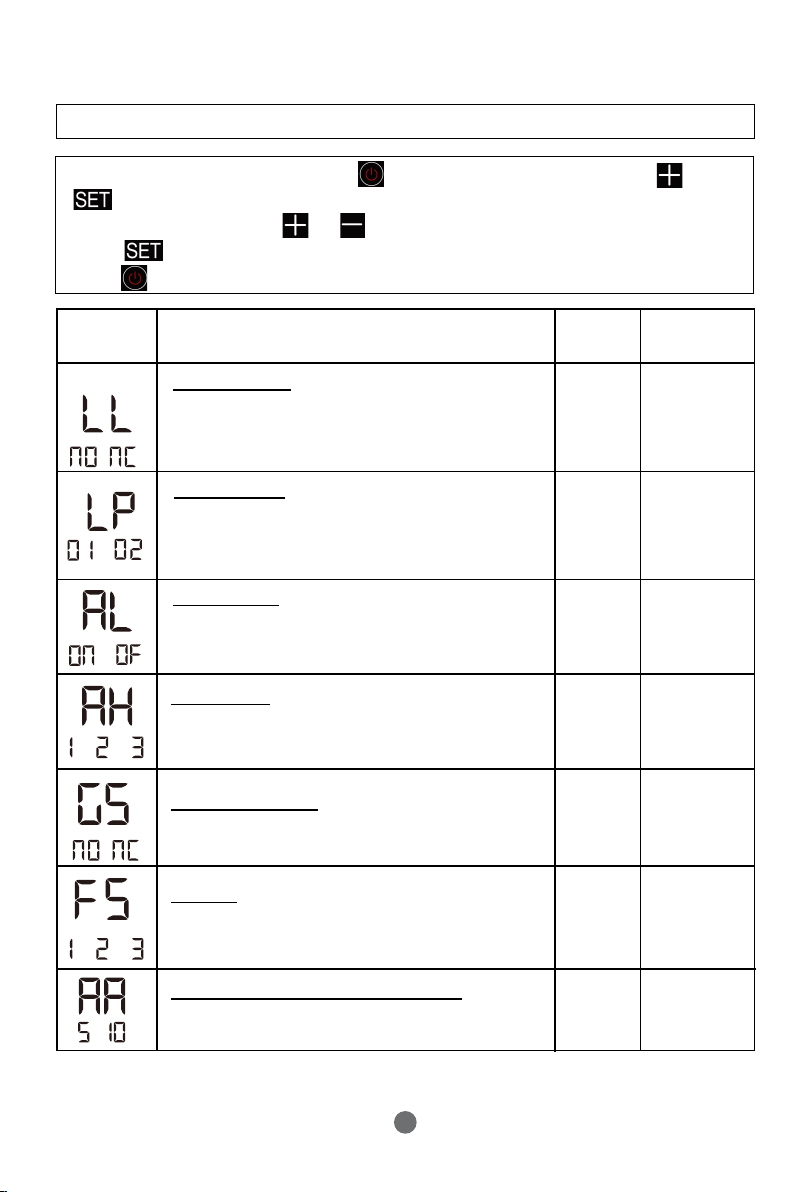

Installer settings

Parameters

, ,

Description

- To open the installer settings, press switch oﬀ the system, then press and

at the same time for 10 seconds.

- When menu is open, press or to change the value of the settings.

- Press to conﬁrm the settings.

- Press to close the menu.

Oﬀ-peak signal type

Oﬀ-peak logic type

When you use oﬀ-peak time clock control, ﬁrst determine

the type of signals,Only allow professional installers to operate.

- In two ways using heat pump,should set in the installer

settings

-01 manually set oﬀ-peak time;

-02 switch signals by power companies.

1 1,2,3

8h 5-10h

1,2,3

NO , NC

01 , 02

ON , OF

NO NO , NC

Fan speed

- 1 corresponds to water heaters without ducts.

- 2 corresponds to semi-ducting, with a single duct installed.

- 3 corresponds to ducts on both the inlet and the outlet.

Compressor maximum continuous working time

- If

the maximum continuous working time

of the

compressor

more than Set Time, start auxiliary power.

Auxiliary Heating

- 1 corresponds to electrical back-up.

- 2 corresponds to electrical and boiler back-up.

- 3 corresponds to electrical and solar back-up.

Boiler output signal type

, ,

Factory

setting

Adjustment

range

Avoid Legionella

- This parameter is used to activate the legionella protection

mode.

- Once every 7 days, all domestic hot water is heated to 65�.

- NO corresponds to boiler Normally Open Signal.

- NC corresponds to boiler Normally Close Signal.

- NO corresponds to Normally Open Signal.

- NC corresponds to Normally Close Signal.

Checking and maintenance

Checking of the Safety valve

- Installation and maintenance of the appliance must be done by a qualiﬁed

professional .

- Before working on the appliance,Shut down the machine and cut oﬀ the power

supply .

- Do not touch with wet hands.

- Maintenance operations are important to guarantee optimum performance

and extend the life of the equipment.

Checking of the hydraulic circuit

Cleaning of the fan

- Check the watertightness of the water connections.

- Because the evaporator ﬁns is very sharp.Risk of injury on your ﬁnger.

- Do not damage the ﬁns. Avoid aﬀecting the performance.

- Check the cleanliness of the fan one time per year.

Checking of the evaporator

- Clean the evaporator at regular intervals using a soft-haired brush.

- If they are bent.Carefully realign the evaporator using a suitable comb.

- Operate the safety valve at least once a month to check if it is running

correctly. Otherwise check for blocking and replace the safety valve if necessary.

Checking of the condensates discharge pipe

Checking of the Magnesium rod

- Check the pipe cleanliness .

- An obstruction by dust may cause poor condensates ﬂow or even a risk accumulation of

water in the heat pump plastic base.

- The magnesium anode should be replaced in time, avoid tank corrosion.

- Checking magnesium anode once every 2 years .In poor water areas need to shorten the

time.

Drain the water tank to empty

-Cut oﬀ power supply and shut down water inlet valve, then drain the water tank to empty

via the sewage outlet. Please stay away from the sewage outlet if there is hot water inside

the water tank to avoid injury.

English

Faults and protection

Digital

indication Release

Compressor protection

Operating temperature protection

After fault is solved,

switch on power

supply for release

Airexhaust temperature protection

Evaporation high temperature

protection

Compressor over-current

protection Over-current protection

Electricity leakage alarming The system will automatically cut oﬀ

power supply if any line fault occurs E1

After fault is solved,

switch on power

supply for release

Over temperature alarming The actual water temperature≥85℃E2

Fault of the inner

temperature sensor

If short circuit or circuit break occurs

to the sensor E3

Fault of the ambient

temperature sensor

If short circuit or circuit break occurs

to the sensor E4

Fault of the evaporation

temperature sensor

If short circuit or circuit break occurs

to the sensor E5

Fault of the air exhaust

temperature sensor

If short circuit or circuit break occurs

to the sensor E6

Fault of the air intake

temperature sensor

If short circuit or circuit break occurs

to the sensor ED

Communication fault Communication of main control panel

and display panel is abnormal E7

Pressure switch protection Action of the pressure switch at the

exhaust outlet E8

Ambient temperature

protection

Ambient or outdoor temperature

<-7℃or>37℃E9

The symbol on the product or on its packaging indicates that this product is

not to be treated as regular household waste. Instead, it must be taken to a

recycling collection point for electrical and electronic equipment. By properly

disposing of this product, you are contributing to the preservation of the

environment and the wellbeing of your fellow citizens. Improper disposal is

hazardous to health and environment. You can obtain further information on how to

recycle this product from your municipality, your waste management service or the

shop where you purchased it.

Fault type Action

Fault of the Solar or boiler

temperature sensor

If short circuit or circuit break occurs

to the sensor （for HP250M3C）EE

Fault of the Off-peak power

switching signal

If not received the Off-peak signal

when selecting switch signals by

power companies
