INTRODUCTION

For your safety, please read and understand this instruction manual.

Retain the manual for future reference and ensure that new users have also read and

understood the instructions and warnings.

If you have any problems with this unit that cannot be rectified by using the troubleshooting

section on page 9, please call our customer careline on 0845 601 7834.

Customer Careline: 0845 601 7834 1

Thank you for purchasing this product, which has passed our extensive quality assurance

process. Every care has been taken to ensure that it reaches you in perfect condition. However,

in the unlikely event that you should experience a problem, or if we can offer any assistance or

advice, please do not hesitate to contact our customer careline on 0845 601 7834, please do

not return the pressure washer to the store of purchase.

Safety first

Before attempting to operate this pressure washer the following basic safety precautions

should always be taken to reduce the risk of fire, electric shock and personal injury. It is

important to read the instruction manual to understand the application, limitations and potential

hazards associated with this tool.

CERTIFICATE OF GUARANTEE.

The manufacturer guarantees this machine for 1 Year with effect from the date of purchase.

This guarantee does not cover machines intended for hire. We will replace any parts found to

be defective due to a fault or manufacturing defect. The guarantee does not cover the following:

consumable accessories, use for professional purposes, or misuse. Should the machine be

modified in any way or used with unauthorized accessories without the manufacturer's consent

the guarantee will automatically be rendered invalid. The manufacturer declines any

responsibility as regards civil liability arising from misuse of the machine or failure to comply

with the relevant operating, setting and maintenance instructions. Assistance under the

guarantee will only be admissible if the request is addressed to the approved after-sales

service centre together with proof of purchase.

As soon as you have purchased the product, we recommend that you check to make sure it is

intact and that you read the operating instructions carefully before using it.

This guarantee is in addition to and in no way affects your statutory rights.

Compliant with the European directives

General warning

Read carefully

The use of safety goggles is advised

Ear protection is advised

Protect from frost

Maximum sound power level

Customer Careline: 0845 601 7834

Safety Instructions

THIS MACHINE PRODUCES A HIGH

PRESSURE WATER JET, WHICH CAN

BE DANGEROUS. FOLLOW ALL THE

MAINTENANCE AND SAFETY

INSTRUCTIONS DETAILED IN THIS

MANUAL. FAILURE TO FOLLOW THESE

INSTRUCTIONS COULD RESULT IN

SERIOUS INJURY OR DEATH.

THE PRESSURE WASHER HAS BEEN

CHECKED PRIOR TO DESPATCH. IF

YOU HAVE ANY QUESTIONS PLEASE

CONTACT THE CUSTOMER CARELINE.

In addition to the safety information

given in this manual all other

applicable general safety

regulations need to be observed.

Make sure that the connection to

the electric system corresponds to

the latest edition of regulations and

safety standards.

It is strongly recommended that the

electrical power supply for this

machine includeseither a residual

current device to interrupt power

supply if dispersion current to

ground exceeds 30mA for 30mS,

or a grounding circuit.

Do not use the unit if the electric

cable or plug is damaged. Consult

a qualified electrician for repair.

Never direct the water jet at the

unit itself.

Never touch the mains plug with

wet hands; never work bare-foot.

Do not operate the unit in

potentially explosive locations.

Before any cleaning or

maintenance, the electro-pump

must be disconnected from the

power supply.

Do not use in the rain.

This unit is for domestic use only.

The water jet can be dangerous if

used incorrectly; never direct the

water jet towards yourself or others,

do not clean clothing or foot wear,

never direct the water jet towards

animals or electrical appliances.

Never put hand or fingers over the

spray tip while operating the unit.

Never try to stop or deflect leaks with

any body part.

Do not let children or persons not

familiar with these safety instructions

use the unit.

Before start-up make sure that the

lance is not open as this could

release a sudden jet of high pressure

water which could turn the lance into

a dangerous whip.

We recommend the use of safety

goggles and suitable ear protection.

Vehicle tyres/tyre valves may only be

cleaned from a minimum distance of

30cm otherwise they could be

damaged. The first indication of this is

a discolouration of the tyre. Damaged

vehicle tyres/tyre valves can be

dangerous.

Never draw in solvent-containing

liquids, undiluted acids or solvents!

This includes petrol, paint thinners

and heating oil. The sprayed vapour

is highly flammable, explosive and

toxic, also acetone, undiluted acids

and solvents as these corrode

materials used on the unit.

Use only the nozzle supplied with this

machine.

Do not drive vehicles over the high

pressure hose or the electrical cables.

Do not kink or allow contact with

sharp object. The hose is easily

damaged.

Customer Careline: 0845 601 7834 3

Ensure you know how to stop this

product and release pressure

quickly. Be thoroughly familiar with

the controls.

Never operate the machine without all

components properly connected to

the machine.

Always turn water supply “ON” before

turning pressure washer “ON”.

Running pump dry causes serious

damage.

Each time the unit is switched off,

release the pressure by squeezing

the trigger. Never disconnect the

high-pressure discharge hose from

the machine while the system is

pressurized.

Do not operate the pressure washer

with the inlet water screen removed.

Keep screen clear of debris and

sediment.

Used lubricants must be collected

and treated in accordance with

local authority regulations.

Never operate the pressure washer

with broken parts. Check equipment

regularly and repair or replace worn

or damaged parts immediately.

Ensure safety devices are

operating properly before each use.

DO NOT remove or modify any

part of the gun or unit.

Never attempt to alter factory settings.

Altering factory settings could

damage the unit and will void the

warranty.

Do not operate the product when

fatigued or under the influence of

alcohol or drugs.

Always hold gun and wand firmly

when starting and operating the

machine.

Always engage the trigger safety

latch in the safe position when

spraying is stopped even if only for

a few moments. Never leave wand

unattended while machine is

running.

Never connect the pressure washer

to a hot water supply, as this will

significantly reduce the life of the

pump.

Always follow detergent

manufacturer’s recommendations

for proper use of detergents.

Always protect eyes, skin, and

respiratory system from detergent

use.

Use of extension cords is not

recommended. Use only grounded

three wire extension cords intended

for outdoor use. Use only extension

cords having an electrical rating equal

or greater than the rating of the

products. Do not pull on the cord to

disconnect. Always disconnect cord

from receptacle before disconnecting

product from extension cord.

Do not use pressure that exceeds

the operating pressure of any of

the parts (hoses, fittings, etc.) in

the pressurised system. Ensure all

equipment and accessories are

rated to withstand the maximum

working pressure of the unit.

This pressure washer has an

automatic ON/OFF system. The

motor on this pressure washer does

not run continuously. It only runs

when the trigger of the spray gun is

squeezed.

Never permanently engage the

trigger mechanism on the gun.

Customer Careline: 0845 601 7834

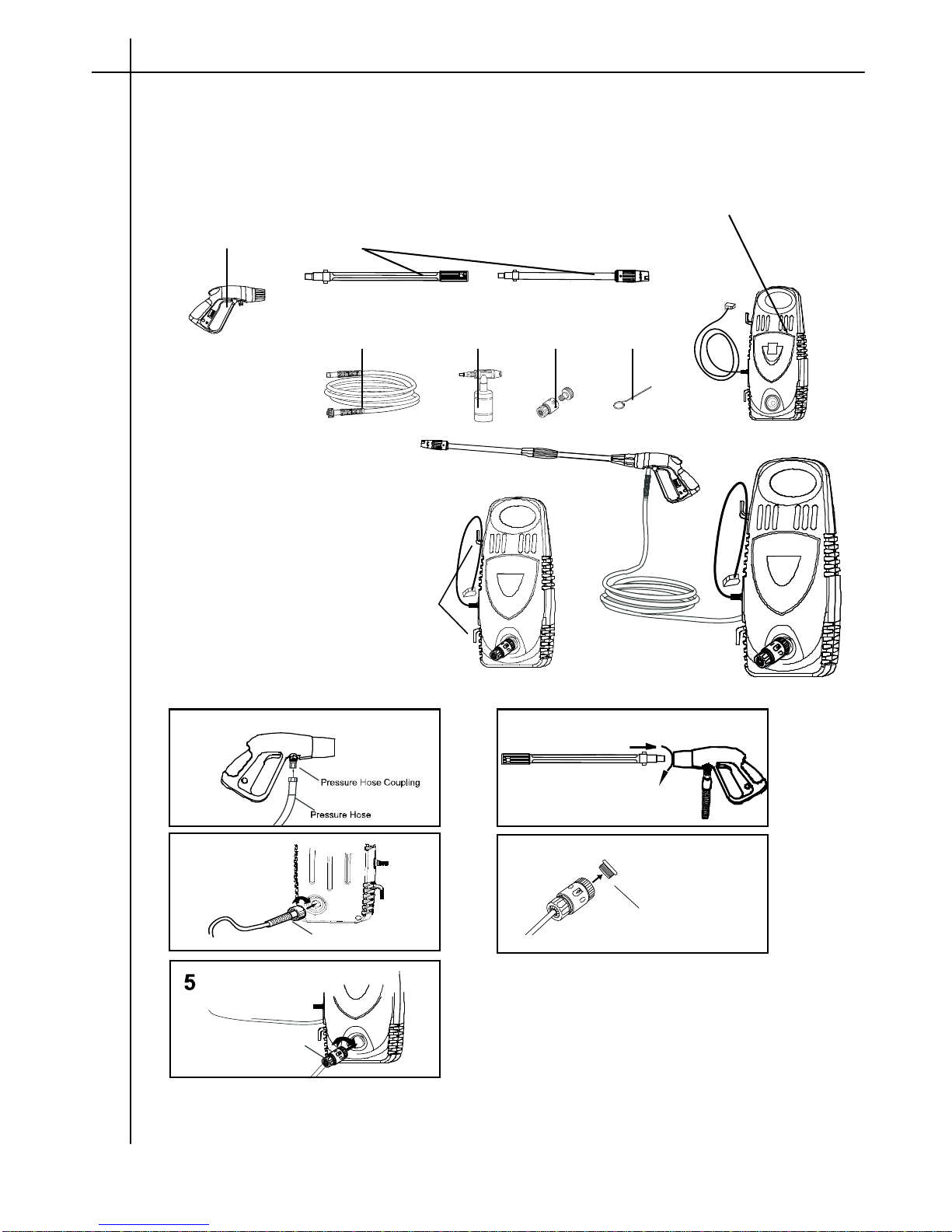

Contents & Assembly

Upon opening the carton, if you do not have all the items as detailed please contact the

Customer Careline 0845 601 7834, please do not return pressure washer to the store of

purchase.

1 2

3 4 5 6

1 - Spray gun

2 - Vario lance

3 - High pressure hose 5m

4 - Detergent bottle

5 - Hose pipe connector

6 - Cleaning pin

7 - Pressure washer unit 8

8 - Electrical cord hook

Assembly

Secure all connections tightly to prevent leaks.

1 2

3 4

Customer Careline: 0845 601 7834 5

High pressure hose

Attach hose pipe connector and

connect garden hose

Remove the tap adaptor from the hose

pipe connector in order to fit to the

pressure washer

Unpacking

This packaging contains sharp objects. Take care when unpacking. This machine could require

two persons to lift, assemble and move. Remove the machine, together with the accessories

supplied, from the packaging. Do not throw the packaging away, keep it safe throughout the

guarantee period then recycle if possible, otherwise dispose of it by the proper means. Do not

let children play with empty plastic bags due to the risk of suffocation.

Operation

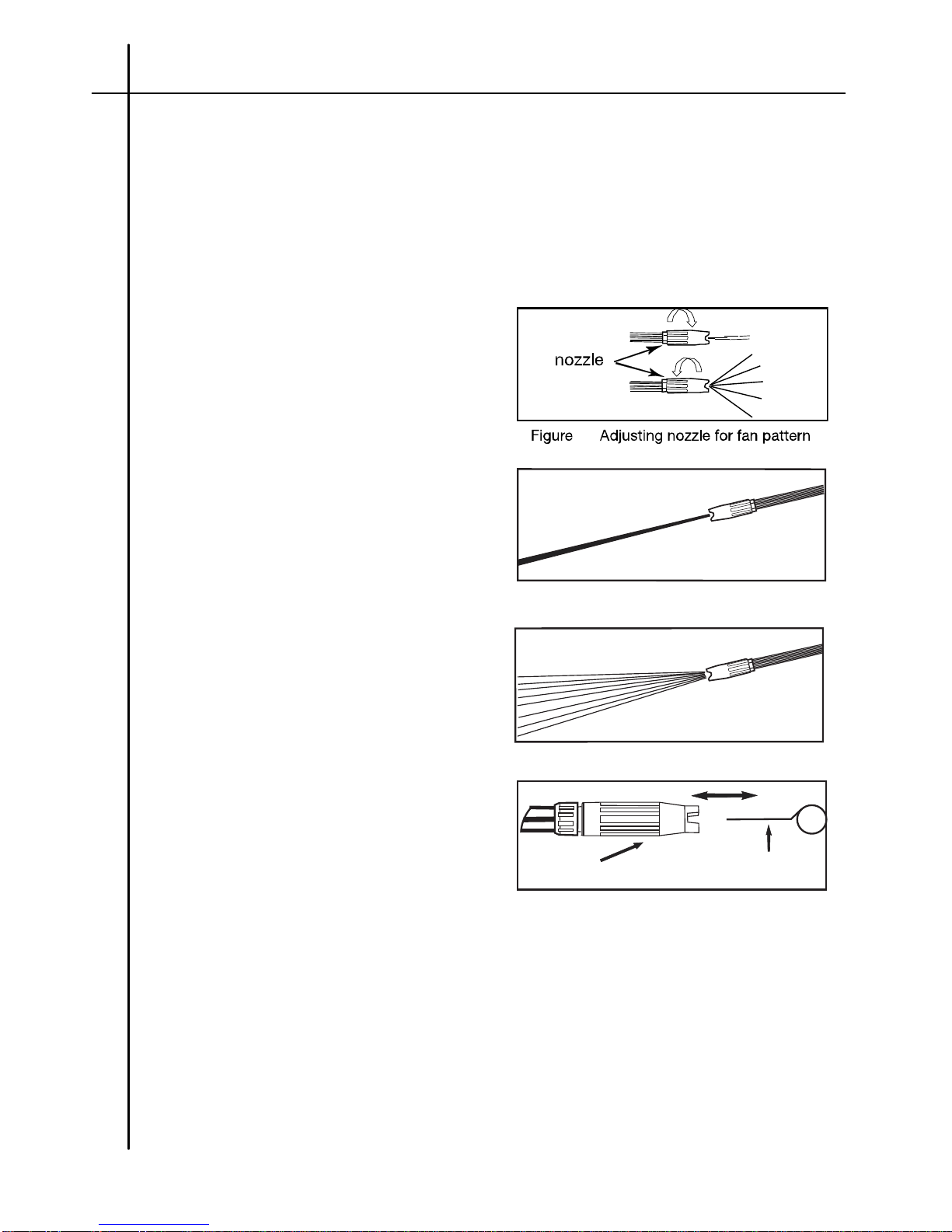

Adjusting Fan Pattern

The angle of spray coming out of the lance may

be adjusted by rotating the nozzle. This will vary

the spray pattern from approximately a 0° narrow

high impact stream to a 60° wide fan spray (see

figure 1).

The narrow high impact spray (see figure 2)

must be used cautiously, as it may damage

some surfaces.

Large surface areas can be cleaned more

quickly using a wide fan pattern (see figure 3).

Nozzle Cleaning

A clogged or partially clogged nozzle can cause

a significant reduction of water coming out of the

nozzle and cause the unit to pulsate while

spraying. To clean out the nozzle:

−Turn off and unplug unit.

−Turn off water supply. Relieve any pressure

trapped in the hose by squeezing trigger 2-3

times.

−Separate lance from gun.

−Rotate nozzle to the narrow stream setting.

This opens up the fan blades.

−Insert tip cleaner into the nozzle hole and move back and forth until debris is dislodged (see

Figure 4).

−Remove additional debris by back-flushing water through the nozzle. To do this, place end of

a garden hose (with water running) to end of nozzle for 30-60 seconds.

Nozzle

Tip Cleaner

Figure 4Insert tip cleaner in nozzle hole

and move back and forth until debris is dis-

lodged

Figure 2Narrow high impact stream

Figure 3Wide fan pattern

Customer Careline: 0845 601 7834

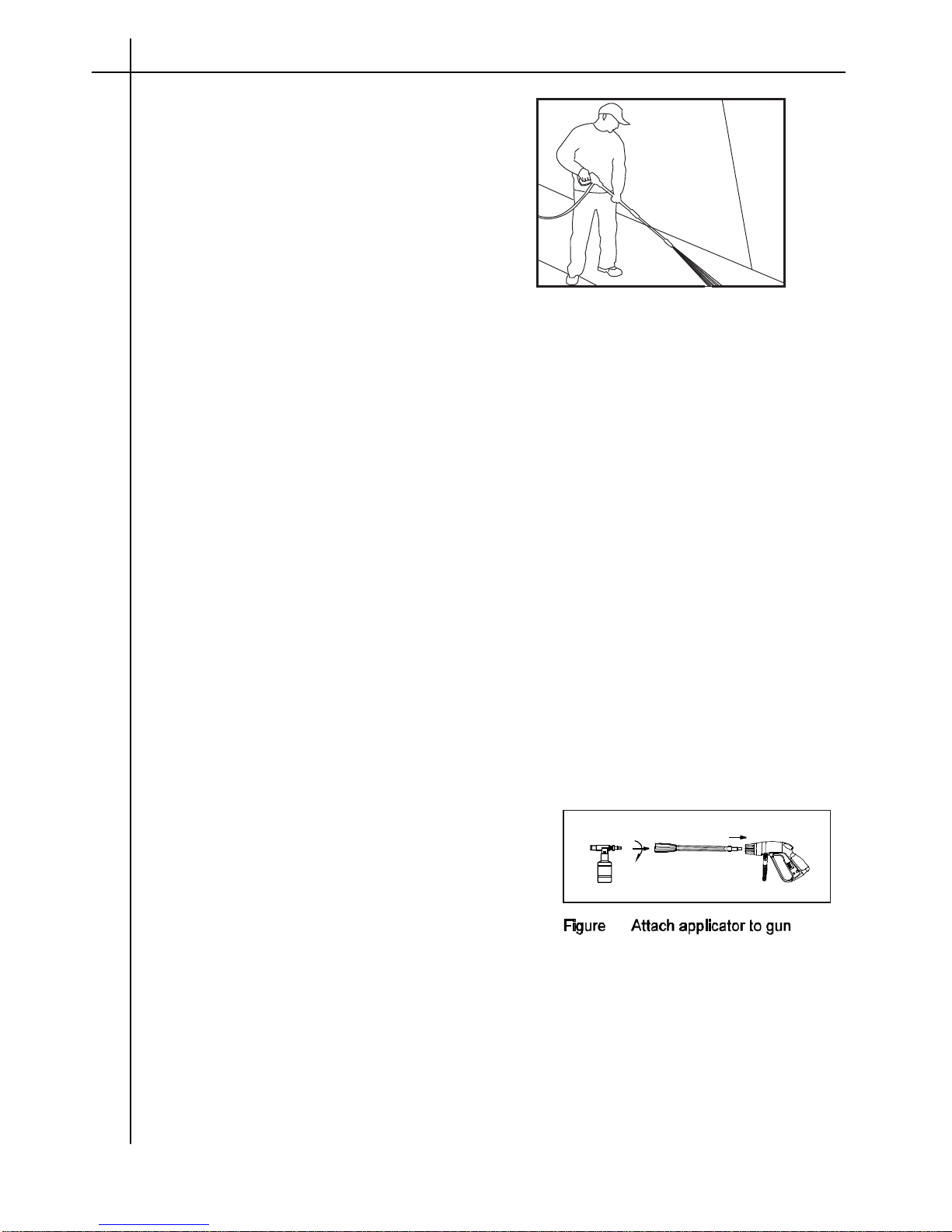

Angle To Cleaning Surface

The optimum angle for spraying water against a

cleaning surface is 45 degrees.

How To Avoid Damaging Surfaces

Damage to cleaning surfaces occurs because the impact force of the water exceeds the

durability of the surface. Never use a narrow high impact stream or a turbo/rotary nozzle on a

surface that is susceptible to damage. Avoid spraying windows with a narrow high impact

stream or turbo nozzle as this may cause damage. To avoid possible damage follow these

three steps:

1. Before triggering the gun, adjust the nozzle to a wide fan pattern.

2. Place the nozzle approximately 4-5 feet from and 45 degrees to the cleaning surface, and

trigger the gun.

3. Vary the fan pattern spray angle and the distance to the cleaning surface until

optimum cleaning efficiency is achieved without damaging the surface.

CAUTION: Car paintwork / bodywork and other surfaces can be damaged by the high pressure

jet, in particular, caution should be taken with new, damaged or unsecured paint. Damage is

not covered by the warranty.

Detergents

Use specialist pressure washer detergents – household detergents may be thicker and will clog

the detergent injection system.

1. Fill detergent bottle with pressure washer

detergent.

2. Remove front section of Vario lance from

Spray gun.

3. Attach Detergent bottle to lance (see figure 6).

4. Operate pressure washer as normal to dispense foam - ensure you follow detergent

manufacturers usage instructions.

5. Flush Detergent bottle with clean water after each use.

Figure 5Optimum angle to cleaning

surface

Customer Careline: 0845 601 7834 7

Shutdown

1. Be sure all detergent is flushed from the system.

2. Turn off the pressure washer at on/off switch on unit.

3. Turn off the water supply.

4. After the motor and water supply are turned off, trigger the gun to depressurize system.

CAUTION: NEVER turn water supply off before turning motor off. Serious damage could occur

to the pump and/or motor.

WARNING! NEVER disconnect the high-pressure discharge hose from machine while system

is pressurized. To depressurize, turn motor off, turn water supply off and squeeze gun trigger

2-3 times.

5. After each use, wipe all surfaces of the pressure washer with a clean, damp cloth.

Storage

Do not store the pressure washer outdoors. Do not store the pressure washer where it might

freeze. Damage due to freezing is not covered by the warranty.

Major Technical Data

ITEM HP 1400

Working Pressure 7MPa(70 bar)

Working Flow Rate 5.7 l/min

Max. Pressure Water Supply 0.4MPa(4 bar)

Motor Capacity 1650W

Power Supply Voltage 240V~50Hz

Max. Water Temperature 50˚C

Customer Careline: 0845 601 7834

Troubleshooting chart

Symptom Possible cause(s) Corrective Action(s)

Pressure washer

does not start

1. Unit is pressurized

2. Plug is not correctly connected

or electric socket is faulty

3. Extension cord too long or wire

size too small

4. Main voltage supply too low

1. Squeeze trigger on gun

2. Check plug and socket

3. Remove extension cord

4. Check that main supply

voltage is adequate

Pump does not

reach necessary

pressure

1. Water inlet filter is clogged

2. Pump sucking air from hose

connections

3. Nozzle worn or not correct size

1. Clean water inlet filter

2. Check that connections

and locking ring are

properly tightened

3. Contact customer

careline, do not return

pressure washer to

store of purchase.

Fluctuating Pressure

1. Pump sucking in air

2. Clogged nozzle

1. Check that hoses and

connections are tight

2. Clean with tip cleaner

(see page 6)

Motor stops

suddenly 1. Extension cord too long or wire

size too small

2. Thermal safety switch has

tripped due to overheating

1. Remove extension cord

(see page 4)

2. Check that main supply

voltage corresponds to

specifications

No detergent suction

– units with

attachable

applicators

1. Detergent applicator clogged

1. Flush applicator with

warm water.

2. Replace applicator

Unit begins to smoke 1. Overheated, overloaded or

damaged motor 1. Turn off unit and

contact customer

careline, do not return

pressure washer to

store of purchase.

Recycling

This product bears the selective sorting symbol for waste electrical and

electronic equipment (WEEE). This means that this product must be

handled pursuant to European Directive 2002/96/EC in order to be

recycled or dismantled to minimize its impact on the environment.

For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are

potentially dangerous for the environment and human health due to the presence of hazardous

substances.

Customer Careline: 0845 601 7834 9

EC Declaration of Conformity

We, Halfords Limited, lcknield Street Drive, Redditch, Worcestershire, B98 0DE

hereby declare that the machine described below is both in its basic design and

construction and in the version marketed by us conforms to the relevant safety

and health related requirements of the appropriate EC Directives. This declaration

shall cease to be valid if modifications are made to the machine without our

approval.

Product: Pressure washer

Model: HP 1400

Item Code: 824136

Serial number:--------------------------

(to be entered by customer)

- 98/37/EEC Machinery Directive

Low Voltage Directive 73/23/EEC at last amended by EEC Directive93/68/EEC

- EC Council Directive 89/336/EEC at last amended by EC Directive93/68/EEC

- 2000/14/EC Noise Directive

It is ensured through internal measures that series-production units conform at all

times to the requirements of current EC Directives and relevant standards.

.Signed....................................................................

CHRIS HALL

Head of Quality & Cost Reduction

1 Nov 2007

Halfords Ltd

Washford

Redditch

B98 0DE

Customer Careline: 0845 601 7834

Inhaltsverzeichnis

Andere Halfords Hochdruckreiniger Handbücher

Halfords

Halfords HP 2800 Bedienungsanleitung

Beliebte Hochdruckreiniger Handbücher anderer Marken

Shark

Shark RG-232637 Bedienungsanleitung

Shakti Technology

Shakti Technology S3 Bedienungsanleitung

Kärcher

Kärcher K 4 Pure Bedienungsanleitung

Porter-Cable

Porter-Cable D25806-025-2 Bedienungsanleitung

REM POWER

REM POWER HDEm 662 Bedienungsanleitung

Landa

Landa HS-3000 Bedienungsanleitung

Craftsman

Craftsman 580.752270 Bedienungsanleitung

HIKOKI

HIKOKI AW 100 Bedienungsanleitung

Delco

Delco DC 1302 Bedienungsanleitung

Kärcher

Kärcher K 3 Full Control Bedienungsanleitung

BIEMMEDUE

BIEMMEDUE 120/10 - 170/13 Bedienungsanleitung

ARKSEN

ARKSEN 014-HG-14141-HR Bedienungsanleitung

Black & Decker

Black & Decker PW1700SPX Bedienungsanleitung

Kärcher

Kärcher 595 - SPARE Leitfaden

Kranzle

Kranzle B 10 200 Bedienungsanleitung

Stihl

Stihl RE 90 Bedienungsanleitung

Husky

Husky HU80911 Bedienungsanleitung

PowR-Quip

PowR-Quip PQ-2600 Bedienungsanleitung
