Hamilton Beach 4160 Bedienungsanleitung
Air Purifier
840071100
Air Purifier Safety.......................... 2
Know Your Air Purifier .................. 5
How to Assemble and Use............ 6
How to Clean................................ 12
Troubleshooting Guide.............. 17
Customer Service ........................ 18
In USA: 1-800-851-8900
In Canada: 1-800-267-2826
2
IMPORTANT SAFEGUARDS
SAVE THESE INSTRUCTIONS!
Air Purifier Safety
1. Read all instructions before using this
air purifier. Save these instructions for
reference.
2. Direct ultraviolet light exposure to the
eyes can cause temporary or chronic
adverse effect to your eyesight.
3. Do not immerse this product in water or
splash water on it. An electrical short
may result in shock or fire.
4. Do not handle the plug with wet hands;
electrical shock may occur, resulting in
injury or death.
5. Never attempt to disassemble or alter
the product in any way not instructed by
this manual. Shock, fire, or bodily injury
may occur. Contact Hamilton Beach
at 1-800-851-8900 for assistance.
6. Do not place your face directly on the
outlet grille or look into the ultraviolet light.
7. Do not operate this product in any
greasy environment such as in the
kitchen. This product is not intended to
filter oil or grease from the air.
8. Do not operate this product near an open
fire. It may ignite and cause fire, resulting
in bodily injury or property damage.
9. Do not operate this product in a garage
or other area with oil or chemicals such
as solvents or insecticides.
10. Always unplug the power cord from the
receptacle when the air purifier is not in
use, before cleaning, replacing parts, or
before moving to another location.
11. Do not insert foreign objects into the
product for any reason. Bodily injury
or property damage may occur.
12. Do not use this product outdoors. It is
intended for indoor use only.
13. Do not operate this appliance without
the outlet grille in place or if the outlet
grille is broken or damaged.
14. This air purifier is equipped with safety
interlock switches that turn the unit off
if the intake or outlet grilles are removed.
DO NOT attempt to defeat or override
this safety feature.
15. WARNING: To reduce the risk of fire or
electric shock, do not use this purifier
with any solid-state speed control
device.
READ AND SAVE THESE INSTRUCTIONS.
In order to prevent the risk of fire, electric shock, personal injury or damage to property,
follow these instructions carefully. When using electric appliances, basic safety
precautions should be followed, including the following:
3
Consumer Safety Information
This appliance is intended for
household use only.
This appliance is equipped with a
polarized plug. This type of plug has one
blade wider than the other. The plug will
fit into an electrical outlet only one way.
This is a safety feature intended to help
reduce the risk of electrical shock. If you
are unable to insert the plug into the
outlet, try reversing the plug. If the plug
should still fail to fit, contact a qualified
electrician to replace the obsolete outlet.
Do not attempt to defeat the safety
purpose of the polarized plug by
modifying the plug in any way.
If a longer cord is necessary, an
approved extension cord may be used.
The electrical rating of the extension
cord must be equal to or greater than
the rating of the air purifier. Care must
be taken to arrange the extension cord so
that it will not drape over the countertop
or tabletop where it can be pulled on by
children or accidentally tripped over.
Route the electrical or extension cord
clear of furniture to prevent damage
from pinching.
wWARNING
Germicidal Light Radiation Hazard
• Never operate with damaged, broken or missing outlet grille louvers
or without the outlet grille.
• Never operate with damaged, broken or cracked housing.
• Always unplug unit before cleaning, servicing or replacing the UV bulb.
• Never look directly at UV bulb or place face directly on outlet grille.
• Use only Hamilton Beach replacement UV bulb: Part No. 04810.
• Read all instructions before using.
Failure to follow these instructions can result in direct exposure to
germicidal light, which can cause temporary or chronic damage to
your eyesight, or even blindness.
4
Purifier Control Room Size* Carbon HEPA UV Bulb Starter Type
Model Type (sq. ft.) Pre-Filter Filter FS-5 or FS -22
04160 Manual 200 ft204922 04912 04810 904004100
04161 AirSmart™200 ft204922 04912 04810 904004100
04162 Manual 350 ft204923 04913 04810 904004100
04163 AirSmart™350 ft204923 04913 04810 904004100
About Your Air Purifier
The air purifier functions as an
air cleaner by helping to disinfect
airborne bacteria and removing
particulates from the air.
The air is cleaned in three stages:
1. A fan draws air through the intake
grille on the front of the air purifier.
Then it passes through the carbon
pre-filter which traps large dust
particles and reduces odors.
2. The white HEPA filter then removes
particles as small as 0.3 microns
from the air at 99.97% effectiveness.
3. The clean air is then exposed to
germicidal-grade ultraviolet light to
reduce the level of airborne bacteria,
molds, and viruses. The purified air is
then released through the outlet grille
on the top of the unit.
* Each air purifier is designed to filter the room five times per hour at high
speed. Factors such as room shape and ceiling height can affect this rate.
It is normal that the air flow will be reduced as the filters become clogged.
See “Checking the Filters” on page 13 for more information.
To Order Replacement Parts
Replacement bulbs may be available where the air purifier was purchased or
can be obtained directly from Hamilton Beach.
5
Know Your Air Purifier
Parts and Features
1. Outlet Grille
2. Ultraviolet (UV) Bulb
3. Control Panel
4. AirSmart™Sensor*
5. UV Starter
6. UV Bulb Check Window
(not shown – see page 8 for location)
7. Filter Check Gauge
8. Air Sensor Cleaner*
9. HEPA Filter
10. Carbon Pre-Filter
11. Intake Grille
* Available on AirSmart™models only.
Manual control models do not include
these features.
6
How to Assemble and Use
IMPORTANT: Your Hamilton Beach air purifier is designed for easy use and
maintenance. Make sure that the UV bulb, HEPA filter, and carbon pre-filter are
properly installed before use.
Selecting the Proper Location
To prevent the risk of personal injury or damage to the air purifier and provide
the best possible performance of your air purifier, follow the placement
guidelines below:
DO NOT:
• Do not stand, sit, or place any
objects
on the air
purifier. It is
not designed
to support
additional
weight.
• Do not block the air intake and
outlet grilles with drapes, curtains,
or blinds. This may cause reduced
performance.
• Do not use in a kitchen, garage, or
area with grease, oil or chemicals
such as solvents or insecticides.
• Do not place on or near heat
sources such as stoves, radiators,
or heaters, or in direct sunlight.
• To reduce electrical noise and
interference, do not place on or near,
or plug into the same outlet as TVs,
baby monitors, or cordless phones.
DO:
• Place the air purifier on a flat, stable
surface.
• Place the air purifier near an electrical
outlet where it is out of the way.
Make sure that the air purifier and
the cord do not present tripping
hazards.
• Select a central location with
adequate air circulation.
• Turn off and unplug the air purifier
before moving or servicing it, or if it
will not be used for several days.
• Route the electrical cord clear of
furniture to prevent damage from
pinching.
Before First Use
Be sure to remove all packing materials.
The filters and UV bulb are packed in
plastic bags inside the air purifier for
shipping.
Refer to pages 7 to 9 for unpacking
and installation instructions.
7
NOTE: The carbon pre-filter should be
replaced approximately every three
months.
Remove the intake grille by carefully
pulling the upper two side tabs away
from the body of the air purifier and
lifting up.
Unfold and flatten out the black
carbon pre-filter. Attach the four
corners of the carbon pre-filter
to the four hook fasteners on the
HEPA filter.
Locate the black carbon pre-filter.
It will be folded inside a plastic bag.
Remove and discard the plastic bag.

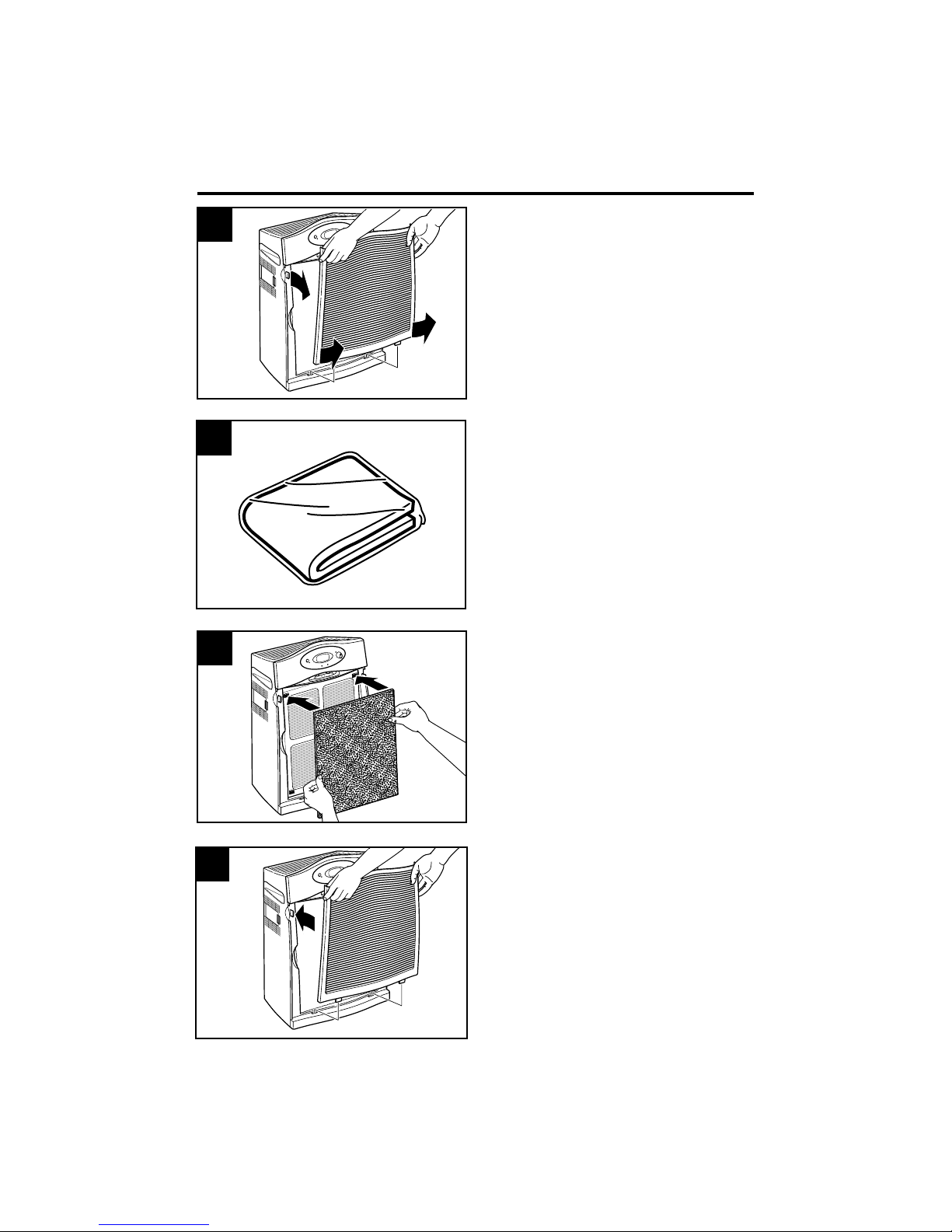

Installing the Carbon Pre-Filter
Insert the two tabs on the bottom of
the intake grille into the holes on the
bottom ledge of the air purifier.
Pivot the intake grille into place and
lightly press on the upper corners of
the grille to snap it into place.
NOTE: The air purifier has a safety
switch that prevents operation if the
intake grille is not properly installed.
DO NOT attempt to override or
disable this safety switch.
1
2
3
4
8
Installing the UV Bulb
Open and remove the outlet grille
by pulling up on the handle on the
upper back of the air purifier.
Remove the packaged UV bulb from
inside the air purifier. Be careful not to
touch the glass part of bulb. Handle
by metal ends only. Oil from fingertips
on the glass bulb will shorten the life of
the bulb. Carefully unpack the bulb and
discard the packaging.
NOTE: Make sure no loose packing
material remains inside the air purifier.
Make sure the unit is unplugged.
Starting with one end of the bulb, then
the other, gently insert the metal pins
on the bulb into the white slotted socket
one pin at a time.
NOTE: Only one pin will fit in the socket
at a time. DO NOT force the pins into
the socket—you could break the bulb.
1
2
3
9
Once the ends of the bulb are
completely inserted into the socket,
rotate the bulb a quarter turn until it
locks into place.
Insert the two center tabs on the front
of the outlet grille into the middle slots
on the front of the opening. Pivot the
grille down toward the back of the air
purifier.
Press lightly down on the back
corners of the outlet grille to snap
it into place.
NOTE: The air purifier has a safety
switch that prevents operation when
the top outlet grille is not properly
installed. DO NOT attempt to override
or disable this safety switch. See the
Germicidal Light Hazard Warning on
page 3.
Installing the UV Bulb (continued)
4
5
6
10
Setting the Controls –
Manual Control Models
1. Germicidal UV Button – Turns on
the germicidal UV lamp to reduce
harmful bacteria from the filtered air.
When this button is on, a bluish glow
should be visible through the UV
bulb check window on the top of
the unit.
NOTE: The light will not come on if
the fan is turned off.
2. UV “On” Indicator – Lights when
the germicidal UV lamp is on.
3. Power On Indicator – Lights when
unit is on.
Plugging in the Air Purifier
WARNING: To reduce the risk of
electrical shock, never plug in the air
purifier while your hands are wet.
Always unplug the air purifier before
moving or servicing the unit.
NOTE: The polarized plug will only
fit in one direction—DO NOT try
to force the plug. If you are unable to
insert the plug into the outlet, try
reversing the plug. If the plug still does
not fit, contact a qualified electrician to
replace the obsolete outlet.
4. Fan Speed Knob – Turn the fan
speed knob to the desired setting.
There are four settings:
• Off
• WhisperClean™– Use for quiet,
nighttime operation or for constant
low-speed filtration.
• Medium – Provides a higher fan
speed; use for quickly filtering
dust, pollen, smoke, etc. from a
room.
• QuickClean™– Provides cleaning
during acute needs.
Andere Handbücher für 4160
1
Dieses Handbuch passt für folgende Modelle
3
Inhaltsverzeichnis
Andere Hamilton Beach Luftreiniger Handbücher
Hamilton Beach
Hamilton Beach TrueAir 04995 Bedienungsanleitung
Hamilton Beach
Hamilton Beach TrueAir 840117900 Bedienungsanleitung
Hamilton Beach
Hamilton Beach 4152 Bedienungsanleitung
Hamilton Beach
Hamilton Beach TrueAir 04384 Bedienungsanleitung
Hamilton Beach
Hamilton Beach TrueAir Bedienungsanleitung
Hamilton Beach
Hamilton Beach 840144100 Bedienungsanleitung
Hamilton Beach
Hamilton Beach TrueAir 04532 Bedienungsanleitung
Hamilton Beach
Hamilton Beach TrueAir 04532 Bedienungsanleitung
Hamilton Beach
Hamilton Beach TrueAir Bedienungsanleitung
Hamilton Beach
Hamilton Beach TrueAir HEPA Bedienungsanleitung
Hamilton Beach
Hamilton Beach 04992F Bedienungsanleitung
Hamilton Beach
Hamilton Beach Fresh Essentials Bedienungsanleitung
Hamilton Beach
Hamilton Beach 840121000 Bedienungsanleitung
Hamilton Beach
Hamilton Beach 4383 Bedienungsanleitung
Hamilton Beach
Hamilton Beach TrueAir 04536 Bedienungsanleitung
Hamilton Beach
Hamilton Beach TrueAir 840088700 Bedienungsanleitung
Hamilton Beach
Hamilton Beach TrueAir 04493P Bedienungsanleitung
Hamilton Beach
Hamilton Beach TrueAir 840123100 Bedienungsanleitung
Hamilton Beach
Hamilton Beach TrueAir 840089500 Bedienungsanleitung
Hamilton Beach
Hamilton Beach TrueAir 840086600 Bedienungsanleitung
