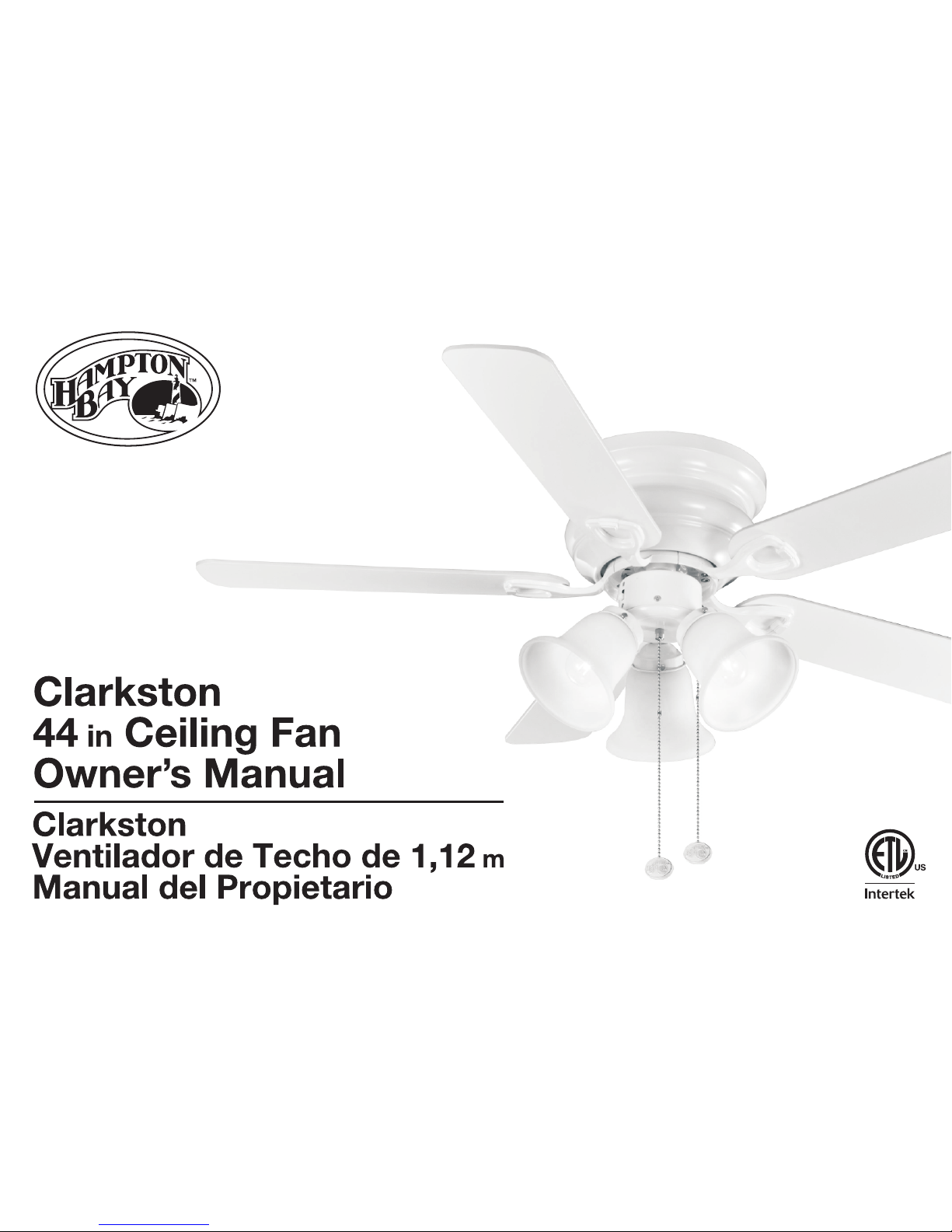

HAMPTON BAY Clarkston Bedienungsanleitung

SKU XXX XXX

by Hampton Bay

Clarkston

44 Clarkston

Ceiling Fan by Hampton Bay

Date Purchased

Store Purchased

ETL

Model No.

Serial No.

Vendor No.

UPC

Table of Contents

Safety Rules 1

82598

Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

845952000384

CF544H-PEH Unpacking Y

our

Fan 2

Installing Y

our

Fan 3

Installing the Light Kit 7

Operating Your Fan 8

Care of Y

our

Fan 9

Troubleshooting 9

Specifications 10

Warranty Information 11

Safety Rules - Read and Save These Instructions

WARNING

To reduce the risk of electric shock, insure electricity has been

turned off at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70-1999” and local electrical codes. Electrical

installation should be performed by a qualified licensed

electrician.

WARNING: To reduce the risk of electrical shock or fire, do not

use this fan with any solid-state fan speed control device. It will

permanently damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the

screws provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds. Use only

UL Listed outlet boxes marked “FOR FAN SUPPORT”.

The fan must be mounted with a minimum of 7 feet clearance from

the trailing edge of the blades to the floor.

Avoid placing objects in path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades.

A dry dust cloth or lightly dampened cloth will be suitable for most

cleaning.

After making electrical connections, spliced conductors should be

turned upward and pushed carefully up into outlet box. The wires

should be spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the outlet box and

ungrounded conductor on the other side of the outlet box.

All set screws must be checked and retightened where necessary

before installation.

10.

11.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN

INSTALLING THE BRACKETS, BALANCING THE BLADES OR

CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –

BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET

BOX.

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:

WARNING

DO NOT INSTALL OR USE FAN IF ANY

PART IS DAMAGED OR MISSING.

CALL TOLL FREE .1-877-262-7511

6. Glass shade (3)

7. 60 Watt A15C bulb (3)

8. Blade bracket (5)

9. Balancing kit (1)

2. Mounting bracket (1)

3. Motor housing (1)

4. Fan motor assembly ( 1 )

5. Light kit ( 1 )

Blade (5) (MDF blades)

10. Loose parts bag containing:

A . Blade screw(16)

B. Fiber Washer(16)

C. Wire nut(3)

D. Blade bracket screw(1)

E. Pull chain fob (2)

Unpack your fan and check the contents. You should have the following items:

Installing Your Fan

WARNING

Outlet Box

Figure 2

Figure 1

Figure 3

Tools Required

Mounting Options

Phillips screwdriver, straight slot

screwdriver, step ladder and wire cutters.

If there isn't an existing UL listed mounting

box, then read the following instructions.

Disconnect the power by removing fuses or

turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 35 lbs). Do

not use plastic outlet boxes.

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OULET BOX MARKED ACCEPT-

ABLE FOR FAN SUPPORT AND USE THE

MOUNTING SCREWS PROVIDED WITH THE

OULET BOX. OUTLET BOX COMMONLY

USED FOR THE SUPPORT OF LIGHTING

FIXTURE MAY NOT BE ACCEPTABLE FOR

FAN SUPPORT AND MAY NEED TO BE

R E P L A C E D . C O N S U LT A Q U A L I F I E D

Figures 1~3 are examples of different ways to

mount the outlet box.

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 3

(available at any Home Depot store).

Outlet box

Mounting bracket

Figure 4

Motor

Figure 5

4.Hanging the Fan

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly:

Step 1. Attach the mounting bracket to the

outlet box with two screws and washers

provided with the outlet box. Make sure the

bracket is tight and secured. (Figure 4)

Step 2. Lift fan into position by hanging the

motor assembly onto the hook from the ceiling

mounting bracket allowing it to hang freely.

(Figure 5)

5.Making the Electrical

Connections

Follow the steps below to connect the fan to your

house supply wires. Secure the wire nuts supplied

with your fan by wrapping the connections with

electrical tape.

Step 1. Connect the Black (hot) wire from the

ceiling to the black and blue wires from the fan.

Connect the white (neutral) wire from the ceiling

to the white wire from the fan. (Figure 6)

Step 2. If your outlet box has a ground wire (green

or bare copper) connect the fan ground wire to it.

If your outlet box does not have a ground wire, the

connect the fans and mounting bracket wire

together. Secure wire connection with the plastic

wire nuts provided.

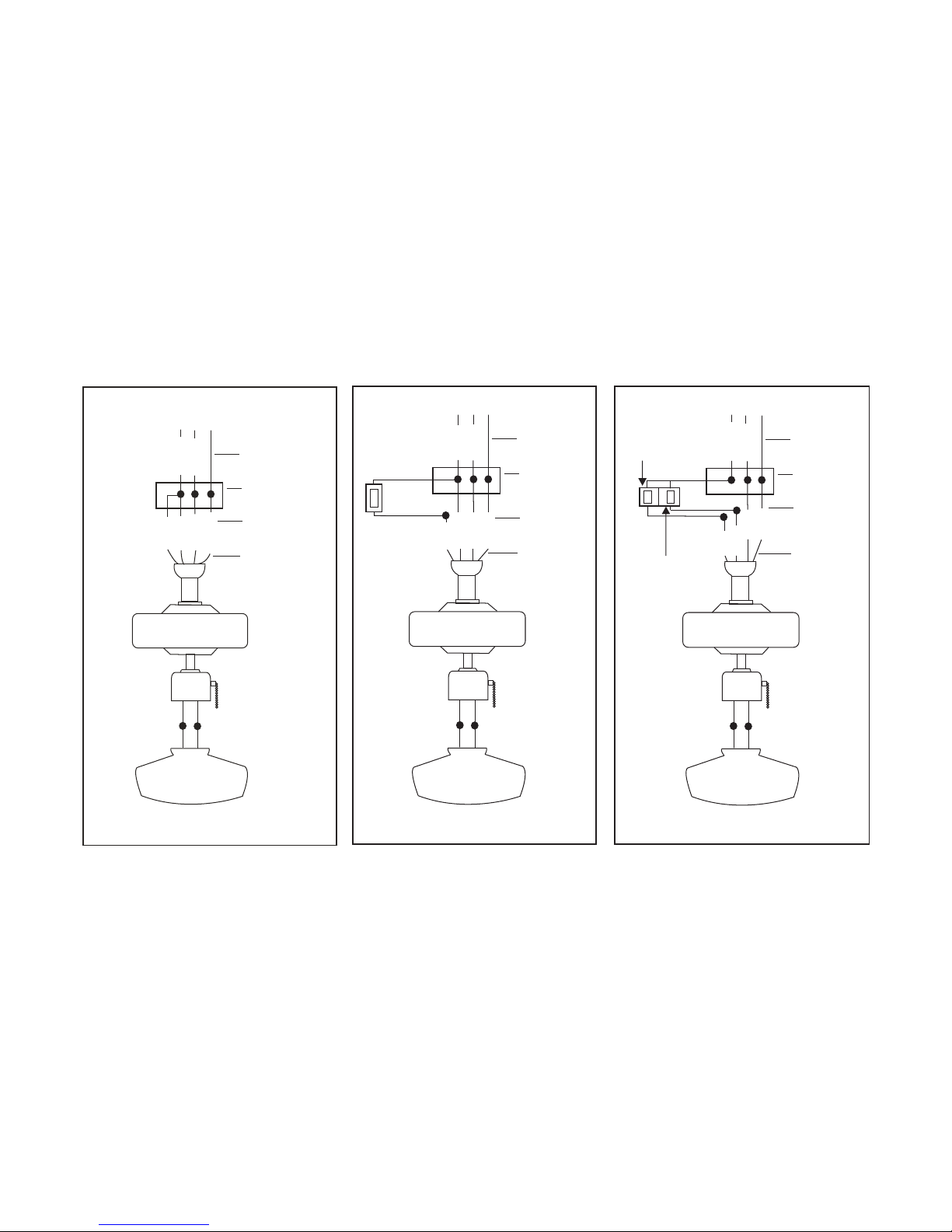

Step 3. Figures 7 and 8 illustrate the wiring

connections for optional wall control (available at

your Hampton Bay Retailer, the wire color out of

wall control’s installation manual for correct

wire connections).

Washer

Screw

WARNING

TO AVOID POSSIBLE ELECTRICAL SHOCK, BE

SURE ELECTRICITY IS TURNED OFF AT THE

CIRCUIT BREAKER OR MAIN FUSE BOX

BEFORE WIRING.

Mounting plate

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITE

BLACK

BLUE

GREEN

Figure 8

Diagram indicates optional light kit wiring.

Light

Fan

WHITE

BLUE

BLACK WHITE

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITE

BLACK

BLUE

GREEN

Figure 7

Diagram indicates optional light kit wiring.

Light Switch

WHITE

BLUE

BLACK WHITE

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITE

BLUE

BLACK

Figure 6

Diagram indicates optional light kit wiring.

SUPPLY CIRCUIT

WHITE

BLACK

BLUE

GREEN

Ground

Conductor

6.Finishing the Installation

Step 1. Remove 1 of 4 screws on the mounting bracket

and loosen other 3 screws.(Do not remove.) Remove

the motor assembly from J hook .Lift and place the key

holes on the mounting plate over the 3 screws

previously loosened from mounting bracket,turn the

mounting plate until it locks in place and no longer

turns.Secure by tightening the 3 screws previously

loosened and the one previously removed.(Figure 9)

Step 2. Align large screwheads at mounting housing

with slotted holes in the mounting bracket.Turn the

mounting housing until it locks in place and no longer

turns.(Figure 10)

7.Blade Installation

Step 1. Attach the fan blades to the blade

holders using the blade screws and fiber

washer provided, tighten screws securely.

(Figure 11)

Step 2. Remove 10 screws from the bottom

motor.Align motor holes to blade bracket

and secure with screws previously removed

from the motor, tighten screws securely.

Repeat procedure with remaining blade

assemblies. (Figure 11)

Mounting

Figure 10

Mounting bracket

Housing

Large Screwheads

Figure 9

Washers

Screw

Blades

Screw

Blade Bracket

Figure 11

Screws

NOTE

YOU MAY THINK THAT YOU HAVE TURNED THE

MOTOR HOUSING ENOUGH UPON FEELING IT

STOP WHEN TURNING IT THE FIRST TIME, BUT

THAT IS PROBABLY ONLY THE HALFWAY POINT

AND IT IS EXTREMELY IMPORTANT THAT YOU

MAKE SURE THAT YOU TURN THE MOTOR

HOUSING ALL THE WAY TO ENSURE THAT THE

MOTOR HOUSING IS COMPLETELY SECURE. TO

DO THIS, WHEN YOU BEGIN TURNING THE

MOTOR HOUSING TWO MORE INCHES (TO THE

LEFT) SO THAT THE SCREWHEADS REACH THE

END OF EACH SLOTTED HOLE, THEREBY

REMAINING SECURE.

Mounting plate

Mounting bracket

8.Installing the Light Kit

Step 1. D isassemble the switch house cover by removing

3 screws on switch house. (Figure 12)

Step 2. Remove 3 screws in the light kit. While holding the

light kit assembly under your fan, snap together the wire

connection plugs. (Figure 13)

Step 3. Carefully push all wires back into the switch

housing, then install the light kit assembly onto the switch

house with the 3 screws removed. Be sure to tighten all

screws. (Figure 13)

Step

Step 5. Install 3×60W candelabra bulbs (included).

4. To install light kit glass shade, loosen the light kit

screws and install the glass shade to the light kit. Secure

by tightening the 3 screws previously loosened. (Figure 14

)

Restore power and your light kit is ready for operations.

Bulb

Glass shade

assembly

Housing

Light Kit

Figure 14

Light kit

screw

Housing

Light Kit

Screw

Connection

Plug

Figure 13

Switch House

Housing

Switch House

Cover

Screws Connection

Plug

Figure 12

Switch House

NOTE

MAKE SURE TO LEAVE ENOUGH SPACE BETWEEN

THE FAN PULL CHAIN AND THE BULBS TO THE

CHAIN DOESNT’ RUB AGAINST ANY OF THE BULBS.

LIGHT BULBS HAVE NO WARRANTY, CAN BE

PURCHASED AT LOCAL HOME IMPROVEMENT

STORE OR FROM OUR SERVICE CENTER.

NOTE

BEFORE STARTING INSTALLATION, DISCONNECT

THE POWER BY TURNING OFF THE CIRCUIT

BREAKER OR REMOVING THE FUSE AT FUSE BOX.

Light kit

screw

Screw

Andere Handbücher für Clarkston

Inhaltsverzeichnis

Sprachen:

Andere HAMPTON BAY Lüfter Handbücher

HAMPTON BAY

HAMPTON BAY AG524PR-FB Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Babiberre Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY GAZEBO YG188-BN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY VFB25ACLED1-5 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY ETRIS 52 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY STONERIDGE 51973 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY WILLIAMSON 37302 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY PALM BEACH II 59299 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY ASHBURTON YG593-TB Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 91646 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Home Depot SKU 110348 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Devereaux II Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Lynwood Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 1002 498 557 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY YG763-BN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Beverley II 325-475 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 42010 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Andover 640-655 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 120-231 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 52-RDT Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Landmark Plus Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 68" Enchantment Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 46-NS Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY STONERIDGE EF600K-52 Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
