HAMPTON BAY CYPRUS 220 635 Bedienungsanleitung

220 635

Cyprus by Hampton Bay®

Ceiling Fan by Hampton Bay

Date Purchased

Store Purchased

ETL

Model No.

Serial No.

Vendor No.

UPC

Table of Contents

Safety Rules . . . . . . . . . . . . . . . . . . . . 1

Unpacking Y

our

Fan . . . . . . . . . . . . . . 2

Installing Y

our

Fan . . . . . . . . . . . . . . . 3

Installing the Light Kit. . . . . . . . . . . . . 8

Care of Y

our

Fan . . . . . . . . . . . . . . . . 10

Trouble shooting . . . . . . . . . . . . . . . . . 10

Specifications . . . . . . . . . . . . . . . . . . 11

Warranty Information . . . . . . . . . . . . 12

Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

52 Cyprus

82598

845952000353

CF552C-CL056

Safety Rules - Read and Save These Instructions

WARNING

To reduce the risk of electric shock, ensure electricity has been

turned off at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70-1999” and local electrical codes. Electrical

installation should be performed by a qualified licensed

electrician.

WARNING: To reduce the risk of electrical shock or fire, do not

use this fan with any solid-state fan speed control device. It will

permanently damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the

screws provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds. Use only

UL Listed outlet boxes marked “FOR FAN SUPPORT”.

The fan must be mounted with a minimum of 7 feet clearance from

the trailing edge of the blades to the floor.

Avoid placing objects in path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades.

A dry dust cloth or lightly dampened cloth will be suitable for most

cleaning.

After making electrical connections, spliced conductors should be

turned upward and pushed carefully up into outlet box. The wires

should be spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the outlet box and

ungrounded conductor on the other side of the outlet box.

All set screws must be checked and retightened where necessary

before installation.

10.

11.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN

INSTALLING THE BRACKETS, BALANCING THE BLADES OR

CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –

BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET

BOX.

WARNING

DO NOT INSTALL OR USE FAN

IF ANY PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-877-262-7511

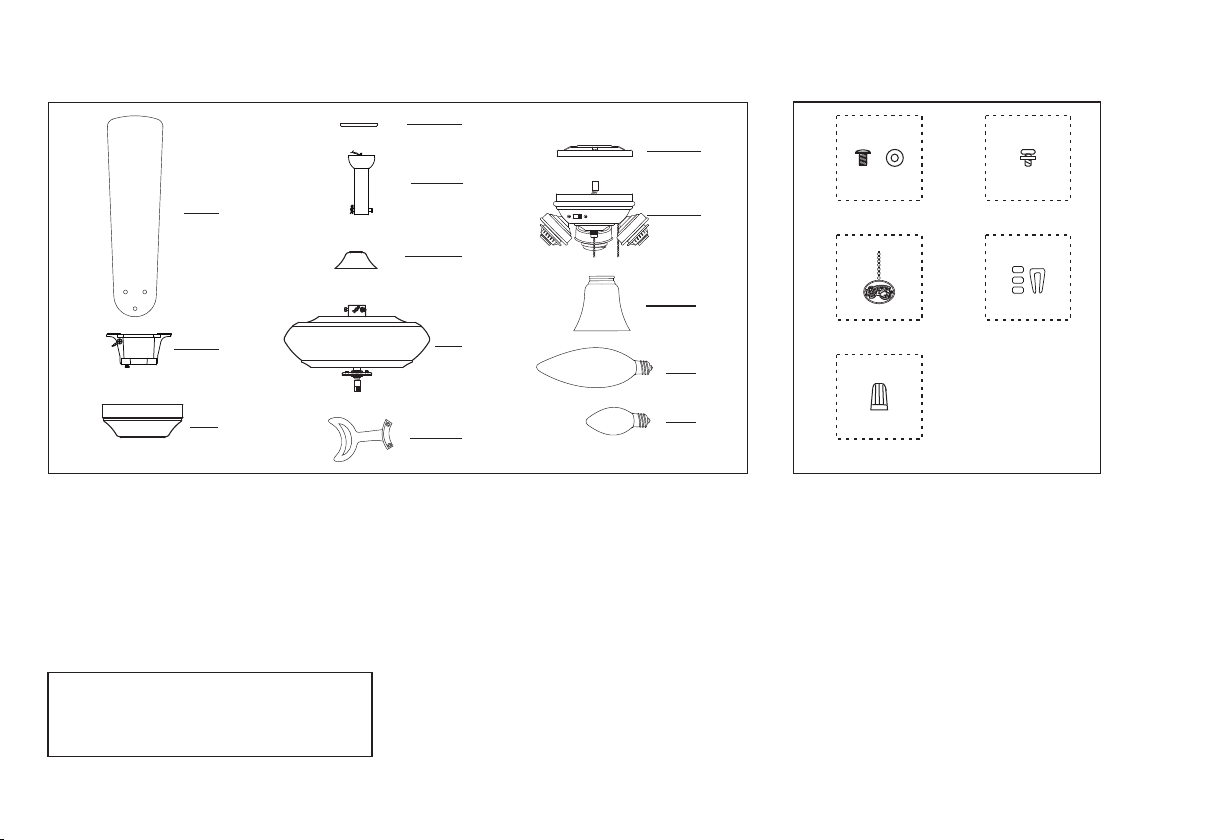

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:

14.

Loose parts bag containing:

A.Blade attachment hardware

(16 screws and paper washers)

B.Blade holder attachment hardware

(8 screws)

C.Pull chain fob(2)

D.Balancing kit(1)

E.Wire nut(3)

9. Compartment box cover(1)

10. Light kit(1)

11. Glass shade(3)

12. Bulbs(E12*40W) (3)

13. Bulbs(E12*15W) (4)

1. Fan blades(5)

2. Mounting bracket(1)

3. Canopy(1)

4. Canopy cover(1)

5. Downrod assembly(1)

6 Coupling cover(1)

7. Fan motor assembly(1)

8. Blade holders(5)

Installing Your Fan

WARNING

Outlet Box

Figure 2

Figure 1

Ceiling

Mounting

Plate

Provide Strong

Support

Recessed

Outlet Box

Figure 3

Figure 4

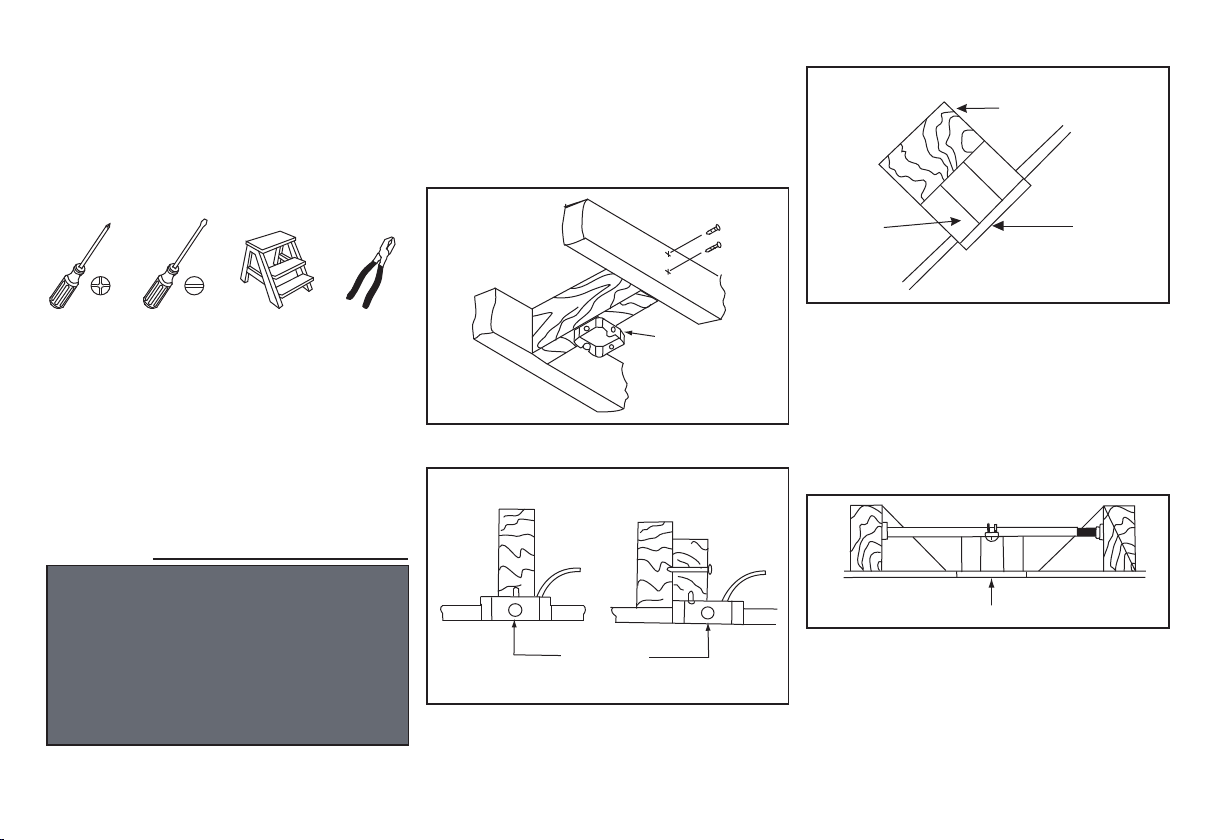

Tools Required

Mounting Options

Phillips screwdriver, straight slot

screwdriver, step ladder and wire cutters.

If there isn't an existing UL listed mounting

box, then read the following instructions.

Disconnect the power by removing fuses or

turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 35 lbs). Do

not use plastic outlet boxes.

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OUTLET BOX MARKED ACCEPT-

AB L E FOR FAN SU PPORT A ND US E THE

MOUNTING SCREWS PROVIDED WITH THE

OUTLET BOX. OUTLET BOX COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURE MAY

NOT BE ACCEPTABLE FOR FAN SUPPORT AND

MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Figures 1~3 are examples of different ways to

mount the outlet box.

Note: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling. The

maximum angle allowable is 18°. If the

canopy touches downrod, remove the

decorative canopy bottom cover and turn the

canopy 180° before attaching the canopy to

the mounting plate.

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4

(available at any Home Depot store).

Figure 11

Registration

slot

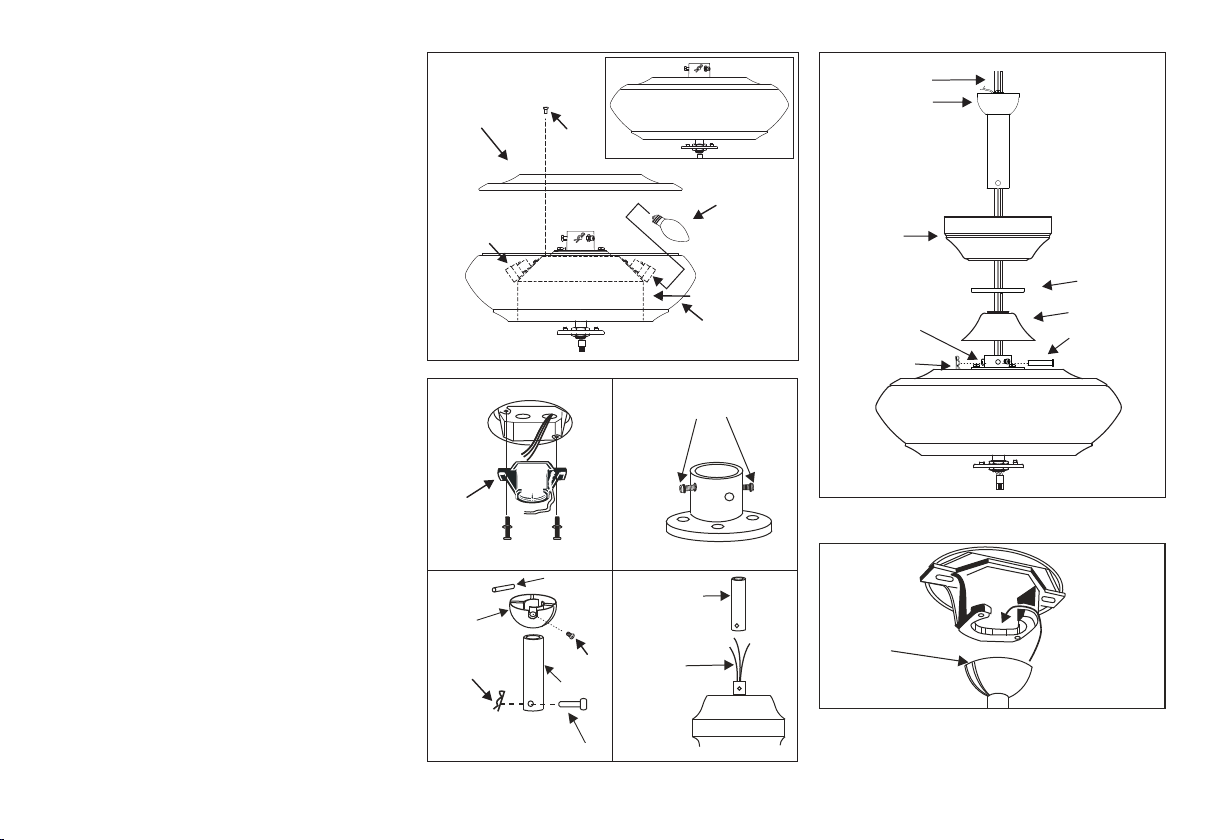

Hanging the Fan

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly:

Figure 7

Downrod

Supply

wires

Figure 9

Figure 6

Outlet box

Mounting

bracket

Set

screws

Secure the mounting bracket to the ceiling outlet

box with the screws and washers provided with

Loosen the two set screws from the motor

Remove the hitch pin and lock pin from the

downrod assembly. Remove hanger ball from

downrod assembly by loosening set screw, removing

the cross pin, and sliding ball off rod. (Figure 8)

Carefully feed fan wires up through the downrod.

Thread the rod into the coupling. Next, line up holes

and replace lock pin and hitch pin. Tighten set screws.

Slip coupling cover, canopy cover and canopy onto

downrod. (Figure 10) Carefully reinstall hanger ball

onto downrod, make sure that cross pin is in correct

position, set screws are tighten and wires are not twisted.

Now lift motor assembly into position and place hanger

ball into mounting bracket. Rotate until the check

groove drops into the registration slot and seats firmly.

(Figure 11) Downrod should not rotate if this is done

your outlet box. (Figure 6)

assembly. (Figure 7)

(Figure 9)

correctly.

Cross pin

Hanger

ball

Downrod

Figure 8

Hitch pin

Lock pin

Set

screw

3. Figure 5

Upper housing

Screw

Glass housing

Light kit

Bulb

(E12*15W)

(included)

Motor assembly

Figure 10

Lead Wires

Ball/downrod

Assembly

Canopy

Lock Pin

Couping cover

Canopy cover

Hitch Pin

Tighten

Screws

Firmly

Remove one screw and loosen three screws on

the upper housing,take the upper housing away,

place four bulbs(E12*15W) into the light kit of

the motor assembly, tighten them firmly. Secure

the upper housing to the motor assembly by

tightening four screws previously removed and

loosened.(Figure 5)

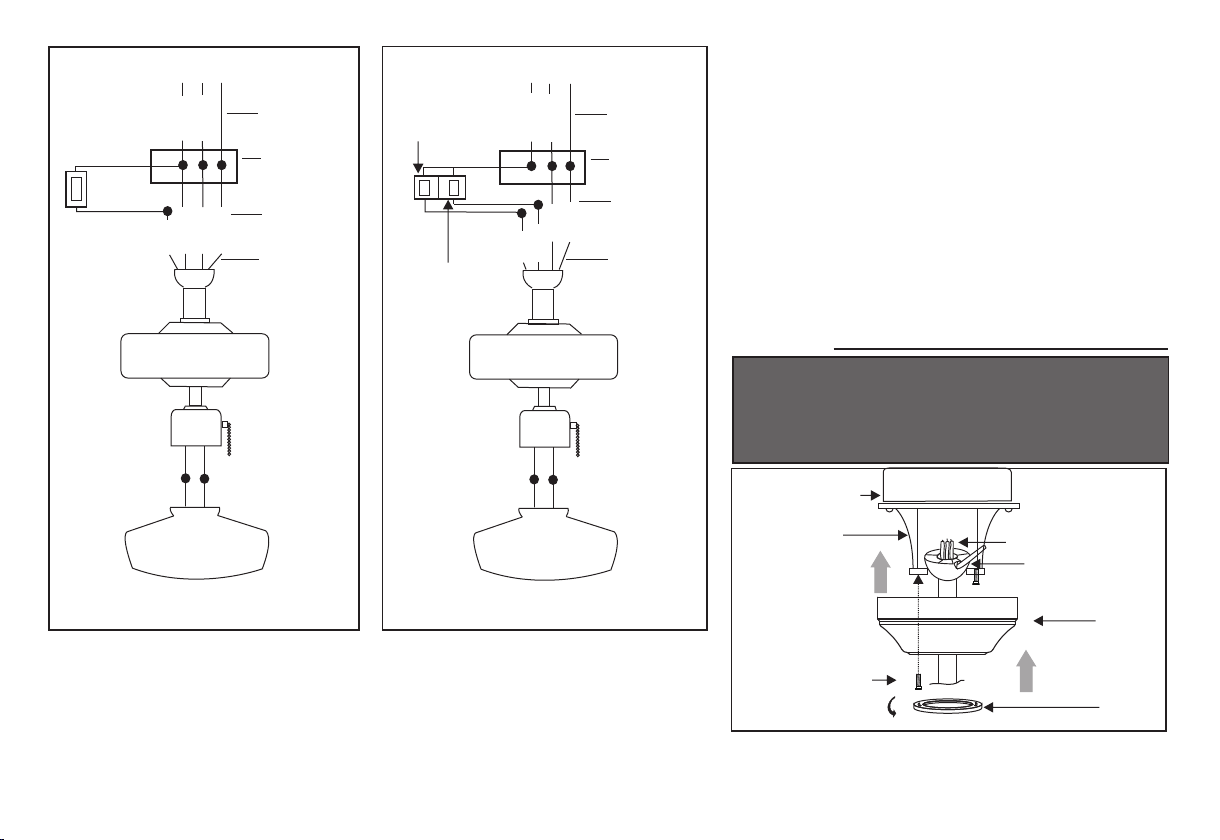

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITEWHITE

BLACK

BLUE

GREEN

WHITE

BLUE

BLACK WHITE

Figure 12

Diagram indicates optional light kit wiring.

Making the Electrical

Connections

Remember

Follow the steps below to connect the fan to

your ceiling wiring. Use the wire nuts

supplied with your fan. Secure the

connectors with electrical tape. Make sure

there are no loose strands or connections.

to shut off the power.

1. Connect the fan supply (black) wire and

light supply (blue) wire to the black ceiling

supply wire. (Figure 12)

2. Connect the neutral fan (white) wire t o

the w hite neutral wire from the ceiling.

(Figure 12)

3. Connect the fan ground wire (green) and

the mounting bracket ground wire (green) to

the ground wire from the ceiling. (Figure

12)

4. After connecting the wires, spread them

apart so that the green and white wires are

on one side of the outlet box and the black

and the blue wires are on the other side.

LIGHT KITS ARE AVAILABLE AT YOU HAMPTON

BAY RETAILER. THE FAN IS ALREADY WIRED TO

SUPPORT THE LIGHT KIT OPTION.

5. Turn the wire nuts upward and push the wiring into the

outlet box. Figures 13 and Figures 14 illustrate the wiring

connections for optional wall control (available at your

Hampton Bay Retailer, the wire color out of wall control

may vary, see wall control's installation manual for correct

wire connections)

NOTE

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR

OTHER PERSONAL INJURY. MOUNT FAN ONLY ON AN

OUTLET BOX OR SUPPORTING SYSTEM MARKED

ACCEPTABLE FOR FAN SUPPORT.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK.

DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED

CONTROL DEVICE.

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITE

BLACK

BLUE

GREEN

Figure 14

Diagram indicates optional light kit wiring.

Light

Fan

WHITE

BLUE

BLACK WHITE

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITE

BLACK

BLUE

GREEN

Figure 13

Diagram indicates optional light kit wiring.

Light Switch

WHITE

BLUE

BLACK WHITE

Finishing the Installation

1. Tuck connections neatly into ceiling outlet box.

2. Remove one screw from the mounting bracket

and loosen the other screw around 1/4″.

3. Align the canopy up to ceiling and over the loose

screw. Place the canopy into key hole and rotate

canopy clockwise. (Figure 15)

4. Secure the canopy by using previous removed

and loosened screw.

5. Place the canopy cover to the canopy and rotate

canopy cover clockwise until it is locked into right

position.(Figure 15)

MAKE SURE TAB AT BOTTOM OF HANGER

BRACKET IS PROPERLY SEATED IN GROOVE OF HANGER

BALL BEFORE

ATTACHING CANOPY TO BRACKET. FAILURE

TO PROPERLY SEAT TAB IN GROOVE COULD CAUSE

DAMAGE TO ELECTRICAL WIRING.

WARNING

Figure 15

Outlet box

Mounting

bracket

Canopy

Screw

Canopy

cover

Lead Wires

Ball/Downrod

Assembly

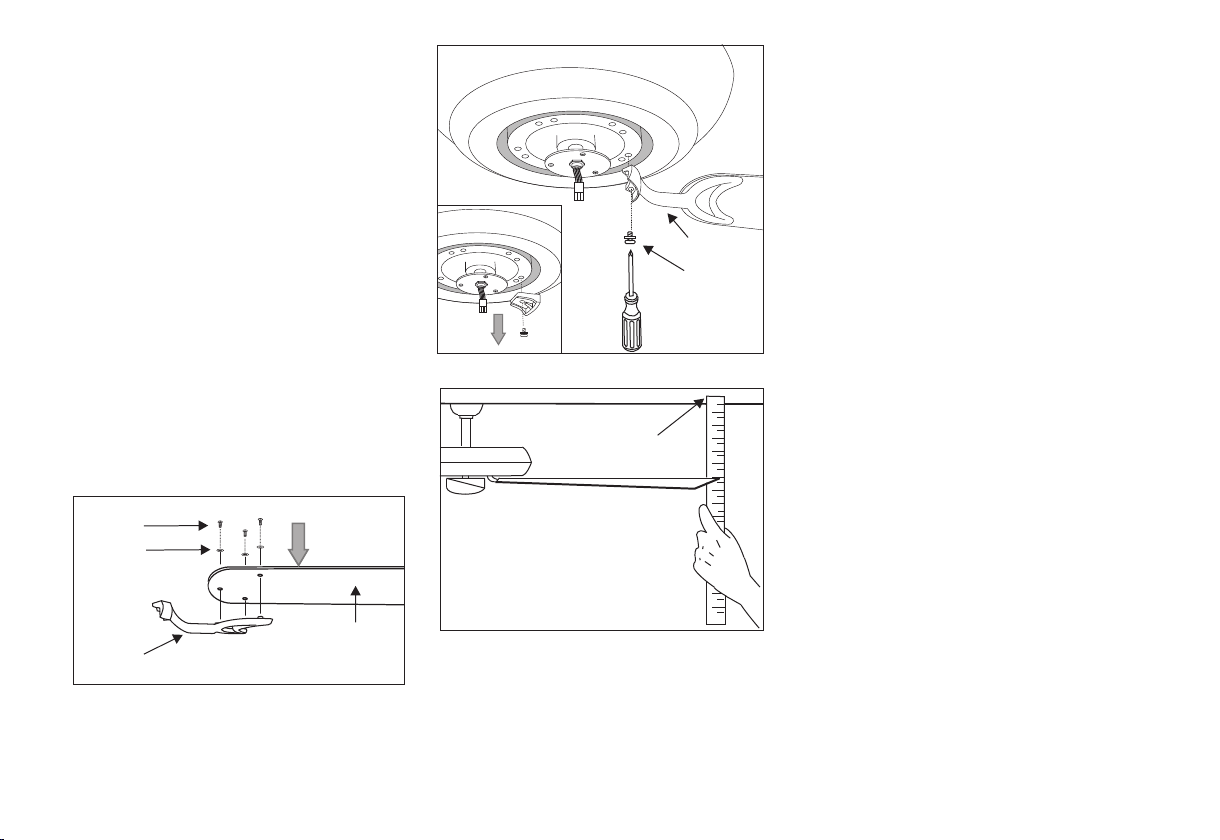

The following procedure should correct most

fan wobble issues. Check after each step.

1. Check that all blades and blade holder

screws are secure.

2. Most fan wobble problems are caused

when blade levels are unequal. Check this

level by selecting a point on the ceiling above

the tip of one of the blades. Measure this

distance as shown in Figure 18. Rotate the fan

until the next blade is positioned for

measurement. Repeat for each blade. The

distance should be equal within 1/8".

If all blade levels are not equal, you can

adjust the blade level with the following

procedure.

3. Use the enclosed Blade Balancing Kit if the

blade wobble is still noticeable. (Please refer

to the introduction provide in the blade

balancing kit, which is individually packed.)

4. If the blade wobble is still noticeable,

interchanging two adjacent (side by side)

blades can redistribute the weight and

possibly result in smoother operation.

Touching

ceiling

Figure 18

Figure 17

Attaching the Fan

Blades

1. Attach the blades to the blade holders

using three screws and paper washer as

shown in Figure 16. Start a screw into the

blade holder, do not tighten. Repeat for

the 2 remaining screws and washers.

2. Tighten each screw securely starting

with the center screw. Make sure the blade

is straight.

3. Remove the plastic blocks before

installing the blade holder to the bottom

motor housing, discard the plastic blocks

but keep the screws. (Figure 17).

4. Fasten the blade assemblies to motor

hou sin g by tig h ten ing the scr e ws

previously removed from the motor

housing and the screws from the loose

parts bag(B). (Figure 17)

Figure 16

Blade holder

Blade

Screws

paper

Washer

Motor housing

Blade holder

Screw

Inhaltsverzeichnis

Sprachen:

Andere HAMPTON BAY Lüfter Handbücher

HAMPTON BAY

HAMPTON BAY CALTRIS AK382HG-MBK Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY SEAPORT AL634-NI Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Havenville Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY LEROY 37810 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY MORESCO 14411 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 411-969 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Beverley II 325-475 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY BAXTER Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY HARPER AM214-WH Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY HAWKINS YG204I-TB-D Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY GRECO II Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY FANELEE Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Gazebo II Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY AG510-BN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 120-231 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 654 451 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY HOLLIS 52196 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Gazebo II Plus Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY BPT18-34A-5 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Northport 178-047 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY DEVRON 57231 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 593-543 AL958-ORB Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY NORTH GROVE 52-HASLD Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY HAVANA Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
