HAMPTON BAY Springview Bedienungsanleitung

by ®

Hampton Bay

Springview

52 Springview

Ceiling Fan by Hampton Bay

Date Purchased

Store Purchased

ETL

Model No.

Serial No.

Vendor No.

UPC

Table of Contents

Safety Rules . . . . . . . . . . . . . . . . . . . . 1

Unpacking Y

our

Fan . . . . . . . . . . . . . . 2

Installing Y

our

Fan . . . . . . . . . . . . . . . 3

Installing the Light Kit. . . . . . . . . . . . . 8

Care of Y

our

Fan . . . . . . . . . . . . . . . . 10

Troubleshooting . . . . . . . . . . . . . . . . . 10

Specifications . . . . . . . . . . . . . . . . . . 11

Warranty Information . . . . . . . . . . . . 12

445993

Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

750 809

718212149225

our

Fan . . . . . . . . . . . . . . . . 9

Operating

Safety Rules - Read and Save These Instructions

WARNING

ATTENTION

To reduce the risk of electric shock, insure electricity has been

turned off at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70-1999” and local electrical codes. Electrical

installation should be performed by a qualified licensed

electrician.

WARNING: To reduce the risk of electrical shock or fire, do not

use this fan with any solid-state fan speed control device. It will

permanently damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the

screws provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds. Use only

UL Listed outlet boxes marked “FOR FAN SUPPORT”.

The fan must be mounted with a minimum of 7 feet clearance from

the trailing edge of the blades to the floor.

Avoid placing objects in path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades.

A dry dust cloth or lightly dampened cloth will be suitable for most

cleaning.

After making electrical connections, spliced conductors should be

turned upward and pushed carefully up into outlet box. The wires

should be spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the outlet box and

ungrounded conductor on the other side of the outlet box.

All set screws must be checked and retightened where necessary

before installation.

10.

11.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN

INSTALLING THE BRACKETS, BALANCING THE BLADES OR

CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –

BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET

BOX.

FAN INCLUDES A 190W LIMITER TO COMPLY WITH THE

DEPARTMENT OF ENERGY 2009 REGULATION. LAMPING THIS

PRODUCT OVER 190W WILL CAUSE THIS FAN TO NOT LIGHT. PLEASE

USE BULBS WITH A TOTAL WATTAGE UNDER THE 190W

REGULATION.

9. Flywheel (1)

10. Light kit (1)

11. 40 Watt E12 bulb (3)

12. Glass shade (1)

2. Hanger bracket (1)

3. Canopy (1)

4. Canopy cover (1)

5. Ball/downrod assembly (1)

6. Coupling cover (1)

7. Fan motor assembly ( 1 )

8. Set of blades brackets (5)

Set of blades (5)

WARNING

DO NOT INSTALL OR USE FAN

IF ANY PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-800-527-0998

Unpack your fan and check the contents. You should have the following items:

DEF

Loose parts bag containing:

A. Mounting hardware

Plastic wire connectors (3pcs)

B . Blade attachment hardware

3/16″6mm Screw(16pcs)

Fiber washer (16pcs)

C. Blade bracket hardware

1/4*9.5mm screws (10pcs)

Flywheel hardware

1/4*9.5mm screws (6pcs)

D. Extra plug with nut (1)

Pull chain fob (2pcs)

Balancing kit (1)

(2pcs)

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:

Installing Your Fan

WARNING

Outlet Box

Figure 2

Figure 1

Ceiling

Mounting

Plate

Provide Strong

Support

Recessed

Outlet Box

Figure 3

Figure 4

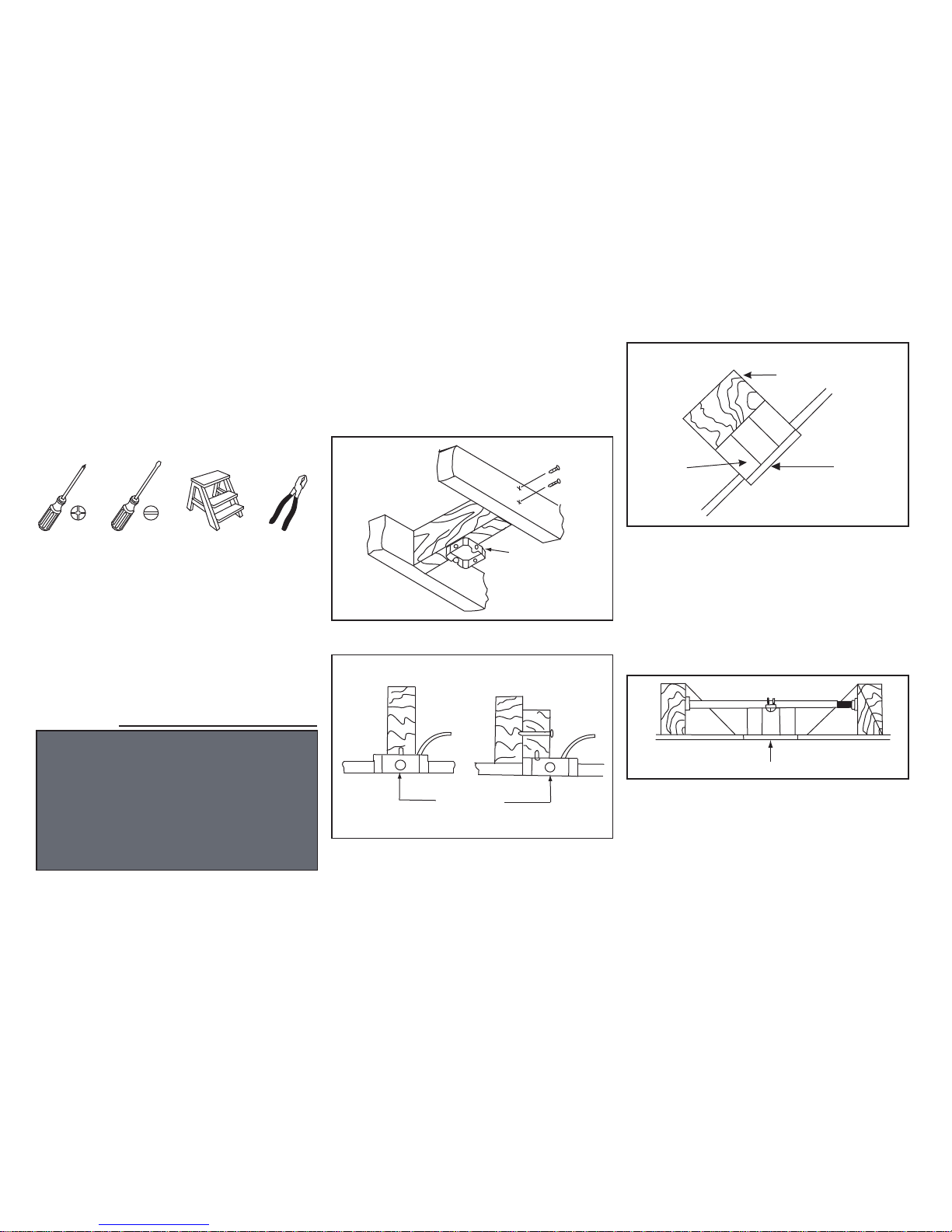

Tools Required

Mounting Options

Phillips screwdriver, straight slot

screwdriver, step ladder and wire cutters.

If there isn't an existing UL listed mounting

box, then read the following instructions.

Disconnect the power by removing fuses or

turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 35 lbs). Do

not use plastic outlet boxes.

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OULET BOX MARKED ACCEPT-

ABLE FOR FA N SU P P O RT A N D US E T H E

MOUNTING SCREWS PROVIDED WITH THE

OULET BOX. OUTLET BOX COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURE

MAY NOT BE ACCEPTABLE FOR FAN SUPPORT

AND MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Figures 1~3 are examples of different ways to

mount the outlet box.

Note: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling. The

maximum angle allowable is 18°. If the

canopy touches downrod, remove the

decorative canopy bottom cover and turn the

canopy 180° before attaching the canopy to

the mounting plate.

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4

(available at any Home Depot store).

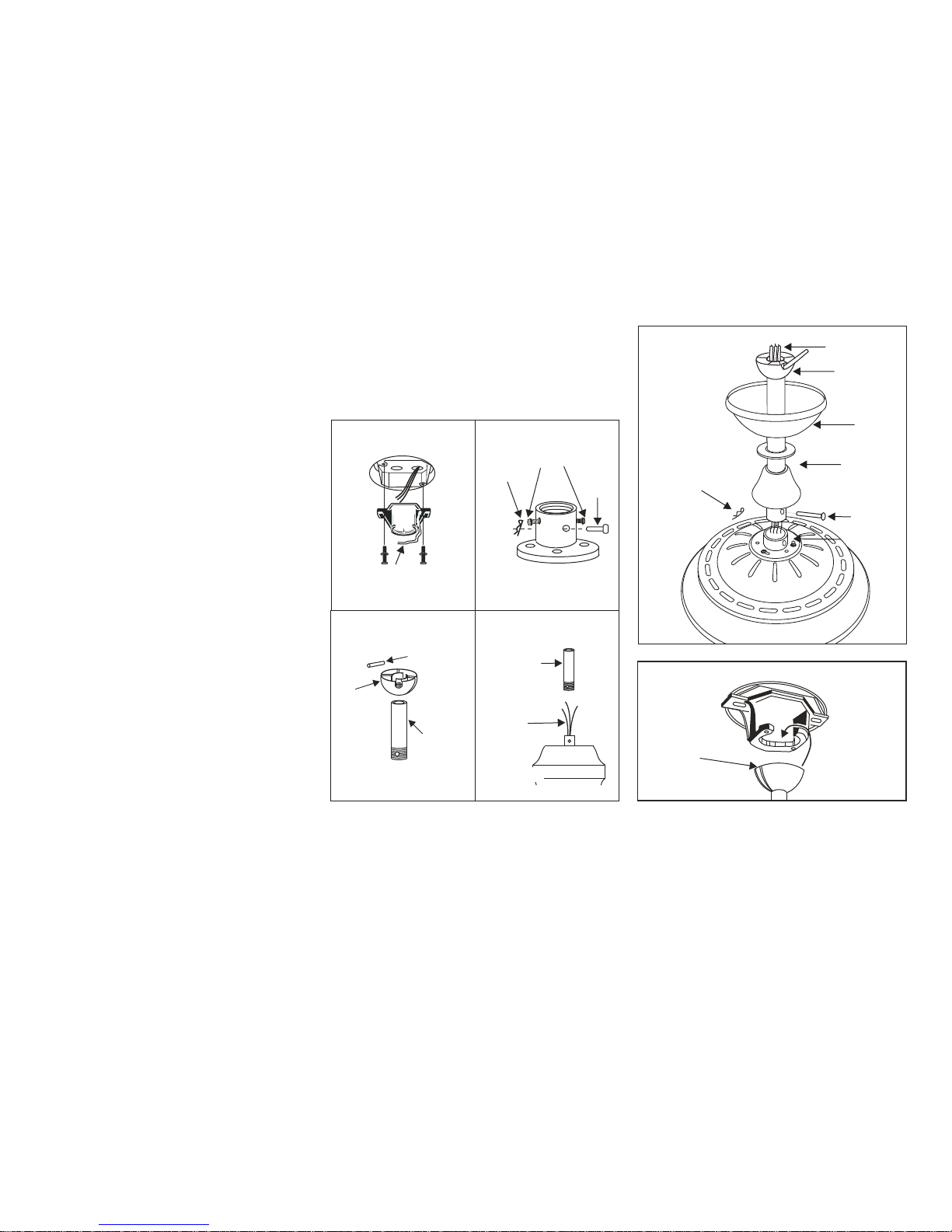

Hanging the Fan

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly:

1. Secure the hanger bracket to the ceiling

outlet box with the screws and washers

provided with your outlet box. (Figure 5)

3. Remove hanger ball from downrod assembly

by loosening set screw, removing the cross pin,

and sliding ball off rod. (Figure 7)

4. Carefully feed fan wires up through the

downrod. (Figure 8) Thread the rod into the

coupling. Next, line up holes and replace lock

pin and hitch pin. Tighten set screws.

5. Slip coupling cover, canopy cover and

canopy onto downrod. (Figure 9) Carefully

reinstall hanger ball onto tod being sure that

cross pin is in correct position, set screws are

tighten and wires are not twisted.

Remove the hitch pin and lock pin from

the downrod assembly. Loosen the two set

screws from the motor assembly. (Figure

6. Now lift motor assembly into position and place

hanger ball into hanger bracket. Rotate until the

check groove drops into the registration slot and

seats firmly. (Figure 10) Downrod should not rotate

if this is done correctly.

Figure 6

Downrod

Supply

wires

Figure 8 Figure 10

Registration

slot

Figure 5

Cross pin

Hanger

ball

Downrod

Figure 7

Outlet box

Hanger bracket

Hitch

pin Lock

Set

screws

Figure 9

Split Pin

Collar Cover

Pivot Pin

Motor Collar

Lead Wires

Ball/Downrod

Assembly

Canopy

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITEWHITE

BLACK

BLUE

GREEN

WHITE

BLUE

BLACK WHITE

Figure 11

Diagram indicates optional light kit wiring.

Making the Electrical

Connections

Remember

Follow the steps below to connect the fan to

your household wiring. Use the wire

connecting nuts supplied with your fan.

Secure the connectors with electrical tape.

to shut off the power.

1. Connect the fan supply (black) wire and

light supply (blue) wire to the black

household supply wire. (Figure 11)

2. Connect the neutral fan (white) wire t ot he

white neutral household wire. (Figure 11)

3. Connect the fan ground wire (green) to

the household ground wire. (Figure 11)

4. After connecting the wires, spread them

apart so that the green and white wires are

on one side of the outlet box and the black

and the blue wires are on the other side.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,

OR OTHER PERSONAL INJURY. MOUNT FAN ONLY ON

AN OUTLET BOX OR SUPPORTING SYSTEM MARKED

ACCEPTABLE FOR FAN SUPPORT.

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK. DO NOT USE THIS FAN WITH ANY SOLID-

STATE SPEED CONTROL DEVICE.

LIGHT KITS ARE AVAILABLE AT YOU HAMPTON

BAY RETAILER. THE FAN IS ALREADY WIRED TO

SUPPORT THE LIGHT KIT OPTION.

5. Turn the connecting nuts upward and push the wiring

into the outlet box. Figures 12 and Figures 13 illustrate the

wiring connections for optional wall control (available at

your Hampton Bay Retailer, the wire color out of wall

control may vary, see wall control's installation manual for

correct wire connections)

NOTE

WARNING

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITE

BLACK

BLUE

GREEN

Figure 13

Diagram indicates optional light kit wiring.

Light

Fan

WHITE

BLUE

BLACK WHITE

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITE

BLACK

BLUE

GREEN

Figure 12

Diagram indicates optional light kit wiring.

Light Switch

WHITE

BLUE

BLACK WHITE

MAKE SURE TAB AT BOTTOM OF HANGER

BRACKET IS PROPERLY SEATED IN GROOVE OF HANGER

BALL BEFORE

ATTACHING CANOPY TO BRACKET. FAILURE

TO PROPERLY SEAT TAB IN GROOVE COULD CAUSE

DAMAGE TO ELECTRICAL WIRING.

Figure 14

Outlet box

Mounting

bracket

Canopy

Screw

Canopy

cover

Lead Wires

Ball/Downrod

Assembly

Finishing the Installation

1. Tuck connections neatly into ceiling outlet box.

2. Remove one screw from the hanger bracket and

loosen the other screw around 1/4″.

3. Align the canopy up to ceiling and over the loose

screw. Place the canopy into key hole and rotate

canopy clockwise. (Figure 14)

4. Secure the canopy by use previous removed screw.

5. Place the canopy cover to the canopy and rotate

canopy cover clockwise until it is locked into right

position.(Figure 14)

WARNING

Blade

holder

Screws

Fiber

Washer

Attaching the Fan Blades

1. A ttach the fan blades to the blade holders by

using three screws and fiber washers as shown

in Figure 15. Start a screw into the blade

holder, do not tighten. Repeat for the 2

remaining screws and washers.

2. Tighten each screw securely starting with

the center screw.

3. Fasten the blade assemblies to fly wheel

with the fly wheel hardware provided. (Figure

16)

Touching

ceiling

Figure 18

Figure 15

Figure 16

Screw

Fly wheel

Blade Bracket

Blade

Installing the fly wheel

Loose five set motor screws on the

motor, Place the slot holes of the fly

wheel over five screws previously

loosened and attach five motor screws

provided in Loose parts bag, tighten all

screws. (Figure 17)

Set Screws

Motor

Slot hole

Motor

Screw

Figure 17

Blade balancing

The following procedure should correct

most fan wobble. Check after each step.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HAMPTON BAY Lüfter Handbücher

HAMPTON BAY

HAMPTON BAY Isolabella Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Dawson 581 645 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Fulton 140201 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY SAUTERNE AL975-BN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY CEDAR LAKE 52109 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 296 065 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Noella Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 52" Huntington III Leitfaden

HAMPTON BAY

HAMPTON BAY ST. DAVID 51344 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY North Pond Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 45071-050 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Largo Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY NORWOOD 52129 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Palm Beach II Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY SW19129-A ORB Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Minuet III AG806C-EB Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Gazebo II YG187-WH Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Palm Beach II Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY BENNINGTON 52389 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY HALPERT 52169 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY FB50-16H Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 654 451 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY SOUTHWIND II 52-RMGII Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 394-443 Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
