HAMPTON BAY Lodge 285 313 Bedienungsanleitung

Lodge

52 in Ceiling Fan

Owner’s Manual

Lodge

Ventilador de Techo de 1,32 m

Manual del Propietario

285 313

52” Lodge

Ceiling Fan by Hampton Bay

Date Purchased

Store Purchased

UL Model No.

Serial No.

Vendor No.

UPC

Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

Table of Contents

Safety Rules . . . . . . . . . . . . . . . . . . . . 1

Unpacking Your Fan . . . . . . . . . . . . . . 2

Installing Your Fan . . . . . . . . . . . . . . . 3

Installing the Light Kit. . . . . . . . . . . . . 10

Operating Your Transmitter . . . . . . . . . . . 11

Care of Your Fan . . . . . . . . . . . . . . . . 13

Troubleshooting . . . . . . . . . . . . . . . . . 13

Specifications . . . . . . . . . . . . . . . . . . 14

Warranty Information . . . . . . . . . . . . 15

285-313

219032

792145353195

Safety Rules - Read and Save These Instructions

To reduce the risk of electric shock, insure electricity has been turned off

at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical Code

“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation

should be performed by a qualified licensed electrician.

WARNING: To reduce the risk of electrical shock or fire, do not use this

fan with any solid-state fan speed control device. It will permanently

damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the screws

provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds. Use only UL

Listed outlet boxes marked “FOR FAN SUPPORT”.

The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge of the blades to the floor.

Avoid placing objects in path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades. A dry

dust cloth or lightly dampened cloth will be suitable for most cleaning.

After making electrical connections, spliced conductors should be turned

upward and pushed carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the equipment-grounding

conductor on one side of the outlet box and ungrounded conductor on the

other side of the outlet box.

All set screws must be checked and retightened where necessary before

installation.

10.

11.

WARNING

TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN INSTALLING

THE BRACKETS, BALANCING THE BLADES OR CLEANING THE FAN.

DO NOT INSERT FOREIGN OBJECTS IN – BETWEEN ROTATING FAN

BLADES.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT

WITH THE SCREWS PROVIDED WITH THE OUTLET BOX.

ATTENTION

FAN INCLUDES A 190W LIMITER TO COMPLY WITH THE DEPARTMENT

OF ENERGY 2009 REGULATION. LAMPING THIS PRODUCT OVER 190W

WILL CAUSE THIS FAN TO NOT LIGHT. PLEASE USE BULBS WITH A

TOTAL WATTAGE UNDER THE 190W REGULATION.

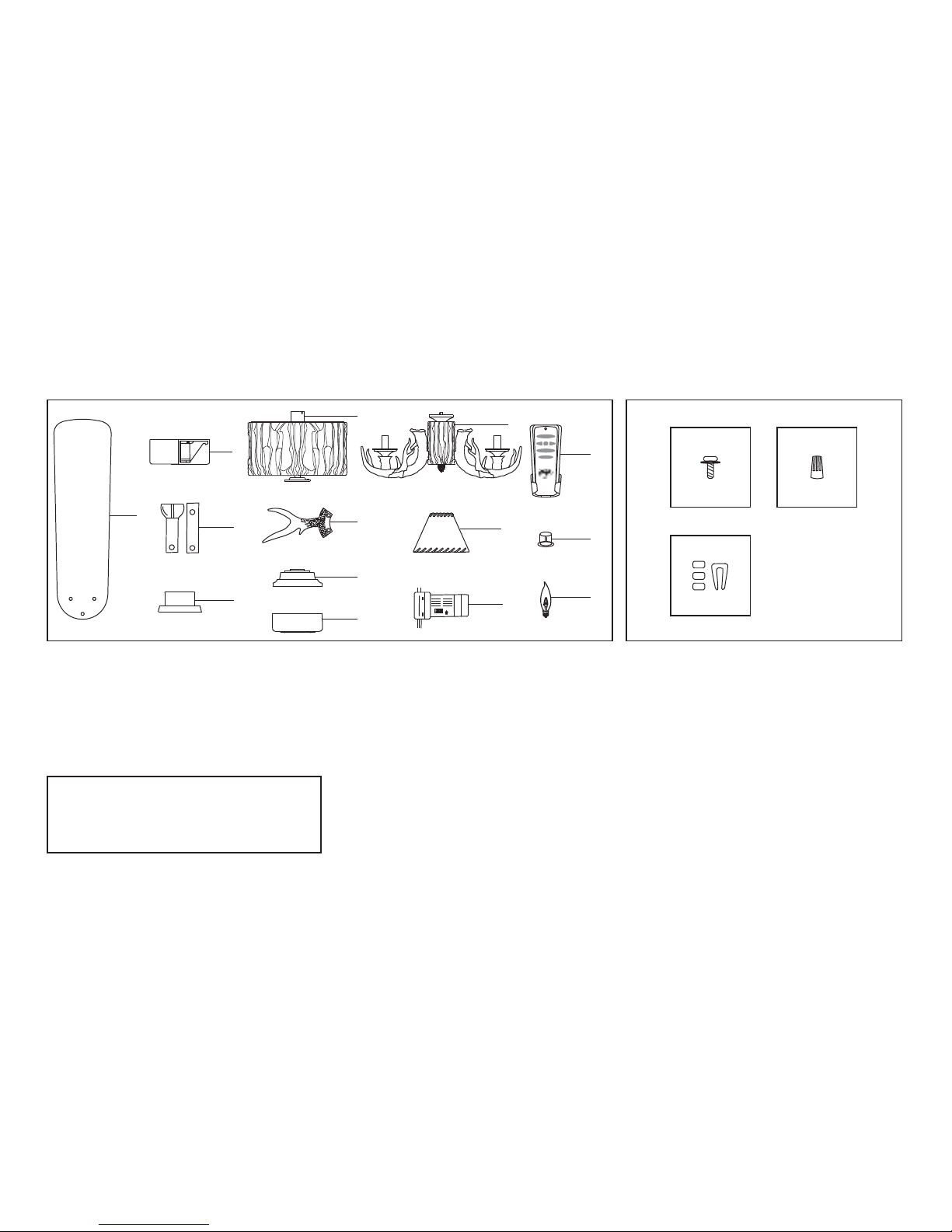

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:

Set of blades (5)

Canopy assembly

Ball/downrod assembly (1)

& extra downrod (1)

Coupling cover

Fan motor assembly

Set of blade arms (5)

Mounting plate

Switch housing

Light kit

Light shades (3)

Receiver+6 wire nuts

Transmitter+holder+2 mounting screws

Extra plastic plug

40 Watt candelabra bulbs (3)

10.

11.

12.

13.

14.

Blade Attachment Hardware

(16 Screws with Fiber Washers)

Electrical Hardware

(3 Plastic Wire Nuts)

Balancing Kit

WARNING

DO NOT INSTALL OR USE FAN IF ANY

PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-877-902-5588.

LIGHT/ DIMMER

LO MED HI

FAN OFF

REVERSE

Installing Your Fan

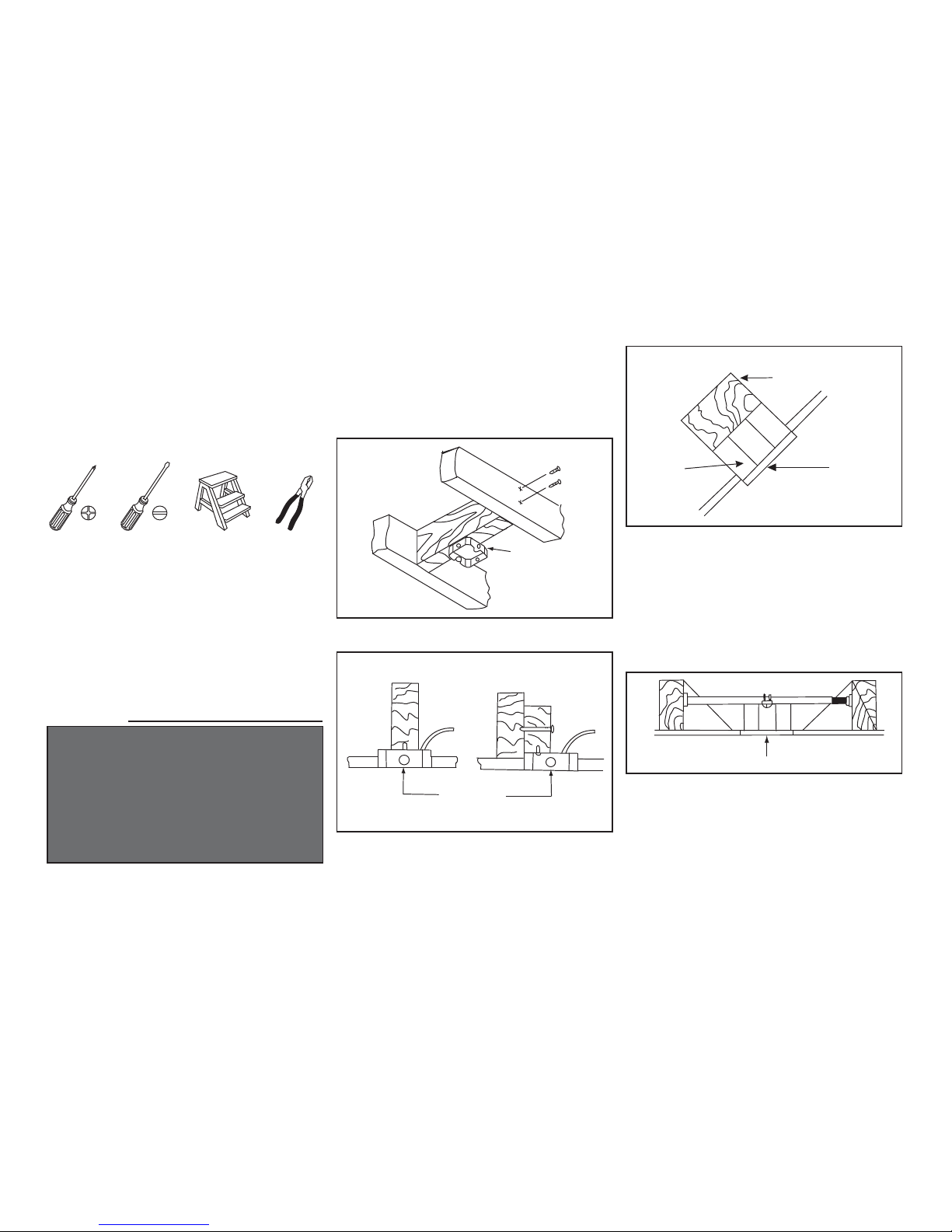

Figures 1~3 are examples of different ways to

mount the outlet box.

If there isn't an existing UL listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 35 lbs). Do not use plastic outlet boxes.

Tools Required

Mounting Options

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OULET BOX MARKED ACCEPT-

ABLE FOR FAN SUPPORT AND USE THE

MOUNTING SCREWS PROVIDED WITH THE

OULET BOX. OUTLET BOX COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURE

MAY NOT BE ACCEPTABLE FOR FAN SUPPORT

AND MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Outlet Box

Figure 2

Figure 1

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling. The maximum angle

allowable is 24°. If the canopy touches downrod,

remove the decorative canopy bottom cover and

turn the canopy 180°before attaching the canopy

to the mounting plate.

To hang your fan where there is an existing fixture

but no ceiling joist, you may need an installation

hanger bar as shown in Figure 4 (available at any

Home Depot store).

Ceiling

Mounting

Plate

Provide Strong

Support

Recessed

Outlet Box

Figure 3

Figure 4

Phillips screwdriver, straight slot screwdriver, step

ladder and wire cutters.

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly.

Hanging the Fan WARNING

FAILURE TO PROPERLY INSTALL COTTER PIN

AS NOTED IN STEP 5 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Tighten two set screws at top of the fan motor

collar firmly and evenly. (Fig. 6)

Remove the decorative canopy bottom cover

from the canopy by turning the cover counter

clockwise. (Figure 5)

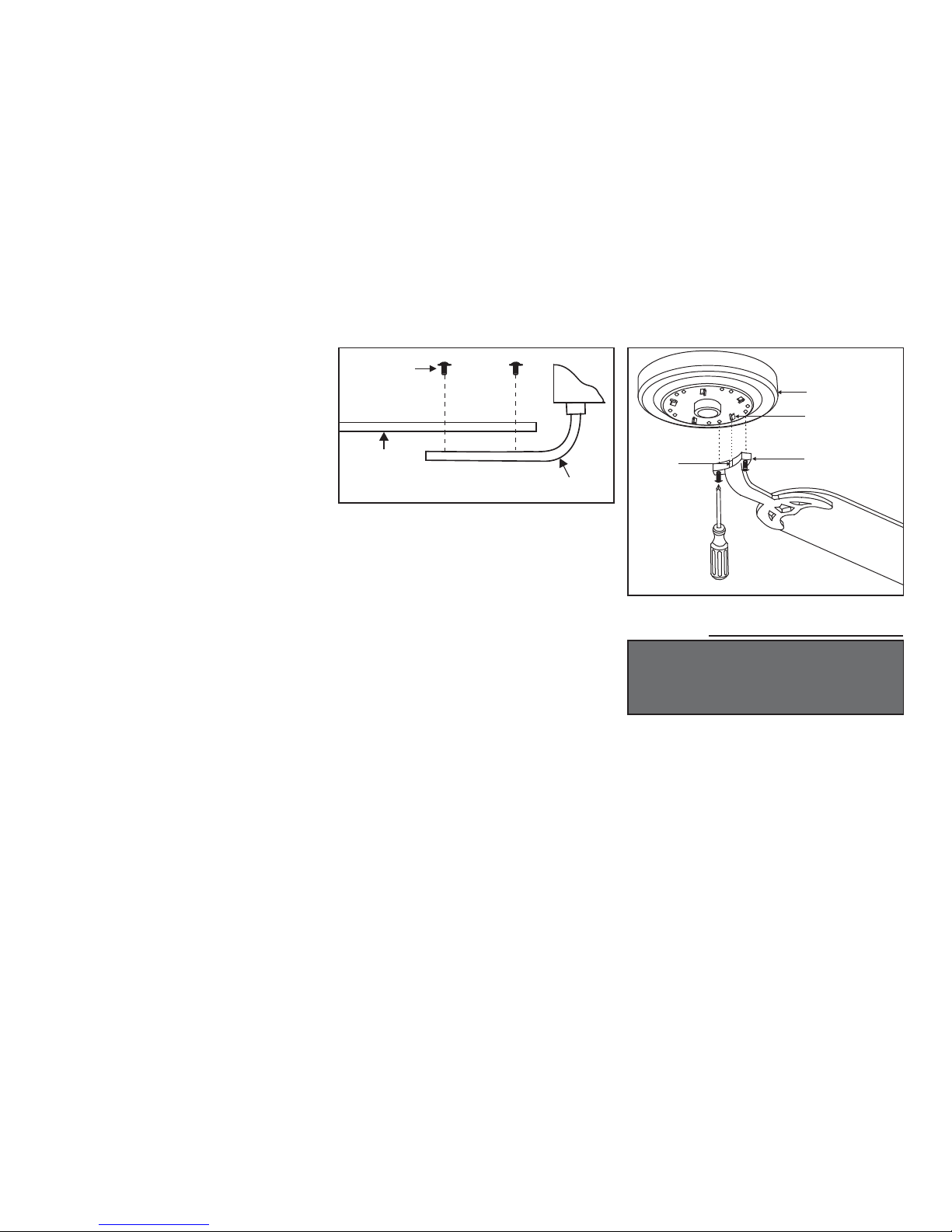

Remove the mounting bracket from the canopy

by loosening the two screws on the bottom of

the mounting bracket a half turn from the screw

head and turning the canopy counter

clockwise. (Figure 5)

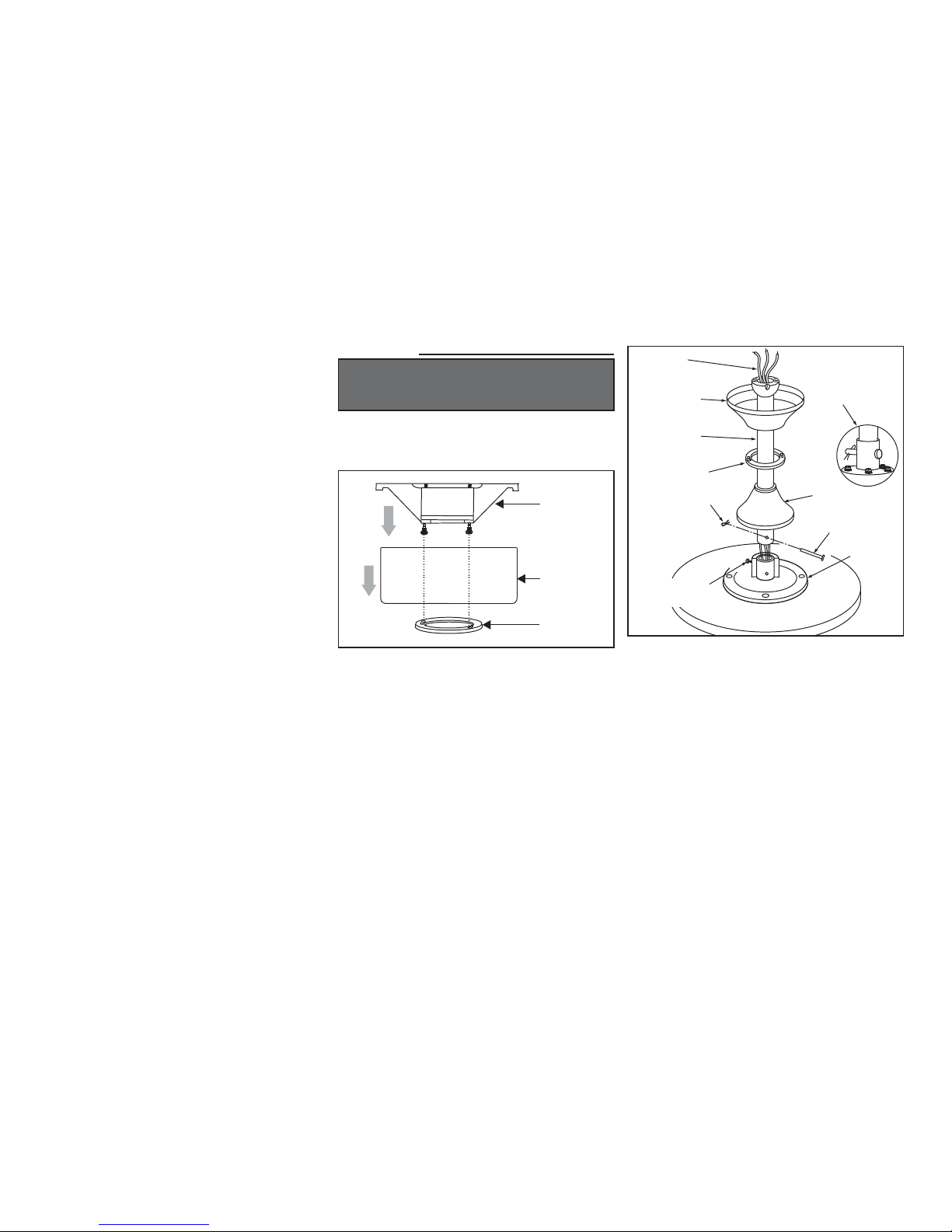

Remove the clevis pin, cotter pin and set

screws from the top of the motor assembly.

(Figure 6)

Route wires exiting from the top of the fan

motor through the coupling cover, canopy

cover, canopy and then through the ball/

downrod. (Figure 6)

Align the holes at the bottom of the downrod

with the holes in the coupling on top of the

motor housing (Figure 6). Carefully insert the

clevis pin through the holes in the collar and

downrod. Be careful not to jam the clevis pin

against the wiring inside the downrod. Insert

the cotter pin through the hole near the end of

the clevis pin until it snaps into its locked

position, as noted in the circle inset of Fig. 6.

Figure 5

Ceiling

Mounting

Bracket

Ceiling Canopy

Canopy Bottom

Cover

Figure 6

Motor Wires

Ball/Downrod

Assembly

Ceiling Canopy

Canopy Bottom

Cover

Pin in Locked

Positioon

Motor Collar

Coupling

Cover

Tighten Screw

Firmly

Cotter Pin

Clevis Pin

WARNING

THE TAB IN THE RING MUST REST IN THE

GROOVE OF THE HANGER BALL AS FIGURE 8.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

Installing Fan to

the Electrical Box

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR OTHER PERSONAL INJURY. MOUNT

FAN ONLY TO AN OUTLET BOX OR SUPPORTING

SYSTEM MARKED ACCEPTABLE FOR FAN

SUPPORT AND USE THE MOUNTING SCREWS

PROVIDED WITH THE OUTLET BOX.

Pass the 120-volt supply wires through the

center hole in the ceiling mounting bracket as

shown in Figure 7.

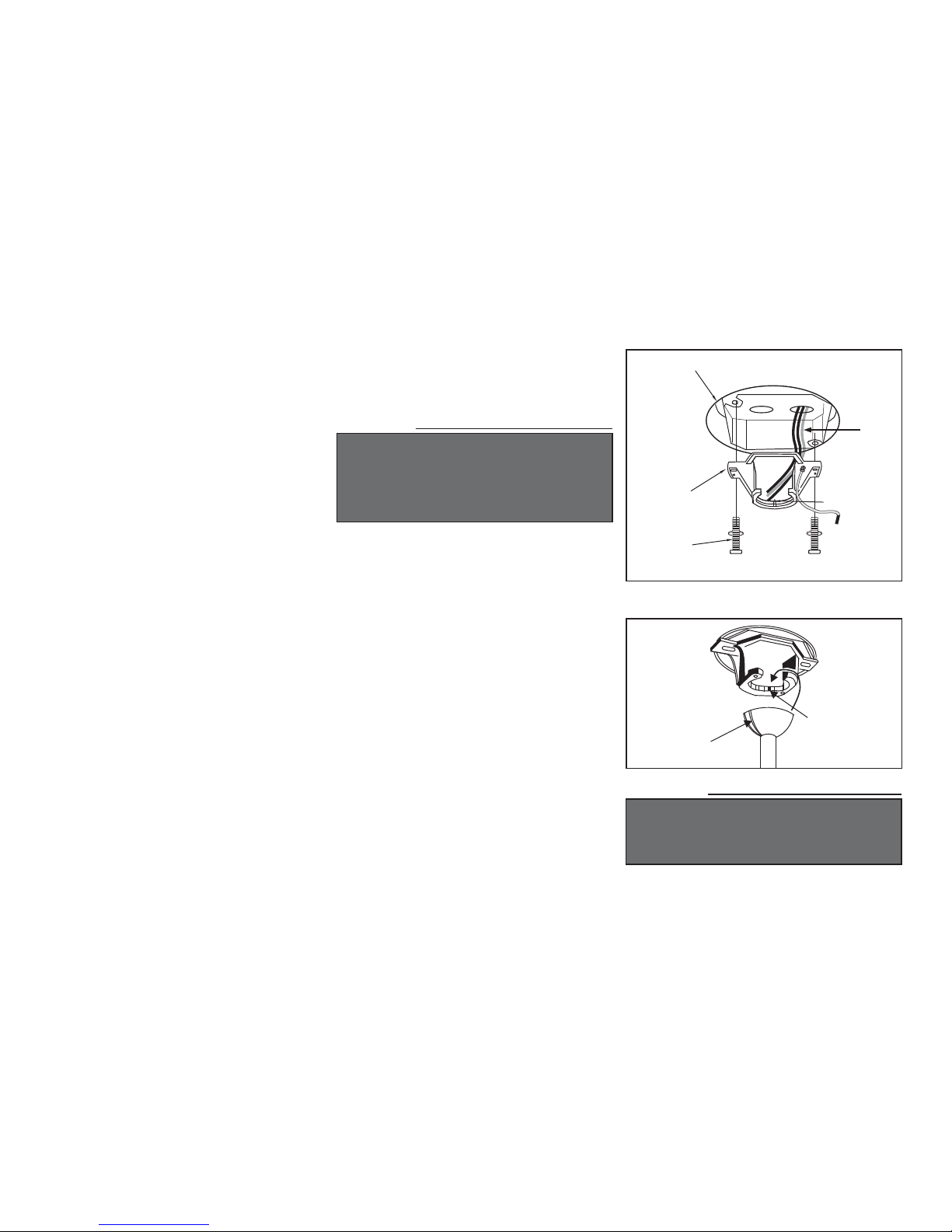

Install the ceiling mounting bracket on the

outlet box with the screws and washers

provided with your outlet box (Figure 7).

Security tighten the two mounting screws.

Carefully lift the fan assembly up to the ceiling

mounting bracket and seat the hanger ball in the

mounting bracket socket. Make sure the tab on

the mounting bracket socket is properly seated

in the groove in the hanger ball (Figure 8). This

will help to balance the ceiling fan.

Changing the Downrod

(Optional)

NOTE: Your fan comes with a 4" downrod

attached to the hanger ball. In addition you have

been provided with a 6" downrod to use if desired.

If you choose to use the 6" downrod, perform the

following steps:

Remove the hanger ball from the 4" downrod

by loosening the set screw at the top of the

downrod which holds the hanger ball to the

downrod.

Slide the hanger ball down the downrod and

remove the support pin.

Insert the support pin in the holes at the top of

the 6" downrod and slide the hanger ball up the

6" downrod. Make sure the support pin is

properly seated in the grooves in the top of the

hanger ball.

Tighten the set screw firmly.

Figure 7

UL Listed Outlet Box

Ceiling Mounting

Bracket

120V

Wires

Mounting

Screws (Supplied

with Electrical Box)

Tab

Figure 8

Groove

Tab

Making the Electrical

Connections

WARNING

TO AVOID POSSIBLE ELECTRICAL SHOCK, BE

SURE ELECTRICITY IS TURNED OFF AT THE

MAIN FUSE BOX BEFORE WIRING.

If you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

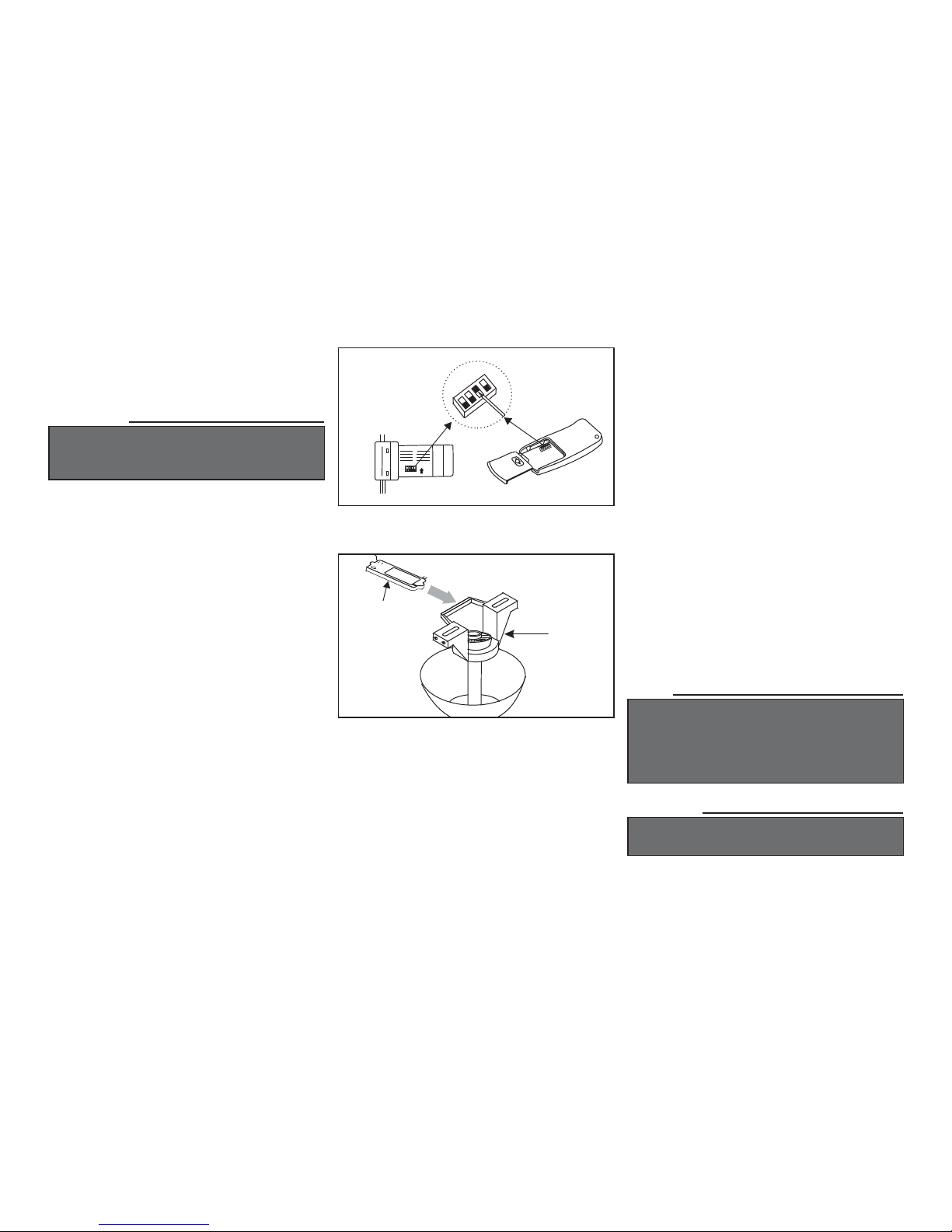

This remote control unit is equipped with 16 code

combinations to prevent possible interference

from or to other remote units. The frequency

switches on your receiver and transmitter have

been preset at the factory. Please recheck to make

sure the switches on the transmitter and the

receiver are set to the same position, any

combination of settings will operate the fan as

long as the transmitter and receiver are set to the

same position. (Figure 9).

Insert the receiver into the mounting bracket

with the flat side of the receiver facing the

ceiling as Figure 10.

receiver. Secure the wire connections with the

plastic wire connecting nuts provided.

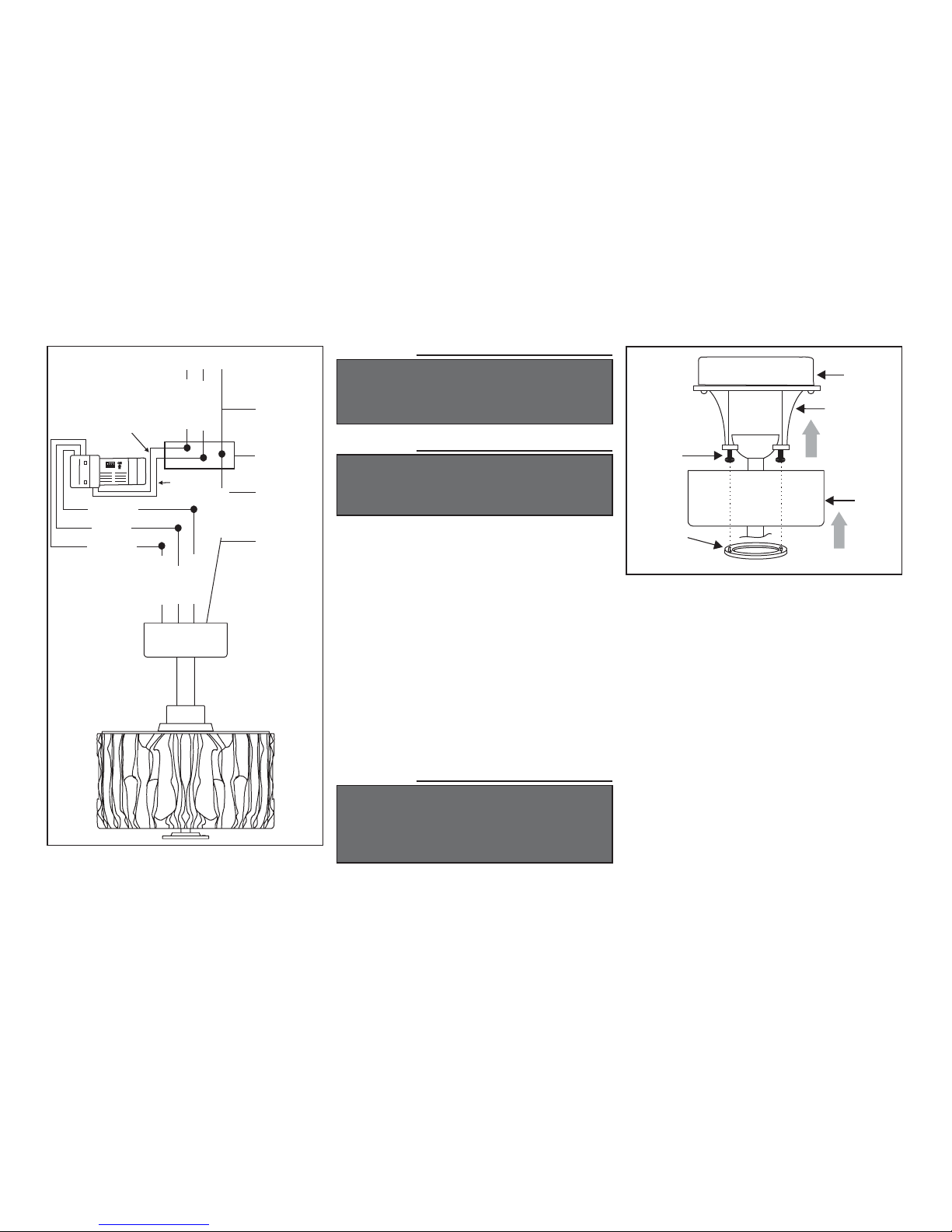

(Figure 11) Receiver to house supply wires

electrical connections: Connect the black (hot)

wire from the ceiling to the black wire marked

"AC in L" from he receiver. Connect the white

(neutral) wire from the ceiling to the white wire

marked "AC in N" from the receiver. Secure

the wire connections with the plastic wire

connecting nuts provided.

(Figure 11) If your outlet box has a ground

wire (green or bare copper) connect it to the fan

ground wires; otherwise connect the hanging

bracket ground wire to the mounting bracket.

Secure the wire connection with a plastic nut

provided. After connecting the wires spread

them apart so that the green and white wires are

on one side of the outlet box and black and blue

wires are on the other side. Carefully tuck the

wire connections up into the outlet box.

(Fig. 11) Motor to receiver electrical

connections: Connect the black wire from the

fan to black wire marked "TO MOTOR L".

Connect the white wire from the fan to the

white wire marked "TO MOTOR N" from the

receiver. Connect the blue wire from the fan to

the blue wire marked "For Light" from the

Figure 10

Receiver

Ceiling

Mounting

Bracket

Figure 9

Frequency Switch

CAUTION

DO NOT USE WITH WALL LIGHT DIMMER

SWITCH.

NOTE

FAN MUST BE INSTALLED AT A MAXIMUM

DISTANCE OF 20 FEET FROM THE TRANSMIT-

TING UNIT FOR PROPER SIGNAL TRANSMIS-

SION BETWEEN THE TRANSMITTING UNIT

AND THE FAN'S RECEIVING UNIT.

WARNING

MAKE SURE THE TAB ON THE HANGING

BRACKET PROPERLY SITS IN THE GROOVE IN

THE HANGER BALL BEFORE ATTACHING THE

CANOPY TO THE BRACKET BY TURNING THE

HOUSING UNTIL IT DROPS INTO PLACE.

Tuck connections neatly into ceiling outlet

box.

Slide the canopy up to ceiling and over the 2

screws on the hanger bracket. Rotate canopy

clockwise. Next, while holding the canopy

with one hand, slide the canopy cover over the

screws and rotate clockwise until tight. Note:

adjust the canopy screws as necessary until the

canopy and canopy cover are snug. (Fig. 12)

Finishing the Fan

Installation

CHECK TO SEE THAT ALL CONNECTIONS ARE

TIGHT, INCLUDING GROUND, AND THAT NO

BARE WIRE IS VISIBLE AT THE WIRE NUTS.

EXCEPT FOR THE GROUND WIRE.

ELECTRICAL DIAGRAMS ARE FOR

REFERENCE ONLY. OPTIONAL USE OF ANY

LIGHT KIT SHALL BE UL LISTED AND

MARKED SUITABLE FOR USE WITH THIS FAN.

SUPPLY CIRCUIT

Figure 11

WHITE

BLACK

BLUE

Ground

Conductor

Outlet Box

Green

Ground

Lead

GREEN

Ground to

Downrod

BLACK BLACK

BLUE

WHITE

Figure 12

Outlet Box

Ceiling

Mounting

Bracket

Screws

Canopy

Bottom

Cover

WARNING

Attaching the Fan Blades

Attach blades to blade arm using the screws

with fiber washers provided (Fig. 13). Start a

screw into the blade arm, do not tighten.

Repeat for the 2 remaining screws and

washers.

Tighten each screw securely starting with the

center screw. Make sure the blade is straight.

Repeat steps for the remaining blades.

Fasten the blade assemblies to the motor

housing by lining up the slots of the blade arms

with the tabs on the motor housing, then

tighten the two screws and washers already

installed in the blade arms (Figure 14).

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO

NOT BEND THE BLADE ARMS WHILE INSTALL-

ING, BALANCING THE BLADES, OR CLEANING

THE FAN. DO NO INSERT FOREIGN OBJECTS

BETWEEN ROTATING FAN BLADES.

Figure 14

Motor

Blade Arm

Slot

Tab

Figure 13

Blade Arm

Blade

Screws

with Fiber

Washer

Inhaltsverzeichnis

Andere HAMPTON BAY Lüfter Handbücher

HAMPTON BAY

HAMPTON BAY Burgess 176015 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY GAZEBO YG188-BN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 91126 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY BPT13-14HD Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY PALM BEACH II 59299 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Rapallo 110-083 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY ST. DAVID 91344 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY WELLTON AM588-BN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY TUDOR Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Copperhead Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY GLENDALE AG524PR-ORB Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY ASBURY Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Landmark Plus Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Carrison 499 461 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Moonlight Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Lyndhurst Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Rocio Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY SOVANA 14412 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY AVERLY AK18B-BN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Largo Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY ASHBURTON YG593-EB Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Glendale Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 52139 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Havenville 149*51 Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
