HAMPTON BAY YG115-MWH Bedienungsanleitung

Item #593-560

USE AND CARE GUIDE

Questions, problems, missing parts? Before returning to the store,

call

Hampton Bay Customer Service

8 a.m. - 6 p.m., EST, Monday-Friday

1-877-527-0313

HAMPTONBAY.COM

EDGEWATER II 52 INCH CEILING FAN

Model #YG115-MWH

THANK YOU

Table of Contents ..........................................................

Safety Information .........................................................

Warranty .........................................................................

Pre-installation ..............................................................

Speciﬁcations ..........................................................................

Tools Required .........................................................................

Hardware Included ..................................................................

Package Contents ....................................................................

Installation .....................................................................

Assembly ........................................................................

Hanging the Fan .......................................................................

Attaching the Fan Blades .......................................................

Installing the Light Kit ............................................................

Operation ......................................................................

Pull Chain Operating Instructions ..........................................

Reverse Switch Operating Instructions ..................................

Care and Cleaning .......................................................

Troubleshooting ..........................................................

Service Parts ...............................................................

Table of Contents

Safety Information

1. To reduce the risk of electric shock, ensure electricity has

been turned off at the circuit breaker or fuse box before

beginning.

2. All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70-1999” and local electrical codes.

Electrical installation should be performed by a qualiﬁed

licensed electrician.

3. The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of 35

lbs. Use only UL-listed outlet boxes marked “FOR FAN

SUPPORT.”

4. The fan must be mounted with a minimum of 7 ft. clearance

from the trailing edge of the blades to the ﬂoor.

5. Avoid placing objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other

items, be cautious when working around or cleaning the fan.

7. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

8. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into the

outlet box. The wires should be spread apart with the

grounded conductor and the equipment-grounding conductor

on one side of the outlet box and the ungrounded conductor

on the other side of the outlet box.

9. All setscrews must be checked and retightened where

necessary before installation.

WARNING: To reduce the risk of electrical shock or ﬁre, do

not use this fan with any solid-state fan speed control device.

It will permanently damage the electronic circuitry.

WARNING: To reduce the risk of personal injury, do not

bend the blade arms (also referred to as ﬂanges), when

installing the brackets, balancing the blades or cleaning the

fan.

WARNING: Do not insert foreign objects between rotating

fan blades.

WARNING: To reduce the risk of ﬁre, electric shock or

personal injury, mount the fan to the outlet box marked

acceptable for fan support with the screws provided with the

outlet box.

CAUTION: To reduce the risk of personal injury, use only

the screws provided with the outlet box.

3 HAMPTONBAY.COM

Please contact 1-877-527-0313 for further assistance.

NOTE: This fan includes a 190w limiter to comply with the Depart-

ment of Energy 2009 regulation. Lamping this product over 190w will

cause this fan not to light. Please use bulbs with a total wattage under

the 190w regulation.

SPECIFICATIONS

TOOLS REQUIRED

Phillips

screwdriver

Electrical

tape

Wire

stripper

Flat blade

screwdriver

Step

ladder

NOTE: These are approximate measures. They do not

include amps and wattage used by the light kit.

Warranty

Pre-InstallationPre-Installation

We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period

of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic

blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the

date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or

superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All

costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-

tion or by afﬁxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover

any changes in brass ﬁnish, including rusting, pitting, corroding, tarnishing or peeling. Brass ﬁnishes of this type give their longest useful

life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.

Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim

any and all warranties, including but not limited to those of merchantability and ﬁtness for a particular purpose to the extent permitted by

law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as speciﬁed in the express warranty.

Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall

not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as

may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above

exclusion or limitation may not apply to you. This warranty gives speciﬁc legal rights, and you may also have other rights which vary from

state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty

must be paid by the customer.

Contact the Customer Service Team at 1-877-527-0313 or visit www.hamptonbay.com.

52 in.

Low

Medium

High

120

Fan size

Watts

RPM

CFM

Speed

Volts

Amps

1.91 ft.

N.W.

G.W.

C.F.

0.21

0.35

0.47

11.13

30.57

55.94

60.21

105.12

145.46

1480.93

2597.61

3549.34

9.76 kgs

(21.47 lbs)

10.9 kgs

(23.98 lbs)

Pre-Installation (continued)

HARDWARE INCLUDED

Blade attachment screw and rubber washer

Plastic wire nut

Balance kit (not to scale)

Mounting bracket screw (preassembled)

Clevis pin (preassembled)

Cotter pin (preassembled)

Collar setscrew (preassembled)

Blade arm screw and lock washer (preassembled)

Switch housing mounting screw (preassembled)

Light kit mounting screw (preassembled)

40 watt candelabra bulb (not to scale)

Pull chain and fob (not to scale)

Part

Description

Quantity

5 HAMPTONBAY.COM

Please contact 1-877-527-0313 for further assistance.

NOTE: Hardware shown to actual size unless noted

otherwise in the table below.

Part

Description

Blade

Blade arm

Switch housing

Light kit

Glass shade

Part

Quantity

Description

Mounting bracket (preassembled)

Canopy

Canopy bottom cover (preassembled)

Hanger ball/downrod assembly

Coupling cover

Fan motor assembly

PACKAGE CONTENTS

Pre-Installation (continued)

To hang your fan where there is an existing ﬁxture but no ceiling

joist, you may need an installation hanger bar (NN) (not included)

as shown above.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□ Disconnect the power by removing the fuses or turning off

the circuit breakers.

□ Secure the outlet box (MM) (not included) directly to the

building structure. Use appropriate fasteners and materials

(not included). The outlet box and its bracing must be able

to fully support the weight of the moving fan (at least 35

lbs.). Do not use a plastic outlet box.

The illustrations below show three different ways to mount the

outlet box (MM) (not included).

Installation

MOUNTING OPTIONS

WARNING: To reduce the risk of ﬁre, electric shock, or

personal injury, mount the fan to an outlet box marked

acceptable for fan support using the screws provided with the

outlet box. An outlet box commonly used for the support of

lighting ﬁxtures may not be acceptable for fan support and

may need to be replaced. If in doubt, consult a qualiﬁed

electrician.

7 HAMPTONBAY.COM

Please contact 1-877-527-0313 for further assistance.

NOTE: You may need a longer downrod to maintain proper

blade clearance when installing on a steep, sloped ceiling.

The maximum angle allowable is 18° away from horizontal. If

the canopy (B) touches the hanger ball/downrod assembly

(D), then remove the decorative canopy bottom cover (C) and

turn the canopy (B) 180° before attaching the canopy (B) to

the mounting bracket (A).

1Preparing the canopy 2Preparing the motor

□Remove the clevis pin (EE) and cotter pin (FF), and

loosen the two collar setscrews (GG) from the fan

motor assembly (F) collar.

3Assembling the fan

□Route the wires exiting from the top of the fan motor

assembly (F) through the coupling cover (E) and the

canopy bottom cover (C). Ensure the slot openings

are on top.

□Route the wires through the canopy (B) and then

through the hanger ball/downrod assembly (D).

□Align the holes at the bottom of the hanger

ball/downrod assembly (D) with the holes in the collar

on top of the fan motor assembly (F).

□Carefully insert the clevis pin (EE) through the holes

in the collar and the hanger ball/downrod assembly

(D). Be careful not to jam the clevis pin (EE) against

the wiring inside the hanger ball/downrod assembly

(D).

Assembly

□Remove the canopy bottom cover (C) from the canopy

(B) by turning the canopy bottom cover (C) counter-

clockwise.

□Remove the mounting bracket (A) from the canopy (B)

by removing the non-slotted canopy mounting

bracket screw (DD) from the bottom of the canopy (B)

and loosening the slotted canopy mounting bracket

screw (DD) a half turn from the screw head. Next,

turn the canopy (B) counterclockwise to remove the

mounting bracket (A) from the canopy (B).

WARNING: Failure to properly install the cotter pin (FF)

could result in the fan loosening and possibly falling.

NOTE: If a longer downrod is needed (not included), take

out the screw located in the hanger ball, lower the hanger

ball and remove the pin. Remove all three pieces from the

downrod, and assemble them onto the new longer downrod

before proceeding to the downrod installation.

□Insert the cotter pin (FF) through the hole near the

end of the clevis pin (EE) until it snaps into the locked

position.

□Firmly tighten the two collar setscrews (GG) on top of

the fan motor assembly (F).

4Attaching the mounting bracket

to the electrical box

Hanging the fan from the

mounting bracket

□Pass the 120-volt supply wires through the center

hole in the mounting bracket (A).

□Attach the mounting bracket (A) to the outlet box

(MM) with the screws and washers provided with the

outlet box (MM).

□Security tighten the two mounting screws.

□Carefully lift the fan motor assembly (F) up to the

mounting bracket (A) and seat the hanger

ball/downrod assembly (D) in the mounting bracket

(A) socket. Make sure the tab on the mounting

bracket (A) socket is properly seated in the groove in

the hanger ball/downrod assembly (D). This will help

to balance the ceiling fan.

WARNING: To reduce the risk of ﬁre, electric shock or

other personal injury, mount the fan only to an outlet box or

supporting system marked acceptable for fan support and

use the mounting screws provided with the outlet box.

WARNING: The tab in the ring must rest in the groove of

the hanger ball/downrod assembly (D). Failure to properly

seat the tab in the groove could cause damage to the wiring.

9 HAMPTONBAY.COM

Please contact 1-877-527-0313 for further assistance.

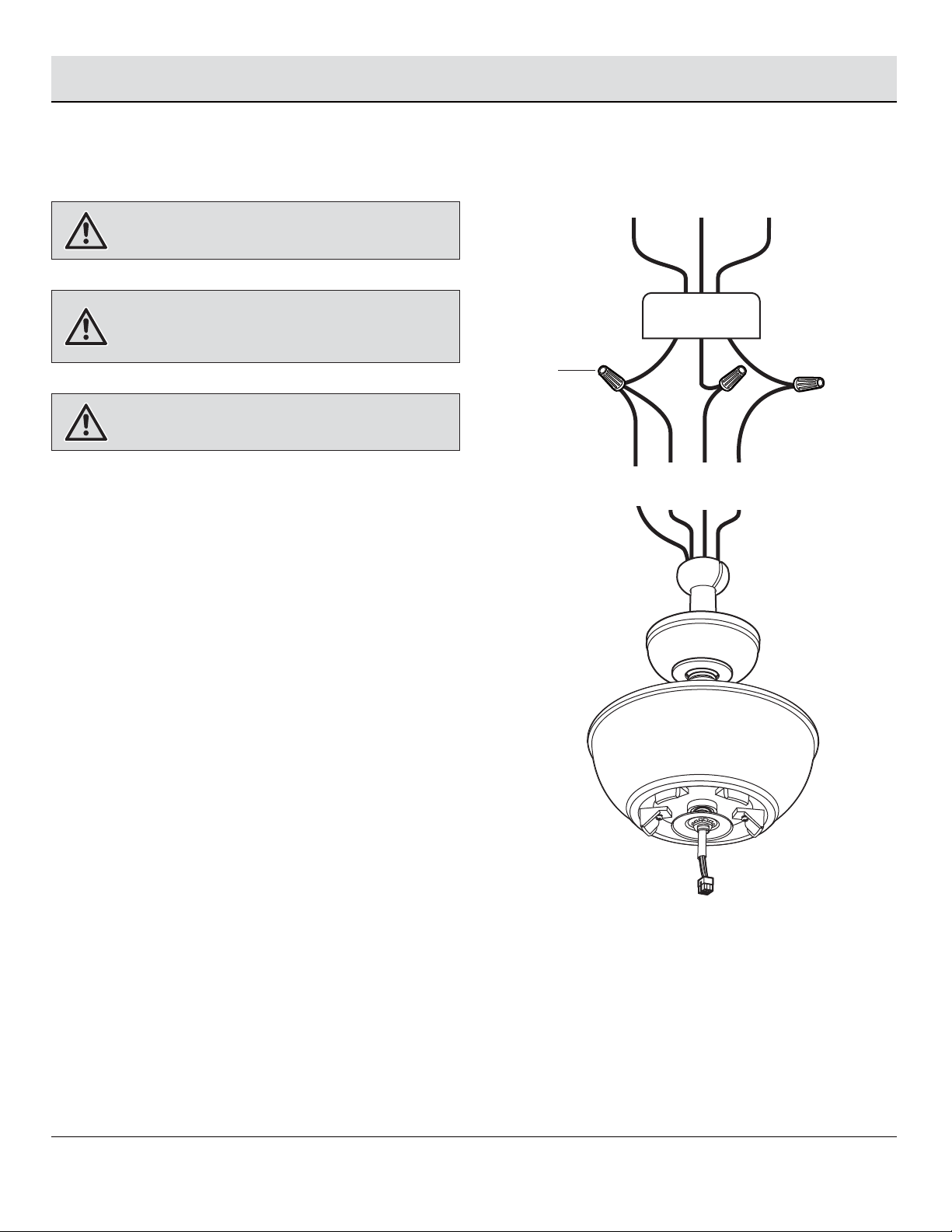

Assembly — Hanging the Fan

6Making the electrical

connections

SS UU

If you feel you do not have enough electrical wiring

knowledge or experience, have your fan installed by a

licensed electrician.

Follow the steps below to connect the fan to your

household wiring. Use the plastic wire nuts (BB) with your

fan. Secure the wire nuts (BB) with electrical tape. Make

sure there are no loose strands or connections.

□Connect the ground conductor (UU) of the 120V

supply (this may be a bare wire or a wire with green

colored insulation) to the green ground lead(s) (RR) of

the fan using a plastic wire nut (BB).

□Connect the fan motor white wire (QQ) to the supply

white (neutral) wire (TT) using a plastic wire nut (BB).

□Connect the fan motor black wire (PP) and the blue

wire (OO) to the supply black (hot) wire (SS) using a

plastic wire nut (BB).

□Turn the wire nut connections upward, spreading

them apart so the green (ground) wire (RR) will be on

one side of the outlet box (MM) and the white (QQ),

black (PP) and blue (OO) wires will be on the other

side, and push carefully up into the outlet box (MM).

WARNING: Check to see that all connections are tight,

including ground, and that no bare wire is visible at the wire

nuts (except for the ground wire).

WARNING: To reduce the risk of ﬁre or electric shock, do

not use this fan with any solid-state speed control device.

WARNING: To avoid possible electrical shock, be sure

electricity is turned off at the main fuse box before wiring.

Assembly — Hanging the Fan (continued)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HAMPTON BAY Lüfter Handbücher

HAMPTON BAY

HAMPTON BAY Minorca Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Gazebo II Plus Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Havenville 149*51 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 52" Huntington III Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 786-756 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY ROTHLEY 51563 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY CF556A-H26 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Chamblee Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Preston Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY NORWOOD 52129 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Larson Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Garibaldi Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY TIPTON II 52 INCH Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY YG529-WH Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY LK-52PN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY SW18030 ORB Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Spoleto II Spoleto II Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Clarkston Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 55370 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY STONERIDGE EF600K-52 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Bryant Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY RDB9144-WH Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Dawson 581 645 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Parker Ridge Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
