INSTRUCTION MANUAL

2LT Interior Flushmount

The Home Depot SKU 407-669 (UPC 725916822873)

Page 2

Thank you for purchasing this Hampton Bay interior flushmount. This

product has been manufactured with the highest standards of safety and

quality.

FEATURES:

1. Two-light interior flushmount in white finish with clear and white striped

glass. This flushmount has a Chain Switch on the fixture to turn the light

on/off.

2. This fixture has been engineered to safely use two 60 watt medium base

incandescent light bulbs (do not exceed 60 watts each) (not included).

3. For energy savings, this fixture has been engineered to safely use two

standard base compact fluorescent light bulbs (for equivalent light output,

do not exceed 15 watts each) (not included).

QUESTIONS, PROBLEMS, MISSING PARTS:

Before returning to your local The Home Depot, please call our Customer

Service Team at 1-877-527-0313 or visit www.homedepot.com. Please

reference your SKU 407-669 or UPC 725916822873.

Page 3

CAUTION:

1. Before starting installation of this fixture or removal of a previous fixture,

disconnect the power by turning off the circuit breaker or by removing

the fuse at the fuse box.

2. CONSULT A QUALIFIED ELECTRICIAN IF YOU HAVE ANY

ELECTRICAL QUESTIONS.

3. If you have any non-electrical questions about this fixture, please contact

our Customer Service Team at 1-877-527-0313 or visit

www.homedepot.com. Please reference your SKU 407-669 or UPC

725916822873.

4. Keep your receipt and these Instructions for Proof of Purchase.

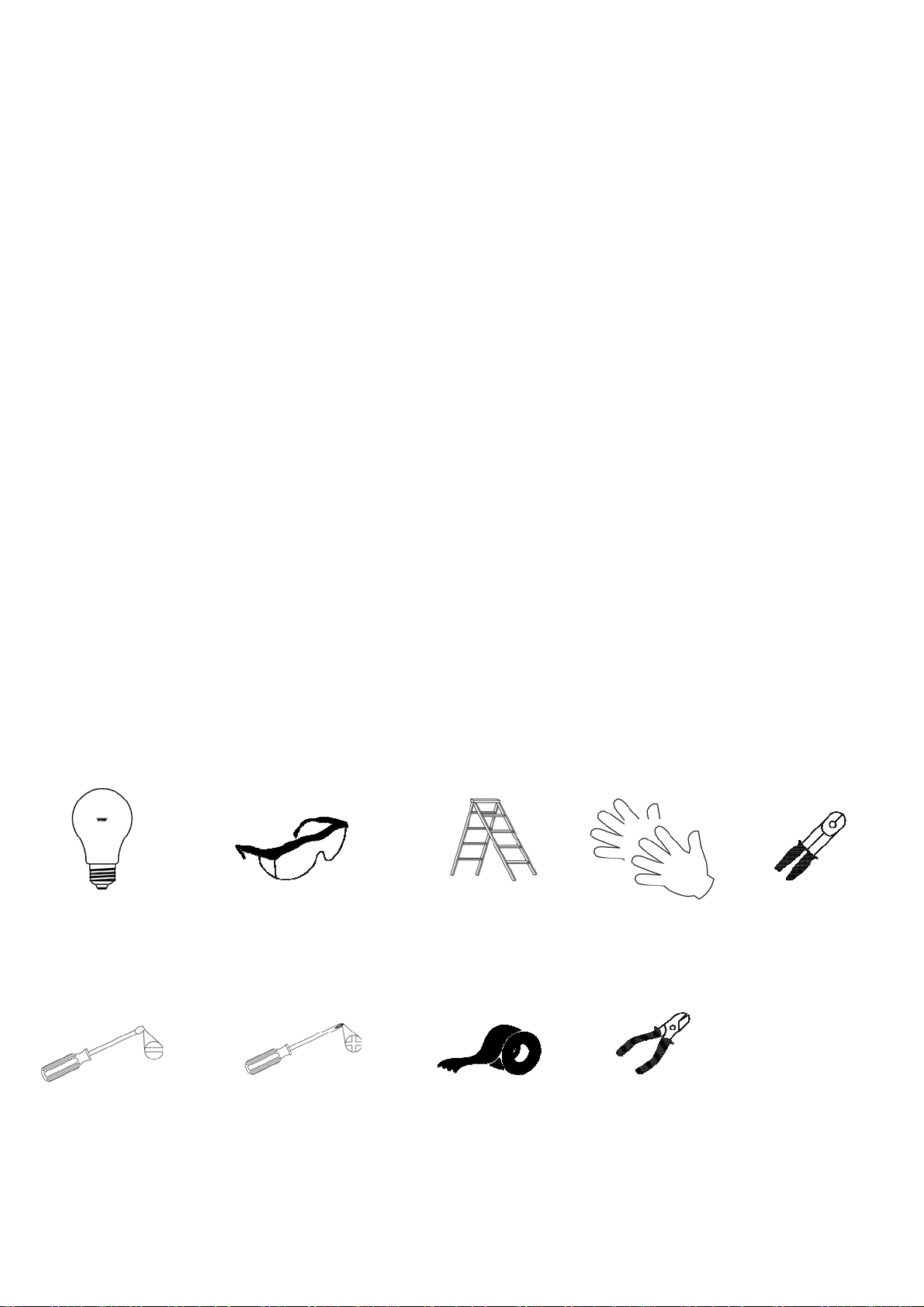

TOOLS REQUIRED FOR ASSEMBLY & INSTALLATION

(not included):

2 Light Bulbs Safety Goggles Ladder Gloves Wire Strippers

(60 watt maximum)

(or CFL equivalent)

Flathead Screwdriver Phillips Screwdriver Electrical Tape Wire Cutters

Page 4

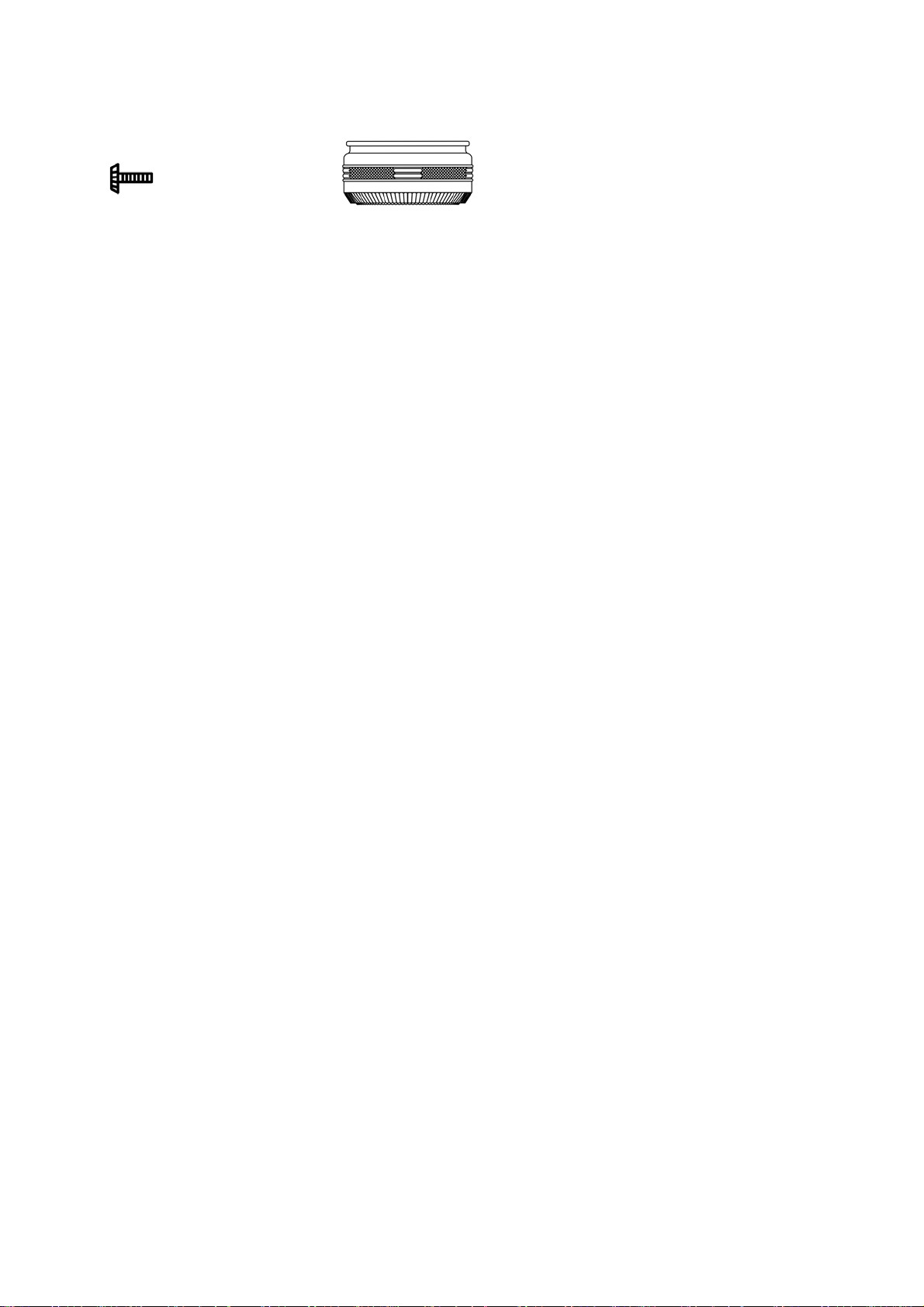

PARTS INCLUDED FOR ASSEMBLY (parts are not to scale):

3ea Screws (#2) 1ea Shade (#6)

ASSEMBLY INSTRUCTIONS:

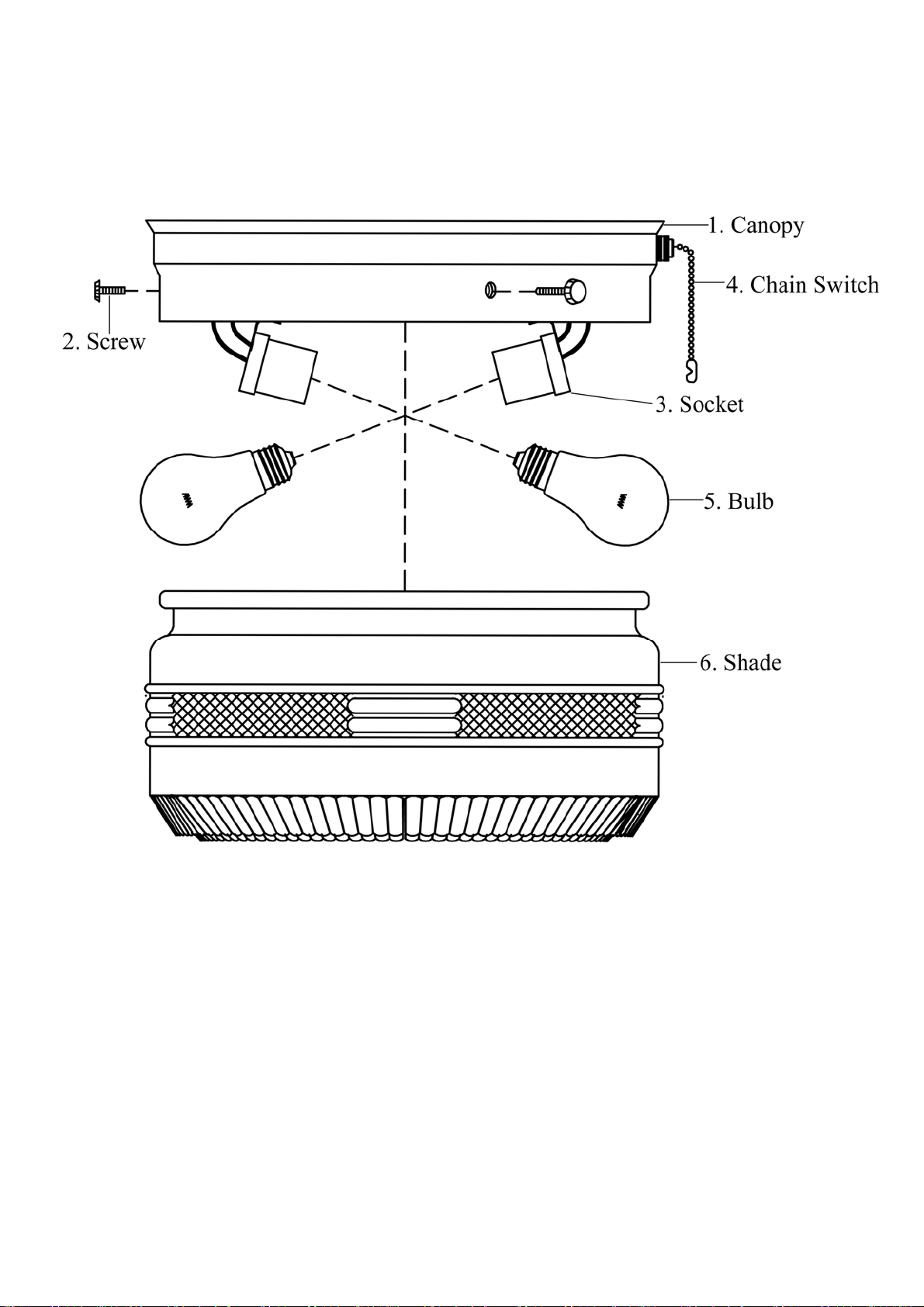

1. Carefully unpack the fixture. Lay out all parts on a clean surface.

2. Before continuing Assembly, please proceed to the Installation Instructions.

3. Install two 60 watt medium base incandescent light Bulbs (#5) (not

included) or two equivalent standard base compact fluorescent light bulbs

(not included) in the Sockets (#3) in the fixture.

4. Place the Shade (#6) over the Sockets (#3) in the Canopy (#1). Screw the

Screws (#2) into the appropriate holes on the Canopy (#1) to secure the

Shade (#6).

Page 5

ASSEMBLY:

Page 6

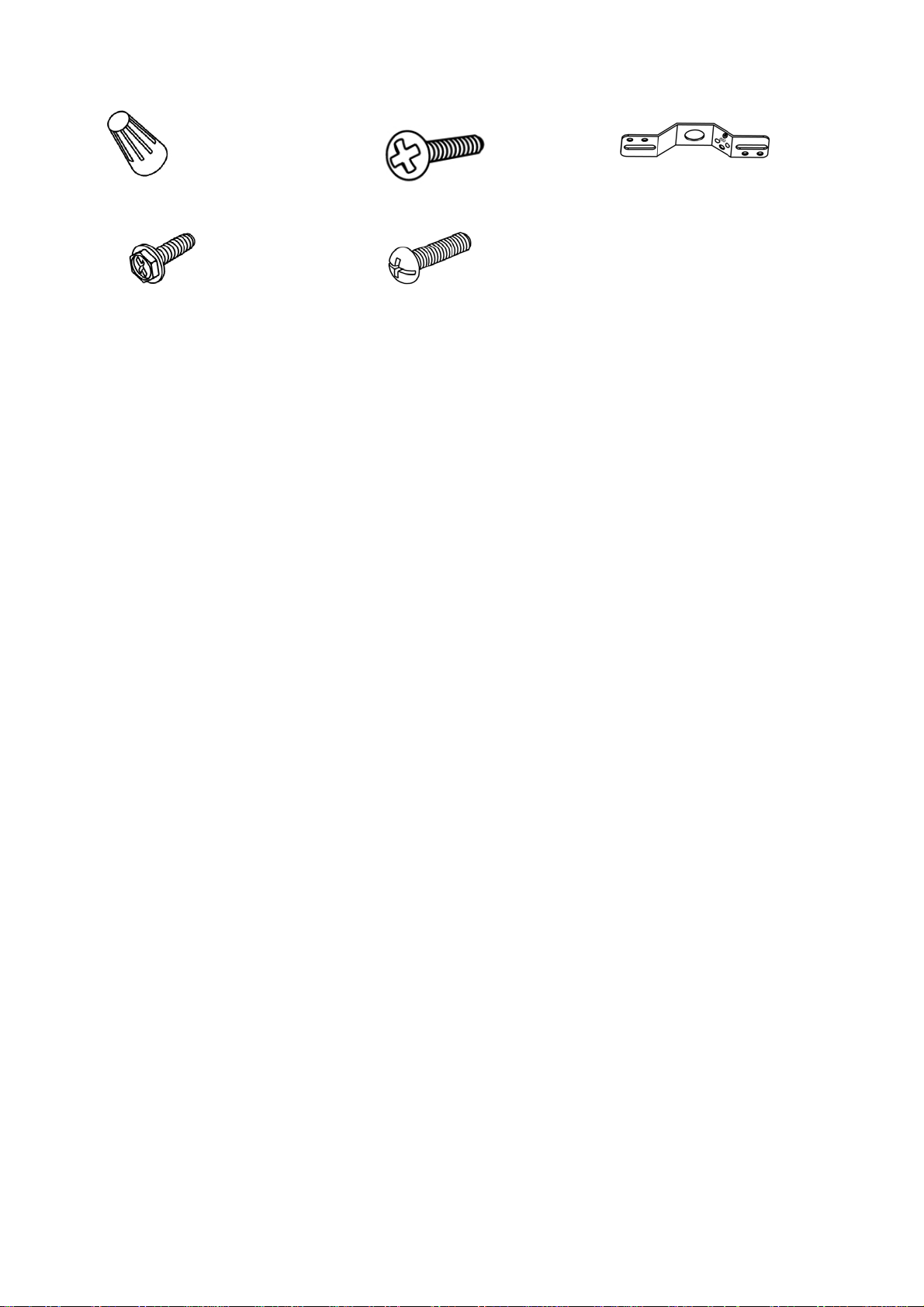

PARTS INCLUDED FOR INSTALLATION (parts are not to scale):

2ea Wire Connectors (#8) 2ea Outlet Box Screws (#9) 1ea Mounting Strap (#10)

1ea Ground Screw (#11) 2ea Mounting Screws (#12)

INSTALLATION INSTRUCTIONS:

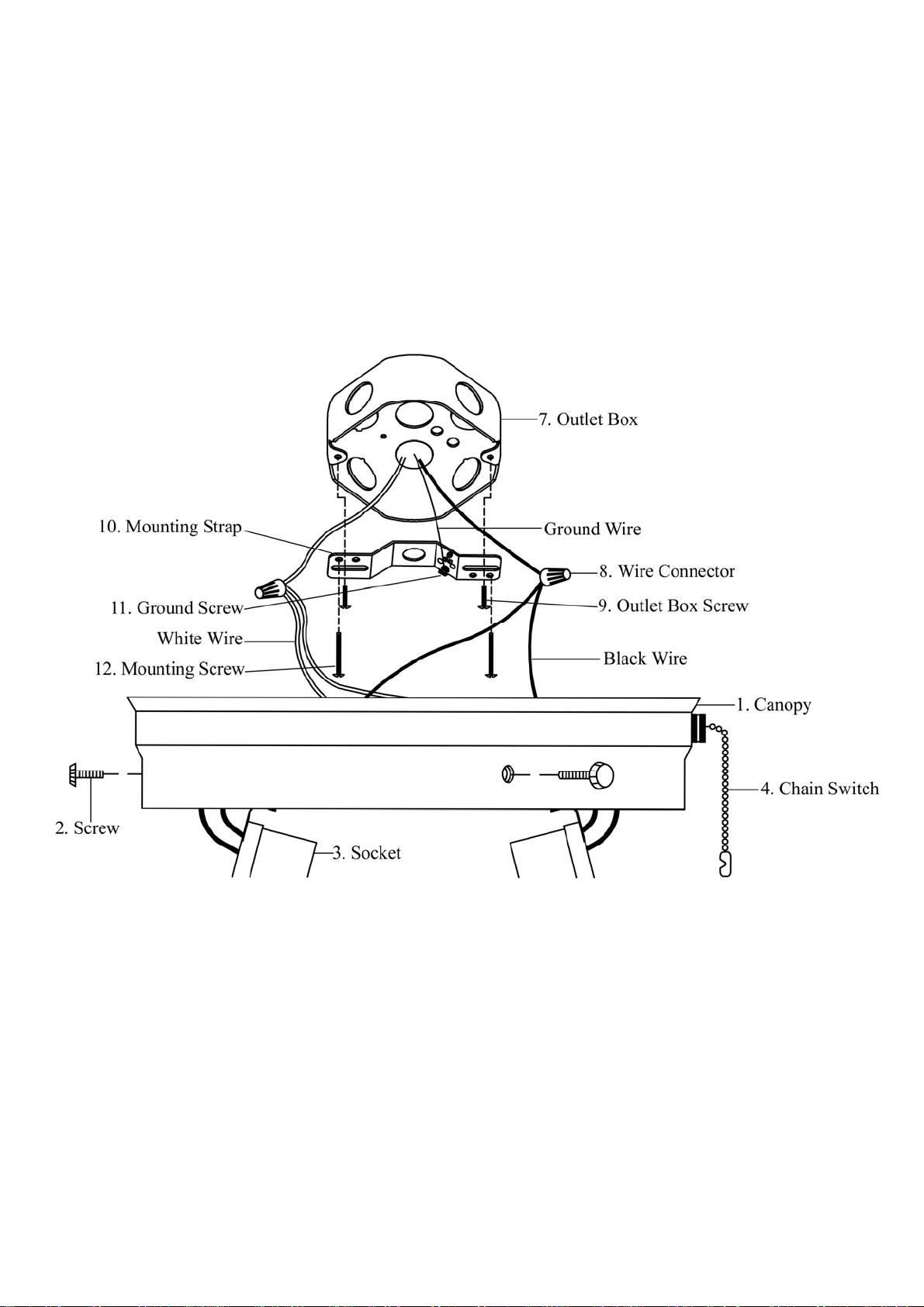

1. Screw the two Mounting Screws (#12) into the Mounting Strap (#10). Mount the

Mounting Strap (#10) to the Outlet Box (#7) using the two Outlet Box Screws (#9).

[Make sure the heads of the Mounting Screws (#12) are facing outside when the

Mounting Strap (#10) is attached to the Outlet Box (#7).]

2. Wrap the ground wire from the Outlet Box (#7) around the Ground Screw (#8) on the

Mounting Strap (#10). Connect the white wire from the fixture to the white wire (neutral

wire) from the Outlet Box (#7). Connect the black wire from the fixture to the black wire

(live wire) from the Outlet Box (#7). Cover the two connections using the two Wire

Connectors (#8). Wrap the two wire connections with electrical tape for a more secure

connection. Position the wires back inside the Outlet Box (#7). Note: If you have

electrical questions, consult your local electrical code for approved grounding methods.

3. Place the Canopy (#1) over the Outlet Box (#7). Allow the heads of the Mounting Screws

(#12) to come out through the large ends of the keyholes of the Canopy (#1). Twist the

Canopy (#1) clockwise until the heads of the Mounting Screws (#12) slide into the

narrow ends of the keyholes. Tighten the Mounting Screws (#12) to secure the Canopy

(#1).

4. Before completing Installation, please return toAssembly Instruction #3.

5. Installation is complete. Turn on the power at the circuit breaker or fuse box. Turn the

light switch on the wall or pull the Chain Switch (#4) on the fixture to activate the fixture.

Page 7

INSTALLATION:

Page 8

TROUBLESHOOTING:

PRODUCT MAINTENANCE:

1. To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean

water, never a solvent) to wipe the glass and surface of the fixture.

2. To clean the inside of the fixture, first disconnect power to the fixture by turning off the

circuit breaker or by removing the fuse at the fuse box. Next, use a dry or slightly

dampened clean cloth (use clean water, never a solvent) to wipe the inside glass and

interior surface of the fixture.

3. Do not use any cleaners with chemicals, solvents or harsh abrasives. Use only a dry soft

cloth to dust or wipe carefully.

LIMITED WARRANTY

The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a period

of five (5) years from date of purchase. This warranty applies only to the original consumer purchaser and only

to products used in normal use and service. If this product is found to be defective, the manufacturer’s only

obligation, and your exclusive remedy, is the repair or replacement of the product at the manufacturer’s

discretion, provided that the product has not been damaged through misuse, abuse, accident, modifications,

alterations, neglect or mishandling. This warranty shall not apply to any product that is found to have been

improperly installed, set-up, or used in any way not in accordance with the instructions supplied with the product.

This warranty shall not apply to a failure of the product as a result of an accident, misuse, abuse, negligence,

alteration, or faulty installation, or any other failure not relating to faulty material or workmanship. This

warranty shall not apply to the finish on any portion of the product, such as surface and/or weathering, as this is

considered normal wear and tear. The manufacturer does not warrant and specially disclaims any warranty,

whether express or implied, of fitness for a particular purpose, other than the warranty contained herein.

The manufacturer specifically disclaims any liability and shall not be liable for any consequential or

incidental loss or damage, including but not limited to any labor / expense costs involved in the

replacement or repair of said product.

Problem Possible Cause Corrective Action

1. Light bulb is burned out. 1. Replace light bulb.

2. Power is off. 2. Make sure power supply is

on.

3. Faulty wire connection. 3. Check wiring.

Light bulb will not

illuminate.

4. Faulty switch. 4. Test or replace switch.

Fuse blows or circuit

breaker trips when light

bulb is illuminated.

Crossed wires or power wire

is grounding out. Check wire connections.

Page 9

MANUAL DE INSTRUCCIONES

Plafon de 2 Luces para Interiores

The Home Depot SKU 407-669 (UPC 725916822873)

Page 10

Gracias por comprar este plafón para interiores Hampton Bay. Este producto

ha sido manufacturado con los estándares de seguridad y calidad más altos.

CARACTERÍSTICAS:

1. Plafón para interiores de dos luces en acabado en blanco con cristal a rayas

blancas y transparentes. Este plafón tiene un Interruptor de Cadena en la

instalación para encender y apagar la luz.

2. Esta instalación ha sido diseñada para usar con seguridad dos bombillas de

luz incandescente de base medio de hasta de 60 vatios (no exceder de 60

vatios cada una) (no incluido).

3. Para ahorro de energía, esta instalación ha sido diseñada para usar

conseguridad dos bombilla de luz fluorescente compacto de base estándar

(para la salida de luz equivalente, no exceder de 15 vatios cada una) (no

incluido).

PREGUNTAS, PROBLEMAS, PARTES QUE FALTAN:

Antes de devolver a su The Home Depot local, por favor llame a nuestro

Equipo de Atención al Cliente al 1-877-527-0313 o visite

www.homedepot.com. Por favor haga referencia de su SKU 407-669 o UPC

725916822873.
