Harbor Freight Tools luminar OUTDOOR Montageanleitung
Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 18k
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright© 2018 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly an d se rv ic e may n ot b e in cl uded.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. Item 64739
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical products, basic precautions shall always be followed including the following:
1. READ AND FOLLOW ALL
SAFETY INSTRUCTIONS.
2. Do not use these products outdoors unless marked
suitable for indoor and outdoor use. When products
are used in outdoor applications, connect the product
to a Ground Fault Circuit Interrupting (GFCI) outlet.
If one is not provided, contact a qualified
electrician for proper installation.
3. Do not mount or place near gas or electric
heaters, fireplaces, barbeque grills, candles
or other similar sources of heat.
4. Do not secure the wiring of the product with staples
or nails, or place on sharp hooks or nails. Install
only using the mounting means provided.
5. Do not let lamps rest on the supply
cord or on any wire.
6. Do not use this product for other
than its intended use.
7. Do not hang objects from cord, wire, or light string.
8. Do not close doors or windows on the
product or extension cords as this may
damage the wire insulation.
9. Do not cover the product with cloth, paper or any
material not part of the product when in use.
10. This product has a polarized plug (one blade
is wider than the other) as a feature to reduce
the risk of electric shock. This plug will fit in a
polarized outlet only one way. If the plug does
not fit fully in the outlet, reverse the plug. If it still
does not fit, contact a qualified electrician. Do not
use with an extension cord unless plug can be
fully inserted. Do not alter or replace the plug.
11. Read and follow all instructions that are on
the product or provided with the product.
12. SAVE THESE
INSTRUCTIONS
CAUTION
1. Risk of Fire. Keep lamps away from
any combustible surface.
2. To reduce the risk of fire use only type
S lamps, 40 watts maximum.
Model No. 64739
If connecting to a string light that does not have a
Wattage (W) rating {found on the tag within 6 inches of
the plug} calculate the wattage as follows: Multiply the
current (___ A) which is on the flag-type tag by 120.
For Example: String light is rated 120 V, 60 Hz, 0.2 Amps.
0.2 X 120 = 24 Watts
Add the wattage of each string light together for a total
of 1200 Watts or less. (Do not exceed 1200 Watts.)
Page 3For technical questions, please call 1-888-866-5797.Item 64739
General Safety Instructions
1. Keep proper footing and balance at
all times during installation.
2. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
3. Use as intended only.
4. Maintain labels and nameplates on the String Light.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
5. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
6. Connecting Cords
To reduce the risk of the cord plugs pulling
apart, do one of the following:
a. Make a knot as shown below
then connect the cords:
b.
1st String
Light Cord
2nd String
Light Cord
1
2
Or, use a plug-receptacle retaining
strap or connector designed to hold
extension cords ends together.
SAVE THESE INSTRUCTIONS.
INSTALLING/REPLACING LIGHT BULBS
Read the ENTIRE IMPORTANT SAFETY INSTRUCTIONS section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
Procedures not specifically explained in this manual
must be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY: Unplug the String Light from its electrical outlet
and allow it to cool before performing any procedure in this section.
Do not replace light bulbs during rain or when wet.
1. Unscrew existing bulbs carefully, they
should be tight to keep moisture out.
Note: Suitable for Wet Location Use.
2. Carefully consider the number of strings
and the total wattage when selecting
bulb wattage, refer to following chart.
Do not exceed 1200 watts, all Strings combined.
Bulb
Wattage
Maximum Number of 12 Bulb
1200 Watt String Lights
11 – 12 9
15 6
20 5
40 2
Figure A: Maximum String Light Length
3. Replace with medium base light bulbs. Screw
each bulb into socket clockwise until top of socket
forms a tight seal around the light bulb and bulb
makes solid contact with socket. Suitable for
Incandescent, CFL, LED or CCL light bulbs.
Incorrectly installed bulbs will not seal correctly
and can cause injury or death from electric shock.

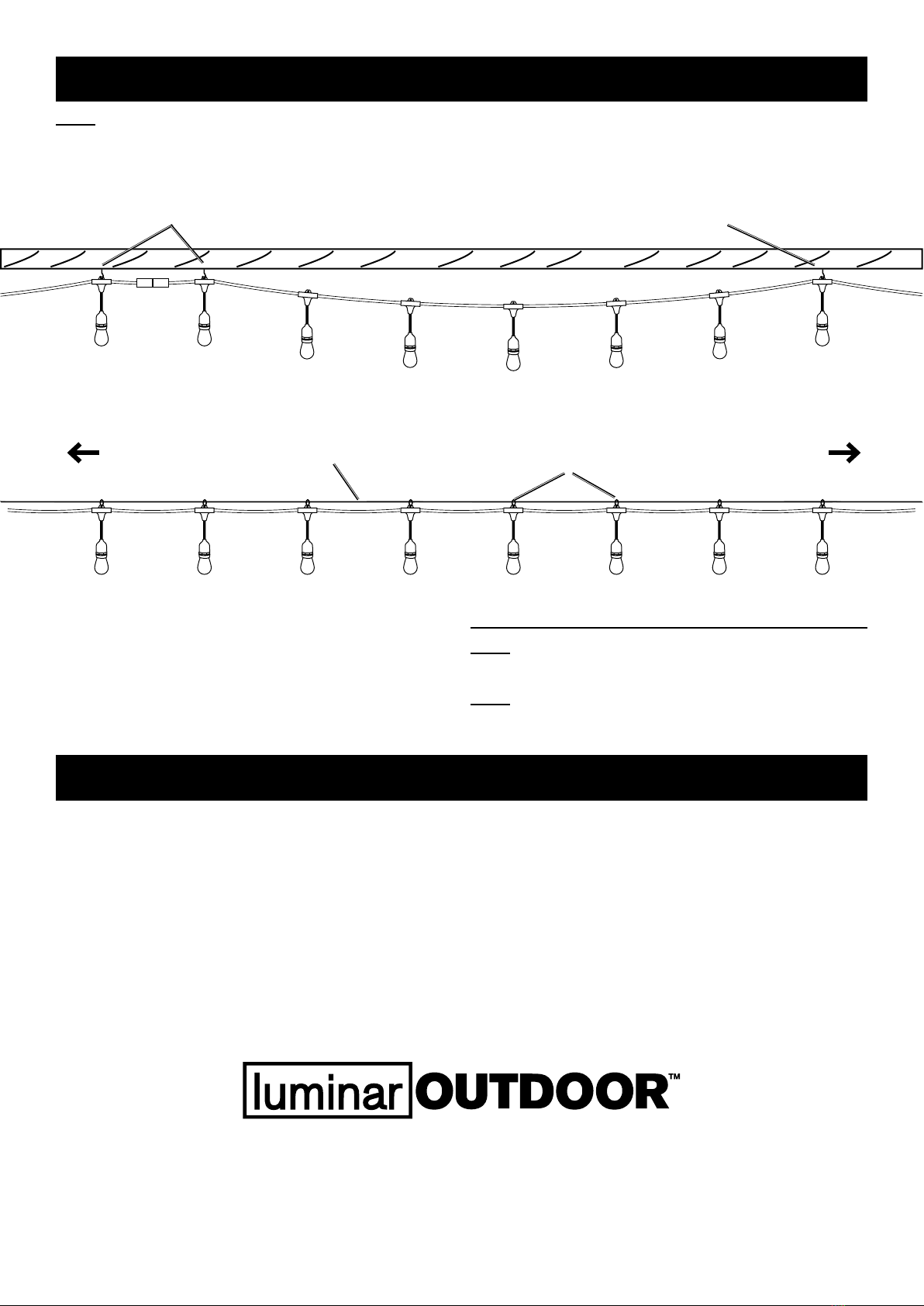

Installation
Note: Attachment hardware, such as hooks or nylon cable ties, is sold separately.
1. If a guide wire is not used, connect securely to structure at the beginning,
the middle (the 6th or 7th bulb holder), and the end of EACH String Light.
Attach to structure at first and
last holder on EACH String Light
Attach to structure to 6th or 7th
holder in middle of each String Light
2. If attaching to guide wire, attach the ring at the back of every bulb holder to
the guide wire using a S-hook or cable tie (sold separately).
Guide Wire
Anchor Guide
Wire to structure
Anchor Guide
Wire to structure
Attach using S-hooks
or cable ties
3. BEFORE EACH USE, inspect the general
condition of the tool. Check for:
• loose hardware,
• damaged cord/electrical wiring,
• cracked or broken parts, and
• any other condition that may
affect its safe operation.
Record Product’s Serial Number Here:
Note: If product has no serial number, record
month and year of purchase instead.
Note: Replacement parts are not available for this item.
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants
to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the
date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents,
repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential
damages arising from the use of our product. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid. Proof of
purchase date and an explanation of the complaint must accompany the merchandise. If our inspection verifies the defect, we will
either repair or replace the product at our election or we may elect to refund the purchase price if we cannot readily and quickly
provide you with a replacement. We will return repaired products at our expense, but if we determine there is no defect, or that
the defect resulted from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797
