ASSEMBLY INSTRUCTIONS EB-1

EB-1 1

Ellipcal 2 in 1

Exercise Bike

Thank you for your purchase of this Harvil product!

We work around the clock and around the globe to ensure that Harvil products

maintain the highest possible quality. However, in the rare instance that your

product is defective or missing parts, contact your retailer to submit parts

requests or warranty claims. Please read the warranty information at the back

of these assembly instructions for further details.

IMPORTANT! PLEASE READ THESE ASSEMBLY INSTRUCTIONS

IN ENTIRETY BEFORE ASSEMBLING YOUR PRODUCT.

The information contained in this manual is subject to change without notice.

PARTS INDENTIFIER(NOT TO SCALE)

EB-1 2

NAME

Q UAN T IT Y

MAIN F R AME

R E A R S TA B IL IZE R

3 E ND C AP 4

4 K E Y HE A D B OLT (M10*60) 4

5 DO ME D NUT (M10) 4

6 AR C WAS H E R 4

7 F R O NT S TA B IL IZE R 1

8 T R A N S P OT TAT ION W HE E L 2

9 L OWE R HA NDL E B A R (R IG HT ) 1

L OWE R HA NDL E B A R (L E F T )

R IG HT P E DA L P O S T

L E F T P E DA L P OS T

NUT (M10)

B OLT

P E DAL HING E B OLT

16 S T E E L B US HING 8

17 NUT (1/2” ) 2

18 S P R ING WAS HE R 2

19 HING E S C R E W 2

20 S P R ING WAS HE R 2

21 D S HA P E WAS HE R 2

S P INDL E B AR

P E DAL

B OLT (M10*45)

C R A NK (L E F T & R IG HT )

R IG HT HA NDL E B AR

L E F T HA NDL E B AR

28 L OC K ING K NO B 2

29 F OAM G R IP 2

30 HANDL E B A R E ND C AP 2

31 C O MP U T E R W IR E 1

32 C O NNE C T ING R O D F OR ME T E R 1

33 ME T E R B R A C K E T 1

34 T E NS IO N C ONT R O L 1

C H AIN C O V E R

AR C WAS H E R

WAS HE R

NUT (M8)

P L A S T IC INS E R T

40 S A DDL E 1

41 S A DDL E P O S T 1

42 K NOB 1

43 B US HING 2

44 ME T E R P O S T 1

45 HA NDL E B AR 1

46 C O NNE C T ING P L AT E 1

47 ME T E R 1

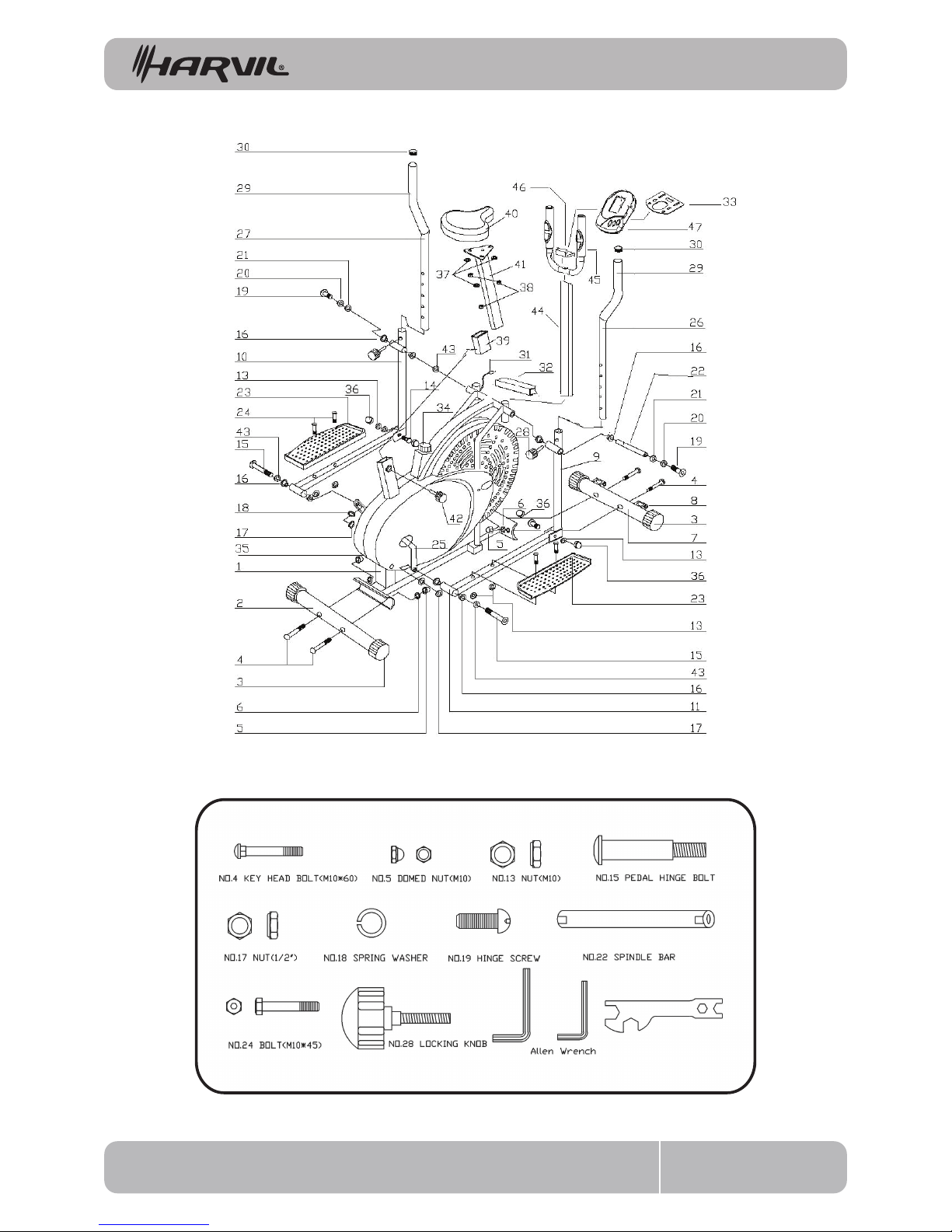

PARTS INDENTIFIER

EB-1 3

1. Follow the instructions to assemble the machine.

2. Place a base, such as a rubber mat or wooden board, beneath the area of assembly to avoid dirt.

3. Check all the screws, nuts and other connections before using for the rst time, and ensure the

trainer is in proper condition.

4. The power of the machine increases with the speed and the reverse. The machine is equipped

with adjustable knob for resistance adjustment.

5. Set up the machine at a dry and level place. Keep it away from moisture and water.

6. Wipe o sweat on the machine after workout.

7. Keep the space clear within a radius of 2 meters from the machine for workout.

8. Only use the supplied tools or proper tools of your own to assemble, or repair any part of the

machine. Do not use aggressive cleaning articles to clean the machine.

9. Only use original spare parts for any necessary repairs.

10. The machine is for one person training at a time.

11. Wear clothes and shoes suitable for tness training and exercise.

12. Maximum weight for the machine is 250 lbs.

13. Incorrect or excessive training may result in injury or aect your health. Consulting a doctor

before beginning a training program is highly recommended. This machine is not for therapeutic

purpose.

14. Please stop training and consult a doctor if you experience dizziness, sickness or other

symptoms.

CARE AND USE

EB-1 4

PREPARATION:

A. Make sure you have enough space for assembly.

B. Use the present tools for assembly.

C. Before assembling please check whether all needed parts are available (on Page 2 of this

instruction manual, you will nd a diagram with all single parts marked with numbers)

ASSEMBLY INSTRUCTIONS

EB-1 5

F IG .1

15L L E F T 15R R IG HT

F IG .2

FIG. 1:

Attach the Front Stabilizer (NO.7) and the

Rear Stabilizer (NO.2) with four sets of

Carriage Bolts (NO.4), washers (NO.6) and

Domed Nuts (NO.5).

N.B. The Front Stabilizer has the integral

transport wheels.

FIG. 2 :

Insert the Spindle Bar (No.22) through

the Right Lower Handlebar (No.9) and

through the main frame, and then,

through the arc washer (No.36) and the

Left Handlebar (No.10). Put a D-shape

Washer and a Spring Washer (No.20 & 21)

on either side of the Spindle Bar and

tighten both ends using the Hinge

Screws (No.19).

Then insert a Pedal Hinge Bolt (No.15)

and put the arc washer (No.36) through

the Pedal Post (No.11 for the right side,

No.12 for the left). Put a Spring Washer

(No.18) on the bolt, then pass it through

the Crank (No.25), and secure the bolt

with an M12 Nut (No.17). Repeat this

procedure for the left side.

C OR R E C T

INC OR R E C T

In order to install the hinge bolt properly,

keep it perfectly straight as the bolt goes

through the pedal tubing and the crank-

shaft. If the hinge bolt is connected to

the crankshaft at an angle, damage to

both the hinge bolt and the crankshaft

may occur.

ASSEMBLY INSTRUCTIONS

EB-1 6

F IG .4

F IG .3

FIG. 4:

When xing your Handlebars (No.26

& No.27), you can either select the

dual-action mode or the xed mode.

Dual-action mode: To allow the handle-

bars to move along with the pedals,

attach them to the lower handle bars.

Select a height setting that is comfort-

able for you and make sure both handle-

bars are set at the same height. Lock

each handlebar in place with the locking

knobs (No.28). See Fig.4.

Fixed mode: To keep the handlebars

stationary, attach them to the tubing on

the main frame between the lower

handlebars.

As with the dual-action mode, set both

handlebars at the same comfortable

height and secure them in place with the

Locking Knobs (No.28).

FIG. 3:

Attach the Pedals (No.23) to the Pedal

Posts (No.11 & No.12), using two M10*45

Bolts (No.24) and two M10 Nuts (No.13)

for each side.

F IG .5

The assembly of your strider is now complete. When you try it for the rst time, you should adjust

the tension to the correct level before you begin a full workout.

For minute tension adjustment, simply use the Tension Adjustment Knob (pt.34). Turning the

adjustment knob allows you to change the tension level and vary the intensity of your workout as

you exercise.

For greater tension adjustment, you may loosen or tighten the friction belt by re-strapping it. To

do so, rst turn the tension adjustment knob to the loosest setting. Then re-strap the belt at the

buckle on the top of the fan wheel just beneath the center beam. The more length you allow on

the friction belt the less friction it will cause (less tension). Re-adjust the tension knob after you

nished.

FIG.5:

Remove the washer (No.37) nut (No.38)

from the saddle (No.40), attach the

saddle and saddle post (No.41) as shown

in FIG.6, re-insert and tighten the bolts.

Insert the saddle post into the main

frame as shown in FIG.6, insert and tight-

en the knob (No.42).

EB-1 7

ASSEMBLY INSTRUCTIONS

REVERSIBLE MODE

EB-1 8

Remember, your strider has REVERSIBLE movement!

Forward pedaling exercises your quadriceps (front thigh muscles), while backward

pedaling targets your hamstrings (back thigh muscles).

Take advantage of these facts to make your workout less fatiguing and more fun.

MAKE SURE YOU HAVE TIGHTENED ALL THE BOLTS AND NUTS WELL BEFORE BEGINNING

YOUR WORKOUT.

THE END CAP ON THE FRONT STABILIZER TUBE IS REMOVABLE SO YOU CAN MOVE YOUR

TRAINING BIKE. THE END CAP ON THE REAR STABILIZER CAN ADJUST THE PARALLELISM.

REVERSIBLE MOVEMENT

The tighter

the friction belt

wraps around the

fan wheel, the harder

it is for you to pedal

(more tension).

Friction

belt

Side view

of fan wheel

Friction belt buckle

(under center beam)

Tension

adjustment

knob

CAUTION!

NOTE:

COMPUTER OPTIONS AND INSTRUCTIONS

EB-1 9

BUTTON FUNCTIONS

MODE: Press to select function, and hold for 4 seconds for a total reset.

FUNCTIONS

SCAN

TIME Displays total working time up to 99:59 minutes.

Automatically scans through each function at intervals of 6 seconds.

SPEED Displays the current speed up to 99.9 km/h or ml/h. The value will stay on the moni-

tor continuously.

DISTANCE Displays total working distance of up to 99.99 km or ml from zero.

CALORIES Displays calorie consumption during exercise. Maximum value is 9999 calories.

(This data is a rought guide for comparison of dierent exercise sessions and should

not be used as a basis for medical treatment)

1. To nish workout, press “STOP” sign on the upper-left corner of the monitor.

2. If there is no signal for a period of 4 minutes, the display will shut down automatically

with all function values stored.

3. Turn on the monitor by pressing the button or by pedaling.

4. If monitor display is not working properly, please try reinstalling the batteries.

5. Battery Spec: 1.5V UM-3 or AA (2 pcs)

1. Changing the batteries. To change the computer batteries, please slide the computer from the

computer holder, remove the battery cover on the back of the computer console, and remove the

batteries. Replace with 2 x AA batteries. Finally, put the cover back on the console, and slide the

computer back on the holder.

2. Computer not working correctly. If your computer is not working correctly, please check

whether the computer sensor wire is plugged into the computer. If you have checked the above

and the computer is still not working, then please make sure the batteries are still working and that

they are installed correctly in the computer.

3. No resistance. If there is no tension resistance, please turn the tension adjustment knob to its

lowest level, and then go to the friction belt buckle which is located on top of the fan wheel

beneath the center beam. Loosen the friction belt, pull it through the buckle until you can feel

some resistance on the belt, and then lock it back around the buckle. Now mount your Elliptical

Bike and turn the pedals. If you nd it is now too tight, go back to the friction belt buckle and

loosen the belt slightly.

NOTE:

TROUBLESHOOTING

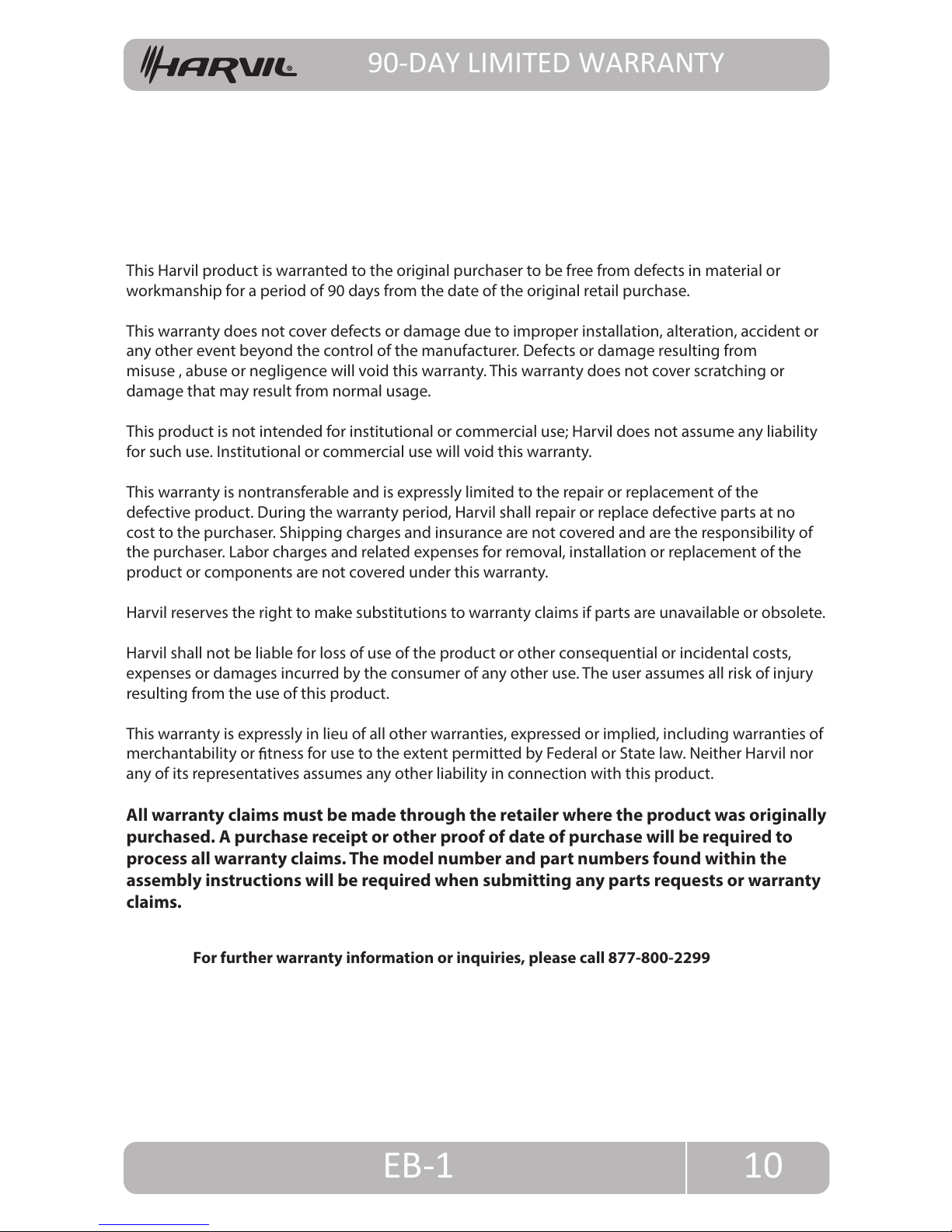

90-DAY LIMITED WARRANTY

EB-1 10

This Harvil product is warranted to the original purchaser to be free from defects in material or

workmanship for a period of 90 days from the date of the original retail purchase.

This warranty does not cover defects or damage due to improper installation, alteration, accident or

any other event beyond the control of the manufacturer. Defects or damage resulting from

misuse , abuse or negligence will void this warranty. This warranty does not cover scratching or

damage that may result from normal usage.

This product is not intended for institutional or commercial use; Harvil does not assume any liability

for such use. Institutional or commercial use will void this warranty.

This warranty is nontransferable and is expressly limited to the repair or replacement of the

defective product. During the warranty period, Harvil shall repair or replace defective parts at no

cost to the purchaser. Shipping charges and insurance are not covered and are the responsibility of

the purchaser. Labor charges and related expenses for removal, installation or replacement of the

product or components are not covered under this warranty.

Harvil reserves the right to make substitutions to warranty claims if parts are unavailable or obsolete.

Harvil shall not be liable for loss of use of the product or other consequential or incidental costs,

expenses or damages incurred by the consumer of any other use. The user assumes all risk of injury

resulting from the use of this product.

This warranty is expressly in lieu of all other warranties, expressed or implied, including warranties of

merchantability or tness for use to the extent permitted by Federal or State law. Neither Harvil nor

any of its representatives assumes any other liability in connection with this product.

All warranty claims must be made through the retailer where the product was originally

purchased. A purchase receipt or other proof of date of purchase will be required to

process all warranty claims. The model number and part numbers found within the

assembly instructions will be required when submitting any parts requests or warranty

claims.

For further warranty information or inquiries, please call 877-800-2299

Inhaltsverzeichnis

Andere Harvil Heimtrainer Handbücher

Harvil

Harvil XB-A Bedienungsanleitung

Beliebte Heimtrainer Handbücher anderer Marken

Weslo

Weslo Vector 302 Kurzanleitung

TOORX

TOORX BRX85 Bedienungsanleitung

Matrix

Matrix KranKcycle Bedienungsanleitung

Matrix

Matrix IC3 Bedienungsanleitung

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Bedienungsanleitung

Monark

Monark 827E Bedienungsanleitung

Stamina

Stamina 1310 Bedienungsanleitung

American Fitness

American Fitness SPR-BK1072A Bedienungsanleitung

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Bedienungsanleitung

BH FITNESS

BH FITNESS H9158H Bedienerhandbuch

Body Sculpture

Body Sculpture BC-7220G Bedienungsanleitung

Cateye

Cateye EC-2300 Bedienungsanleitung

FYTTER

FYTTER RACER RC MSR Bedienungsanleitung

Kikos

Kikos HM-9090M Bedienungsanleitung

Pro-Form

Pro-Form 345 Zlx Bike Benutzerhandbuch

Fuel Fitness

Fuel Fitness SU135-40 Bedienungsanleitung

NordicTrack

NordicTrack Gxr 4.2 Bike Bedienungsanleitung

Vision Fitness

Vision Fitness U70 Bedienungsanleitung
