WGI-D23-INST-10-06

INSTALL INSTRUCTIONS WGI-D23-1 & 6

INTERIOR WINDOW GUARDS

2006-2007 DODGE CHARGER

TOOLS REQUIRED:

Power drill

Drill bits – 1/8”, 5/32”

T-25 tamperproof torx bit

Phillips screwdriver

HARDWARE:

QTY DESCRIPTION PART #

2 Upper mounting bracket WGI-MB-12-90

8 #10 x ¾” Sheet metal screw GSM33195

8 #10 x ½” Sheet metal screw GSM33194

4 ¼” x ½” T-25 Tamperproof bolts GSM34190

4 ¼” Flat Washers GSM31005

Always!

 Read all instructions before installing any Havis-Shields Equipment Corp products.

 Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!

 Use hardware provided with install kit

SUBASSEMBLY:

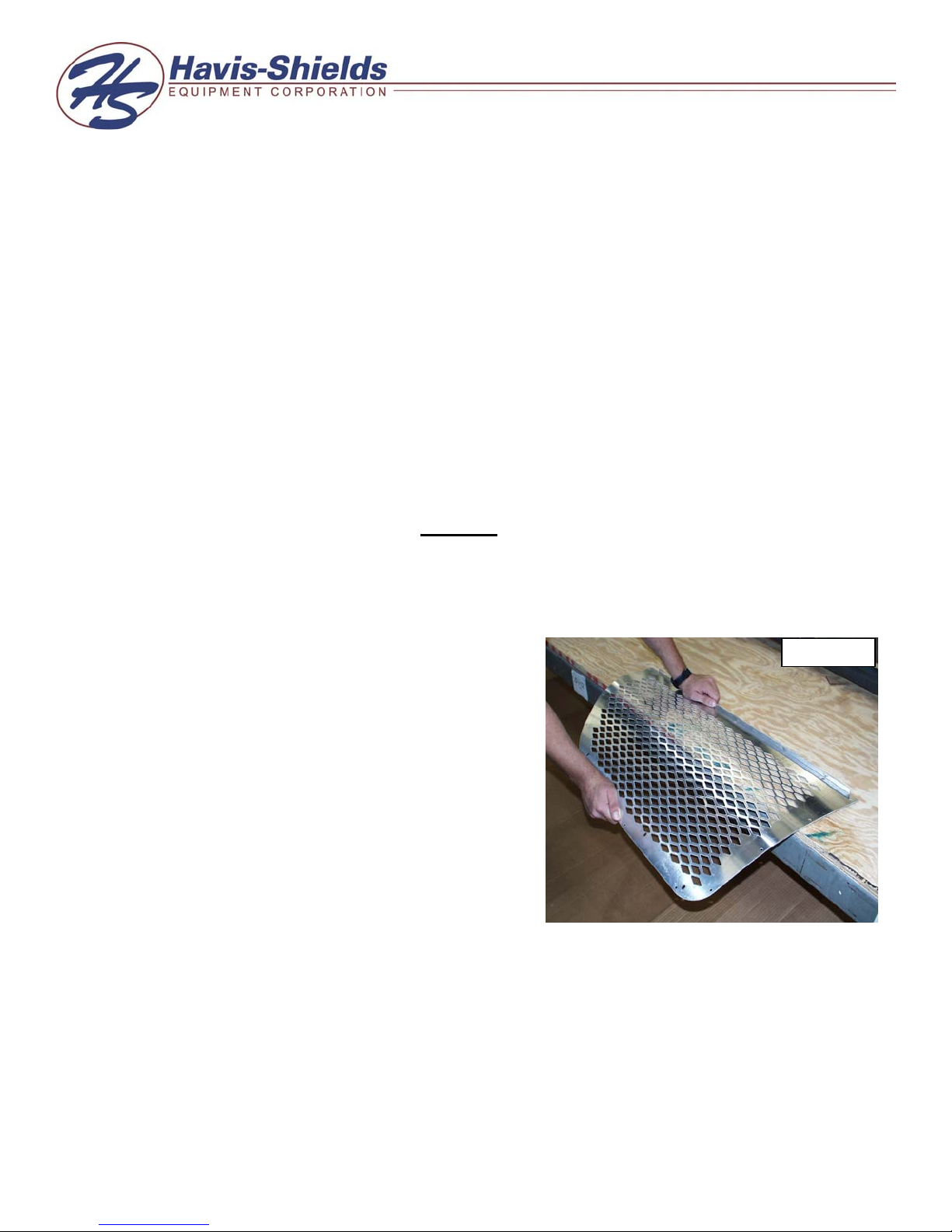

1. Bend window guard so it contours the door as

shown in photo #1.

2. Determine the proper window guard for each

window.

3. If installing aluminum door panels refer to those

instructions at this time. They will need to be

installed first.

Photo 1

WGI-D23-INST-10-06

Mounting holes. Drill 1/8” holes.

Mount using #10 x ½” screws

INSTALL WINDOW GUARDS

• Loosely attach upper mounting bracket to window guard using ¼” x ½” tamper proof

screws and flat washers. (This step may already be done during shipping)

• Position screen to vehicle as shown in photo #2.

• Make sure you have the window guard centered on the door.

• Mark, drill 1/8” holes, and attach lower mount using #10 x ½” screws as shown in photo

#3.

Note: Be sure the upper mounting brackets go under weather stripping and the notches go

around the mounting plugs.

Make sure the mounting holes will have metal material to drill into.

• Press firmly against window guard and mark door where the upper mounting brackets are

located

• Drill 5/32” holes and mount to door using #10 x ¾” sheet metal screws.

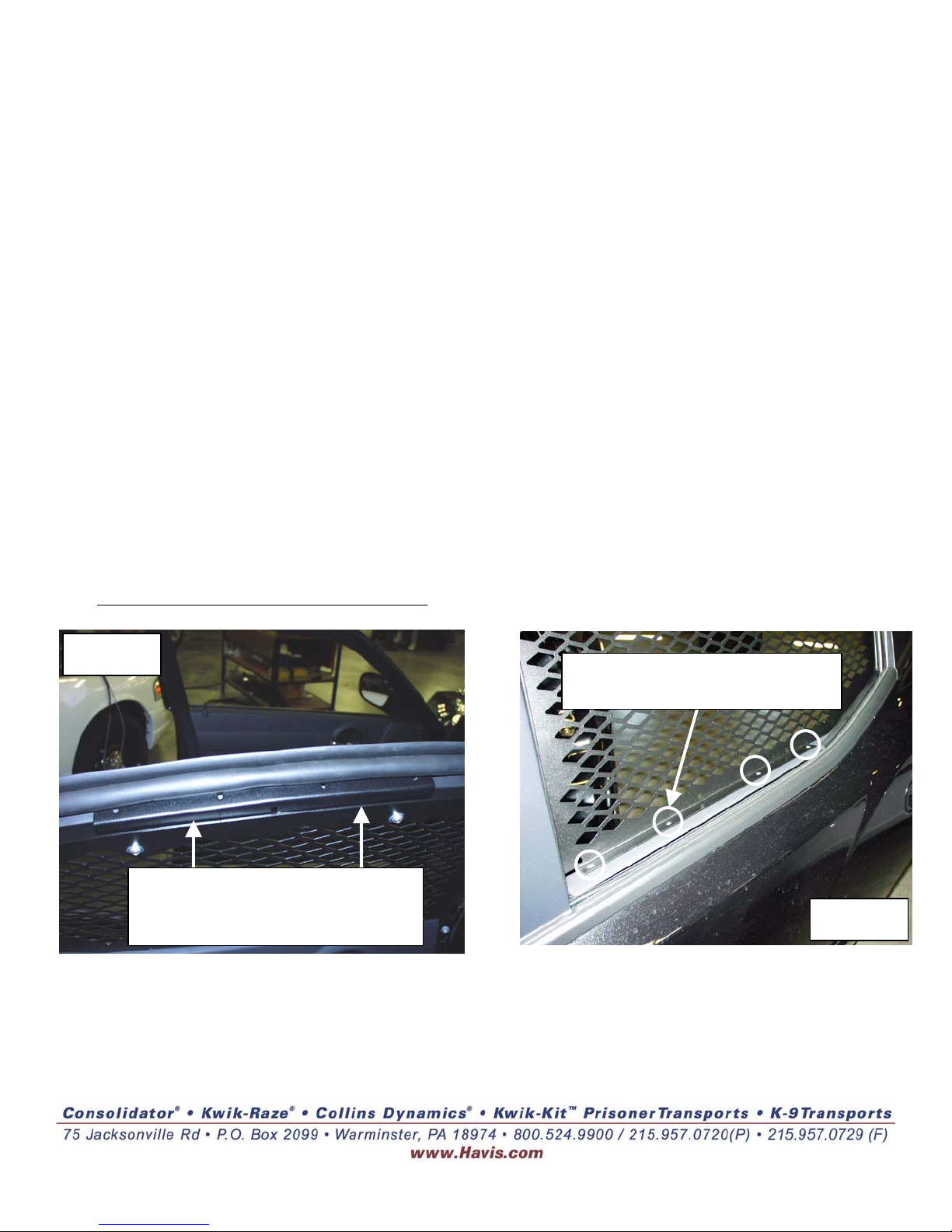

Photo #3

Press firmly against guard until

bracket is under weather stripping.

Mark and drill 5/32” holes

Photo #2

Mount upper bracket using #10 x ¾” screws
