HECKLER H573 Bedienungsanleitung

H573 - Ceiling Mount for Logitech BRIO

This product hangs overhead in a commercial setting and is installed to

directly to the structure of the room. Therefore, this product should be

installed by a professional.

The fasteners provided to install the mount to the ceiling tile are provided

for your convenience and are suitable for most conventional ceiling tiles.

However, a professional should determine if the hardware provided is

suitable for your speciﬁc installation.

Use the support bracket provided in all ceiling tile installations. Failure to

use this bracket could result in structural failure of the ceiling tile.

This product is designed for ceiling tiles that are 24 inches wide or 24 inches

long, or 24 inches square. Do not use this product with ceiling tiles that do

not have these speciﬁcations.

The USB extender should be installed within the body of the mount, below

the ceiling tile. The USB extender should not be positioned in the air plenum

above the ceiling tile

To reduce the risk of severe injury or death to persons,

review these installation safety steps before proceeding:

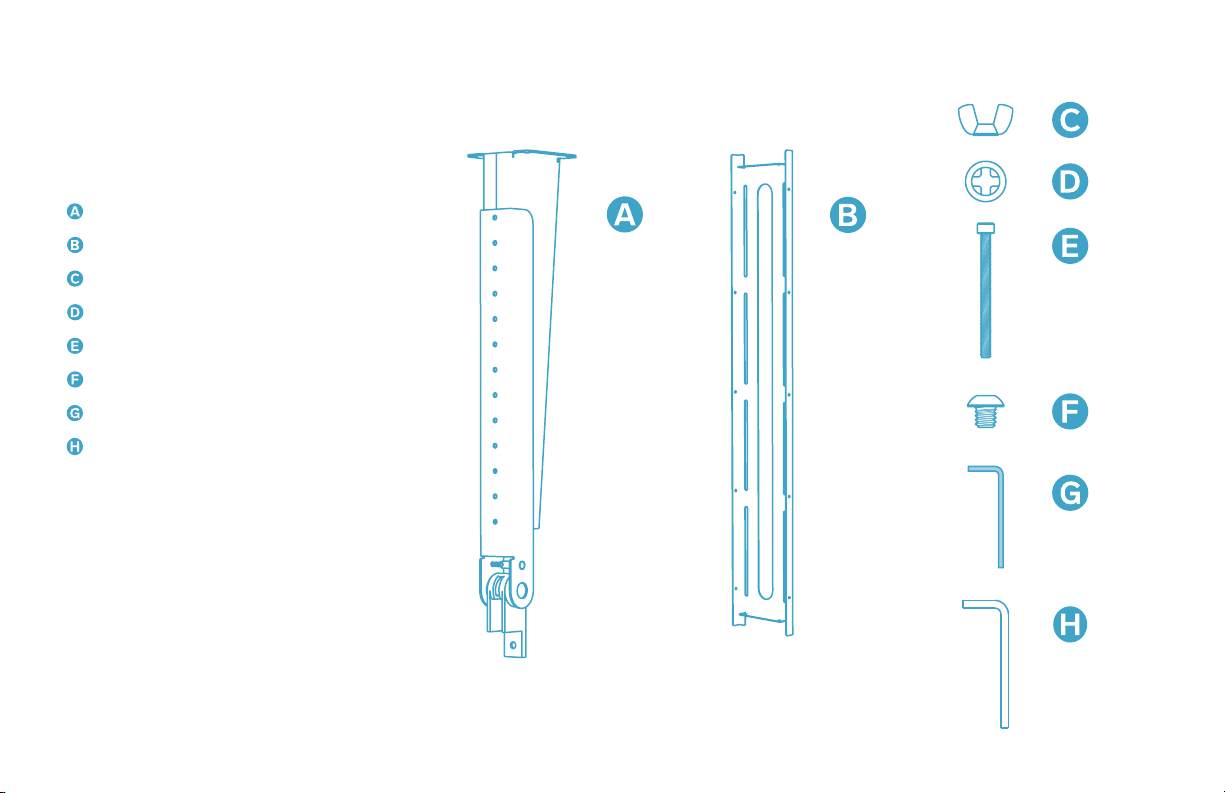

IN THE BOX

Ceiling Mount

1 x

Support Bracket

1 x

Mounting Wingnut

4 x

Mounting Screw

4 x

Camera-Mounting Screw

1 x

Self-Retaining Washer

4 x

Hex Key, 9/64”

1 x

Hex Key, 5/32”

1 x

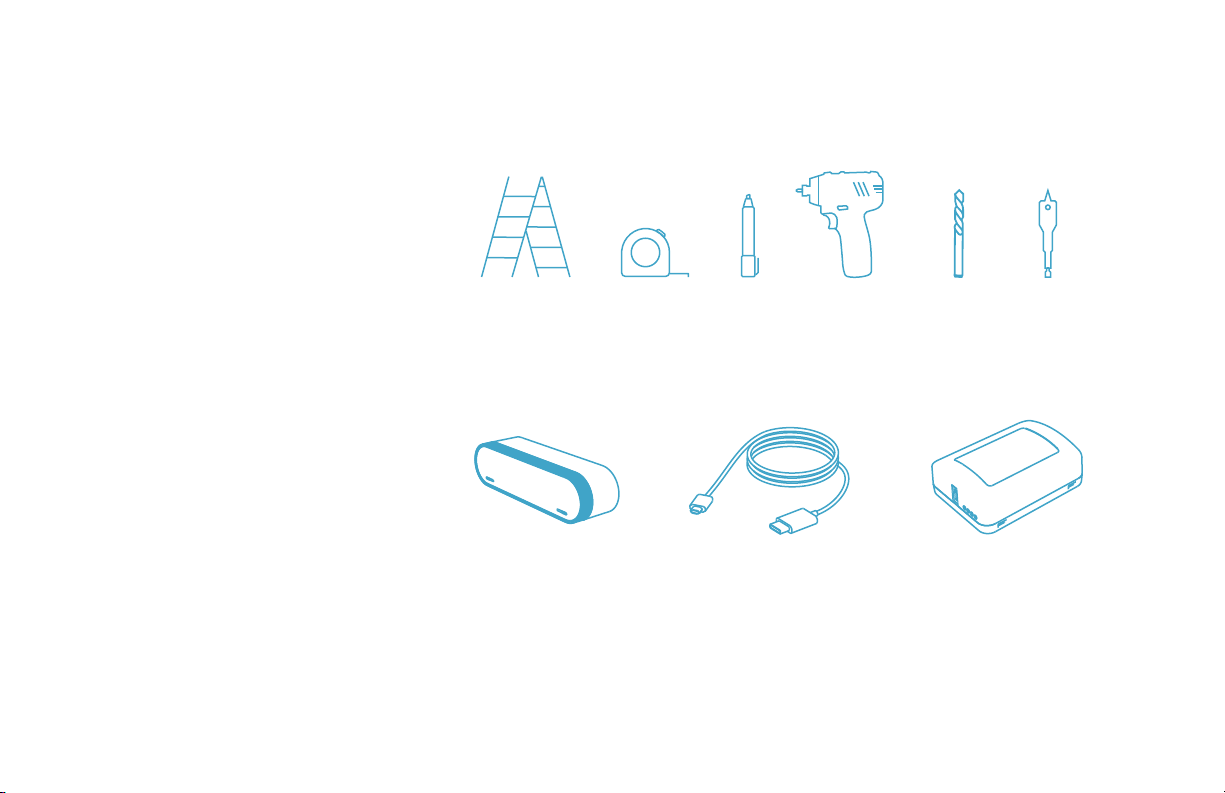

TOOLS NEEDED

COMPONENTS NEEDED

(Not Included)

1” Spade

Drill Bit

Tape Measure Power Drill

Pen 3/16”

Drill Bit

Ladder

If you have any questions, please contact

service@hecklerdesign.com.

Icron USB 2.0 Ranger 2311BRIO USB-C CableLogitech BRIO

STEP 1

Disassemble Ceiling Mount

Use the 9/64” Hex Key

to remove front screws.

Use the 9/64” Hex Key

to remove side screws.

STEP 2

Conﬁgure the USB ranger extender and cable

Position the USB ranger

Extender above the post

Organize the cable to best ﬁt

inside the mount.

Leave extra cable for future

adjustment.

Important:

Please align the tab to guide screws

into posts.

STEP 3

Fasten the cover

STEP 4

Determine the length of the Mount

80”

Ceiling Height

Important Notes:

Based on the ADA rules, the camera should not be mounted

lower than 80” from the ground. Please calculate the ideal

Mount length based on your room.

Ceiling Height - 80” = Ceiling Mount Length

STEP 5

Prepare the ceiling tile

STEP 6

Determine the mounting orientation of

the support bracket to the ceiling tile

Wall

White board

Top view

24”x 24” tile

A24”x 24” tile

B24”x 48” tile

C48“x 24” tile
