HECKLER WindFall H603 Bedienungsanleitung

Assembly & Installation

H603

WindFall®

VESA MOUNT

for iPad 10.2-inch 7th Generation

Limited Warranty

Heckler Design warrants your product to be free from defect in material and

workmanship for a period of two years from the original date of purchase.

Electronic components are warranted to be free from defect for a period of one

year from the original date of purchase. If you discover a defect, please contact

service@hecklerdesign.com. Heckler Design will repair, at our discretion, using

new or refurbished components. If repair is not possible, Heckler Design will

replace the item.

Compatible with:

iPad 10.2-inch 7th Generation

All manuals and user guides at all-guides.com

F365

Screws

F645

F646

Security Screws

Security Assembly Tool

Assembly ToolF628

1:1

Keep your special assembly tool in a

safe place. To purchase a replacement,

please contact [email protected].

All manuals and user guides at all-guides.com

Optional:

Kensington ClickSafe Cable Lock

(sold separately)

Optional:

Kensington NanoSaver

Keyed Laptop Lock

(sold separately)

Optional:

Phillips head

screwdriver

(not included)

All manuals and user guides at all-guides.com

Option: Remove original screws

Install security screws

F628

F646

F645

All manuals and user guides at all-guides.com

F628

1 Remove screws

2 Remove tablet back plate

and cord securer

All manuals and user guides at all-guides.com

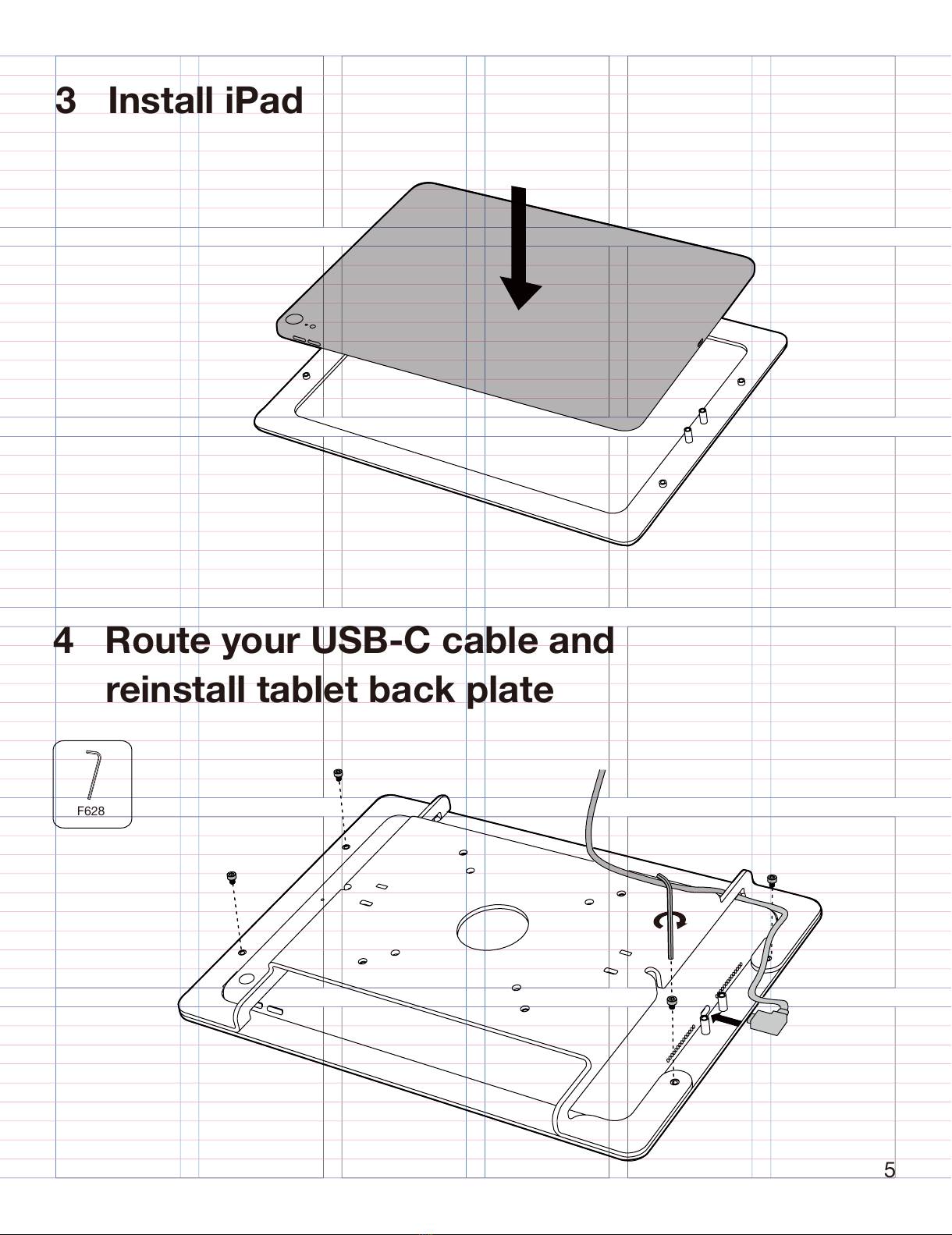

3 Install iPad

4 Route your USB-C cable and

reinstall tablet back plate

F628

All manuals and user guides at all-guides.com

5 Fasten cord securer

6 Tighten all screws

Adjust cord securer snug to

your cable

F628

All manuals and user guides at all-guides.com

8 Done

7 VESA arm mounting

F365

Ergotron VESA arm not included

(Not included)

All manuals and user guides at all-guides.com

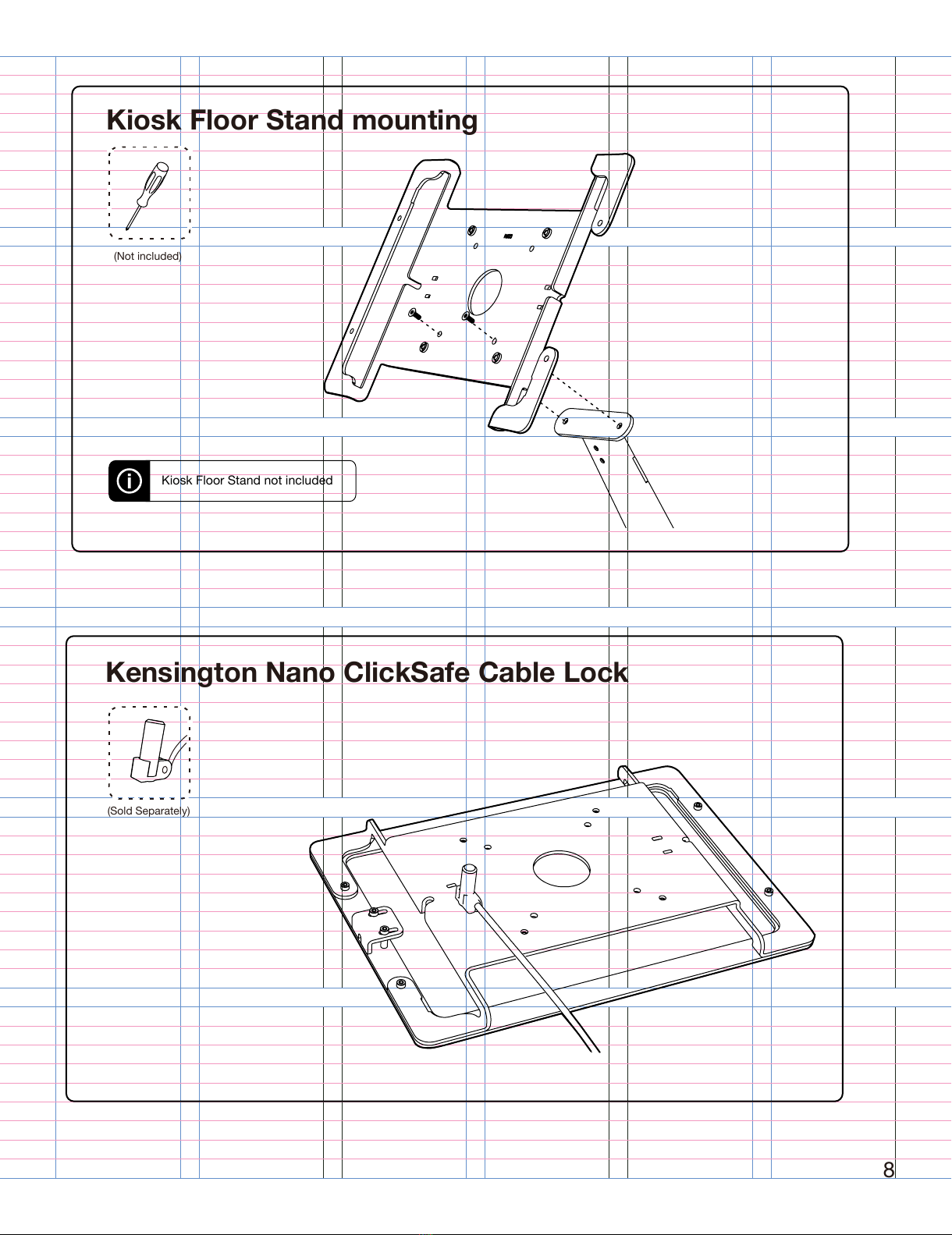

Kiosk Floor Stand mounting

(Sold Separately)

(Not included)

Kensington Nano ClickSafe Cable Lock

Kiosk Floor Stand not included

All manuals and user guides at all-guides.com

Kensington ClickSafe Cable Lock

(Sold Separately)

All manuals and user guides at all-guides.com
