HIK VISION UD.6L0201D1633A01 Bedienungsanleitung

Camera

User Manual

HD WDR Box Camera

UD.6L0201D1633A01

HD WDR Box Camera·User Manual

Thank you for purchasing our product. If there are any questions, or

requests, please do not hesitate to contact the dealer.

This manual may contain several technical incorrect places or printing

errors, and the content is subject to change without notice. The

updates will be added to the new version of this manual. We will

readily improve or update the products or procedures described in

the manual.

This manual applies to the DS-2CC12D9T (-A).

DISCLAIMER STATEMENT

Underwriters Laboratories Inc. (“UL”) has not tested the

performance or reliability of the security or signaling aspects of this

product. UL has only tested for fire, shock or casualty hazards as

outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification

does not cover the performance or reliability of the security or

signaling aspects of this product. UL MAKES NO REPRESENTATIONS,

WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE

PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING

RELATED FUNCTIONS OF THIS PRODUCT.

0100001040917

HD WDR Box Camera·User Manual

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and found to

comply with the limits for a digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment

in a residential area is likely to cause harmful interference in which

case the users will be required to correct the interference at their

own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including

interference that may cause undesired operation

EU Conformity Statement

This product and - if applicable - the supplied

accessories too are marked with "CE" and comply

therefore with the applicable harmonized European

standards listed under the Low Voltage Directive 2006/95/EC, the

EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU.

HD WDR Box Camera·User Manual

Municipal waste in the European Union. For proper

recycling, return this product to your local supplier

upon the purchase of equivalent 2012/19/EU (WEEE

directive): Products marked with this symbol cannot

be disposed of as unsorted municipal waste in the European Union.

For proper recycling, return this product to your local supplier upon

the purchase of equivalent new equipment, or dispose of it at

designated collection points. For more information, see:

www.recyclethis.info.

2006/66/EC (battery directive): This product contains

a battery that cannot be disposed of as unsorted

municipal waste in the European Union. See the

product documentation for specific battery

information. The battery is marked with this symbol,

which may include lettering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the battery to your

supplier or to a designated collection point. For more information,

see: www.recyclethis.info.

HD WDR Box Camera·User Manual

Safety Instruction

These instructions are intended to ensure that user can use the

product correctly to avoid danger or property loss.

The precaution measure is divided into “Warnings” and “Cautions”

Warnings: Serious injury or death may occur if any of the warnings

are neglected.

Cautions: Injury or equipment damage may occur if any of the

cautions are neglected.

Warnings

In the use of the product, you must be in strict compliance with

the electrical safety regulations of the nation and region.

Please refer to technical specifications for detailed information.

Input voltage should meet both the SELV (Safety Extra Low Voltage)

and the Limited Power Source with AC 24V or DC 12V according to

Warnings Follow these

safeguards to prevent

serious injury or death.

Cautions Follow these

precautions to prevent

potential injury or material

damage.

HD WDR Box Camera·User Manual

the IEC60950-1 standard. Please refer to technical specifications

for detailed information.

Do not connect several devices to one power adapter as adapter

overload may cause over-heating or a fire hazard.

Please make sure that the plug is firmly connected to the power

socket.

When the product is mounted on wall or ceiling, the device shall

be firmly fixed.

If smoke, odor or noise rise from the device, turn off the power at

once and unplug the power cable, and then please contact the

service center.

If the product does not work properly, please contact your dealer

or the nearest service center. Never attempt to disassemble the

camera yourself. (We shall not assume any responsibility for

problems caused by unauthorized repair or maintenance.)

Cautions

Make sure the power supply voltage is correct before using the

camera.

Do not drop the camera or subject it to physical shock.

Do not touch senor modules with fingers. If cleaning is necessary,

use clean cloth with a bit of ethanol and wipe it gently. If the

camera will not be used for an extended period, please replace

the lens cap to protect the sensor from dirt.

HD WDR Box Camera·User Manual

Do not aim the camera at the sun or extra bright places. Blooming

or smearing may occur otherwise (which is not a malfunction),

and affect the endurance of sensor at the same time.

The sensor may be burned out by a laser beam, so when any laser

equipment is in using, make sure that the surface of sensor will

not be exposed to the laser beam.

Do not place the camera in extremely hot, cold (the operating

temperature shall be (-10℃~+60℃), dusty or damp locations, and

do not expose it to high electromagnetic radiation.

To avoid heat accumulation, good ventilation is required for

operating environment.

Keep the camera away from liquid while in use.

While in delivery, the camera shall be packed in its original

packing, or packing of the same texture.

Improper use or replacement of the battery may result in hazard

of explosion. Replace with the same or equivalent type only.

Dispose of used batteries according to the instructions provided

by the battery manufacturer.

HD WDR Box Camera·User Manual

Table of Contents

1 Introduction ................................................................................. 8

1.1 Product Features............................................................. 8

1.2 Overview......................................................................... 9

Overview of the Box Camera......................................... 9

2 Installation................................................................................. 12

Wall Mounting .............................................................. 122.1

Ceiling Mounting........................................................... 182.2

3 Menu Description....................................................................... 20

3.1 VIDEO.OUT.................................................................... 21

3.2 LANGUAGE.................................................................... 21

3.3 SETUP............................................................................ 21

3.3.1 SMART FOCUS .................................................... 21

3.3.2 SCENE................................................................. 21

3.3.3 LENS ................................................................... 22

3.3.4 EXPOSURE .......................................................... 22

3.3.5 Backlight............................................................. 26

3.3.6 White Balance (WB) ........................................... 30

3.3.7 Day & Night ........................................................ 31

3.3.8 NR ...................................................................... 32

3.3.9 SPECIAL .............................................................. 34

3.3.10 ADJUST............................................................. 45

3.3.11 RESET ............................................................... 47

3.3.12 EXIT .................................................................. 47

HD WDR Box Camera·User Manual

1Introduction

1.1 Product Features

This camera adopts high performance sensor and advanced print

circuit board design technology. It possesses of high resolution, low

distortion, and low noise features, etc. It is extremely suitable for

surveillance system and image process system.

Main Features:

Adopt high performance CMOS, and supply high definition and

clear image;

Low illumination 0.01Lux@(F1.2,AGC ON)，0Lux with IR;

Support ICR infrared filter auto switch;

Support OSD menu controlling, enable user to configure the

detailed parameters;

Support 3D NR to get clear and fine image;

Support wide dynamic range function;

Support defogging function;

Support auto white balance, auto gain control;

Support coaxial camera controller.

HD WDR Box Camera·User Manual

1.2 Overview

Overview of the Box Camera

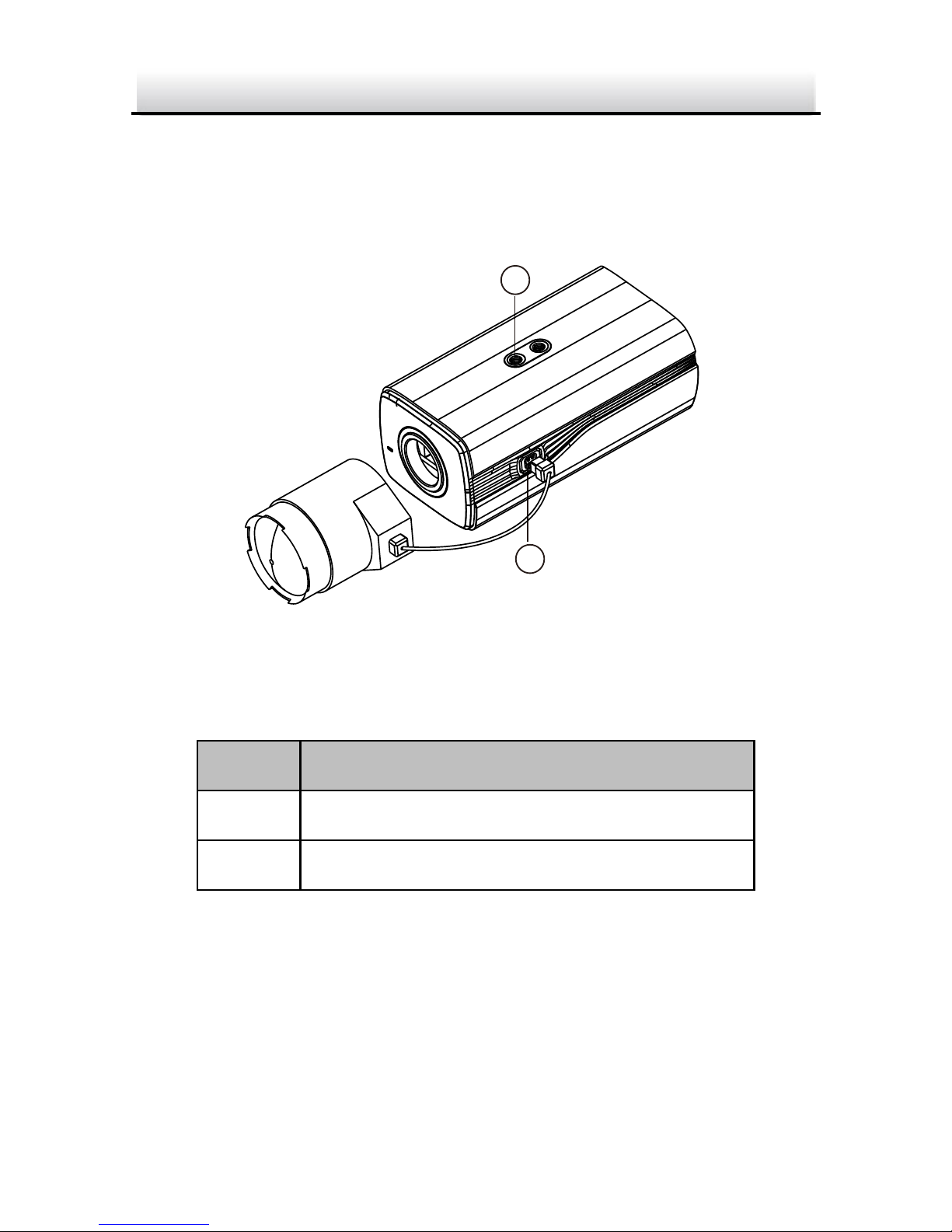

Overview of the Box CameraFigure 1-1

Table 1-1 Description of the Box Camera

No.

Description

Lock screw

Auto-Iris Drive Interface

The Auto Iris Interface

The auto iris interface is composed of four square pins as shown in

Figure 1-2.

Damp+, damp-, drive+ and drive- pins are used in DC driven mode.
