HIK VISION ColorVu DS-2CE72DFT-FC Bedienungsanleitung

TURBO HD

Full Time Color Series

Turret Camera

User Manual

Thank you for purchasing our product. If there are any

questions, or requests, do not hesitate to contact the

dealer.

This manual applies to the models below:

Model

DS-2CE72DFT-FC

This manual may contain technical mistakes or printing

errors, and the content is subject to change without

notice. The updates will be added to the new version of

this manual. We will readily improve or update the

products or procedures described in the manual.

0100001090306

Regulatory Information

FCC Information

Please take attention that changes or modification not

expressly approved by the party responsible for

compliance could void the user’s authority to operate

the equipment.

FCC compliance: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection

against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European

standards listed under the Low Voltage Directive

2014/35/EU, the EMC Directive 2014/30/EU, the RoHS

Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new

equipment, or dispose of it at designated collection

points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains

a battery that cannot be disposed of as

unsorted municipal waste in the European

Union. See the product documentation for

specific battery information. The battery is

marked with this symbol, which may

include lettering to indicate cadmium (Cd), lead (Pb),

or mercury (Hg). For proper recycling, return the

battery to your supplier or to a designated collection

point. For more information, see:

www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

Warning

This is a class A product. In a domestic environment this

product may cause radio interference in which case the

user may be required to take adequate measures.

Safety Instruction

These instructions are intended to ensure that user can

use the product correctly to avoid danger or property

loss.

The precaution measure is divided into “Warnings” and

“Cautions”.

Warnings: Serious injury or death may occur if any of

the warnings are neglected.

Cautions: Injury or equipment damage may occur if any

of the cautions are neglected.

Warnings

In the use of the device, you must be in strict

compliance with the electrical safety regulations of

the nation and region.

Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 12

VDC according to the IEC60950-1 standard. Refer to

technical specifications for detailed information.

Do not connect multiple devices to one power

adapter to avoid over-heating or a fire hazard caused

by overload.

Make sure that the plug is firmly connected to the

power socket.

Make sure that the device is firmly fixed if wall

mounting or ceiling mounting is adopted.

If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cord, and

then contact the service center.

Never attempt to disassemble the camera by

unprofessional personal.

Cautions

Do not drop the camera or subject it to physical

shock.

Do not touch senor modules with fingers.

Do not place the camera in extremely hot, cold (the

operating temperature shall be -40°C to 60°C), dusty

or damp locations, and do not expose it to high

electromagnetic radiation.

If cleaning is necessary, use clean cloth with a bit of

ethanol and wipe it gently.

Do not aim the camera at the sun or extra bright

places.

The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that

the surface of sensor will not be exposed to the laser

beam.

Do not expose the device to high electromagnetic

radiation or extremely hot, cold, dusty or damp

environment.

To avoid heat accumulation, good ventilation is

required for the operating environment.

Warnings Follow

these safeguards to

prevent serious injury

or death.

Cautions Follow these

precautions to prevent

potential injury or

material damage.

Keep the camera away from liquid while in use for

non-water-proof device.

While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

Mark Description

Table 0-1 Mark Description

Mark

Description

DC Voltage

1Introduction

1.1 Product Features

The main features are as follows:

High performance CMOS sensor

Full time color

OSD menu with configurable parameters

Auto white balance

Internal synchronization

Smart light mode

3-axis adjustment

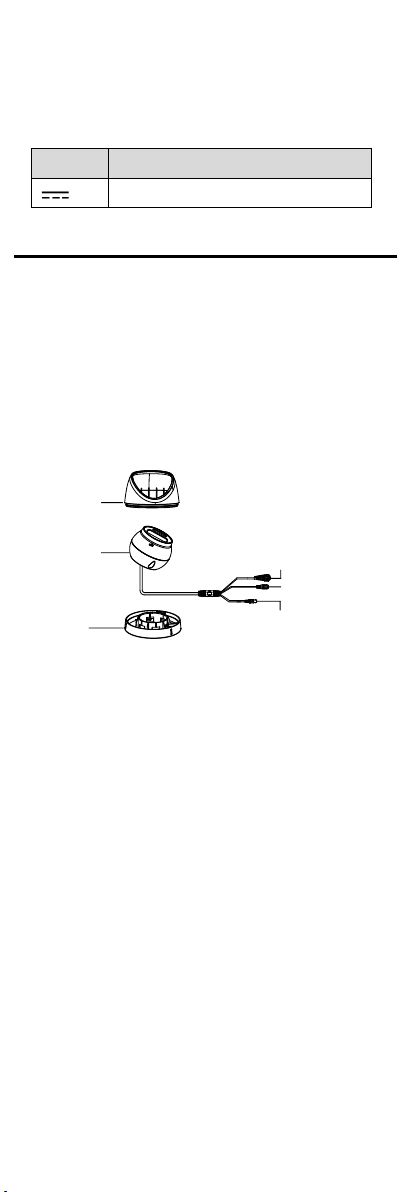

1.2 Overview

DC12VIN

Enclosure

Main Body

Mounting

Base

Switch Button

Power Cord

(12 VDC)

Video Cable

Figure 1-1 Overview of Type I Camera

Note:

Press and hold the switch button for 5 seconds to

switch the video output. Four kinds of video outputs

are available: TVI, AHD, CVI, and CVBS.

2Installation

Before you start:

Make sure that the device in the package is in good

condition and all the assembly parts are included.

Make sure that all the related equipment is power-off

during the installation.

Check the specification of the products for the

installation environment.

Check whether the power supply is matched with

your required output to avoid damage.

Make sure the wall is strong enough to withstand

three times the weight of the camera, and the

mount.

If the wall is cement, insert expansion screws before

installing the camera. If the wall is wooden, use

self-tapping screw to secure the camera.

If the product does not function properly, contact

your dealer or the nearest service center. Do NOT

disassemble the camera for repair or maintenance by

yourself.

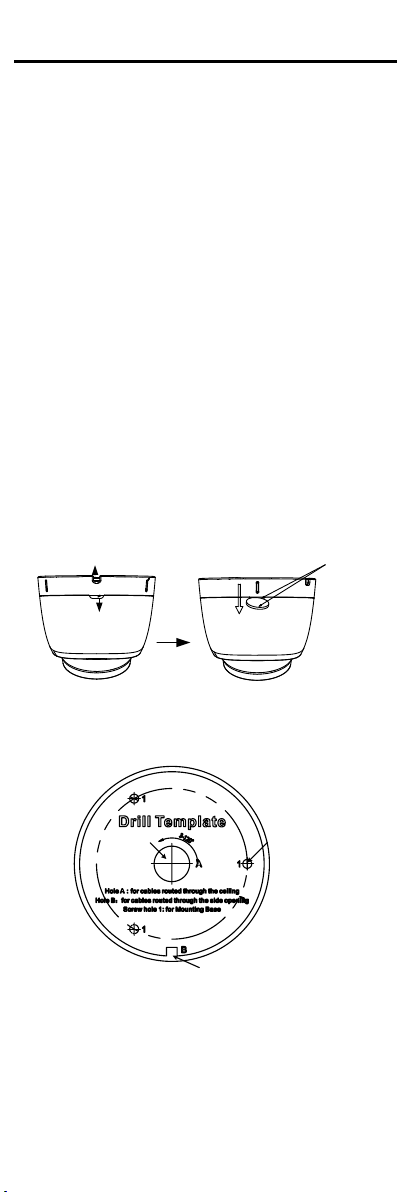

2.1 Ceiling/Wall Mounting without Junction Box

Steps:

1. Disassemble the camera.

1). Rotate the camera to align the notch to one of the

marks.

2). Pry the mounting base to remove the mounting base

with the camera body with a flat object, e.g., a coin.

Notch

Mark Coin

2. Paste the drill template (supplied) to the place

where you want to install the camera.

3. Drill the screw holes, and the cable hole (optional)

in the ceiling/wall according to the drill template.

Screw

Hole

Side

Opening

Cable

Hole

Figure 2-1 Drill Template

Note:

Drill the cable hole, when adopting the ceiling outlet

to route the cable

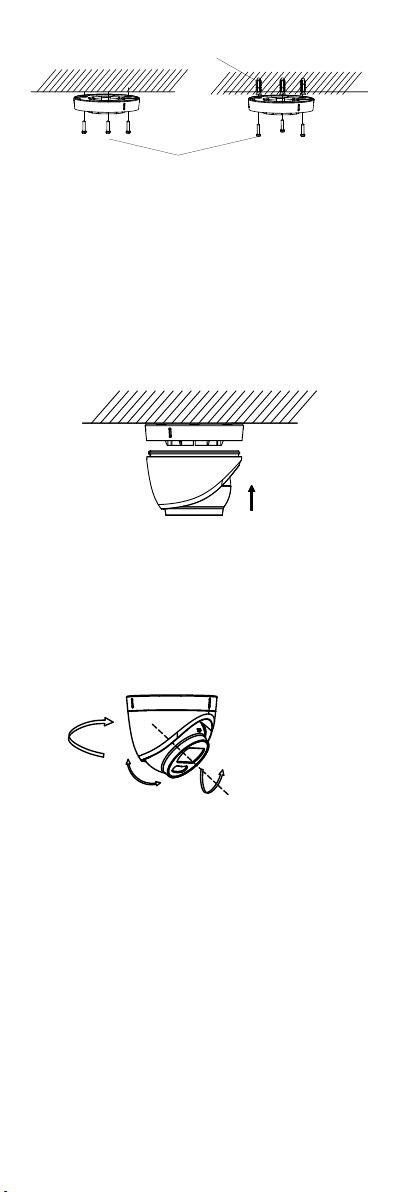

4. Attach the mounting base to the ceiling/wall, and

secure them with supplied screws

Self-tapping Screws

Expansion Bolts

Figure 2-2 Attach the Mounting Base to the Ceiling

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement wall/ceiling, expansion bolts are

required to fix the camera. For wooden wall/ceiling,

self-tapping screws are required.

5. Route the cables through the cable hole, or the side

opening.

6. Align the camera with the mounting base, and

secure the camera on the mounting base.

Figure 2-3 Secure the Camera with Mounting Base

7. Connect the corresponding cables, such as power

cord, and video cable.

8. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle.

Pan Position

[0°to 360°]

Tilt Position

[0°to 75°]

Rotation Position

[0°to 360°]

Figure 2-4 3-axis Adjustment

1). Hold the camera body and rotate the enclosure

to adjust the pan position [0° to 360°].

2). Move the camera body up and down to adjust

the tilt position [0° to 75°].

3). Rotate the camera body to adjust the rotation

position [0° to 360°].

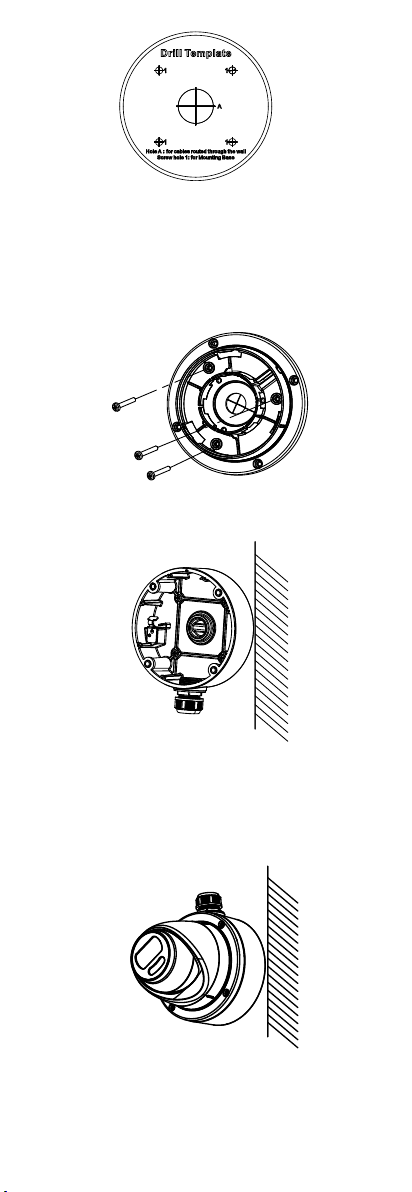

2.2 Ceiling/Wall Mounting with Junction Box

Before you start:

You need to purchase a junction box separately.

Steps:

1. Paste the drill template on the ceiling/wall.

2. Drill screw holes and the cable hole (optional) in the

ceiling/wall according to the holes of the drill

template.

Figure 2-5 Drill Template of the Junction Box

Note:

Drill the cable hole, when adopting the ceiling outlet

to route the cable.

3. Take apart the junction box, and align the screw

holes of the turret camera’s mounting base with

those on junction box’s cover.

4. Fix the mounting base on junction box’s cover by

supplied screws.

Figure 2-6 Install Turret Camera’s Mounting Base

5. Secure the junction box’s body with supplied screws

on the ceiling/wall.

Figure 2-7 Install the Junction Box’ Camera Body on

Ceilling/Wall

6. Combine the junction box’s cover with the junction

box’s body.

7. Repeat steps 5 to 8 of 2.1.1 Ceiling/Wall Mounting

without Junction Box to install the camera to the

junction box.

Figure 2-8 Fix the Camera to the Junction Box

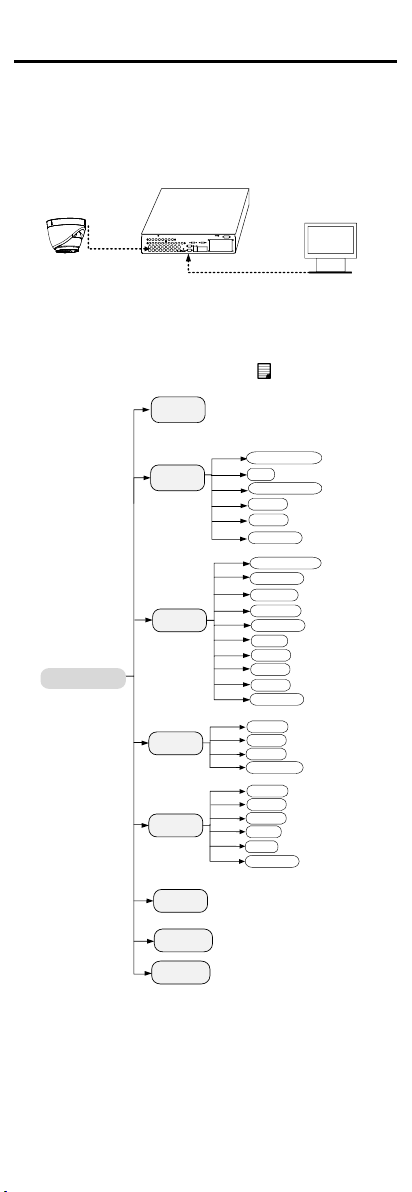

3Menu Description

Follow the steps below to call the menu.

Note:

The actual display may vary with your camera model.

Steps:

1. Connect the camera with the TVI DVR, and the

monitor, shown as the figure 3-1.

Camera

TVI DVR

Monitor

Figure 3-1 Connection

2. Power on the analog camera, TVI DVR, and the

monitor to view the image on the monitor.

3. Click PTZ Control to enter the PTZ Control interface.

4. Call the camera menu by clicking button, or call

the preset No. 95.

EXPOSURE

MAIN MENU

VIDEO

SETTINGS

FUNCTIONS

FACTORY

DEFAULT

EXIT

EXPOSURE MODE

AGC

SLOW SHUTTER

CONTRAST

SHARPNESS

SATURATION

3 DNR

MIRROR

BACK

SAVE & EXIT

BACK

FORMAT

EXIT

SAVE & EXIT

BRIGHTNESS

WHITE BALANCE

SMART

LIGHT BACK

EXIT

SAVE & EXIT

MODE

PRIVACY

MOTION

DPC

EXIT

SAVE & EXIT

EXIT

SAVE & EXIT

Figure 3-2 Main Menu Overview

5. Click the direction arrow to control the camera.

1). Click up/down direction button to select the

item.

2). Click Iris + to confirm the selection.

3). Click left/right direction button to adjust the

value of the selected item.

3.1 FORMAT

You can set the video format as 2MP@25fps, or 2

MP@30fps.

3.2 EXPOSURE

EXPOSURE describes the brightness-related parameters,

which can be adjusted by EXPOSURE MODE, AGC, and

SLOW SHUTTER.

EXPOSURE

EXPOSURE MODE

AGC

SLOW SHUTTER

BACK

EXIT

SAVE & EXIT

GLOBAL

MEDIUM

OFF



Figure 3-3 AE

EXPOSURE MODE

You can set the EXPOSURE MODE to GLOBAL, BLC, or

WDR.

GLOBAL

GLOBAL refers to the normal exposure mode which

adjusts lighting distribution, variations, and

non-standard processing.

BLC (Backlight Compensation)

BLC (Backlight Compensation) compensates light to the

object in the front to make it clear, but this may cause

the over-exposure of the background where the light is

strong.

WDR (Wide Dynamic Range)

The wide dynamic range helps the camera provide clear

images even under backlight circumstances. WDR

balances the brightness level of the whole image and

provides clear images with details.

AGC (Auto Gain Control)

It optimizes the clarity of the image in poor light

conditions. The AGC level can be set as HIGH, MEDIUM,

or LOW. Select OFF to disable the AGC function.

Note:

The noise will be amplified when the AGC is on.

SLOW SHUTTER

SLOW SHUTTER increases the exposure time on a single

frame, which makes a camera more sensitive to the

light so it can produce images even in low lux

conditions.

You can set the SLOW SHUTTER according to the

different light conditions.

3.3 VIDEO SETTINGS

Move the cursor to VIDEO SETTINGS and click Iris+ to

enter the sub-menu. WHITE BALANCE, BRIGHTNESS,

CONTRAST, SHARPNESS, SATURATION, 3 DNR, and

MIRROR are adjustable.

VIDEO SETTINGS

WHITE BALANCE

BRIGHTNESS

CONTRAST

SHARPNESS

SATURATION

3 DNR

MIRROR

BACK

EXIT

SAVE & EXIT



OFF



Figure 3-4 VIDEO SETTING

WHITE BALANCE

White balance, the white rendition function of the

camera, is to adjust the color temperature according to

the environment. It can remove unrealistic color casts in

the image. You can set WHITE BALANCE mode as AUTO,

or MANUAL.

AUTO

Under the AUTO mode, white balance is being adjusted

automatically according to the color temperature of the

scene illumination.

MANUAL

You can set the R-GAIN/B-GAIN value to adjust the

shades of red/blue color of the image.

WHITE BALANCE

MODE

R-GAIN

B-GAIN

BACK

EXIT

SAVE & EXIT

MANUAL



Figure 3-5 MANUAL MODE

BRIGHTNESS

Brightness refers to the brightness of the image.

You can set the BRIGHTNESS value to darken or

brighten the image. The greater the value is, the

brighter the image is.

CONTRAST

This feature enhances the difference in color and light

between parts of an image.

SHARPNESS

Sharpness determines the amount of detail an imaging

system can reproduce.

SATURATION

Adjust this feature to change the saturation of the color.

3 DNR (Digital Noise Reduction)

The 3 DNR function can decrease the noise effect,

especially when capturing moving images in poor light

conditions, and delivering more accurate and sharper

image.

MIRROR

OFF, H, V, and HV are selectable for mirror.

OFF: The mirror function is disabled.

H: The image flips 180° horizontally.

V: The image flips 180° vertically.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HIK VISION Sicherheitskamera Handbücher

HIK VISION

HIK VISION D8T Series Bedienungsanleitung

HIK VISION

HIK VISION NETWORK CAMERA Bedienungsanleitung

HIK VISION

HIK VISION DS-2CC51A7N-VP Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD7133-E Bedienungsanleitung

HIK VISION

HIK VISION DS-2DE2C200SCG-E Bedienungsanleitung

HIK VISION

HIK VISION DS-2XE62 2F-IS Series Bedienungsanleitung

HIK VISION

HIK VISION TURBO HD DS-2CE5AD0T-VPIT3F Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE56D5T-IR3Z Bedienungsanleitung

HIK VISION

HIK VISION HWT-T120-P Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD51C5G0-IZS Bedienungsanleitung

HIK VISION

HIK VISION TURBO HD DS-2CS58C2T-S/F Bedienungsanleitung

HIK VISION

HIK VISION DS-2TD2528T-7/Q Bedienungsanleitung

HIK VISION

HIK VISION DS-2CS54D7T-IRS Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD883F-E series Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD6D52G0-IHS(2.8mm) Bedienungsanleitung

HIK VISION

HIK VISION iDS-TCM203-A Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD8464F-EI Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD20 Series Bedienungsanleitung

HIK VISION

HIK VISION TURBO HD TVI-AC334-FD4/FD4-2.8 Bedienungsanleitung

HIK VISION

HIK VISION DS?2CC1102P(N)(?A) Bedienungsanleitung

HIK VISION

HIK VISION iDS-2XM6810F-I/C Kurzanleitung

HIK VISION

HIK VISION TurboHD DS-2CE56D7T-IT Z Series Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD2185FWD-IS Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD2T27G3E-L Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
