HIK VISION D8T Series Bedienungsanleitung

TURBO HD

D8T Series Dome Camera

User Manual

Thank you for purchasing our product. If there are any

questions, or requests, do not hesitate to contact the

dealer.

This manual applies to the models below:

Type

Model

Type I Camera

DS-2CE56D8T-(A)VPIT3ZF

Type II Camera

DS-2CE56D8T-(A)ITZF

Type III Camera

DS-2CE5AD8T-(A)VPIT3ZF

This manual may contain technical incorrect places or

printing errors, and the content is subject to change

without notice. The updates will be added to the new

version of this manual. We will readily improve or

update the products or procedures described in the

manual.

0100001081023

Regulatory Information

FCC Information

Please take attention that changes or modification not

expressly approved by the party responsible for

compliance could void the user’s authority to operate

the equipment.

FCC compliance: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection

against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European

standards listed under the Low Voltage Directive

2014/35/EU, the EMC Directive 2014/30/EU.

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new

equipment, or dispose of it at designated collection

points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains

a battery that cannot be disposed of as

unsorted municipal waste in the European

Union. See the product documentation for

specific battery information. The battery is

marked with this symbol, which may

include lettering to indicate cadmium (Cd), lead (Pb),

or mercury (Hg). For proper recycling, return the

battery to your supplier or to a designated collection

point. For more information, see:

www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

Safety Instruction

These instructions are intended to ensure that user can

use the product correctly to avoid danger or property

loss.

The precaution measure is divided into “Warnings” and

“Cautions”.

Warnings: Serious injury or death may occur if any of

the warnings are neglected.

Cautions: Injury or equipment damage may occur if any

of the cautions are neglected.

Warnings

In the use of the device, you must be in strict

compliance with the electrical safety regulations of

the nation and region.

Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 12

VDC according to the IEC60950-1 standard. Refer to

technical specifications for detailed information.

Do not connect multiple devices to one power

adapter to avoid over-heating or a fire hazard caused

by overload.

Make sure that the plug is firmly connected to the

power socket.

Make sure that the device is firmly fixed if wall

mounting or ceiling mounting is adopted.

If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cord, and

then contact the service center.

Never attempt to disassemble the camera by

unprofessional personal.

Cautions

Do not drop the camera or subject it to physical

shock.

Do not touch senor modules with fingers.

If cleaning is necessary, use clean cloth with a bit of

ethanol and wipe it gently.

Do not aim the camera at the sun or extra bright

places.

The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that

the surface of sensor will not be exposed to the laser

beam.

Do not expose the device to high electromagnetic

radiation or extremely hot, cold, dusty or damp

environment.

To avoid heat accumulation, good ventilation is

required for the operating environment.

Keep the camera away from liquid while in use for

non-water-proof device.

While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

Warnings Follow

these safeguards to

prevent serious injury

or death.

Cautions Follow these

precautions to prevent

potential injury or

material damage.

1Introduction

1.1 Product Features

The main features are as follows:

High performance CMOS sensor

IR cut filter with auto switch

OSD menu with configurable parameters

Auto white balance

Internal synchronization

SMART IR mode

3-axis adjustment

1.2 Overview of Type I Camera

Bubble Back Box

Lens Video Cable

Power Cord

Switch Button

Figure 1-1 Overview of Type I Camera

1.2.1 Overview of Type II Camera

Bubble Back Box

Adapter Plate

Lens

Switch Button

Video Cable

Power Cord

Figure 1-2 Overview of Type II Camera

1.2.2 Overview of Type III Camera

Bubble

Lens

Back Box

Switch Button

Power Cord

Video Cable

Figure 1-3 Overview of Type III Camera

Note:

Press and hold the switch button for 5 seconds to

switch the video output. Four kinds of video outputs

are available: TVI, AHD, CVI, and CVBS.

2Installation

Before you start:

Make sure that the device in the package is in good

condition and all the assembly parts are included.

Make sure that all the related equipment is power-off

during the installation.

Check the specification of the products for the

installation environment.

Check whether the power supply is matched with

your required output to avoid damage.

Make sure the wall is strong enough to withstand

three times the weight of the camera and the

mounting.

If the wall is cement, insert expansion screws before

installing the camera. If the wall is wooden, use

self-tapping screw to secure the camera.

If the product does not function properly, contact

your dealer or the nearest service center. Do NOT

disassemble the camera for repair or maintenance by

yourself.

2.1 Ceiling Mounting of Type I Camera

Before you start:

Both wall mounting and ceiling mounting are suitable

for the dome camera. Ceiling mounting will be taken as

an example in this section. And you can take steps of

ceiling mounting as a reference for wall mounting.

Steps:

1. Paste the drill template to the celling.

2. Drill screw holes and the cable hole (optional) on

the ceiling according to the supplied drill template.

Figure 2-1 The Drill Template

Note:

Drill the cable hole (hole A) when adopting the wall

outlet to route the cable.

3. Loosen the screws on the bubble of the dome

camera to remove the bubble.

Figure 2-2 Remove the Bubble

4. Secure the back box on the ceiling/wall with four

PA4 × 25 screws.

Figure 2-3 Secure the Back Box

5. Attach the camera to the back box and secure them

with supplied screws.

Figure 2-4 Attach the Camera

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement wall/ceiling, expansion bolts are

required to fix the camera. For wooden wall/ceiling,

self-tapping screws are required.

6. Route the cables through the cable hole, or the side

opening.

7. Connect the corresponding cables, such as power

cord, and video cable.

8. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle.

Pan Position

0° to 355°

Tilt Position

0° to 75°

Rotation Position

0° to 355°

Figure 2-5 3-Axis Adjustment

9. Install the bubble back to the camera.

Figure 2-6 Install the Bubble Back

10. Tighten the screws on the bubble of the dome

camera to finish the installation.

Figure 2-7 Finish Installation

2.2 Ceiling Mounting of Type II Camera

Steps:

1. Disassemble the bubble by anti-clockwise rotating

the camera.

Figure 2-8 Disassemble the Camera

2. Paste the drill template to the celling.

3. Drill screw holes and the cable hole (optional) on

the ceiling according to the supplied drill template.

Figure 2-9 The Drill Template

Note:

Drill the cable hole (hole A) when adopting the

ceiling outlet to route the cable.

4. Secure the adapter plate on the ceiling with four

PA4 × 25 screws.

Figure 2-10 Secure the Adapter Plate

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement wall/ceiling, expansion bolts are

required to fix the camera. For wooden

wall/ceiling, self-tapping screws are required.

5. Route the cables through the cable hole, or the side

opening.

6. Secure the camera on the adapter plate.

Figure 2-11 Secure the Camera

7. Connect the corresponding cables, such as power

cord, and video cable.

8. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle.

Pan Position

0° to 340°

Tilt Position

0° to 75°

Rotation Position

0° to 355°

Figure 2-12 3-axis Adjustment

9. Adjust the pan position [0° to 340°], the tilt position

[0° to 75°], and the rotation position [0° to 355°].

10. Install the bubble back to the camera.

Figure 2-13 Install the Bubble Back

11. Finish the installation.

Figure 2-14 Finish Installation

2.3 Ceiling Mounting of Type III Camera

Before you start:

Both wall mounting and ceiling mounting are suitable

for the dome camera. Ceiling mounting will be taken as

an example in this section. And you can take steps of

ceiling mounting as a reference for wall mounting.

Steps:

1. Paste the dill template to the ceiling.

2. Drill the screw holes and cable hole (optional) in the

ceiling according to the drill template.

Figure 2-15 Drill Template

Note:

Cable hole is required, when adopting the ceiling

outlet to route cables.

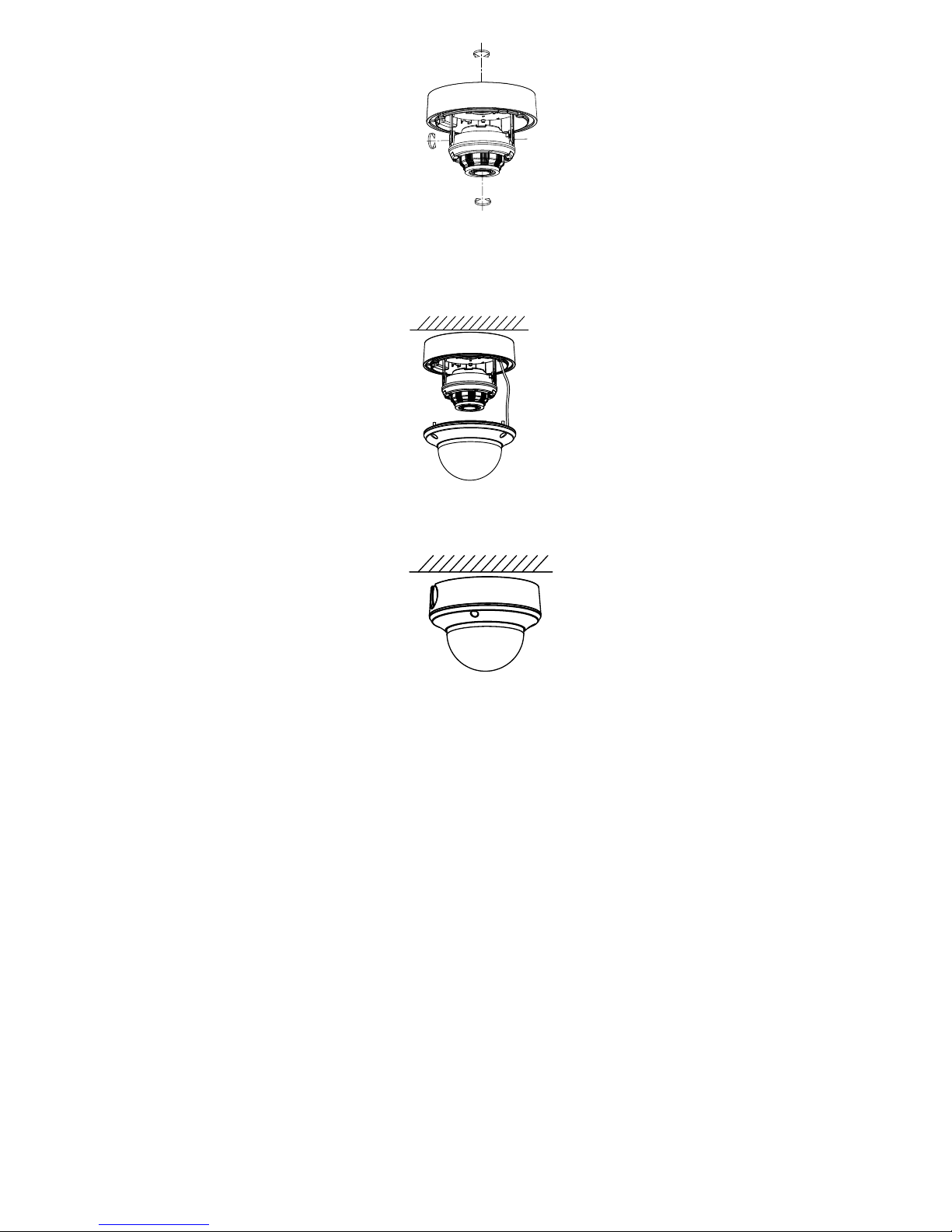

3. Disassemble the camera to remove the bubble.

Figure 2-16 Remove the Bubble

4. Attach the back box of camera to the ceiling and

secure them with supplied screws.

Figure 2-17 Attach the Back Box

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement ceiling, expansion bolts are required to

fix the camera. For wooden ceiling, self-tapping

screws are required.

5. Route the cables through the cable hole, or the side

opening.

6. Connect the corresponding cables, such as power

cord, and network cable.

7. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle.

Pan Position

0°to 355°

Tilt Position

0°to 75°

Rotation Position

0°to 355°

Figure 2-18 3-Axis Adjustment

8. Adjust the tilt position [0° to 75°], the pan position

[0° to 355°], the rotation position [0° to 355°].

9. Install the bubble back to the camera.

Figure 2-19 Install the Bubble Back

10. Tighten the screws on the bubble of the dome

camera to finish the installation.

Figure 2-20 Finish Installation

Andere Handbücher für D8T Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HIK VISION Sicherheitskamera Handbücher

HIK VISION

HIK VISION DS-2AE4215T-D Bedienungsanleitung

HIK VISION

HIK VISION HWI-D141H Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD7153-E Bedienungsanleitung

HIK VISION

HIK VISION UD04357B Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE56D5T-IR3Z Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE16H0T-ITE Bedienungsanleitung

HIK VISION

HIK VISION DS-2XS6A87G1-LS/C36S80 Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD3B46G2T-IZHS Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE16C0T-IRPF Bedienungsanleitung

HIK VISION

HIK VISION Ultra Series Bedienungsanleitung

HIK VISION

HIK VISION DS-2CV2026G0-IDW Bedienungsanleitung

HIK VISION

HIK VISION DS-2CC5102P Bedienungsanleitung

HIK VISION

HIK VISION HiLook PTZ-T5225I-A Bedienungsanleitung

HIK VISION

HIK VISION DS-2DF5220S Bedienungsanleitung

HIK VISION

HIK VISION PanoVu PT Series Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD2063G0-I Bedienungsanleitung

HIK VISION

HIK VISION DS-2DP1636ZIX-D Bedienungsanleitung

HIK VISION

HIK VISION DS-2DP0818ZIX Bedienungsanleitung

HIK VISION

HIK VISION TURBO HD DS-2CE56D5T Bedienungsanleitung

HIK VISION

HIK VISION TURBO HD D8T PIR Series Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD6362F-I Benutzerhandbuch

HIK VISION

HIK VISION DS-2CC102P-IRA Bedienungsanleitung

HIK VISION

HIK VISION XM61 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-2XS6A25G0-I/CH20S40 Einrichtungshandbuch

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
