HIK VISION Turbo HD D8T Series Bedienungsanleitung

TURBO HD

D8T POC Series Dome

Camera

User Manual

Thank you for purchasing our product. If there are any

questions, or requests, do not hesitate to contact the

dealer.

This manual applies to the models below:

Type

Model

Type I Camera

DS-2CE56D8T-VPIT3ZE

Type II Camera

DS-2CE5AD8T-VPIT3ZE

Type III Camera

DS-2CE56D8T-VPITE

Type IV Camera

DS-2CE56D8T-ITZE

This manual may contain technical incorrect places or

printing errors, and the content is subject to change

without notice. The updates will be added to the new

version of this manual. We will readily improve or

update the products or procedures described in the

manual.

0100001081224

Regulatory Information

FCC Information

Please take attention that changes or modification not

expressly approved by the party responsible for

compliance could void the user’s authority to operate

the equipment.

FCC compliance: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection

against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European

standards listed under the Low Voltage Directive

2014/35/EU, the EMC Directive 2014/30/EU.

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new

equipment, or dispose of it at designated collection

points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains

a battery that cannot be disposed of as

unsorted municipal waste in the European

Union. See the product documentation for

specific battery information. The battery is

marked with this symbol, which may

include lettering to indicate cadmium (Cd), lead (Pb),

or mercury (Hg). For proper recycling, return the

battery to your supplier or to a designated collection

point. For more information, see:

www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

Safety Instruction

These instructions are intended to ensure that user can

use the product correctly to avoid danger or property

loss.

The precaution measure is divided into “Warnings” and

“Cautions”.

Warnings: Serious injury or death may occur if any of

the warnings are neglected.

Cautions: Injury or equipment damage may occur if any

of the cautions are neglected.

Warnings

In the use of the device, you must be in strict

compliance with the electrical safety regulations of

the nation and region.

Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 12

VDC according to the IEC60950-1 standard. Refer to

technical specifications for detailed information.

Do not connect multiple devices to one power

adapter to avoid over-heating or a fire hazard caused

by overload.

Make sure that the plug is firmly connected to the

power socket.

Make sure that the device is firmly fixed if wall

mounting or ceiling mounting is adopted.

If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cord, and

then contact the service center.

Never attempt to disassemble the camera by

unprofessional personal.

Cautions

Do not drop the camera or subject it to physical

shock.

Do not touch senor modules with fingers.

If cleaning is necessary, use clean cloth with a bit of

ethanol and wipe it gently.

Do not aim the camera at the sun or extra bright

places.

The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that

the surface of sensor will not be exposed to the laser

beam.

Do not expose the device to high electromagnetic

radiation or extremely hot, cold, dusty or damp

environment.

To avoid heat accumulation, good ventilation is

required for the operating environment.

Keep the camera away from liquid while in use for

non-water-proof device.

While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

Warnings Follow

these safeguards to

prevent serious injury

or death.

Cautions Follow these

precautions to prevent

potential injury or

material damage.

1Introduction

1.1 Product Features

The main features are as follows:

High performance CMOS sensor

IR cut filter with auto switch

OSD menu with configurable parameters

Auto white balance

SMART IR

Power over coaxial

3-Axis adjustment

1.2 Overview

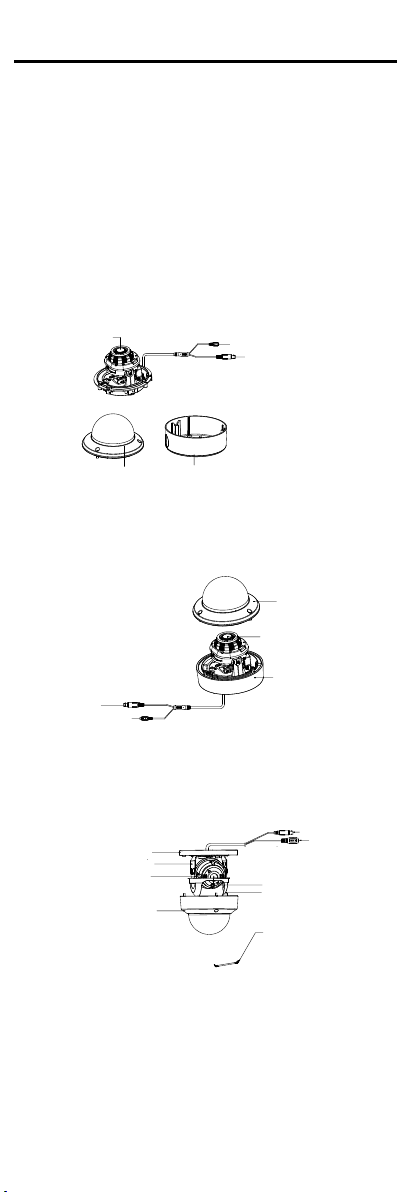

1.2.1 Overview of Type I Camera

INDC12V

Bubble

Lens

Back Box

Power Cord

Video Cable

Figure 1-1 Overview of Type I Camera

1.2.2 Overview of Type II Camera

IN DC12V

Bubble

Lens

Back Box

Video Cable

Power Cord

Figure 1-2 Overview of Type II Camera

1.2.3 Overview of Type III Camera

Bubble

Mounting Base

Pan Adjusting Screw

Tilt Adjusting Screw

Video Cable

Power Cord

Safety

Rope

Lens

Black Liner

Figure 1-3 Overview of Type III Camera

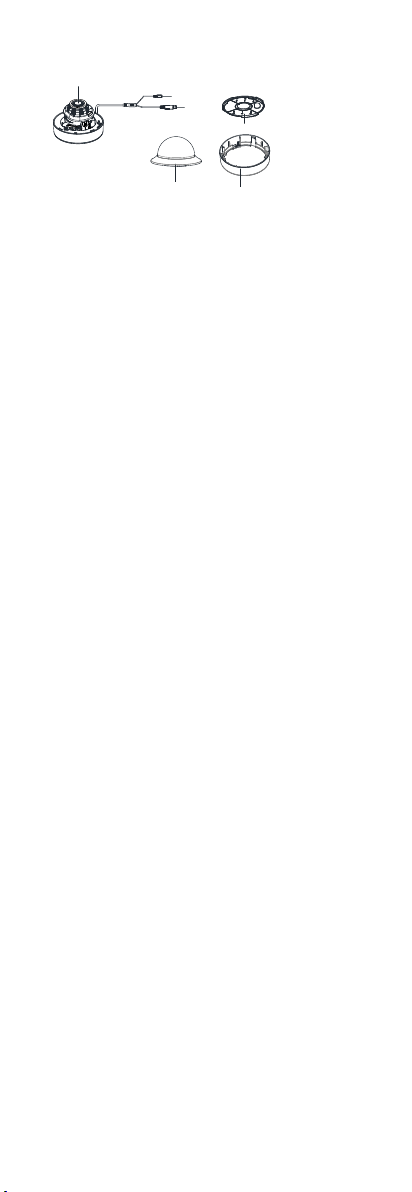

1.2.4 Overview of Type IV Camera

IN DC12V

Lens

Bubble Back Box

Adapter Plate

Power Cord

Video Cable

Figure 1-4 Overview of Type IV Camera

2Installation

Before you start:

Make sure that the device in the package is in good

condition and all the assembly parts are included.

Make sure that all the related equipment is power-off

during the installation.

Check the specification of the products for the

installation environment.

Check whether the power supply is matched with

your required output to avoid damage.

Make sure the wall is strong enough to withstand

three times the weight of the camera and the

mounting.

If the wall is cement, insert expansion screws before

installing the camera. If the wall is wooden, use

self-tapping screw to secure the camera.

If the product does not function properly, contact

your dealer or the nearest service center. Do NOT

disassemble the camera for repair or maintenance by

yourself.

2.1 Ceiling Mounting of Type I/Type II Camera

Before you start:

The installation steps of Type I and Type II Camera are

similar and the following takes Type I as an example to

describe the steps.

Steps:

1. Paste the drill template to where you want to install

the camera.

2. Drill screw holes and the cable hole (optional) on

the ceiling according to the drill template.

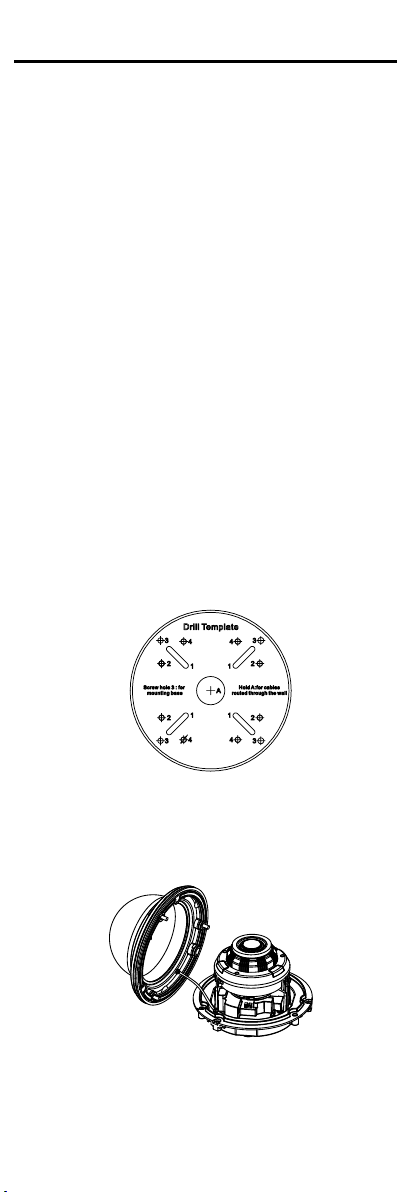

Figure 2-1 The Drill Template

Note:

Drill the cable hole (hole A) when adopting the wall

outlet to route the cable.

3. Loosen the screws to remove the bubble.

Figure 2-2 Remove the Bubble

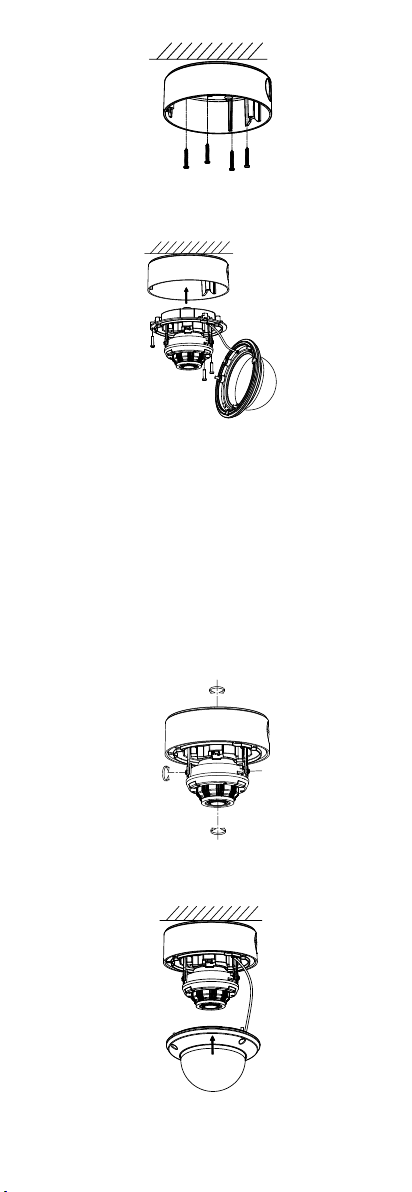

4. Secure the back box on the ceiling with four PA4 ×

25 screws.

Figure 2-3 Secure the Back Box

5. Attach the camera to the back box and secure them

with supplied screws.

Figure 2-4 Attach the Camera

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement wall/ceiling, expansion bolts are

required to install the camera. For wooden

wall/ceiling, self-tapping screws are required.

6. Route the cables through the cable hole, or the side

opening.

7. Connect the corresponding cables, such as power

cord, and video cable.

8. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle.

Pan Position

0° to 355°

Tilt Position

0° to 75°

Rotation Position

0° to 355°

Figure 2-5 3-Axis Adjustment

9. Install the bubble back to the camera.

Figure 2-6 Install the Bubble Back

10. Tighten the screws on the bubble of the dome

camera to finish the installation.

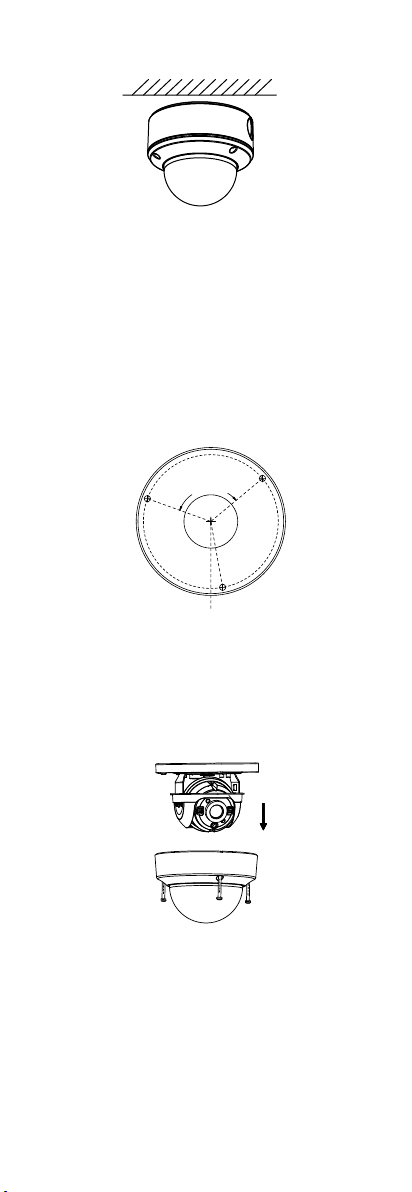

Figure 2-7 Finish the Installation

2.2 Ceiling Mounting of Type III Camera

Before you start:

The steps of ceiling mounting and wall mounting are

similar. Following takes ceiling mounting as an example

to describe the steps.

Steps:

1. Paste the drill template to where you want to install

the camera.

2. Drill screw holes and the cable hole (optional) on

the ceiling according to the drill template.

Drill Template

Hole A: for cables routed through the ceiling

screw hole 1: fo rMo untin g Base

120°

Figure 2-8 The Drill Template

Note:

Drill the cable hole (hole A) when adopting the ceiling

outlet to route the cable.

3. Loosen the screws to remove the bubble. The

bubble and the mounting base are connected by the

safety rope, be careful when you disassemble the

camera.

Figure 2-9 Remove the Bubble

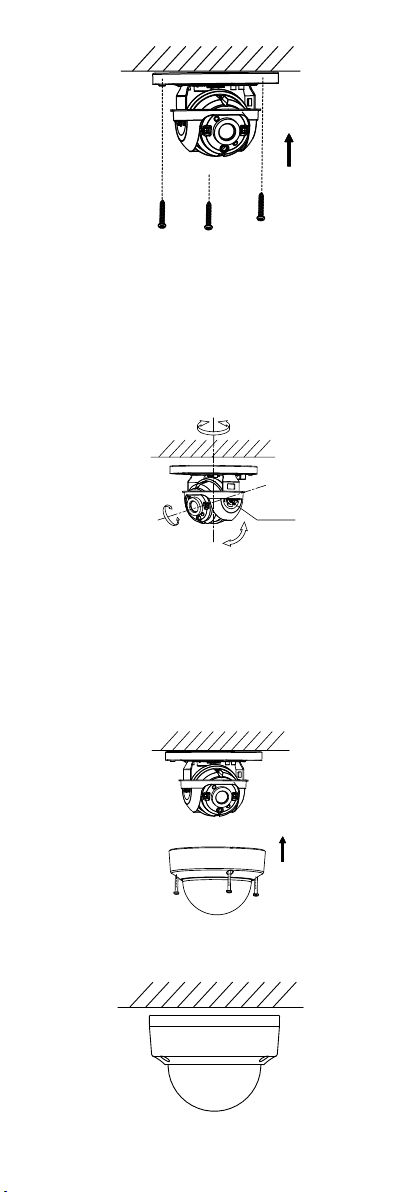

4. Install the mounting base to the ceiling with

supplied screws.

Figure 2-10 Install the Mounting Base to Ceiling

5. Route the cables through the cable hole, or the side

opening.

6. Connect the corresponding cables, such as power

cord, and video cable.

7. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle.

T Screw

Pan Position

0° to 355°

Tilt Position

0° to 75°

Rotation Position

0° to 355°

Figure 2-11 3-axis Adjustment

1). Loosen the tilt adjusting screw to adjust the tilt

position [0° to 75°].

2). Hold the black liner to adjust the pan position [0°

to 355°].

3). Hold the camera body to adjust the rotation

position [0° to 355°].

8. Install the bubble back.

Figure 2-12 Install the Bubble Back

9. Tighten screws to finish the installation.

Figure 2-13 Finish the Installation

2.3 Ceiling Mounting of Type IV Camera

Steps:

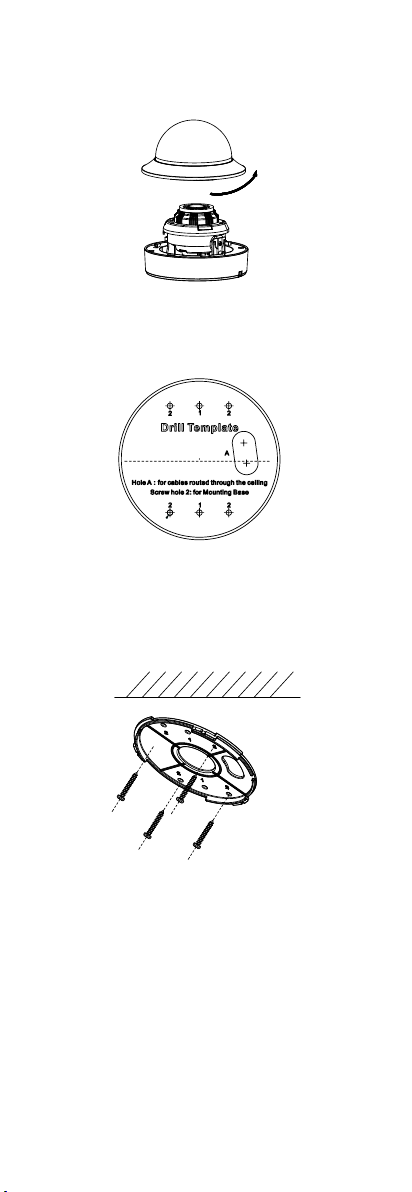

1. Disassemble the bubble by anti-clockwise rotating

the camera.

Figure 2-14 Disassemble the Camera

2. Paste the dill template to the ceiling.

3. Drill the screw holes and cable hole (optional) on

the ceiling according to the drill template.

Figure 2-15 The Drill Template

Note:

Drill the cable hole, when adopting the ceiling outlet to

route cables.

4. Secure the adapter plate on the ceiling with four

PA4 × 25 screws.

Figure 2-16 Secure the Adapter Plate

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement ceiling, expansion bolts are required to

install the camera. For wooden ceiling, self-tapping

screws are required.

5. Route the cables through the cable hole, or the side

opening.

6. Secure the camera on the adapter plate.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HIK VISION Sicherheitskamera Handbücher

HIK VISION

HIK VISION DS-2AE7230T Bedienungsanleitung

HIK VISION

HIK VISION D0T POC C Series Bedienungsanleitung

HIK VISION

HIK VISION DS-2CV2046G0-IDW Bedienungsanleitung

HIK VISION

HIK VISION UD04331B Bedienungsanleitung

HIK VISION

HIK VISION HWI-T621H-Z Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE16D1T-IR Bedienungsanleitung

HIK VISION

HIK VISION HiWatch DS-I112 Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD2423G0-I Bedienungsanleitung

HIK VISION

HIK VISION iDS-TCM203-A Bedienungsanleitung

HIK VISION

HIK VISION PanoVu Mini Series Bedienungsanleitung

HIK VISION

HIK VISION THC-B227-LMS Bedienungsanleitung

HIK VISION

HIK VISION IR Network Speed Dome Bedienungsanleitung

HIK VISION

HIK VISION DS-2TD2 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-2CC11D3S-IR Bedienungsanleitung

HIK VISION

HIK VISION DS?2CC5173P?VF Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD7133-E Bedienungsanleitung

HIK VISION

HIK VISION E-series Bedienungsanleitung

HIK VISION

HIK VISION DS-2TD6267-75C4L/W Bedienungsanleitung

HIK VISION

HIK VISION D8T Series Bedienungsanleitung

HIK VISION

HIK VISION IR Smart Speed Dome Bedienungsanleitung

HIK VISION

HIK VISION DS-2TD2137T-4/QY Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD2H85FWD-IZS Bedienungsanleitung

HIK VISION

HIK VISION DS-2CC5197P-DG1 Bedienungsanleitung

HIK VISION

HIK VISION DS-2TD4228T-7/S2 Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
