D8T Box Camera

User Manual

Thank you for purchasing our product. If there are any

questions, or requests, do not hesitate to contact the

dealer.

This manual applies to the models below:

Model

DS-2CC12D8T-AMM

This manual may contain technical incorrect places or

printing errors, and the content is subject to change

without notice. The updates will be added to the new

version of this manual. We will readily improve or

update the products or procedures described in the

manual.

0100001070801

Regulatory Information

FCC Information

Please take attention that changes or modification not

expressly approved by the party responsible for

compliance could void the user’s authority to operate

the equipment.

FCC compliance: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection

against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European

standards listed under the Low Voltage Directive

2014/35/EU, the EMC Directive 2014/30/EU.

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new

equipment, or dispose of it at designated collection

points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a

battery that cannot be disposed of as

unsorted municipal waste in the European

Union. See the product documentation for

specific battery information. The battery is

marked with this symbol, which may

include lettering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the battery

to your supplier or to a designated collection point. For

more information see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

Warning

This is a class A product. In a domestic environment this

product may cause radio interference in which case the

user may be required to take adequate measures.

Safety Instruction

These instructions are intended to ensure that user can

use the product correctly to avoid danger or property

loss.

The precaution measure is divided into “Warnings” and

“Cautions”.

Warnings: Serious injury or death may occur if any of

the warnings are neglected.

Cautions: Injury or equipment damage may occur if any

of the cautions are neglected.

Warnings

In the use of the device, you must be in strict

compliance with the electrical safety regulations of

the nation and region.

Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 12

VDC according to the IEC60950-1 standard. Refer to

technical specifications for detailed information.

Do not connect multiple devices to one power

adapter to avoid over-heating or a fire hazard caused

by overload.

Make sure that the plug is firmly connected to the

power socket.

Make sure that the device is firmly fixed if wall

mounting or ceiling mounting is adopted.

If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cord, and

then contact the service center.

Never attempt to disassemble the camera by

unprofessional personal.

Cautions

Do not drop the camera or subject it to physical

shock.

Do not place the camera in extremely hot, cold (the

operating temperature shall be -40°C to 60°C), dusty

or damp locations, and do not expose it to high

electromagnetic radiation.

Do not touch senor modules with fingers.

If cleaning is necessary, use clean cloth with a bit of

ethanol and wipe it gently.

Do not aim the camera at the sun or extra bright

places.

The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that

the surface of sensor will not be exposed to the laser

beam.

Do not expose the device to high electromagnetic

radiation or extremely hot, cold, dusty or damp

environment.

To avoid heat accumulation, good ventilation is

required for the operating environment.

Warnings Follow

these safeguards to

prevent serious injury

or death.

Cautions Follow these

precautions to prevent

potential injury or

material damage.

Keep the camera away from liquid while in use for

non-water-proof device.

While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

Mark Description

Table 0-1 Mark Description

Mark

Description

DC Voltage

AC Voltage

1Introduction

1.1 Product Features

The camera is applicable for indoor conditions.

The main features are as follows:

High performance CMOS sensor

Low illumination: 0.005 Lux @ (F1.2, AGC ON)

Auto gain control

120 dB true WDR

OSD menu

Internal synchronization

1.2 Overview of the Covert Camera

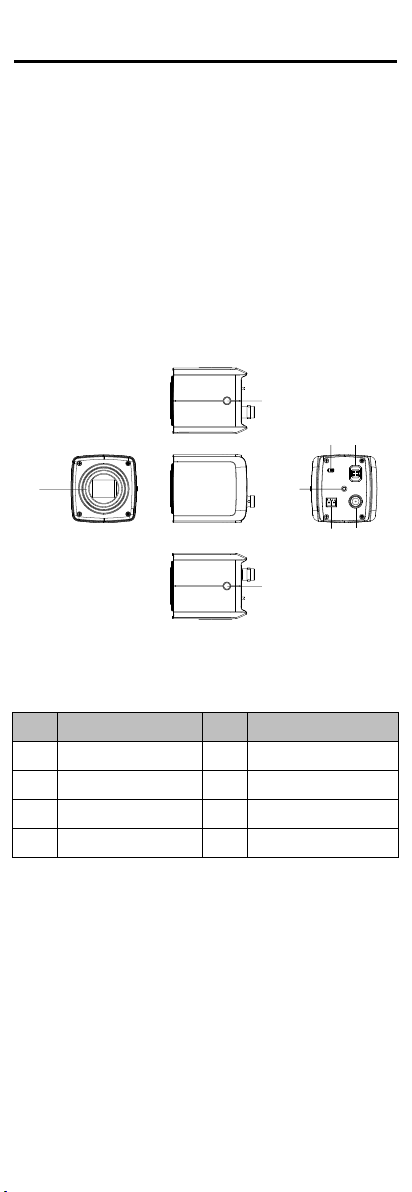

Figure 1-1 Box Camera’s Overview

Table 1-1 Box Camera Description

No.

Description

No.

Description

Lens Interface

Lock Screw

Dial Switch

Lens Socket

GND

Power Interface

Video Interface

2Installation

2.1 Installation Preparation

Before you start:

Make sure that the device in the package is in good

condition and all the assembly parts are included.

Make sure that all the related equipment is power-off

during the installation.

Check the specification of the products for the

installation environment.

Check whether the power supply is matched with

your required output to avoid damage.

Make sure the wall is strong enough to withstand

three times the weight of the camera and the

bracket.

If the wall is cement, insert expansion screws before

installing the camera. If the wall is wooden, use

self-tapping screw to secure the camera.

If the product does not work properly, contact your

dealer or the nearest service center. Do NOT

disassemble the camera for repair or maintenance by

yourself.

2.2 Installing the Lens

Before you start:

You should purchase a lens first.

Steps:

1. Rotate the lens clockwise onto the camera module

tightly.

Clockwise

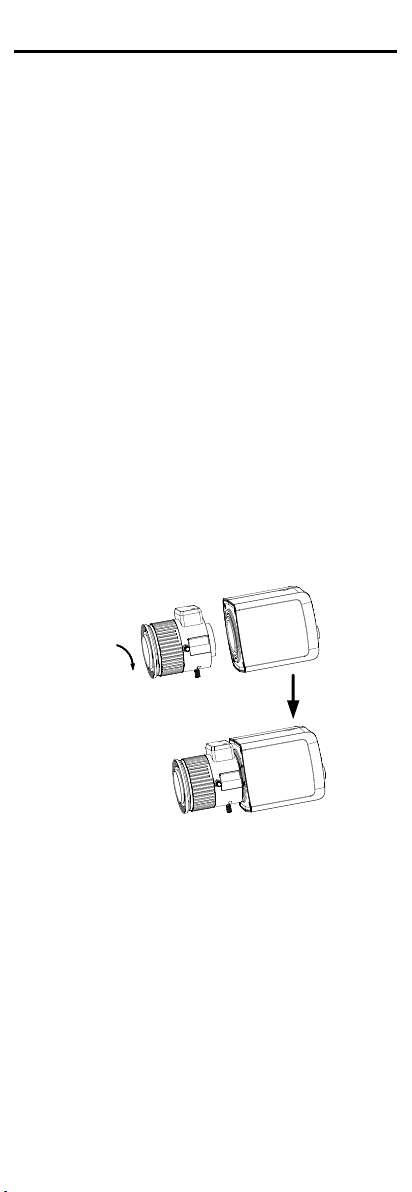

Figure 2-1 Installing the Lens

2. Insert the cable attached on the lens to the lens

socket to finish the lens installation.

3. Connect the corresponding power cord and video

cable.

4. Power on the camera to view the image on the

monitor.

Note:

Do not pull out the cable attached on the lens when

the power is on.

3Menu Description

Purpose:

Call the menu by clicking icon on the PTZ Control

interface, or call preset No.95.

Steps:

1. Connect the camera with the TVI DVR, and the

monitor, shown as the figure 3-1.

Camera

DVR/TVI DVR

Monitor

Figure 3-1 Connection

1. Power on the analog camera, TVI DVR, and the

monitor to view the image on the monitor.

2. Click PTZ Control to enter the PTZ Control interface.

3. Call the camera menu by clicking icon, or call

preset No. 95.

BRIGHTNESS

MAIN MENU

FORMAT

LANGUAGE

DAY NIGHT

VIDEO

SETTINGS

FUNC

RESET

SAVE & EXIT

PRIVACY

EXPOSURE MODE

AGC

SENSE UP

MODE

RETURN

MODE

RETURN

CONTRAST

SHARPNESS

COLOR GAIN

3D DNR

MIRROR

RETURN

MOTION

CAM ID

RETURN

SHUTTER

LENS

Figure 3-2 Main Menu Overview

4. Click the direction arrow to control the camera.

(1) Click up/down direction button to select the

item.

(2) Click Iris + to confirm the selection.

(3) Click left/right direction button to adjust the

value of the selected item.

3.1 FORMAT

PAL (Phase Alternating Lines)

PAL is a color encoding system for analog television

used in broadcast television systems in most countries.

NTSC: (National Television System Committee)

NTSC is the analog television system that is used in

most of North America, parts of South America,

Myanmar, South Korea, etc.

3.2 LANGUAGE

Supports English, and Chinese.

3.3 MAIN MENU

3.3.1 AE (AUTO EXPOSURE)

Auto Exposure describes the brightness-related

parameters, which can be adjusted by LENS, SHUTTER,

BRIGHTNESS, EXPOSURE MODE, AGC, and SENSE UP.

EXPOSURE

LENS

SHUTTER

BRIGHTNESS

EXPOSURE MODE

AGC

SENSE UP

RETURN

MANUAL

AUTO

GLOBAL

MIDDLE

Figure 3-3 AE

LENS

MANUAL and DC modes are slectable.

MANUAL: You can control iris manuallly.

DC: Iris is automatically controlled.

SHUTETR

Shutter denotes the speed of the shutter

Under the MANUAL mode of LENS, only AUTO is

available, which means the shutter speed is controlled

automatically

PAL: Under the DC mode of LENS, 1/25 s, 1/50 s, FLK

1/200 s 1/400 s, 1/1K s, 1/2K s, 1/10K s, and 1/50K s are

available.

NTSC: Under the DC mode of LENS, 1/30 s, 1/60 s, FLK,

1/240s, 1/480 s, 1/1K s, 1/2K s, 1/10K s, and 1/50K s.

BRIGHTNESS

Brightness refers to the brightness of the image.

You can set the brightness value from 1 to 10 to darken

or brighten the image. The higher the value, the

brighter the image is.

EXPOSURE MODE

You can set the EXPOSURE MODE as GLOBAL, BLC, and

WDR.

GLOBAL

GLOBAL refers to the normal exposure mode which

adjusts lighting distribution, variations, and

non-standard processing.

BLC (Backlight Compensation)

BLC (Backlight Compensation) compensates light to the

object in the front to make it clear, but this may cause

the over-exposure of the background where the light is

strong.

When BLC is selected as the exposure mode, the BLC

level can be adjusted from 0 to 8.

WDR (Wide Dynamic Range)

The wide dynamic range helps the camera provide clear

images even under backlight circumstances. WDR

balances the brightness level of the whole image and

provides clear images with details.

AGC (Auto Gain Control)

It optimizes the clarity of the image in poor light

conditions. The GAIN level can be set as HIGH, MIDDLE,

or LOW. Select OFF to disable the GAIN function.

Note:

The noise will be amplified when the GAIN is on.

SENSE UP

Sense up increases the exposure on a signal frame,

which makes a camera more sensitive to light, so it can

produce images even in low lux conditions. You can set

the SENS-UP as OFF or AUTO according to different light

conditions.

The SENS-UP function will atomically adjust itself to x2,

x4, x6, x8, x10, x12, x14, and x16 according to the

different light conditions.

3.3.2 WB (White Balance)

White balance, the white rendition function of the

camera, is to adjust the color temperature according to

the environment. It can remove unrealistic color casts in

the image. You can set WB mode as ATW, or MWB.

ATW (Aoto Tracking White Balance)

Under ATW mode, white balance is being adjusted

automatically according to the color temperature of the

scene illumination.

MWB (Manual White Balance)

You can set the R GAIN/B GAIN value from 1 to 255 to

adjust the shades of red/blue color of the image.

MODE

R GAIN

B GAIN

RETURN

MWB

Figure 3-4 MWB MODE

3.3.3 DAY NIGHT

Color, BW (Black White), and AUTO are selectable for

DAY and NIGHT switches.

DAY NIGHT

MODE

RETURN

AUTO

Figure 3-5 DAY NIGHT

COLOR

The image is colorized in day mode all the time.

B/W

The image is black and white all the time.

AUTO

Automatically switch Color or BW (Black and White)

according to actual scene brightness.

3.3.4 VIDEO SETTING

Move the cursor to VIDEO SETTING and click Iris+ to

enter the submenu. CONTRAST, SHARPNESS, COLOR

GAIN, 3D DNR, and MIRROR are adjustable.

VIDEO SETTING

CONTRAST

SHARPNESS

COLOR GAIN

3D DNR

MIRROR

RETURN

DEFAULT

Figure 3-6 VIDEO SETTING

CONTRAST

This feature enhances the difference in color and light

between parts of an image. You can set the CONTRAST

value from 1 to 10.

SHARPNESS

Sharpness determines the amount of detail an imaging

system can reproduce. You can set the SHARPNESS

value from 1 to 10.

COLOR GAIN

Adjust this feature to change the saturation of the color.

The value ranges from 1 to 10.

3D DNR (Digital Noise Reduction)

The 3D DNR function can decrease the noise effect,

especially when capturing moving images in poor light

conditions and delivering more accurate and sharp

image quality. You can set the DNR value from 1 to 10.

MIRROR

DEFAULT, H, V, and HV are selectable for mirror.

DEFAULT: The mirror function is disabled.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HIK VISION Sicherheitskamera Handbücher

HIK VISION

HIK VISION 5 Inch Network High Speed Dome Bedienungsanleitung

HIK VISION

HIK VISION I0M1000 Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD2063G0-I Bedienungsanleitung

HIK VISION

HIK VISION DS-2AE7230TI-A Bedienungsanleitung

HIK VISION

HIK VISION IDS-2CD7A46G0-IZHSY 8-32 Bedienungsanleitung

HIK VISION

HIK VISION TurboHD DS-2CE16D0T-WL5 Bedienungsanleitung

HIK VISION

HIK VISION TURBO HD DS-2CE16C0T-IT1F Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD2712F-I Benutzerhandbuch

HIK VISION

HIK VISION TurboHD DS-2CE38D8T-PIR Bedienungsanleitung

HIK VISION

HIK VISION HWI-T621H-Z Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE56D1T-IRM Bedienungsanleitung

HIK VISION

HIK VISION TURBO HD DS-2CE56H0T-IT1F Bedienungsanleitung

HIK VISION

HIK VISION DS-2DF1-512 Bedienungsanleitung

HIK VISION

HIK VISION TURBO HD D3T Series Bedienungsanleitung

HIK VISION

HIK VISION AE-VC1B11-ISF Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE16D0T-EXLF Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD2012-I Benutzerhandbuch

HIK VISION

HIK VISION DS-2CD2042WD-I Bedienungsanleitung

HIK VISION

HIK VISION DS-2XM6122FWD-I Bedienungsanleitung

HIK VISION

HIK VISION DS-2TD2628-7/QA/GLT Bedienungsanleitung

HIK VISION

HIK VISION DS-2TD2628-10/QA/GLT Bedienungsanleitung

HIK VISION

HIK VISION TURBO HD 5 MP Bedienungsanleitung

HIK VISION

HIK VISION DS-2SE7C432MW-AEB Bedienungsanleitung

HIK VISION

HIK VISION DS-2TD6267-75C4L/WY Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
