HIK VISION DS-2CE12DFT-PIRXOF28 Bedienungsanleitung

2 MP PIR Siren

Full Time Color Camera

User Manual

Thank you for purchasing our product. If there are any

questions, or requests, do not hesitate to contact the

dealer.

This manual applies to the models below:

Type

Model

Type I Camera

DS-2CE12DFT-PIRXOF

DS-2CE12DFT-PIRXOF28

Type II Camera

DS-2CE72DFT-PIRXOF

DS-2CE72DFT-PIRXOF28

This manual may contain several technical mistakes or

printing errors, and the content is subject to change

without notice. The updates will be added to the new

version of this manual. We will readily improve or

update the products or procedures described in the

manual.

01000020201211

Regulatory Information

FCC Information

Please take attention that changes or modification not

expressly approved by the party responsible for

compliance could void the user’s authority to operate

the equipment.

FCC compliance: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection

against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European

standards listed under the Low Voltage Directive

2014/35/EU, the EMC Directive 2014/30/EU, the RoHS

Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new

equipment, or dispose of it at designated collection

points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a

battery that cannot be disposed of as

unsorted municipal waste in the European

Union. See the product documentation for

specific battery information. The battery is

marked with this symbol, which may

include lettering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the battery

to your supplier or to a designated collection point. For

more information, see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

Warning

This is a class A product. In a domestic environment this

product may cause radio interference in which case the

user may be required to take adequate measures.

Safety Instruction

Warnings

In the use of the device, you must be in strict

compliance with the electrical safety regulations of

the nation and region.

Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 12

VDC according to the IEC60950-1 standard and

IEC62368-1 standard. Refer to technical specifications

for detailed information.

Do not connect multiple devices to one power

adapter to avoid over-heating or a fire hazard caused

by overload.

The socket-outlet shall be installed near the

equipment and shall be easily accessible.

Make sure that the plug is firmly connected to the

power socket.

A readily accessible disconnect device shall be

incorporated external to the equipment.

An all-pole mains switch shall be incorporated in the

electrical installation of the building.

If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cord, and

then contact the service center.

Never attempt to disassemble the camera by

unprofessional personal.

Cautions

No naked flame sources, such as lighted candles,

should be placed on the equipment.

Install the equipment according to the instructions in

this manual.

To prevent injury, this equipment must be securely

attached to the floor/wall in accordance with the

installation instructions.

Do not touch the sharp edges or corners.

Do not drop the camera or subject it to physical

shock.

Do not touch senor modules with fingers.

Do not place the camera in extremely hot, cold (the

operating temperature shall be -40°C to 60°C), dusty

or damp locations, and do not expose it to high

electromagnetic radiation.

If cleaning is necessary, use clean cloth with a bit of

ethanol and wipe it gently.

Do not aim the camera at the sun or extra bright

places.

The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that

the surface of sensor will not be exposed to the laser

beam.

Do not expose the device to high electromagnetic

radiation or extremely hot, cold, dusty or damp

environment.

To avoid heat accumulation, good ventilation is

required for the operating environment.

Keep the camera away from liquid while in use for

non-water-proof device.

While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

1Introduction

1.1 Product Features

The main features are as follows:

High performance CMOS sensor

OSD menu with configurable parameters

24-hour color image

Smart light

PIR detection

Built-in speaker

1.2 Overview

1.2.1 Overview of Type I Camera

Power Cord

Video Cable

Alarm Cable

Switch Button

Lens

PIR

Siren

Main Body

Bracket

Figure 1-1 Overview of Type I Camera

Note:

Press and hold the switch button for 5 seconds to

switch the video output. Four kinds of video outputs

are available: TVI, AHD, CVI, and CVBS.

1.2.2 Overview of Type II Camera

Enclosure

Main Body

Mounting

Base

Switch Button

Alarm Cable

Video Cable

Power Cord

Lens

PIR

Figure 1-2 Overview of Type II Camera

Note:

Press and hold the switch button for 5 seconds to

switch the video output. Four kinds of video outputs

are available: TVI, AHD, CVI, and CVBS.

2Installation

Before you start

Make sure that the device in the package is in good

condition and all the assembly parts are included.

Make sure that all the related equipment is power-off

during the installation.

Check the specification of the products for the

installation environment.

Check whether the power supply is matched with

your power output to avoid the damage.

Make sure the wall is strong enough to withstand

three times the weight of the camera, and the

mount.

If the wall is cement, insert expansion bolts before

installing the camera. If the wall is wooden, use

self-tapping screws to secure the camera.

If the product does not function properly, contact

your dealer or the nearest service center. DO NOT

disassemble the camera for repair or maintenance by

yourself.

2.1 Installation of Type I Camera

2.1.1 Ceiling/Wall Mounting without Junction Box

Before you start:

The installation of ceiling mounting and wall mounting

are similar. Following takes ceiling mounting as an

example.

Steps:

1. Paste the drill template (supplied) to the place

where you want to install the camera.

2. Drill the screw holes and the cable hole (optional)

on the ceiling according to the drill template.

Template

Side Opening

Screw Hole Ceiling

Outlet

Figure 2-1 Drill Template

Note:

Drill the cable hole, when adopting the ceiling outlet

to route the cable.

3. Route the cables through the cable hole or the side

opening.

4. Attach the bracket to the ceiling and secure the

camera with supplied screws.

Figure 2-2 Attach the Camera to the Ceiling

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement wall/ceiling, expansion bolts are

required to fix the camera. For wooden

wall/ceiling, self-tapping screws are required.

5. Connect the corresponding power cord and video

cable.

6. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle.

Screw B

Screw A

Trim Ring

Rotation Position

[0°to 360°]

Tilt Position

[0°to 180°]

Pan Position

[0°to 360°]

Figure 2-3 3-Axis Adjustment

1). Loosen the trim ring to adjust the pan position

[0° to 360°].

2). Loosen screw A to adjust the tilt position [0° to

180°].

3). Loosen screw B to adjust the rotation position [0°

to 360°].

2.1.2 Ceiling/Wall Mounting with Junction Box

Before you start:

You need to purchase a junction box in advance.

Steps:

1. Paste the drill template on the ceiling/wall.

2. Drill screw holes and the cable hole on the ceiling

according to the drill template.

Figure 2-4 Drill Template of Junction Box

3. Take apart the junction box, and align the screw

holes of the camera with those on the junction

box’s cover.

4. Attach the camera on the junction box’s cover with

supplied screws.

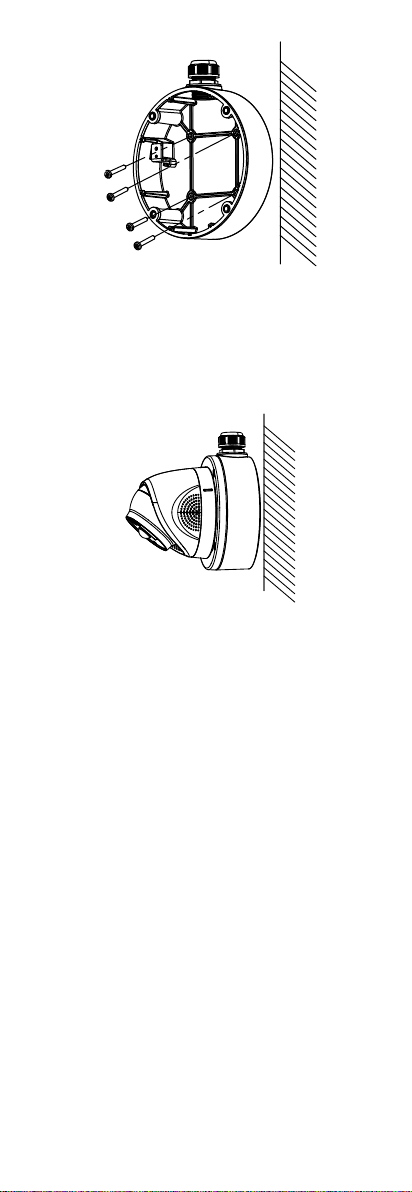

Figure 2-5 Attach the Camera on the Junction Box’s

Cover

5. Secure the junction box’s body on the ceiling/wall

with supplied screws.

Junction Box

Body

Figure 2-6 Secure the Junction Box on the Wall/Ceiling

6. Route the cables through the bottom cable hole or

the side cable hole of the junction box.

7. Combine the junction box cover with its body.

Figure 2-7 Combine the Junction Box Cover with

Body

8. Repeat the step 5 to 6 of 2.1.1 Ceiling/Wall

Mounting without Junction Box to finish the

installation.

2.2 Installation of Type II Camera

2.2.1 Ceiling/Wall Mounting without Junction Box

Before you start:

The installation of ceiling mounting and wall mounting

are similar. Following takes ceiling mounting as an

example.

Steps:

1. Disassemble the camera by rotating the camera to

align the notch to one of the line, as shown in the

figure below.

Notch

Figure 2-8 Dissemble the Camera

2. Pry the mounting base by using a flat object, for

example, a coin.

A Coin

Figure 2-9 Pry the Mounting Base

3. Paste the drill template (supplied) to the place

where you want to install the camera.

Figure 2-10 Drill Template

Note:

Drill the cable hole, when adopting the ceiling outlet

to route the cable.

4. Attach the mounting base to the ceiling and secure

it with supplied screws. For cement ceiling, you

need to install the expansion bolts at first.

Self-tapping Screws

Expansion Bolts

Figure 2-11 Attach the Mounting Base to the Ceiling

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

5. Route the cables through the cable hole, or the side

opening.

6. Install the camera back to the mounting base and

secure it.

Figure 2-12 Install the Camera Back

7. Connect the corresponding cables, such as power

cord, and video cable.

8. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle.

Rotation Position

[0°to 360°]

Pan Position

[0°to 360°]

Tilt Position

[0°to 75°]

Figure 2-13 3-Axis Adjustment

1). Rotate the enclosure to adjust the pan position

[0° to 360°].

2). Move the camera body up and down to adjust

the tilt position [0° to 75°].

3). Rotate the main body to adjust the rotation

position [0° to 360°].

2.2.2 Ceiling/Wall Mounting with Junction Box

Before you start:

You need to purchase a junction box in advance. The

installation of ceiling mounting and wall mounting are

similar. Following takes wall mounting as an example.

Steps:

1. Paste the drill template on the wall.

2. Drill screw holes and the cable hole (optional) on

the wall according to the drill template.

Figure 2-14 Drill Template

Note:

Drill the cable hole, when adopting ceiling outlet to

route the cable.

3. Take apart the junction box, and align the screw

holes of the mounting base with those on the

junction box’s cover.

4. Install the mounting base to the junction box’s cover

with three PM4 screws.

Figure 2-15 Secure screws on the Junction Box’s Cover

5. Secure the junction box’s body on the wall with four

PA4 × 25 screws.

Figure 2-16 Secure the Junction Box’s Body

6. Route the cables through the bottom cable hole, or

the side cable hole of the junction box.

7. Combine the junction box’s cover with its body.

8. Repeat the step 6 to 8 of 2.2.1 Ceiling/Wall

Mounting without Junction Box to finish the

installation.

Figure 2-17 Finish the Installation

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HIK VISION Sicherheitskamera Handbücher

HIK VISION

HIK VISION NETWORK CAMERA Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD2T85FWD-I5 Bedienungsanleitung

HIK VISION

HIK VISION DS-2TD4228T-7/S2 Bedienungsanleitung

HIK VISION

HIK VISION DS-2CC12A1PN-AVFIR3 Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE16CoT-IRPF Bedienungsanleitung

HIK VISION

HIK VISION XM61 Series Bedienungsanleitung

HIK VISION

HIK VISION UD08391B Bedienungsanleitung

HIK VISION

HIK VISION DS-2CV2G26G0-IDW Bedienungsanleitung

HIK VISION

HIK VISION TurboHD DS-2CE56D7T-IT Z Series Bedienungsanleitung

HIK VISION

HIK VISION iDS-2CD7A G0-IZH Series Bedienungsanleitung

HIK VISION

HIK VISION TURBO HD D8T PIR Series Bedienungsanleitung

HIK VISION

HIK VISION PTZ Ultra Series Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE72DF3T-LSE Bedienungsanleitung

HIK VISION

HIK VISION UD.6L0201B2074A01 Bedienungsanleitung

HIK VISION

HIK VISION iDS-2CD71G0-IZS Series Bedienungsanleitung

HIK VISION

HIK VISION DS-2DE5425IWG-4G Bedienungsanleitung

HIK VISION

HIK VISION iDS-2CD8A46G0-IZHS Bedienungsanleitung

HIK VISION

HIK VISION UD04294B Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD2012-I Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD3786G2-IZS Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE12DFT-PIRXOF Bedienungsanleitung

HIK VISION

HIK VISION ColorVu DS-2CE DFT-F Series Bedienungsanleitung

HIK VISION

HIK VISION DS-2TD2137-4/P Bedienungsanleitung

HIK VISION

HIK VISION DS-2DF5274-A Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
