HIK VISION TURBO HD DS-2CS58C2T-S/F Bedienungsanleitung

TURBO HD

Mobile Turret Camera

User Manual

UD00677B

User Manual

Thank you for purchasing our product. If there are any

questions, or requests, please do not hesitate to

contact the dealer.

This manual applies to the models below:

Type

Model

Type I Camera

DS-2CS58C2T-S/F

Type II Camera

DS-2CS58C2T-ITS/F

Type III Camera

DS-2CS58C2T-ITS/C

This manual may contain several technical incorrect

places or printing errors, and the content is subject to

change without notice. The updates will be added to

the new version of this manual. We will readily improve

or update the products or procedures described in the

manual.

0100001060301

Privacy Notice

Surveillance laws vary by jurisdiction. Check all relevant

laws in your jurisdiction before using all this product for

surveillance purpose to ensure that your use of this

product conforms.

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and

found to comply with the limits for a digital device,

pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference when the equipment is operated

in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European

standards listed under the Low Voltage Directive

2014/35/EU, the EMC Directive 2014/30/EU.

2002/96/EC (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new equipment, or

dispose of it at designated collection points. For more

information see: www.recyclethis.info.

2006/66/EC (battery directive): This

product contains a battery that cannot be

disposed of as unsorted municipal waste in

the European Union. See the product

documentation for specific battery

information. The battery is marked with

this symbol, which may include lettering to indicate

cadmium (Cd), lead (Pb), or mercury (Hg). For proper

recycling, return the battery to your supplier or to a

designated collection point. For more information see:

www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

1Introduction

1.1 Product Features

This series of camera adopts high performance sensor and advanced circuit board design technology. It features high

resolution, low distortion, and low noise, etc. It is suitable for surveillance system and image process system.

 Advanced 3-axis design

meets different installation

requirements;

 High performance CMOS

sensor and high resolution

bring high-quality image;

 Low illumination, 0.1

Lux @ (F1.2, AGC ON), 0

Lux with IR;

 Build-in microphone;

 Aviation plug design;

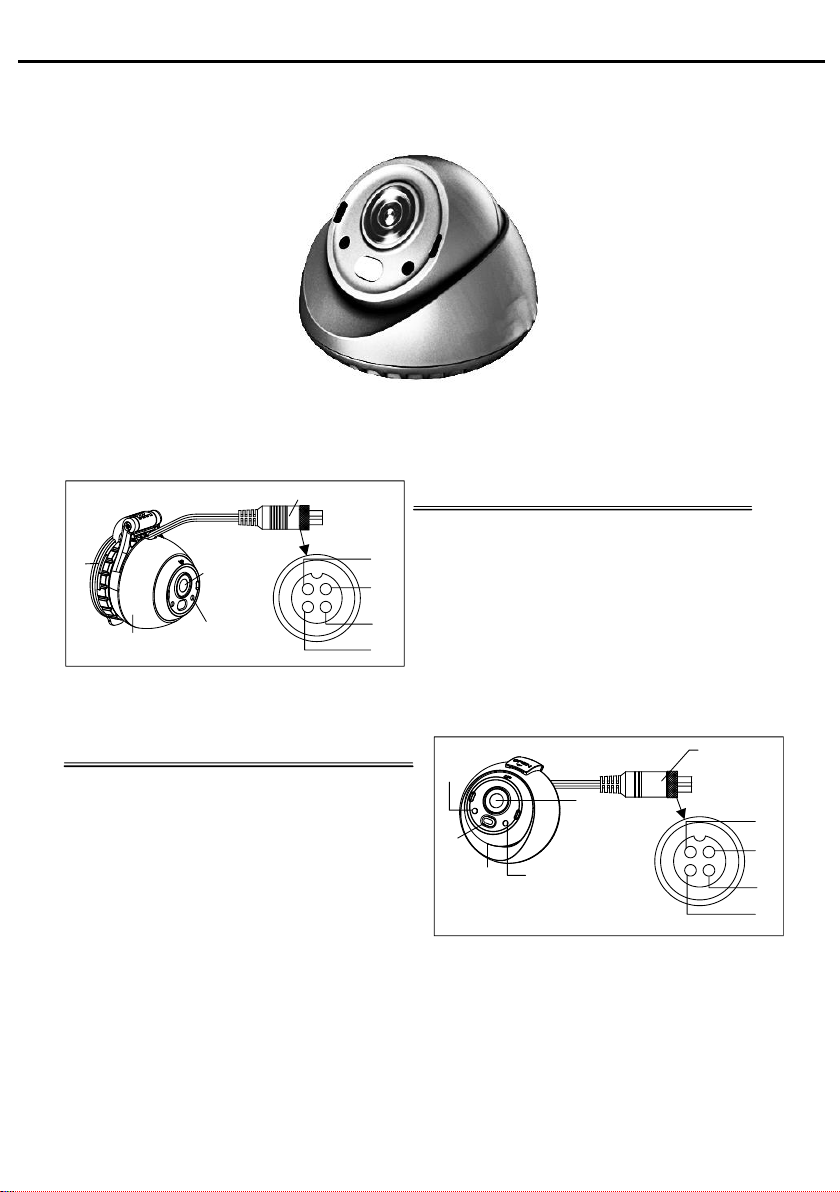

1.2 Overview

1.2.1 Overview of Type I Camera

1. Suction Mounting Base

2. Main Body

3. Aviation Plug

4. Lens

5. Microphone

A: HD TVI

B: GND

C: AUDIO

D: POWER

Description of Type I Camera

1 4

2 3

1.2.2 Overview of Type II Camera

1. Photosensitive Resistor

2. IR LED

3. Main Body

4. Microphone

5. Lens

6. Aviation Plug

A: HD TVI

B: GND

C: AUDIO

D: POWER

Description of Type II Camera 6

1 4

2 3

1.2.3 Overview of Type III Camera

1. Photosensitive Resistor

2. IR LED

3. Main Body

4. Lens

5. Microphone

6. Aviation Plug

A: HD TVI

B: GND

C: AUDIO

D: POWER

Description of Type III Camera

1 4

2 3

2Installation

Before you start:

Please make sure that the device in the package is in good condition and all the assembly parts are included.

Make sure that all the related equipment is power-off during the installation.

Check the specification of the products for the installation environment.

Check whether the power supply is matched with your required output to avoid damage.

Please make sure the wall is strong enough to withstand three times the weight of the camera and the mounting.

If the wall is the cement wall, you need to insert expansion screws before you install the camera. If the wall is the

wooden wall, you can use self-tapping screw to secure the camera.

If the product does not function properly, please contact your dealer or the nearest service center. Do not disassemble

the camera for repair or maintenance by yourself.

2.1 Installation of Type I Camera

Suction Mounting

Secure Screw

Step 1.

Loosen the secure screw of the camera, as

shown in the figure on the left.

Step 2.

Adjust the camera angle.

NOTE:

Here the camera angle is 180°.

180°

Suction Cup Holder

Step 3.

Rotate the suction mounting base according

to the direction of OPEN arrow.

Step 4.

Press the suction mounting base.

Step 5.

Hold and rotate the suction mounting base to

the end according to the direction of CLOSE

arrow to fix the camera.

Step 6.

Secure the camera by tightening the secure

screw.

NOTE:

Take apart the camera by lifting the suction cup

holder.

2.2 Installation of Type II Camera

Disassembling

Step 1.

Open the lock catch of camera according to

the direction of arrow on the catch.

Base Plate

Step 2.

Take apart the base plate.

Step 3.

Apart the main body of the camera from the

enclosure.

Wall Mounting of Type II Camera

NOTE:

Two methods are available for wall mounting of Type II camera. The following procedure is the wall

mounting application with screws/sticker.

37.67

18.84

Step 1.

Attach the drill template (supplied) to the

wall.(wall mounting with screws)

Attach the sticker to the base plate and align

the notches of sticker to the screw holes.

(wall mounting with sticker)

Step 2.

Route the cable through the cable hole. (in

the cable notch)

Cable Notch

Step 3.

Fix the base plate onto the wall with screws.

(wall mounting with screws)

Step 4.

Install the camera onto the wall.

Step 5.

Make sure the enclosure is properly fixed with

the base plate.

NOTE:

Insert the clips of enclosure into the slot of the base

plate.

Rotation Position Range

[0°~360°]

Pan Position Range

[0°~360°]

Tilt Position Range

[0°~60°]

Step 6.

Insert the adjustment ring into the camera to

perform the 3-axis adjustment.

Step 7.

Secure the camera by locking the lock catch.

2.3 Installation of Type III Camera

In-ceiling Mounting

Step 1.

Attach the drill template (supplied) to the

ceiling.

53.2

138.6

130

Fixing Screw

Step 2.

Loosen the fixing screw and take apart the

enclosure.

Step 3.

Route the cable through the cable hole. (in the

cable notch)

Cable Outlet

Step 4.

Fix the base plate onto the wall with screws.

Step 5.

Install the camera onto the ceiling.

Step 6.

Make sure the enclosure is properly fixed with the

base plate.

NOTE:

Insert the clips of enclosure into the slot of the base plate.

Camera

Main Body

Base

Enclosure

Rotation Position Range

[0° to 360°]

Pan Position Range

[-35°to 35°]

Tilt Position Range

[0° to 70°]

Step 7.

Insert the adjustment ring into the camera

to adjust the angle of bracket position.

Step 8.

Secure the camera by install the enclosure

and fix the fixing screw.
