HIK VISION DS-PWA32-K Bedienungsanleitung

How to Setup the Wireless Alarm Kit

ⅠPreparation

Wireless Alarm Kit:.DS-PWA32-K

（Control Panel×1，PIR Detector×1，Magnetic Contact×1，Keyfob×1）

Note:

This document is for 433Mhz wireless Kit reference only.

ⅡDescription for hardware:

1.

Description of Control panel:

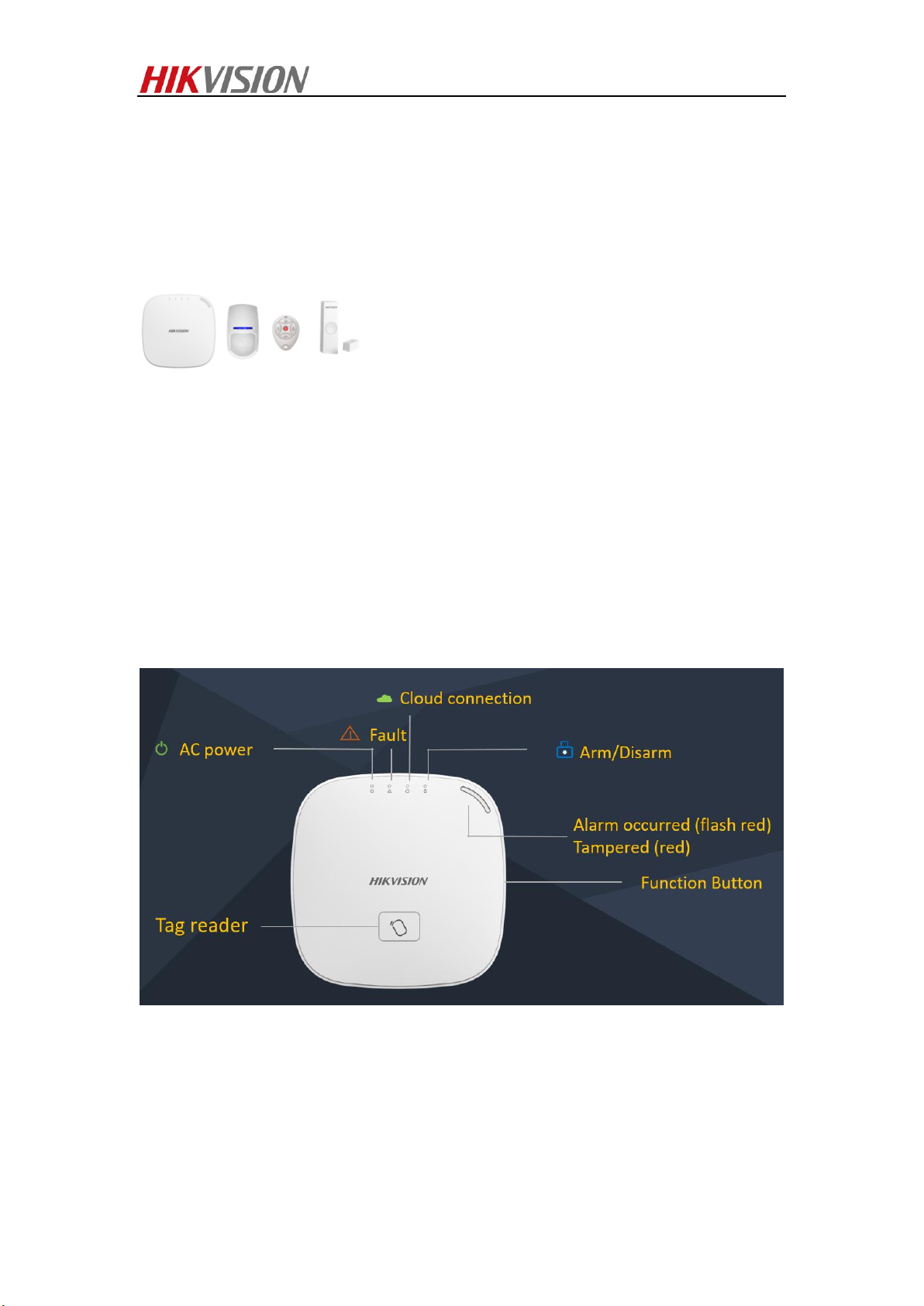

a) For the front panel, there are five lights, and the meanings are showing below:

b) For the rear panel, there are eight ports or buttons, the meanings are showing

below:

①Network Port ②Power Port ③Serial port ④Backup Battery port ⑤AP/Station

Mode switch ⑥SIM model optional ⑦Reset button ⑧Tamper Button

2.

Description of Sensors:

a) PIR sensor: ①Tamper Button ②Battery ③Reset Button

b) Magnetic Contact sensor: ①Tamper & Reset Button ②Battery

3.

Description of Keyfob:

a) Keyfob: ①Home Arm button ②Arm button ③Disarm button ④Clear Button

⑤Emergency button

ⅢConfiguration steps:

Note: For the wireless alarm panel, we can configure through three mainly ways:

Local, Web, Hik-connect, also you can configure the device through the iVMS4200.

A. Local configuration Way:

a) Power the alarm panel and waiting it to run normally;

b) Remove the protection plastic papers to let the battery work;

c) Push the button on the right side on the control panel, then you will enter the

“Add device mode”;

d) Bring the sensors close to the alarm panel and trigger alarms, then the sensor

will be added to the control panel.

Note:

①For the PIR sensor, we need push the button once, and see the red light and blue

light shining in turns. For other sensors, just trigger the alarm.

②This local mode cannot add the Keyfob since the security reason;

③If you add the wrong sensor to alarm panel. You can reset the panel or sensors.

For the alarm panel, you can long press the reset button.

④For the PIR sensor, you can remove the battery, long press the reset button, then

put the battery back. Waiting the sensor until the lights shining normally and loose

the button. Then it will not connect to the panel.

⑤For the Door magnetic contact, you can remove the battery, long press the reset

button, then put the battery back. Waiting the lights goes off and loose the

button. .Then it will not connect to the panel.

B. Web configuration Way:

a) Power the alarm panel and waiting it to run normally;

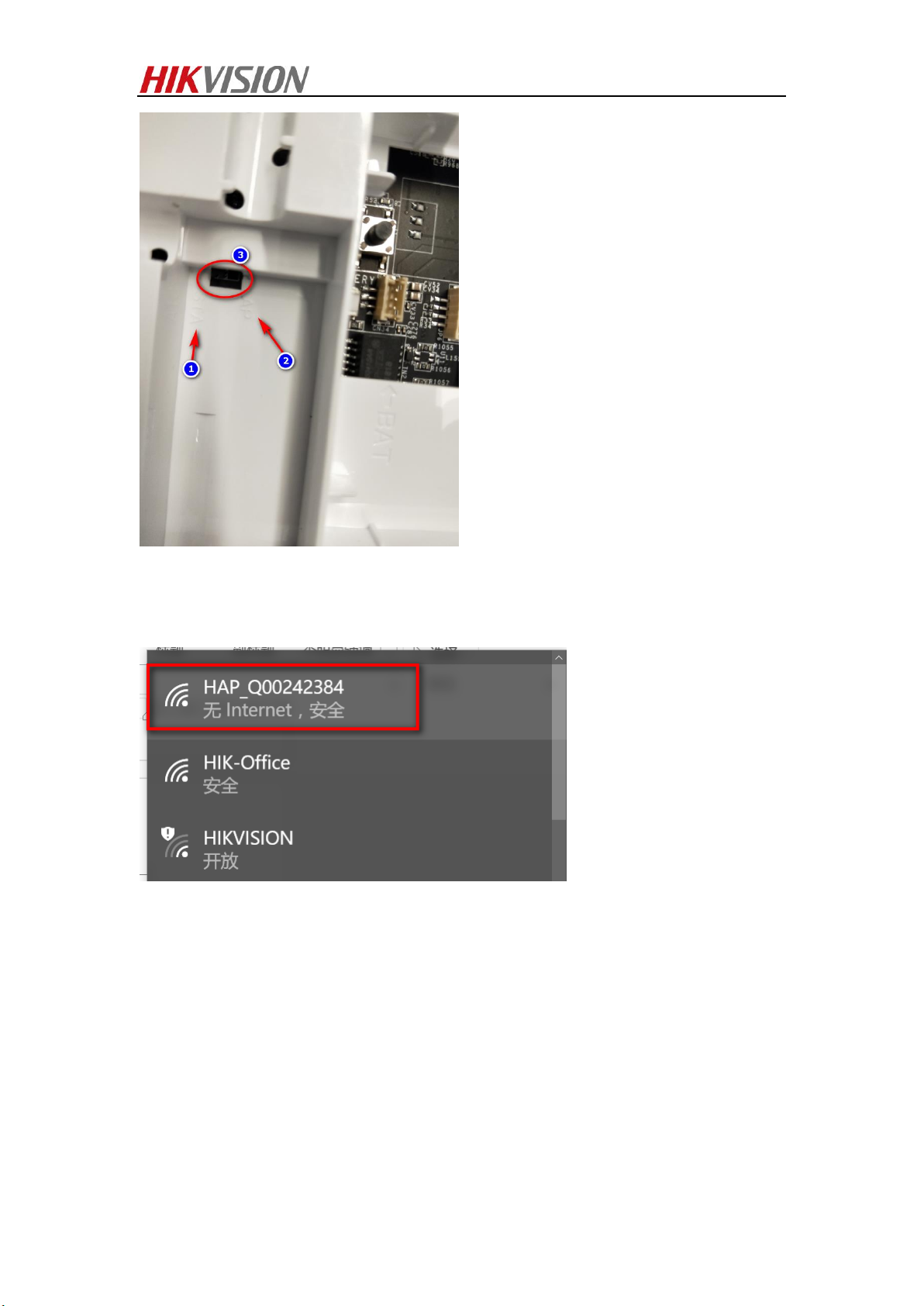

b) Switch the AP/Station (Mark 3) to AP mode(Mark 2).

c) Then you can search the WIFI on your laptop with the name ‘HAP+ SN code’，

connect this WIFI and type the password with ‘AP+VERTIFICATION CODE’.

So the WIFI name is ‘HAPQ00242384’, and the password for this panel is

‘APJLQTDJ’

d) Search the Alarm Panel on SADP, then active it and set the password or IP.

e) Log in the alarm panel through the IE by the IP;

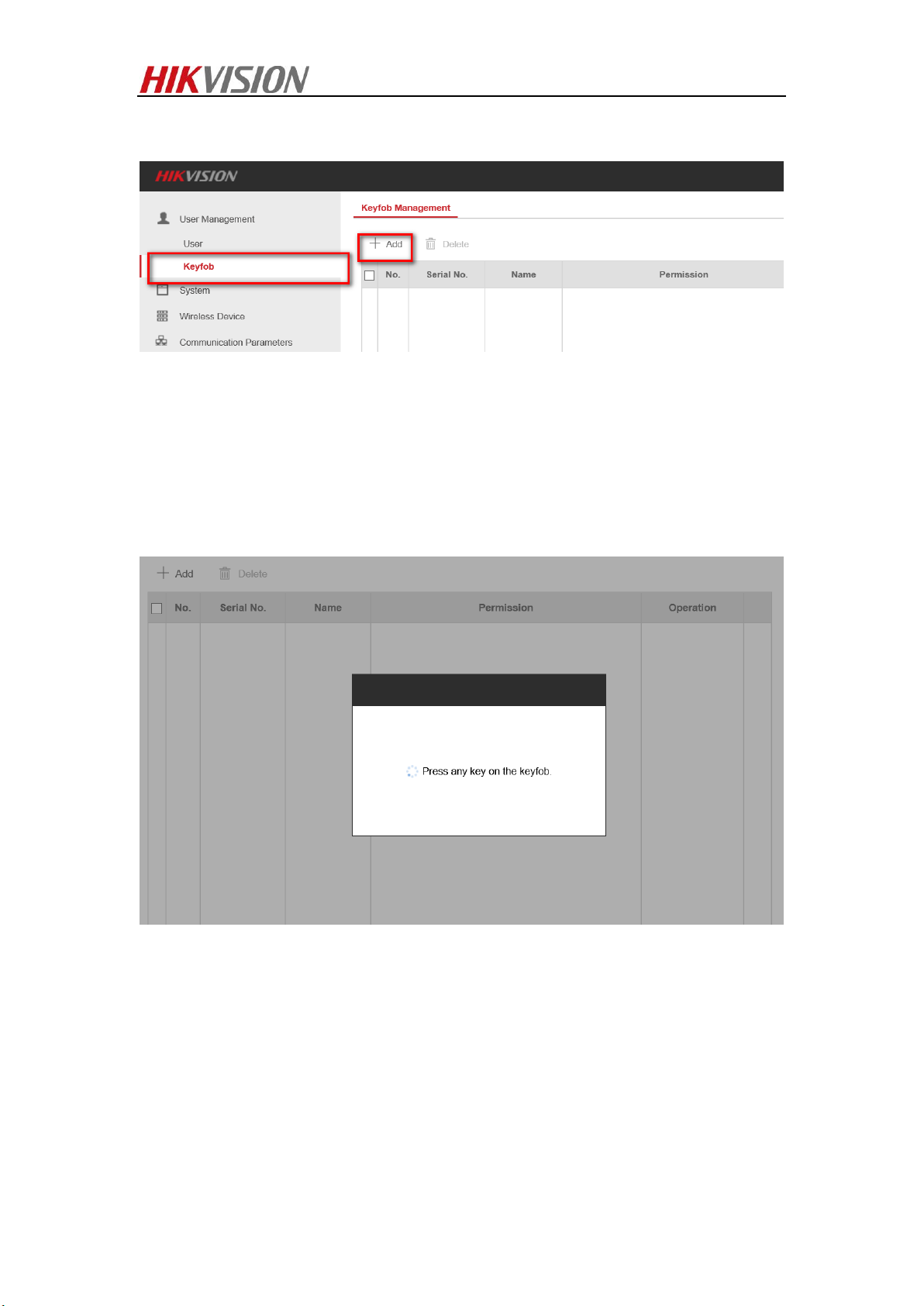

f) Choose to the Keyfob interface and click Add button.

Note: You can add the keyfob through the WEB, iVMS4200, but cannot be added

on local.

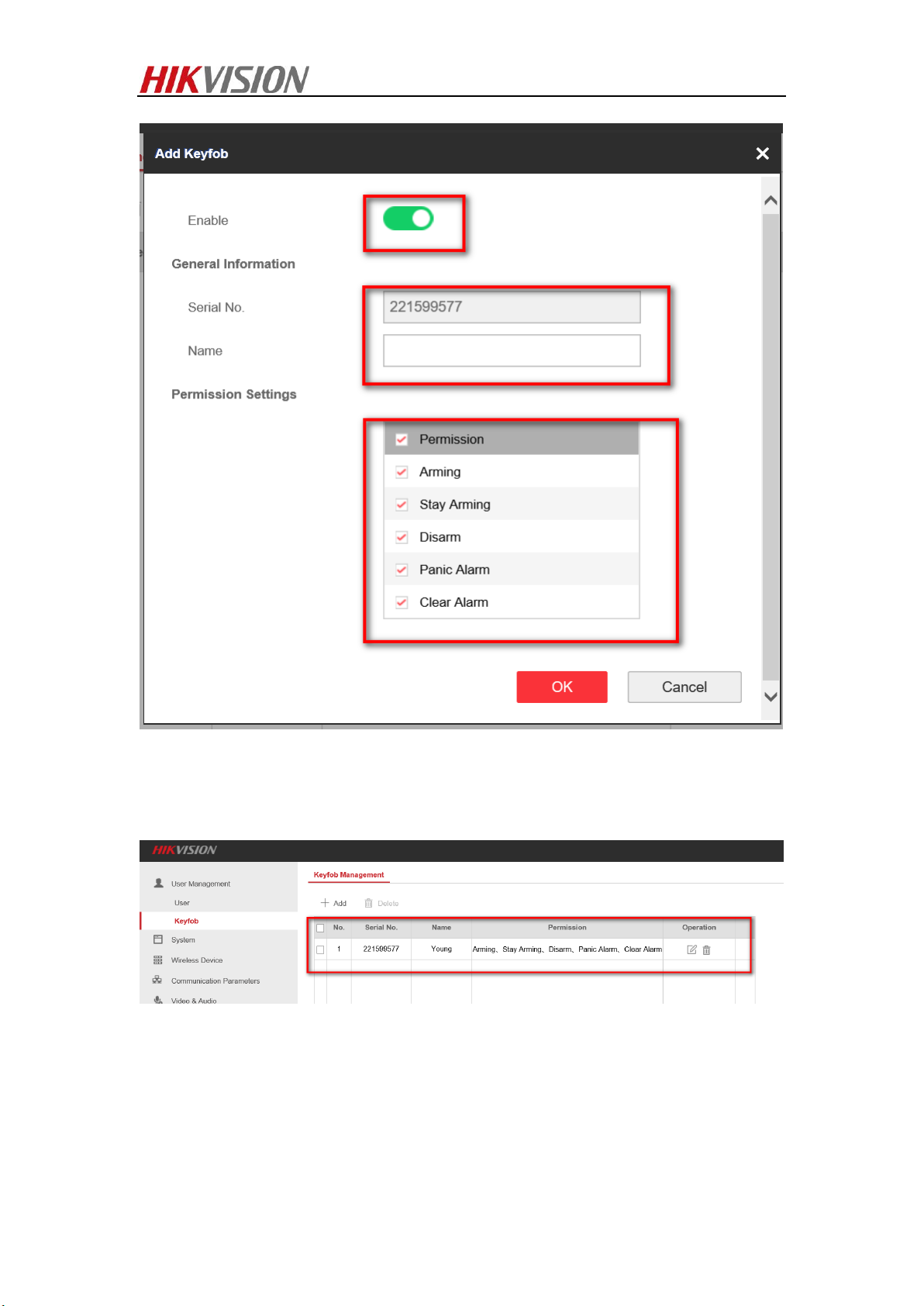

g) After you click add, it will remind you press any key on the keyfob. Then click any

button on the keyfob, it will pop-up the add interface.

You can set the name and the authority for this keyfob.

After you finished all steps, you can see the keyfob on the list.

ｈ) After you have added the keyfob, you can continue to add sensors. Choose to

Zone interface on the Wireless Device. Click the Settings.

Then you will see the settings interface, you can set the Name and Type of the

sensors, Enable the wireless detector, type in the serial No. of the sensors, click OK,

then the sensors will be added to the wireless Panel.

After these steps, you can see the Door Contact on the Zone 2. Its name is
