1839010 and 1839011 Electronic Gauge

THIS GAUGE HAS IT ALL.

DIGITAL AND ANALOG GUYS CAN AGREE.

Get out of the dark ages with the industry’s first hybrid gauge. hilmor’s Electronic

Gauge offers true analog capabilities with unmatched digital precision, all within

1% accuracy. Not to mention it’s clad in a high-impact, protective boot.

Quick-Start Instructions:

1. Insert batteries.

2. Attach hoses, and insert thermocouple clamps.

3. Press and hold the power button .

4. Select the appropriate refrigerant.

5. And forget the ﬂashlight.

Important:

Read the entire instruction manual carefully, and have a complete

understanding of the tool’s features, limitations and speciﬁcations before

using the hilmor Electronic Gauge. hilmor products are designed and

manufactured to be used by trained and licensed HVAC/R technicians.

Incorrect application could result in accidents, injuries or death.

Do not expose the hilmor Electronic Gauge to rain or wet conditions.

Safety glasses and gloves should be worn at all times while using the

manifold.

1874506 1.2

1839010 and 1839011 Electronic Gauge

Operating Instructions:

1. Install the complimentary batteries by removing the battery cover from

the backside of the manifold set with a screwdriver.

2. Press the power button to turn on. The gauges will self-calibrate to

ensure accuracy.

3. To change the units of measure, press the unit button for either Pressure

or Temperature .

4. Select the appropriate refrigerant by using the center knob. Press and

hold the center knob for two seconds to activate selection. Find the

appropriate refrigerant by turning the center knob. The top 10 most

common refrigerants are listed ﬁrst, followed by all 43 in numerical order.

Press the knob to select the refrigerant. If the refrigerant selection is

blinking, the selection has not been made. The exterior gauges’ backlight

will change color to indicate the chosen refrigerant. The corresponding

VSAT and LSAT temperatures will display on the outside displays.

5. Insert hilmor K-style Thermocouple Clamp Probes (included) to measure T1

and T2 temperatures. Superheat and subcool will automatically calculate.

a. The smaller of the two blades is the positive end indicated by a plus

icon (+). This end should be inserted into the top position on the

Electronic Gauge indicated by a plus icon (+).

b. Subsequently, the larger of the two blades, indicated by a negative

icon (-), should be inserted into the bottom position on the Electronic

Gauge.

6. To turn o the button volume, depress the mute button .

7. The button will display the minimum, maximum and mean pressure

and temperature that has been recorded since the unit has been powered

on. To reset these levels, simply power o and immediately power back on

the manifold set. Note: The type of refrigerant cannot be changed when in the

MIN/MAX/MEAN mode. Cycle out of the mode before changing refrigerants.

8. To turn o the unit, press and hold the power button for two seconds.

9. Remember you did all that with one tool.

1839010 and 1839011 Electronic Gauge

Along the Way:

• To change the batteries, remove the back door with a screwdriver and insert 4 AA

batteries. hilmor recommends brand name high-performance alkaline batteries.

• The temperature probes are factory calibrated and ready for immediate use

with the hilmor Electronic Gauge. If recalibration is needed, place probes in

an ice water bath. Press and hold the “+” and “-” buttons simultaneously for

three seconds to enter calibration mode. Once in calibration mode, push the

corresponding “+” or ”-” button to adjust to 32° Fahrenheit (0° Celsius). To exit

calibration mode, hit the power button.

• Although the hilmor Electronic Gauge is manufactured to be used with the hilmor

Thermocouple Clamps, dierent thermocouples may be paired with the hilmor

tool after proper ﬁeld calibration (see item 2 above for instructions).

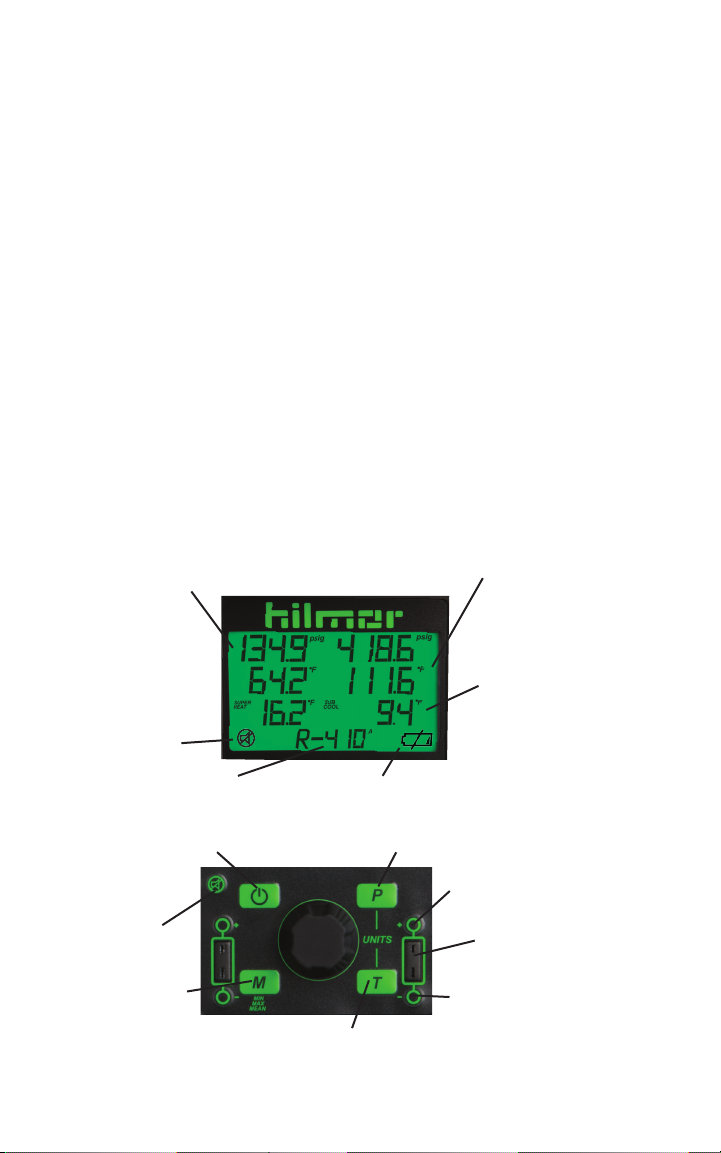

Controls and Displays:

Power Button Pressure selection (psig, barg)

Refrigerant selected

Mute Indicator

Low Battery Indicator

Calibration adjustment (+)

Calibration adjustment (-)

Plug for K-style

thermocouples

TEMPERATURE

T1 and T2 measured in:

°F - Fahrenheit

°C - Celsius

K - Kelvin

PRESSURE

Low (left) and High (right) side.

Measured in:

psig - pounds per square inch gauge

barg - bar gauge

Superheat: Low (left) side

Subcool: High (right) side

°F - Fahrenheit

°C - Celsius

K - Kelvin

Sound on/o

Minimum

Maximum

Mean Temperature selection (°F, °C, K)

1839010 and 1839011 Electronic Gauge

Zeroing out the Pressure Sensor:

Note: Before beginning, disconnect the Electronic Gauge from the unit and hoses,

and open all valves to ensure there is no pressure remaining in the manifold.

1. Press and hold the button for 5 seconds.

2. The display screen will read “zero out pr 1 pr 2” once in the zeroing out mode.

3. Turn center knob to “yes,” and press knob to select.

4. Restart the unit (power o and on) before using the Electronic Gauge.

5. Take a break. You deserve it.

Maintenance:

• Exterior: Clean the outside of the unit with a dry cloth if needed. Do not use

liquid on any part of the manifold or display unit.

Refrigerant Updates:

This unit comes with 43 refrigerants preloaded to the device. On occasion,

hilmor will make an update to the P/T Chart. Had your Electronic Gauge for a

while? Check hilmor.com for the most up-to-date P/T version.

1. Download the refrigerant ﬁle from hilmor.com to an empty USB ﬂash drive.

2. Plug the USB ﬂash drive into the USB port located in the battery compartment.

3. Press the power button to turn on the unit.

4. Turn and press the center knob to “yes.”

5. The display screen will read “USB Load” while information is loading.

6. The upload is complete when the display screen reads “Load Done.”

1839010 and 1839011 Electronic Gauge

Limited Warranty:

At hilmor, we have put the highest priority on thoughtful product design and

manufacturing quality. That is why we guarantee our Electronic Gauge to be

free of material and workmanship defects for a period of three years from

purchase. We get the tough conditions in which you work and have designed

products to stand up to those challenges. Unfortunately, this warranty does not

apply to product that has been damaged as a result of improper maintenance,

accident or misuse, or which fails to operate due to normal wear and tear. All

warranty claims should be returned to the place of purchase. They will contact

hilmor for next steps which could include ﬁeld scrap or return to the factory

for analysis and work with you on a replacement or credit. HILMOR MAKES

NO OTHER WARRANTIES, EXPRESS OR IMPLIED, CONCERNING THE PRODUCT

OR THE MERCHANTABILITY OR FITNESS THEREOF FOR ANY PURPOSE. IN

NO EVENT SHALL HILMOR BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL

DAMAGES.

Technical Support:

Please contact hilmor Technical Services if you need additional product

information that is not covered in this instruction manual: 1-800-642-0010.

1839010 and 1839011 Electronic Gauge

Preloaded Refrigerants: 11, 12, 13, 22, 23, 113, 114, 123, 124, 125, 134A,

401A, 401B, 402A, 402B, 404A, 406A, 407A,

407C, 407F, 408A, 409A, 410A, 414B, 416A,

417A, 420A, 421A, 421B, 422A, 422B, 422C,

422D, 424A, 427A, 434A, 437A, 438A, 500,

502, 503, 507A, 508B

Display Size: 3-1/4” diagonal

Batteries: AA × 4

Battery Life: 24 hours of continuous use

Low Battery Indicator: Display symbol on screen, display when

below operating voltage. The low battery icon

indicates the unit has approximately 15-20

minutes left on the current battery.

Volume: Mute by pressing ; mute icon will display on

the screen.

Auto Shut-o: After 20 minutes of inactivity (no buttons

engaged)

Thermocouple Connector: Type K

Pressure Measurement: Range: 0 to 800 psi, Resolution: 0.1 psi,

Accuracy 1%

Temperature Measurement: Range: -76.0° F to 999.9° F, Resolution: 0.1°F/C,

Accuracy: ± 1.0° C/ ± 2.0° F at 68°F

Maximum Overload Pressure: 1000 psi

Operating Temperature: 0° C to +50° C

Product Dimensions: Length: 8-7/8”, Width: 4”, Height: 8-1/4”,

Weight: 4.25 lbs.

Altimeter: Built-in to measure atmosphere pressure based

on location and automatically adjusts.

Technical Speciﬁcations:

1839010 and 1839011 Electronic Gauge

Warning:

To avoid electrical shock or personal injury, follow these guidelines:

• Do not use the hilmor Electronic Gauge if it appears damaged.

• Replace the batteries as soon as the battery indicator appears, and properly

install the + and – ends of the battery in the battery case. Do not use rechargeable

batteries with this tool.

• If repairs are needed, only use replacement parts approved by hilmor Technical

Service.

• If any part of the manifold is removed or damaged, discontinue the use of the

tool.

To avoid damage to the manifold or equipment being serviced or tested, follow

these guidelines:

• Do not use the manifold with refrigerants that are not listed in the menu.

• Use the proper thermocouples, function and operating range laid out in this

instruction manual.

• Do not operate the tool around explosive gas, vapor or dust.

• Do not exceed the speciﬁed pressure range indicated in this manual.

301 Chestnut Street, East Longmeadow, MA 01028 + 1-800-642-0010
