Hisense BCD-543WPAZR/HC1(E) Bedienungsanleitung

1 / 56

重要度

产品

名称: 冷藏冷冻箱

产品

型号：

BCD-543WPAZR/HC1(E)

文件

名称：

售后服务技术资料

文件

编号：

B08082021

编制

日期： 2019 年

年年

年09 月

月月

月16 日

日日

日

借

(

通

)

用件登记

冰箱开发

中心

旧底图总号

底图总号

售后服务

技术资料

版本

更改单编号

签字

日期

重量比例

出图审查

设计

审核

标准化

共张第张

B08082021

日期

批准

2/ 56

Refrigerator

Service Manual

Model: BCD-543WPAZR/HC1(E)

3/ 56

Con en s

1.Warning and precautions for safety .................................................................................. 5

2. Appearance and structure ...............................................................................................

2.1 View of the appliance .............................................................................................

2.2 Wind channel structure ........................................................................................... 7

2.3 Evaporator structure ............................................................................................... 7

2.4 Compressor room structure.................................................................................... 8

3. Basic parameters ............................................................................................................. 9

4. Operation and functions ................................................................................................ 10

4.1Display controls ..................................................................................................... 10

4.2 Using your Appliance ............................................................................................ 12

4.3Defrost mode ......................................................................................................... 23

4.3.1 Start condition ............................................................................................ 23

4.3.2 Defrost flow ................................................................................................ 23

4.4 Error display ......................................................................................................... 24

4.4.1 Error Code .................................................................................................. 24

4.4.2 Checking method ....................................................................................... 24

5. Troubleshooting ............................................................................................................. 30

5.1 Common problem and checking .......................................................................... 30

5.2 Faulty start ............................................................................................................ 32

5.3 Refrigeration failure .............................................................................................. 33

5.3.1Freezer compartment .................................................................................. 33

5.3.2 Refrigerator compartment .......................................................................... 34

5.4Thick frost in freezer compartment ........................................................................ 35

5.5Dew in refrigerator compartment ........................................................................... 3

5. Breaking of light ..................................................................................................... 37

5.7Pipe noise .............................................................................................................. 38

. Circuit and checking ...................................................................................................... 39

.1 Circuit diagram ..................................................................................................... 39

.2 Mainboard ............................................................................................................. 39

.2.1 Checking method ....................................................................................... 39

.2.2 Removing the mainboard ........................................................................... 40

.3 Compressor .......................................................................................................... 40

.3.1 Basic parameters ....................................................................................... 40

.3.2 Checking method ....................................................................................... 40

.3.3 Removing the drive board .......................................................................... 41

.4 Fan motor ............................................................................................................. 42

.4.1 Basic parameters ....................................................................................... 42

.4.2 Checking method ....................................................................................... 42

.4.3 Removing the fridge electric wind gate ...................................................... 42

.4.4 Removing the freezer fan motor ................................................................ 43

.5 Damper (Electric wind gate) .......................................................................... 44

4/ 56

.5.1 Basic parameters ....................................................................................... 44

.5.2 Checking method ....................................................................................... 44

. Light ...................................................................................................................... 44

. .1 Basic parameters ....................................................................................... 44

. .2 Checking method ....................................................................................... 44

. .3 LED light removal ....................................................................................... 45

.7 Door switch ........................................................................................................... 45

.7.1 Basic parameters ....................................................................................... 45

.7.2 Checking method ....................................................................................... 45

.8 Defrost heater ....................................................................................................... 4

.8.1 Basic parameters ....................................................................................... 4

.8.2 Checking method ....................................................................................... 47

.9 Removing the Display Component ............................................................... 47

.10 Water system ...................................................................................................... 48

.10.1 Schematic diagram of water system ........................................................ 48

.10.2 Water system out of the freezer room ..................................................... 49

.10.3 Water system in the fridge room .............................................................. 50

.11 Ice maker ............................................................................................................ 50

.11.1 Checking method ..................................................................................... 50

.11.2 Disassemble the ice maker part ............................................................... 50

7. Cooling system repairing ............................................................................................... 52

7.1 Refrigeration system ............................................................................................ 52

7.2 Summary of repair ................................................................................................ 53

7.3 Regulation of repair .............................................................................................. 54

7.4 Practical work of repair ......................................................................................... 55

7.5 Brazing reference drawing ................................................................................... 5

5 / 56

1.Warning and precau ions for safe y

Please observe the following safety precautions in order to use safely and correctly the

refrigerator and to prevent accident and danger during repair.

1. Be care of an electric shock. Disconnect power cord from wall outlet and wait for more

than three minutes before replacing PCB parts. Shutoff the power whenever replacing and

repairing electric components.

2. When connecting power cord, please wait for more than five minutes after power cord

was disconnected from the wall outlet.

3. Please check if the power plug is pressed down by the refrigerator against the wall. If

the power plug was damaged, it may cause fire or electric shock.

4. If the wall outlet is over loaded, it may cause fire. Please use its own individual electrical

outlet for the refrigerator.

5. Please make sure the outlet is properly earthed, particularly in wet or damp area.

. Use standard electrical components when replacing them.

7. Make sure the hook is correctly engaged. Remove dust and foreign materials from the

housing and connecting parts.

8. Do not fray, damage, machine, heavily bend, pull out or twist the power cord.

9. Please check the evidence of moisture intrusion in the electrical components. Replace

the parts or mask it with insulation tapes if moisture intrusion was confirmed.

10. Do not let the customers repair, disassemble and reconstruct the refrigerator for

themselves. It may cause accident, electric shock, or fire.

11. Do not store flammable materials such as ether, benzene, alcohol, chemicals, gas, or

medicine in the refrigerator.

12. Do not put flower vase, cup, cosmetics, chemicals, etc., or container with full of water

on the top of the refrigerator.

13. Do not put glass bottles with full of water into the freezer. The contents shall freeze

and break the glass bottles.

14. When you scrap the refrigerator, please disconnect the door gasket first and scrap it.

6/ 56

2. Appearance and s ruc ure

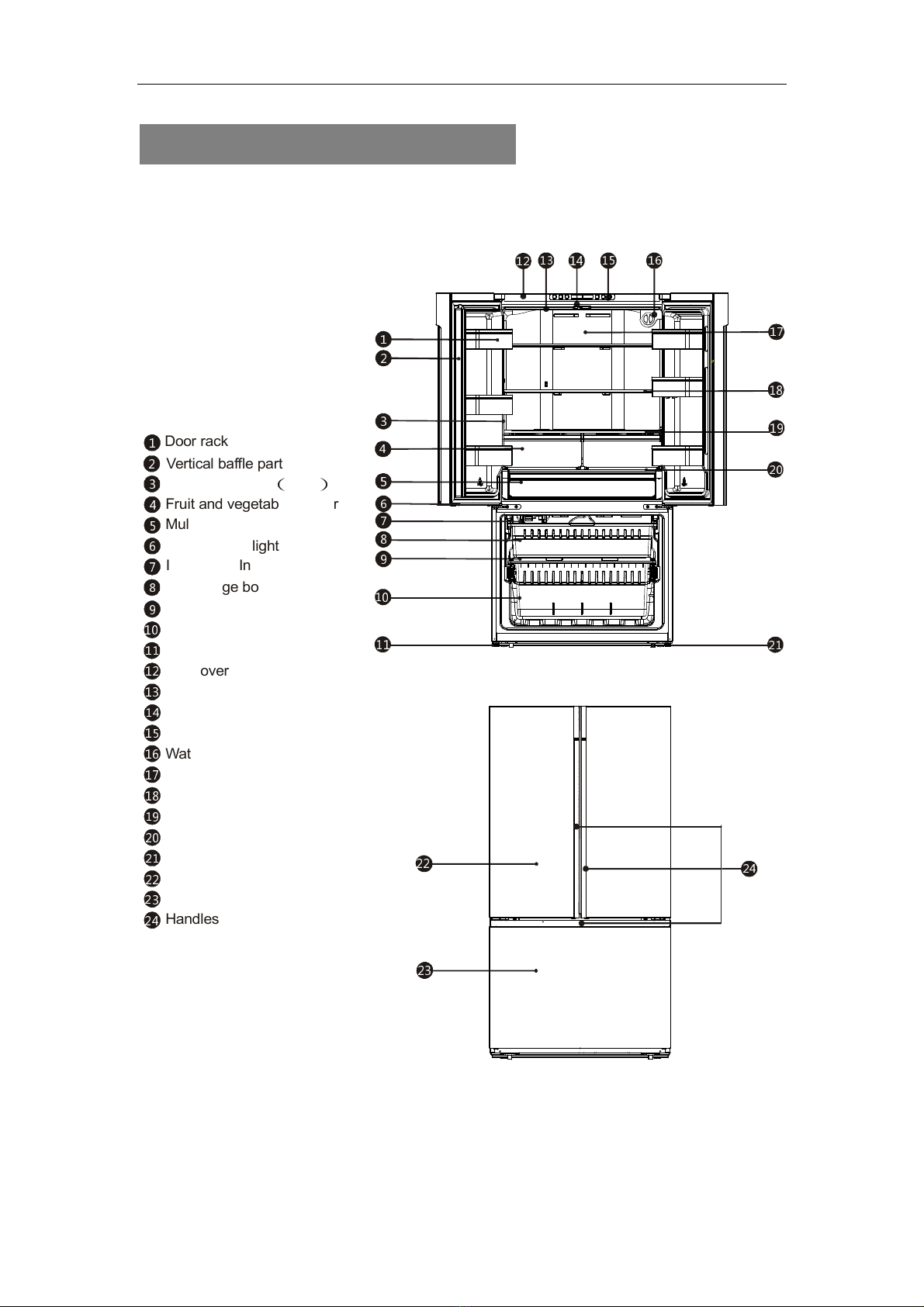

2.1 View of he appliance

No e!

Due to unceasing modification of our products, your refrigerator may be slightly different

from this instruction manual, but its functions and using methods remain the same.

To get the best energy efficiency of this product, please place all shelves, drawers and

baskets on their original position as the illustration above.

13 15

Door rack

Vertical baffle part

Fruit and vegetable crisper

Multifunctional drawer

Lower freezer drawer

Adjustable bottom feet

Vertical baffle guide block

Display panel

Wind channel part

Glass shelf

Serving tray

Fridge door

Upper freezer drawer

Fridge LED light (Inside)

Freezer door

Roll wheel

Crisper cover

Water dispenser Inside

( )

Top cover

Ice maker (Inside)

Ice storage box (Inside)

Freezer LED light

Water filter

Handles

7/ 56

2.2 Wind channel s ruc ure

2.3 Evapora or s ruc ure

8/ 56

－

Fuse

－

Accumulator

－

Sensor

－

Heater

－

Evaporator

2.4 Compressor room s ruc ure

－

Dry filter

－

Power cord

－

Compressor

－

Fan Motor

－

Bottom condenser

－

Evaporation dish

－

Motorized valve

－

Connector(90°)

－

Connector(180°)

－

Water tube (blue, flow to the icemaker in freezer room)

－

Water tube (white, flow to the dispenser on fridge door)

－

Water tube (white, connect with the water filter)

9/ 56

3. Basic parame ers

SPECIFICATIONS

DESIGN PRESSURE

HIGH SIDE / LOW SIDE 250 psig / 88 psig

REFRIGERANT / AMOUNT R 00a (57g)

VOLUME (Refrigerator / Freezer)

20.9 (14.73 / .17) cu.ft

RATED VOLTAGE AC115V

RATED FREQUENCY 0Hz

RATED CURRENT 2.4A

DEFROST POWER 240W

FOAMING AGENT Cyclopentane

NET WEIGHT 113 kg

GROSS WEIGHT 123 kg

W×D×H (with hinges) 91.4×72.7×177.8cm

W×D×H (without hinges) 91.4×72.7×177.8cm

10/ 56

4. Opera ion and func ions

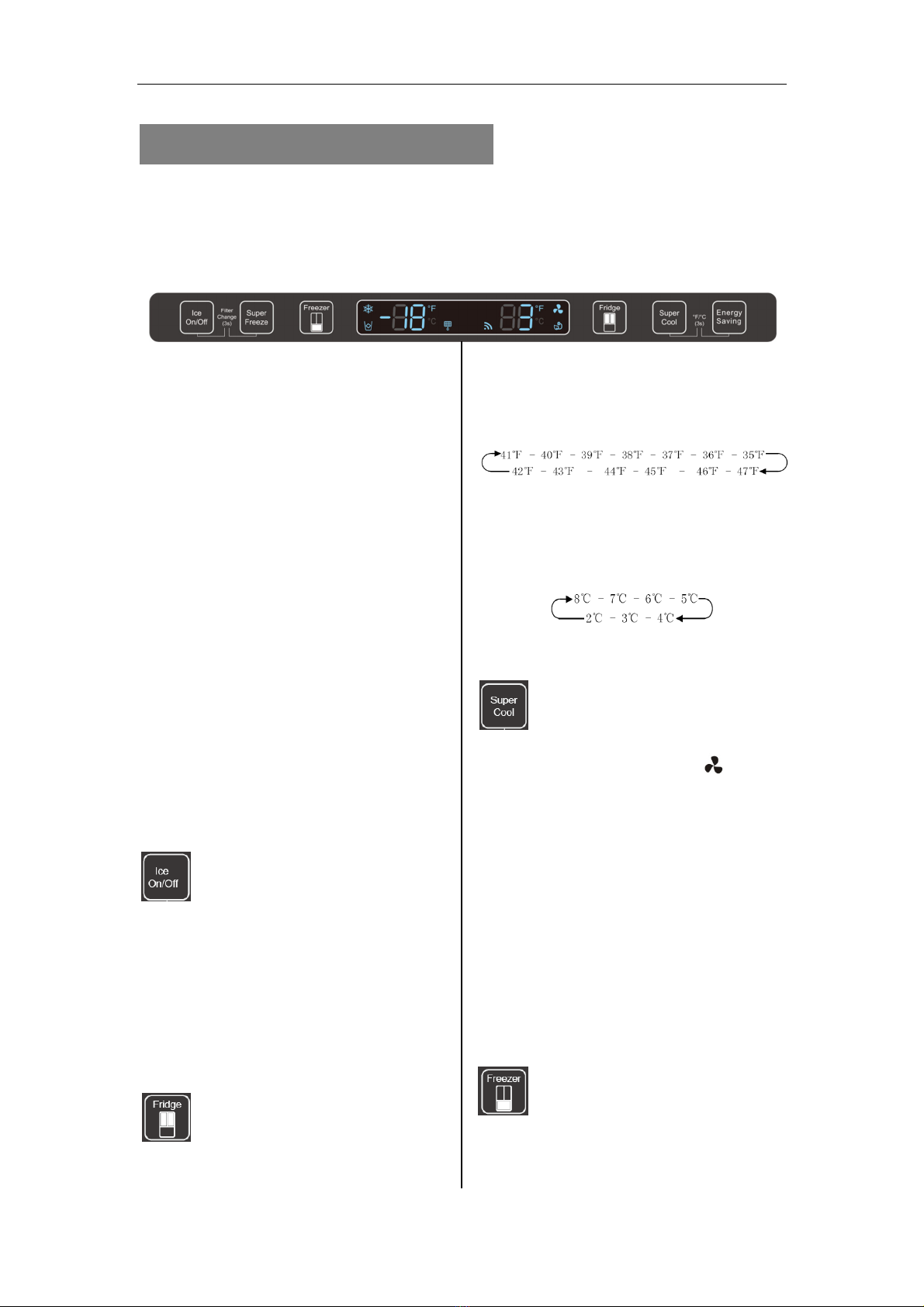

4.1Display con rols

Your product has one control panel which is installed on the top cover, it may be different

depending on the model. Use your appliance according to the following control guidelines.

When the appliance is powered on for the

first time, the backlighting of the icons on

the display panel will light up immediately.

If no buttons have been touched or the

doors are closed, the backlighting will turn

off after 0seconds.

The control panel consists of two areas

about temperature, and one area about

different modes.

Cau ion!

When you set a temperature, you set an

average temperature for the whole

refrigerator cabinet. Temperatures inside

each compartment may vary from the

temperatures displayed on the panel,

depending on how much food you store

and where you place it. High or low room

temperature may also affect the actual

temperature inside the appliance.

Ice Con rol

This button controls the ice

maker. You can touch the "Ice

On/Off" button to control the ice maker.

When the "Ice On/Off" function light is on,

the ice maker is working. If you want to

lock the ice maker, please touch the "Ice

On/Off" button again until the button light

is off.

Fridge Tempera ure Con rol

Press the Fridge button to turn on

the refrigerator temperature

control, then press and hold the Fridge

button to select a temperature setting. If

you have set the temperature type to

Fahrenheit, the temperature settings cycle

from 47°F to 35°F in one degree

decrements.

If you have set the temperature type to

Celsius, the temperature settings cycle

from 8°C to 2°C in one degree

decrements.

Super Cool

If you want to increase the

cooling accelerator to cool

products in Fridge, please touch this

button. The super cool icon “ ” will be

illuminated, and the fridge temperature

setting displays at 35°F.

Super cool automatically switches off after

3 hours, and the refrigerator temperature

setting will revert back to the previous

setting.

When super cool function is on, you can

touch the "Super Cool" button again to

switch it off. The fridge will not retain the

Super Cool function when powered off.

Freezer Tempera ure Con rol

Press the Freezer button to turn

on the freezer temperature

control, then press and hold the Freezer

button to select a temperature setting. If

you have set the temperature type to

Inhaltsverzeichnis

Andere Hisense Kühlschrank Handbücher

Hisense

Hisense RR17D6ABE Bedienungsanleitung

Hisense

Hisense RB292F4WB1 Betriebsanleitung

Hisense

Hisense HR6TFF534SD Montageanleitung

Hisense

Hisense RS696N4IB1 Bedienungsanleitung

Hisense

Hisense RB412N4AI1 Montageanleitung

Hisense

Hisense HRBF125S Bedienungsanleitung

Hisense

Hisense HRF266N6CSE Bedienungsanleitung

Hisense

Hisense Fridgemaster mc55244d Bedienungsanleitung

Hisense

Hisense FTN320WCF Montageanleitung

Hisense

Hisense HR6CDFF512S Montageanleitung

Hisense

Hisense HRQ208N6TSE Bedienungsanleitung

Hisense

Hisense FV298N4AWE Bedienungsanleitung

Hisense

Hisense RT33D6AAE Bedienungsanleitung

Hisense

Hisense RT600N4DC2 Bedienungsanleitung

Hisense

Hisense HAF240A Bedienungsanleitung

Hisense

Hisense HR6BMFF435 Montageanleitung

Hisense

Hisense FCN300ACE Bedienungs- und Wartungshandbuch

Hisense

Hisense RB548N4ABN Montageanleitung

Hisense

Hisense RS-34WC SERIES Bedienungsanleitung

Hisense

Hisense RS818N4TIF Montageanleitung

Hisense

Hisense RB454D4ABF Technisches Handbuch

Hisense

Hisense RIB291F4AWF Montageanleitung

Hisense

Hisense BCD440WYHC2 Montageanleitung

Hisense

Hisense H670SIB Montageanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
