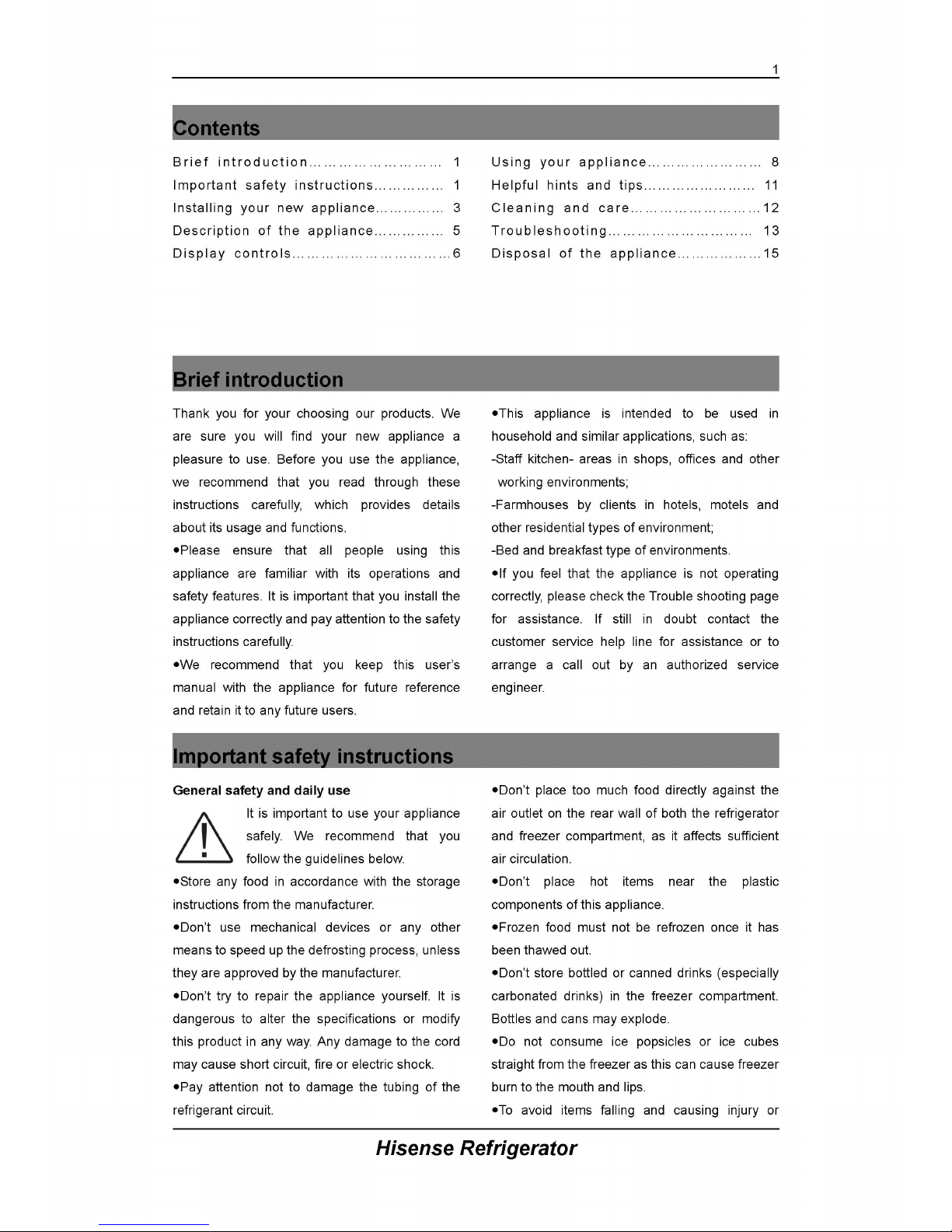

registered electrician or replace it in accordance

with the “cleaning and care” chapter.

The refrigerant and risk of fire

The appliance contains a small

quantity of refrigerant (R600a) in the

refrigerant circuit. Check the

compressor label on the rear of the appliance to

see which refrigerant is used for your appliance.

yIf the appliance contains iso-butane (R600a)

refrigerant, which is environmentally friendly but

flammable, ensure that tubing of the refrigerant

circuit is not damaged during transportation and

installation to avoid risk of fire caused by leaking

refrigerant.

yKeep burning candles, lamps and other items

with naked flames and sources of ignition away

from the appliance and ventilate the room

thoroughly to avoid the risk of fire and eye injury

should any leakage of refrigerant (R600a) exist.

yDo not store products which contain flammable

propellants (e.g. spray cans) or explosive

substances in the appliance.

yThe room space must be at least 1m³ per 8g of

refrigerant (R600a). The amount of refrigerant in

your appliance is indicated on the rating plate

inside.

Installing your new appliance

This chapter tells you how to use most of the

useful features. Before using the appliance for the

first time, we recommend that you should be

informed of the following tips.

Ventilation of appliance

For proper installation, this

refrigerator must be placed on a

level surface of hard material that

is the same height as the rest of the flooring. This

surface should be strong enough to support a

fully loaded refrigerator, or approximately 266 lbs

(120 kg).

To protect the integrality of the flooring, cut a

large section of the cardboard carton and place

under the refrigerator where you are working.

When moving, be sure to pull the unit straight out

and push back in straight.

In order to improve efficiency of the cooling

system and save energy, it is necessary to

maintain good ventilation around the appliance

for the dissipation of heat. For this reason,

sufficient clear space should be available around

the refrigerator.

ySuggestion: It is advisable for there to be at

least 75mm of space from the back to the wall, at

least 100mm from its top, at least 100mm from its

side to the wall and a clear space in front to allow

the doors to open 155°. As shown in the following

diagram.

at least 100mm

1776mm

at least100mm

at least 75mm

√

Hisense Refrigerator

yWhen positioned in a corner area.

Leveling of appliance

yFor sufficient leveling and air circulating in the

lower rear section of the appliance, the bottom

feet may need to be adjusted. You can adjust

them manually by hand or by using a suitable

spanner.

yTo allow the doors to self-close, tilt the top

backwards by 10~15mm.

Fixing the handle

yBefore you use the appliance, please check the

handles. If the handle is loose you should fix it

with an Allen wrench in the clockwise direction

until handles are securely in place, and in the

counter-clockwise to loose the handles. Six

screws are used to fix three handles.

Ambient Room Temperature Limits

yThis fridge/freezer is designed to operate in

ambient temperatures specified by its

temperature class marked on the rating plate.

Class Symbol Ambient temperature

Extended

Temperate

SN +10℃to +32℃

Temperate N +16℃to +32℃

Subtropical ST +16℃to +38℃

Tropical T +16℃to +43℃

yStand your appliance in a dry place to avoid high

moisture.

yKeep the appliance out of direct sunlight，rain or

frost. Stand the appliance away from heat

sources, such as stoves, fires or heaters.

The tools you will need (Not provided):

Allen Wrench(3mm)

(1/8'')( Provided) Wrench(8mm)

Philips screwdriver Flat-blade

screwdriver

1140 mm

912 mm

155°155°

1720 mm

765 mm

600 mm

10~15mm

Rear roller

Front roller

Adjustable

feet

Hisense Refrigerator

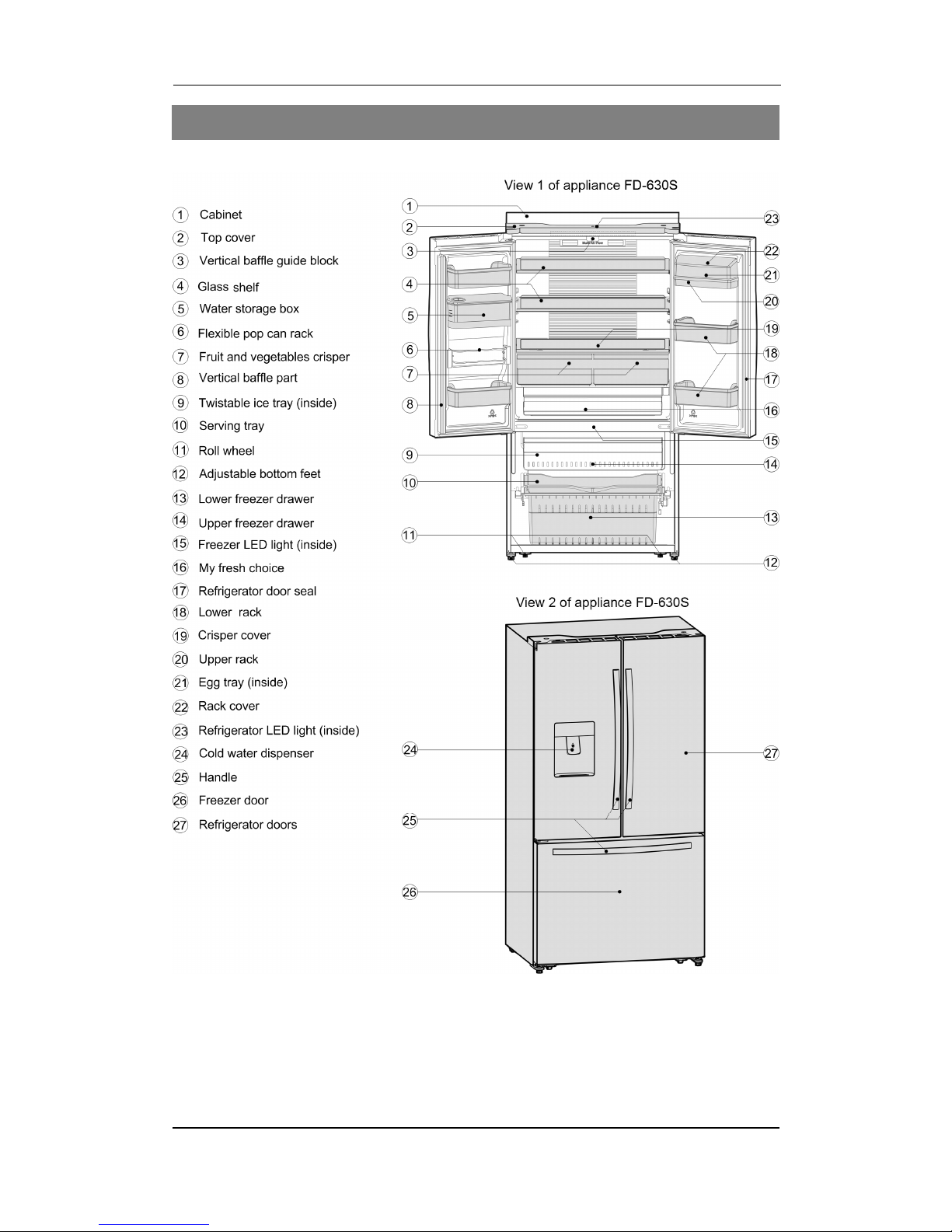

Description of the appliance

Note: Due to unceasing modification of our products, your refrigerator may be slightly different from this

instruction manual, but its functions and using methods remain the same.

Note: To get the best energy efficiency of this product, please let all shelves, drawers and baskets on

their original position as the illustration above.

Hisense Refrigerator

Display controls

The control panel consists of 2 areas indicating temperature, 5 icons representing different modes and 6

touch buttons. When the appliance is powered on for the first time, the backlighting of the icons on

display panel starts working. If no buttons have been pressed and the doors are closed, the backlighting

will turn off after 60 seconds.

Controlling the temperature

We recommend that when you start your

refrigerator for the first time, the temperature for

the refrigerator is set to 3°C and the freezer to

-18°C. If you want to change the temperature,

follow the instructions below.

Caution! When you set a temperature, you set an

average temperature for the whole refrigerator

cabinet. Temperatures inside each compartment

may vary from the temperature values displayed

on the panel, depending on how much food you

store and where you place them. Ambient

temperature may also affect the actual

temperature inside the appliance.

1. Fridge

Press “Fridge ”to set fridge temperature

between 8℃and 2℃as needed, and the control

panel will display corresponding value according

to the following sequence.

2. Super Cool

Super Cool can refrigerate your

food much faster, keeping food

fresh for a longer period.

yPress “Super Cool” button to activate this

function. The light will be illuminated and the

refrigerator setting displays 2°C.

ySuper cool automatically switches off after 6

hours.

yWhen super cool function is on you can switch it

off by pressing “Super Cool” or “Fridge” button

and the refrigerator temperature setting will revert

back to the previous setting.

3. Freezer

Press “Freezer” to set freezer temperature

between -14℃and -24℃as needed, and the

control panel will display corresponding value

according to the following sequence.

4. Super Freeze

Super Freeze can quickly lower the freezer

temperature and freeze your food faster than

usual. This can lock the vitamins

and nutrition of fresh food and keep

food fresh longer.

yPress "Super Freeze" button to activate the

super freeze function. The light will be illuminated

and the freezer temperature setting displays -24

℃.

yIn case of the maximum amount of food to be

frozen, we recommend that you let the appliance

operates for 6 hours first.

ySuper freeze automatically switches off under

the following two circumstances:

1.The appliance has operated at this mode for 26

hours and the freezer temperature is below -20℃.

2. The appliance has operated at this mode for 27

hours.

Hisense Refrigerator

yWhen super freeze function is on, you can

switch off super freeze function by pressing

"Super Freeze" or "Freezer" button, and the

freezer temperature setting will revert back to the

previous setting.

Note:When selecting the Super Freeze function,

ensure there is no bottled or canned liquid which

could explode caused by volume expanding.

5. Holiday

If you are going to be away for a

long period of time, you can activate

this function by pressing "Holiday"

button for 3 seconds until the light is illuminated.

yWhen the holiday function is activated, the

temperature of the refrigerator is automatically

switched to 15 ℃to minimize the energy

consumption. The refrigerator temperature setting

displays “-” and the freezer compartment remains

on.

Important! Do not store any food in the

refrigerator chamber during this time.

yWhen the holiday function is on, you can switch

it off by pressing any button of "Holiday", "Fridge"

or "Super Cool” button. The refrigerator

temperature setting will revert back to the

previous setting.

6. Alarm and Child Lock

In case of alarm, “Alarm” icon will

be on and there will be buzzing

sound. Press “Alarm” key to clear

alarm and then “Alarm” icon will turn off and the

sound will stop buzzing.

Door Alarm

yWhen the doors are kept open for over 2

minutes, the door alarm will sound. In case of

door alarm, buzzer will sound 3 times per minute

and will stop alarming after 10 minutes.

yTo save energy, please avoid keeping the door

open for a long time when using the appliance.

The door alarm can also be cleared by closing the

doors.

Temperature alarm

yIf freezer temperature is higher than -9℃due to

power failure or other reasons, there will be a

temperature alarm and the freezer temperature

setting displays “-“.

yIn case of temperature alarm, buzzer will sound

constantly for 10 times and then stop

automatically.

Caution! When power is restored, it is normal

that the temperature alarm, which can be cleared

by pressing “Alarm".

Child Lock

Press and hold the “Child Lock” button

for 3 seconds to activate the child lock.

This will disable the display to prevent

accident changes to settings. Meanwhile, the

“Child Lock” icon will be illuminated.

yTo turn the child lock off, press and hold the

“Child Lock” button for 3 seconds. The “Child

Lock” icon will be turned off.

Hisense Refrigerator

Using your appliance

This chapter tells you how to use most of the useful features. We recommend that you read through

carefully before using the appliance.

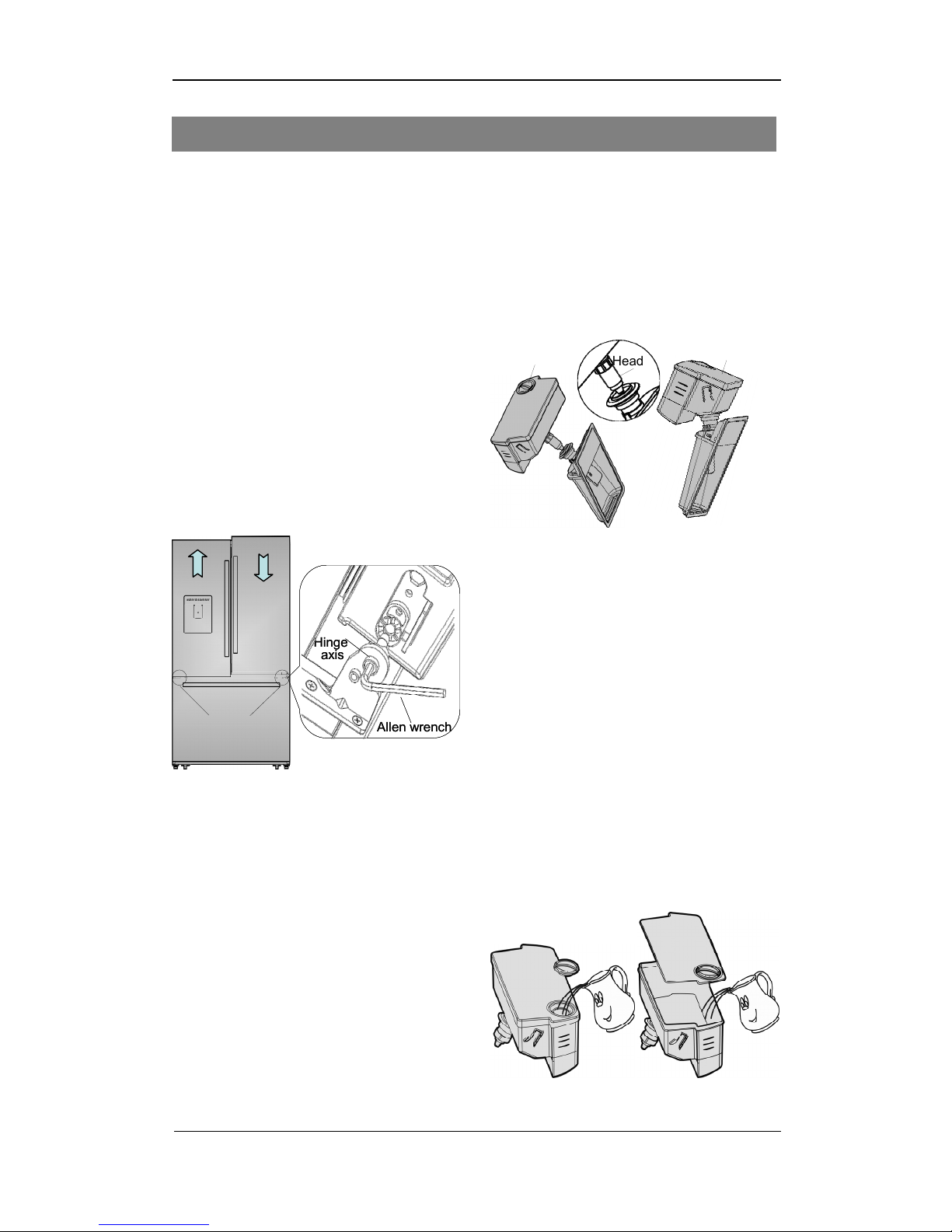

Adjusting the doors

yBoth the left and right refrigerator doors have

adjustable parts, located on the bottom of the

hinge.

If the top of the doors is uneven, adjust the height

of the door by turning an Allen wrench clockwise

or counter-clockwise. Insert an Allen wrench into

the hinge axis, and turn it to level the doors. (You

turn the axis clockwise to raise the door and

counter-clockwise to lower it).

yBefore your adjusting, you should ensure that

the refrigerator is installed level. (See the

“Installing your new appliance” chapter.)

Adjustable

part

Hinge

axis

Allen wrench

Adjustable

part

Adjustable

part

Hinge

axis

Allen wrench

Hinge

axis

Allen wrench

Water dispenser

The water dispenser, located in the left

refrigerator door, is used for storing drinking water.

You can get chilled water easily without opening

the refrigerator. You should be informed from the

following tips.

yBefore using

Before using this dispenser for the first time, you

should use it as follows to check and clean it.

1. Hold the two sides of the water tank tightly,

then lift it up and put it out from the door.

2. Unscrew the head, and clean the head and the

water tank.

yAssembling

After cleaning, please assemble the parts

including the head, water tank and lids together,

and fit them on the door.

Push the cap until you hear a click.

Warning!

When fitting the water tank, ensure the head is

inserted into the hole first, then hold the two sides

of the water tank tightly and fit it on the door.

yFilling water

Before you fill the drinking water into the water

tank, ensure that the water tank is steady and in a

correct position

Caution!

yDo not put anything other than water in the

water tank.

yFill with water up to 4.0L. If the water is filled up

above the mark, it can spill out when the door

opens and closes.

We recommend that you fill the water by the

following ways.

Large lid

①②

Head

Small lid

①

②

Hisense Refrigerator

1. Remove the small lid and fill water from the

inlet of the large lid.

2. Remove the cover of the tank, and then fill

water directly.

yLock

Before you dispense the water, make sure the

lock device is on “unlock” position.

Warning!

The lock is defined as “Lock device”. Don’t push

the dispenser lever forward strongly when the

dispenser is on “lock” position, it may damage the

mechanism.

yReceiving Water

You should use a correct cup to receive water

underneath the water dispenser.

Warning! Don’t push the dispenser lever forward

without cup, it may cause the water leak from the

dispenser.

Keep the water supply device being fixed into the

fixing hole tightly, when the water dispenser is out

of use, in case of cold leakage.

yCleaning

1. Put the water tank out of the door carefully, and

then wash the tank, lids, and head lightly with

water.

2. After you have cleaned the water dispense

successfully, you should dry it in a natural way or

using a dryer.

Note: If you have used the water dispenser for

many times, the water in the tank may drop on the

floor, which may make your floor wet, so you

should clean the tank with dry towel regularly

before overflow.

Door rack

yIt is suitable for the storage of eggs, canned

liquid, bottled drinks and packed food, etc. Do not

place too many heavy things in the racks.

yThe middle door shelf can be placed at different

heights according to your requirements. Please

take food out of the rack before lifting vertically to

reposition.

Note: There are egg trays in the upper rack.

Pop can rack

yIt is for storing pop can drinks.

yIt also can rotate 40°along the shelf if required,

which is convenient for you to place or take

drinks.

yFour placements can be used to store the drinks.

The diameter and height of the can are neither

too small, nor too big.

Note: If the diameter of the pop can is less than

50mm, it can not be placed on the rack.

Shelf in refrigerator chamber

yThere are two glass shelves in refrigerator

chamber, and they can be taken out to be

cleaned.

Inhaltsverzeichnis

Andere Hisense Kühlschrank Handbücher

Hisense

Hisense HR6AFF355SD Montageanleitung

Hisense

Hisense HR6AF351B Montageanleitung

Hisense

Hisense RB403N4EW1 Montageanleitung

Hisense

Hisense FV306N4BC1 Montageanleitung

Hisense

Hisense RD-60WC4SIB Montageanleitung

Hisense

Hisense H740FS-WD Bedienungsanleitung

Hisense

Hisense LMS044M6RVE Montageanleitung

Hisense

Hisense RS694N4IBF Bedienungsanleitung

Hisense

Hisense RQ758N4SWI1 Montageanleitung

Hisense

Hisense H230RTS Montageanleitung

Hisense

Hisense RB292F4WB1 Betriebsanleitung

Hisense

Hisense BCD-203WYA/HC4 Montageanleitung

Hisense

Hisense RT641N4WIE Bedienungs- und Wartungshandbuch

Hisense

Hisense HRTF504 Montageanleitung

Hisense

Hisense RS-33DL4SCB/CPA Bedienungsanleitung

Hisense

Hisense RQ758N4SAI1 Montageanleitung

Hisense

Hisense RS741N4WBE Montageanleitung

Hisense

Hisense RT393D4AW1 Bedienungsanleitung

Hisense

Hisense RM672N4AJ1 Montageanleitung

Hisense

Hisense HR6TFF222 Bedienungsanleitung

Hisense

Hisense RL170D4AWE Montageanleitung

Hisense

Hisense HRVF240 Montageanleitung

Hisense

Hisense HQD20 Series Bedienungsanleitung

Hisense

Hisense RT286N4ABN Montageanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
