Hobby-Lobby Waco Biplane RTF Bedienungsanleitung

HobbyLobby's“Waco BiplaneRTF”

Wingspan: 39 in.

Length: 31 in.

Wing Area:503 in².

FlyingWeight: 24 oz.

WARNING–THISISNOT ATOY!

Radiocontrolled model aircraftarecapableofinflicting seriousinjuryand/orpropertydamageifnotassembled,operated,and

maintained inacompetentandsafemanner. If youarenotalreadyexperienced withradiocontrolled models,westronglysuggest

thatyoufindan experienced modelertoassistyou.

Warranty

Hobby-Lobbyguaranteesthiskittobefreefromdefectsinbothmaterialandworkmanshipat thedateof purchase.Thiswarranty

doesnot coveranycomponentpartsdamagedbyuseormodification. Innoevent shallHobby-Lobby’sliabilityexceed theoriginal

costof thepurchased kit.

Completelyreadthroughthismanual beforestartingconstruction.

Beforestarting, usethe Contentslist totakeaninventoryand makesureitiscomplete.

If anypartsaremissing orarenotof acceptablequality, contact Hobby-LobbySupport

at 1-866-WE-FLY-RC (1-866-933-5972)

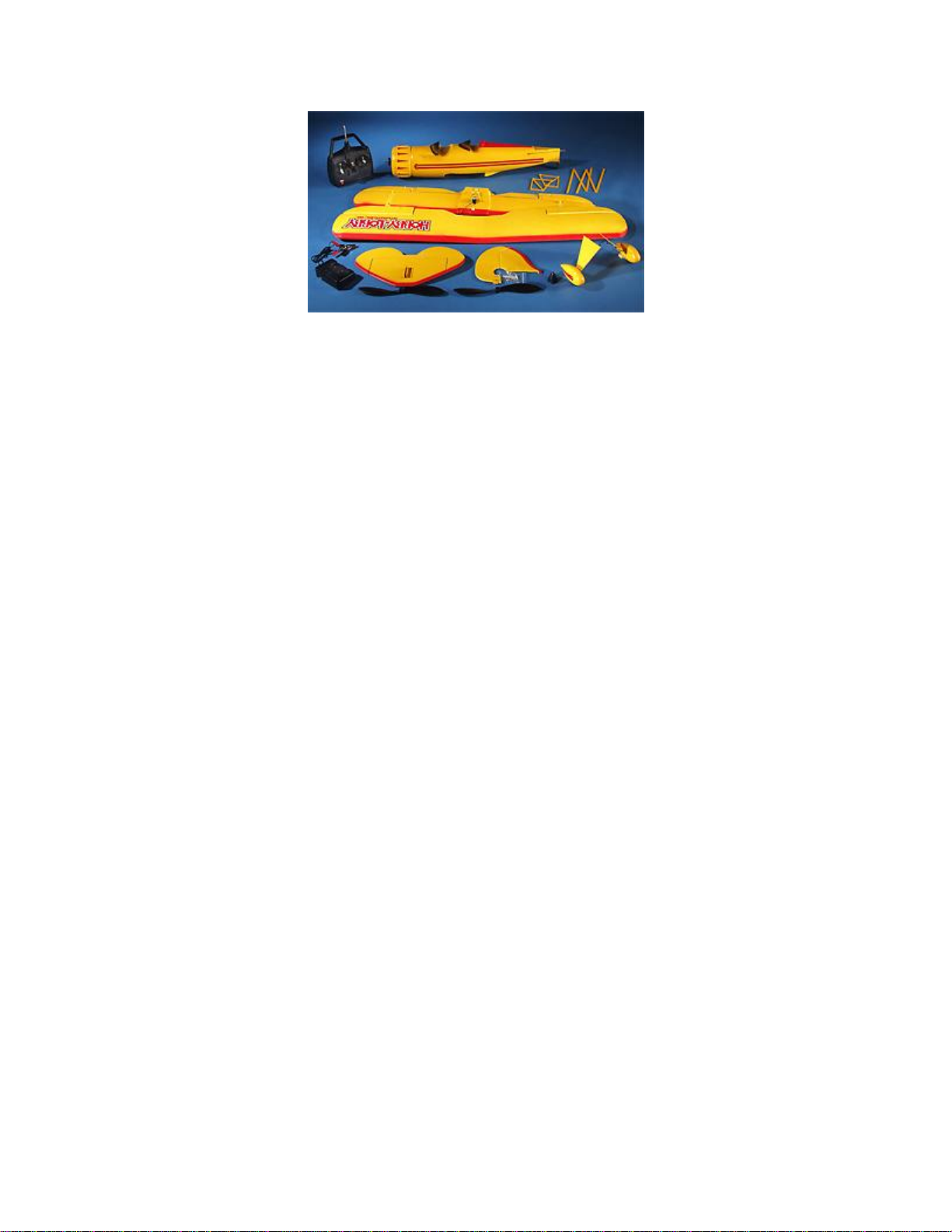

ContentsList

¨ Pre-paintedFuselage (moldedfoam)

¨ BatteryHatch

¨ Landing Gear

¨ Wheels

¨ Pre-paintedWings

¨ Wing N-StrutsandCabanes

¨ Pre-paintedVerticalTail

¨ Pre-paintedHorizontalTail

¨ Pushrodspre-installed

¨ 4-Channel72mHzTransmitter

¨ 72mHzReceiver(pre-installed)

¨ 3-Cell1300mAhLiPolyBattery

¨ BrushlessOutrunnerMotor

¨ BrushlessController

¨ LiPolyBalanceCharger

¨ 2-Propellers

¨ MiscellaneousHardware

Additional ItemsRequired

¨ Small Phillipsscrewdriver

¨ NeedleNosePliers(optional)

¨ HobbyKnife(optional)

1.Locatefuselage and bagof assembly

screws. Layout screwsissizeorder

groups.

2.Locatehorizontaltailand 2screws. Position

the tailplane inand screwinplace.

3.Locatetheverticaltail. Slidethe wirefrom

the tailwheelintothe plasticmount on the

bottomof the rudder.

4.Slide theverticaltailintoposition inthe

mount on top of the horizontaltail. Tab at

front oftailinsertsintofuselage. Screwin

placewith2screws.

5.Locatelowermainwing and the "N"struts.

Screwinplacewith2small screws. Repeat

forotherside of wing.

6.Snug up screwsbut donot overtighten.

7.Screwcabane strutsinplaceonfuselage

using2small screws. Pleaserefertophoto

forcorrect orientationof cabane. Repeat for

othercabane.

8.Locatelowermainwing. Plug inaileron

servotoreceiver, thereisan open

extension forthis.

9.Afterplugginginthe aileron servo,position

the lowermainwing inplaceonthe

fuselage.

10.Screwinplacebothfront andback with

supplied nylon screws. Snug up but do not

overtighten.

11.Matchthe topsof the cabanestothe

mountson the bottomof the uppermain

wing. Screwinpositionwith2smallscrews.

Repeat forthe othercabane

12.Inasimilarfashion attachthe topsof the2

"N"strutstothe upperwing with2small

screwseach.

13.Connect thetop and bottomaileronswith

the supplied wireconnector.

14.Locatethepre-bentlanding gearwith

wheelsand wheelpants.Pushinplaceon

fuselage bottomat front of batterybox.

15.Open batteryboxand insert battery.

16.Batteryslidestowardthe noseof the

airplane inapre-formed slot. Pleasereferto

photo.

17.Leaving onenuton the motorshaft,insert

the spinnerbackplateontoshaft tillit

engageswiththe nut.

18.Slippropellerontoshaft andsecurewith

additionalnuts. Installspinnerand holdin

placewithscrews.

19.Install8-AA cellsintothe transmitterand

turnit on. Lowerthe left stick (throttle)toits

lowest position (bottomof the transmitter)

and thenplug theflight batteryintothe

speed control. Check that the controls

operateinthe correct direction,if necessary

reversethe direction ofaservowiththe

corresponding reverseswitch.

20.Withthe suppliedcomponentsinstalled the

C.G. (centerof gravity)isautomatically

correct.

21.Check that thecontrolsurfacesareat

neutral.

22.Withthetrimadjustmentson the transmitter

intheirmiddleposition, the controlsurfaces

on the modelshouldbe neutral.

23.Adjust the lengthof thepushrodsas

necessary.

24.The controlthrowsshouldbe

approximately.

25.Elevator=5/8" Upand Down

26.Ailerons=½" Upand Down

27.Rudder=1-1/8" EachWay
