Installation Guide
31500
20220418R1 DATE: ______________
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 1
Instructions – 31500
*PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING,
INSTALLING, AND USING THIS PRODUCT*
Warning
Always check for wires, fuel tanks and lines, brake lines and other important vehicle
functionality items prior to drilling and installing all products.
Tools Needed
1/2” Wrench and Socket
9/16” Wrench and Socket
Table of Contents
Parts List ................................................................................................................................. 2
Hardware List ......................................................................................................................... 2
Installation .............................................................................................................................. 3
Before You Begin
• Read all instructions before assembling or installing any Holman product.
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 2
Instructions – 31500

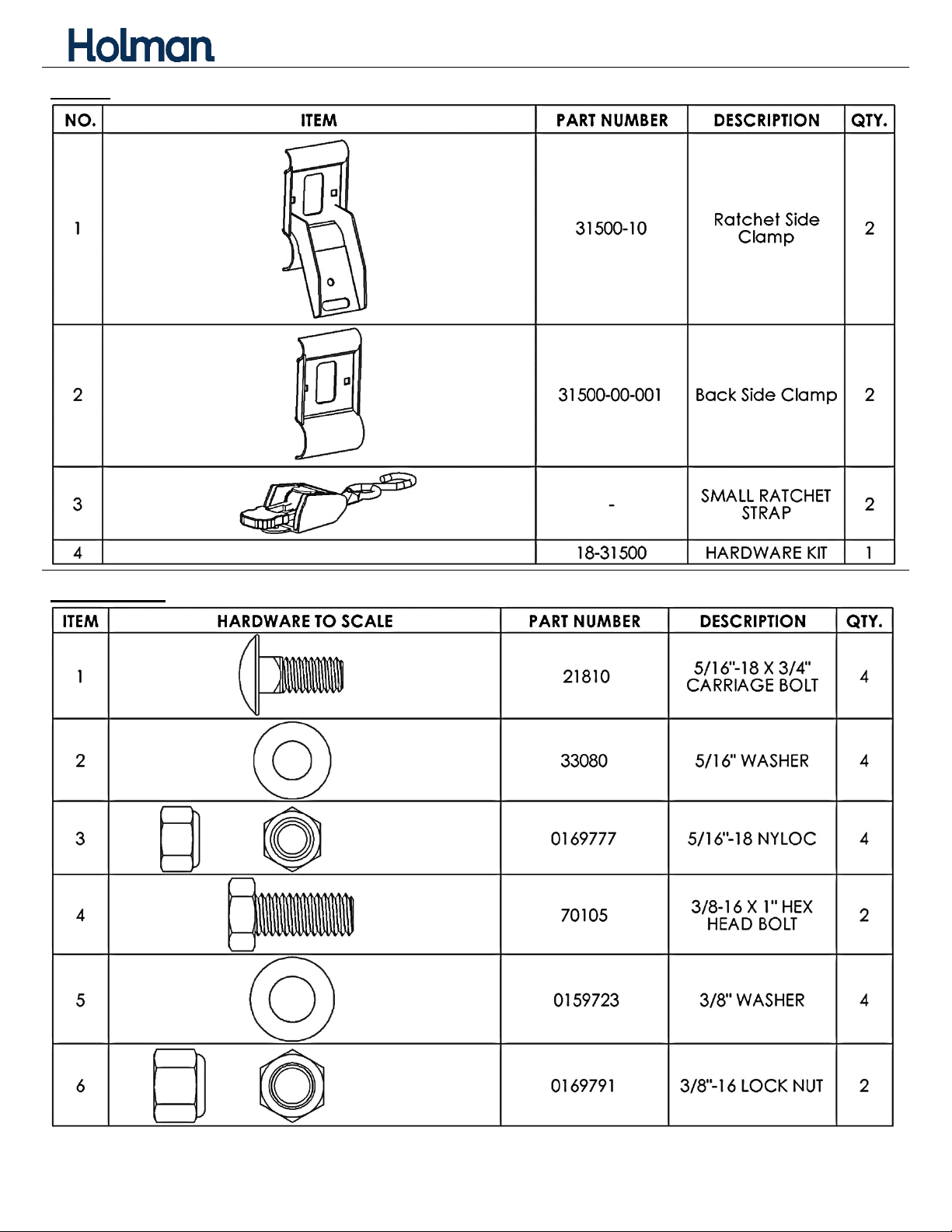

Parts
Hardware
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 3
Instructions – 31500

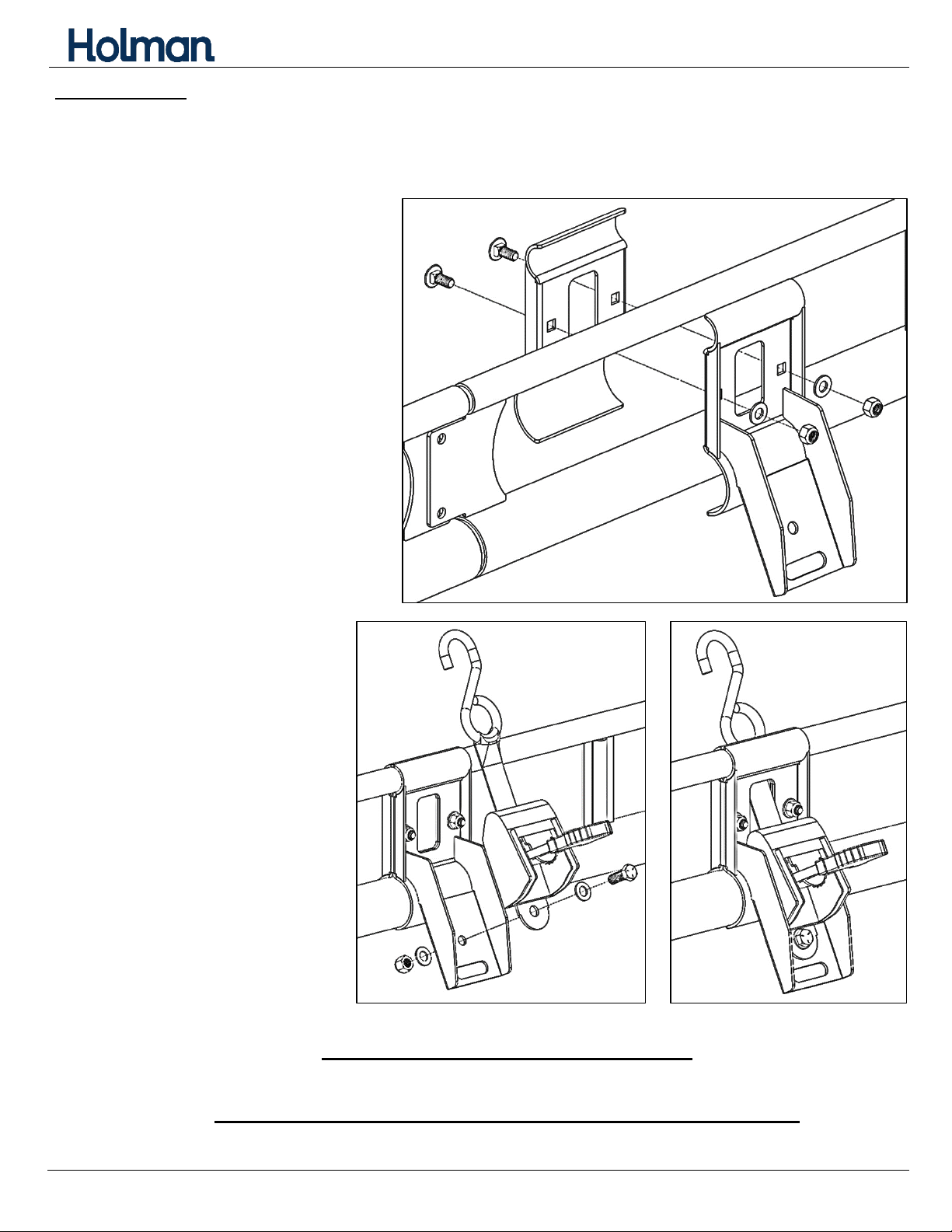

Installation
• Find desired location to attach ratchet strap mounts.
• Place ratchet side clamp on outside of ladder rack.
• Place back side clamp in position to pinch ladder rack between the two clamps as shown.
• Bolt together using two
5/16” x 3/4" carriage bolts,
5/16” flat washers, and 5/16” lock
nuts.
• Using a 3/8” x 7/8” hex head
screw, 3/8” washers, and
3/8” lock nut, bolt the
ratchet strap to the ratchet
strap mount as shown.
• Repeat for other set of
clamps and brackets.
TIGHTEN ALL HARDWARE.
YOUR INSTALLATION IS NOW COMPLETE.
