USE AND CARE GUIDE

Questions, problems, missing parts? Before returning to the store,

call Home Decorators Collection Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.

1-800-986-3460

HOMEDEPOT.COM/HOMEDECORATORS

THANK YOU

We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive

to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Home Decorators Collection!

Item #767518, 767519, 767515

Model #56012, 56014, 56019

UL Model # 52-MONT

ACKERLY 52-INCH CEILING FAN

To view an instructional video on how to install this product:

1. Go to www.homedepot.com and enter either the Item or Model number, found in the top

right corner of the cover of this instruction manual, in the search eld.

2. Click on your product from the list of search results and click on the video link in the

“Product Overview” section.

Table of Contents ................................................................2

Safety Information...............................................................2

Warranty ............................................................................... 3

Pre-Installation ....................................................................3

Installation............................................................................6

Assembly..............................................................................7

Operation ...........................................................................14

Care and Cleaning.............................................................15

Troubleshooting.................................................................15

1. To reduce the risk of electric shock, ensure the electricity has

been turned off at the circuit breaker or fuse box before you

begin.

2. All wiring must be in accordance with the National Electrical

Code ANSI/NFPA 70 and local electrical codes. Electrical

installation should be performed by a qualified licensed

electrician.

3. The outlet box and support structure must be securely mounted

and capable of reliably supporting 35 lbs. (15.9 kg). Use only

UL Listed outlet boxes marked “Acceptable for Fan Support of

35 lbs. (15.9 kg) or less”.

4. The fan must be mounted with a minimum of 7 ft (2.1 m)

clearance from the trailing edge of the blades to the oor.

5. Do not operate the reversing switch while the fan blades are

in motion. You must turn the fan off and stop the blades before

you reverse the blade direction.

6. Do not place objects in the path of the blades.

7. To avoid personal injury or damage to the fan and other items,

use caution when working around or cleaning the fan.

8. Electrical diagrams are for reference only. Light kits that are

not packed with the fan must be UL-listed and marked suitable

for use with the model fan you are installing. Switches must be

UL General Use Switches. Refer to the instructions packaged

with the light kits and switches for proper assembly.

9. After making electrical connections, spliced conductors should

be turned upward and pushed carefully up into the outlet box.

The wires should be spread apart with the grounded conductor

and the equipment-grounding conductor on one side of the

outlet box.

10. All setscrews must be checked and retightened where

necessary before installation.

WARNING: To reduce the risk of personal injury,

do not bend the blade brackets (also referred to as

anges) during assembly or after installation. Do not

insert objects in the path of the blades.

WARNING: Suitable for use with solid-state speed

controls.

WARNING: To avoid possible electrical shock,

turn the electricity off at the main fuse box before

wiring. If you feel you do not have enough electrical

wiring knowledge or experience, contact a licensed

electrician.

WARNING: Electrical diagrams are for reference

only. Optional use of any light kit shall be UL-listed

and marked suitable for use with this fan.

WARNING: To reduce the risk of re or electric

shock, “this fan should only be used with fan speed

control part no. MR140A manufactured by Satellite

Industrial Co., LTD” or control part no. AP-8RDL

manufactured by Dawnsun.

Safety Information

Table of Contents

CAUTION: To reduce the risk of personal injury,

use only the screws provided with the outlet box.

READ AND SAVE THESE INSTRUCTIONS.

CAUTION: Changes or modications not expressly

approved by the party responsible for compliance

could void the user’s authority to operate the

equipment.

CAUTION: Do NOT use this fan with a dimmer switch

or wall control. Using a dimmer switch or wall control

will damage the fan.

WARNING: To reduce the risk of electric shock, this

fan must be installed with an isolating wall switch.

3HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Pre-Installation

Warranty

The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a

lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic

blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date

of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior

model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing

and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installation, or by afxing any

accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish,

including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying

weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons

shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties,

including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any

implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a

limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,

consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by

law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you.

This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior

warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.

Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.

SPECIFICATIONS

TOOLS REQUIRED

NOTE: These are approximate measures. They do not

include the Amps and Wattage used by the light kit.

Phillips

screwdriver

Flat blade

screwdriver

Adjustable

wrench

Electrical

tape

Wire

cutter

Step ladder

Size Speed Volts Amps Watts RPM CFM Net

Weight

Gross

Weight Cube Feet

52 in.

Low

Medium

High

120

0.24

0.34

0.49

100

155

1844

2882

4416

18.74 lbs.

(8.5 kg)

21.83 lbs.

(9.9 kg) 2.06 cu.ft.

Part Description Quantity

AA Blade attachment screws 16

BB Plastic wire connector 3

CC Rubber gasket 1

Pre-Installation (continued)

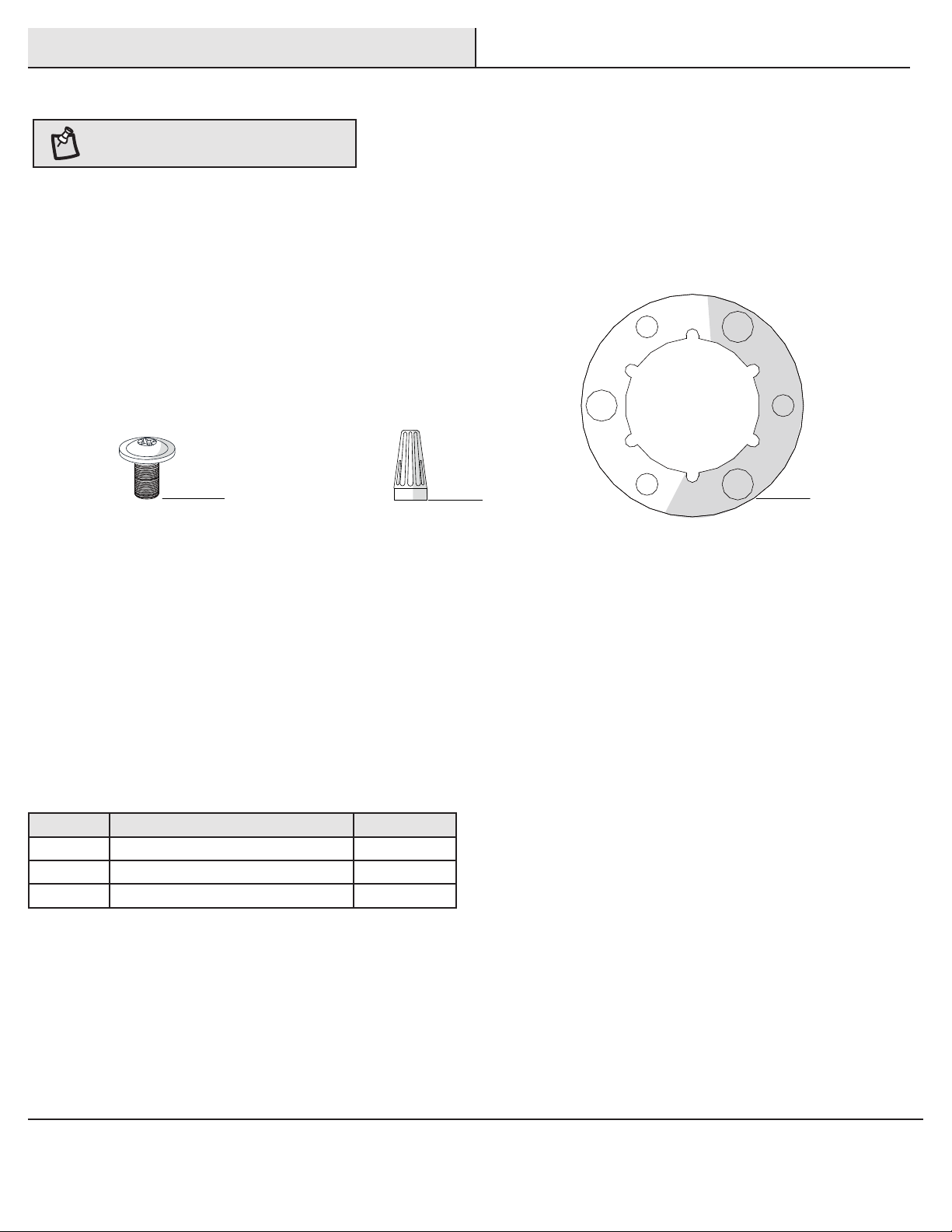

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

AA BB CC

5HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

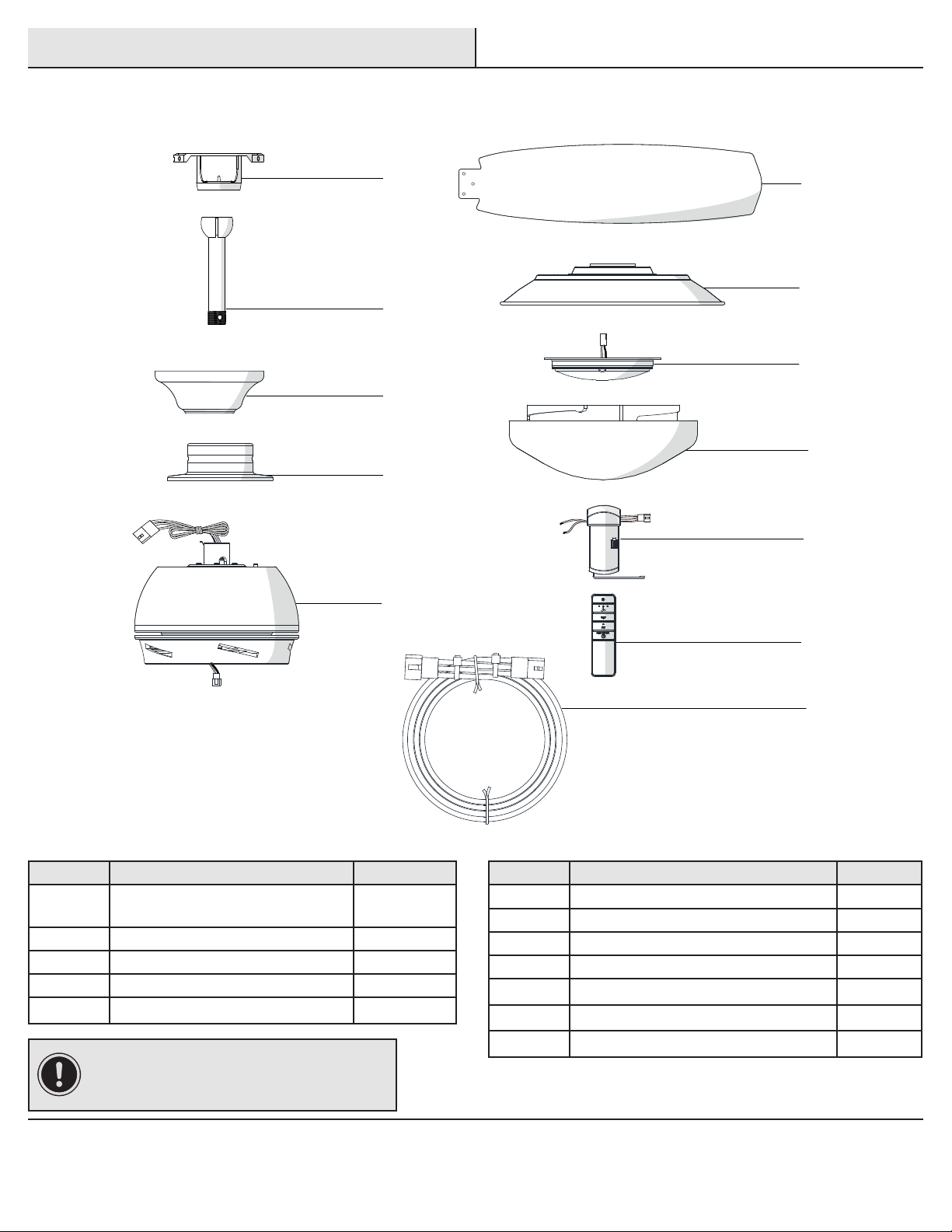

Part Description Quantity

A Slide-on mounting bracket

(inside canopy)

B Ball/downrod assembly 1

C Canopy 1

D Decorative motor collar cover 1

E Fan-motor assembly 1

Part Description Quantity

F Blade 5

G Light kit pan 1

H Light kit tter assembly 1

I Shatter resistant bowl 1

J Receiver 1

K Remote control (battery included) 1

L Extension lead wire 1

IMPORTANT: This product and/or components are

governed by one or more of the following U.S. Patents:

5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117

and other patents pending.

Pre-Installation (continued)

PACKAGE CONTENTS

1 2 3 4

ON DIP

Installation

MOUNTING OPTIONS

WARNING: To reduce the risk of re, electric shock,

or personal injury, mount the fan to an outlet box

marked “Acceptable for fan support of 35 lbs.

(15.9kg) or less” and use the screws provided with

the outlet box. An outlet box commonly used for the

support of lighting xtures may not be acceptable for

fan support and may need to be replaced. If in doubt,

consult a qualied electrician.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box directly to the building structure.

Use the appropriate fasteners and materials. The outlet box

and its bracing must be able to fully support the weight

of the moving fan (at least 35 lbs.). Do not use a plastic

outlet box.

The illustrations below show three different ways to mount the

outlet box.

If the canopy (C) touches the ball/downrod assembly (B), then remove

the decorative canopy bottom cover and turn the canopy (C) 180°

before attaching the canopy (C) to the mounting plate.

To hang your fan where there is an existing xture but no ceiling joist,

you may need an installation hanger bar as shown above

(available at any Home Depot store).

NOTE: You may need a longer downrod to maintain

proper blade clearance when installing on a steep, sloped

ceiling. The maximum angle allowable is 30° away from

horizontal.

Outlet Box

Recessed

Outlet

Box

Provide Strong

Support

Ceiling

Mounting

Plate

Outlet Box

Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly - Standard Ceiling Mount

Routing the wiresPreparation for standard mounting

□Route the wires exiting the top of the fan-motor assembly

(E) through the canopy ring (GG).

□Insert the ball/downrod (B) through the canopy (C) and

slide the decorative motor collar cover (D) onto the end of

the ball/downrod (B). Make sure the slots on the canopy

□Route the wires exiting the top of the fan motor assembly

(E) through the downrod as shown.

□Remove the canopy ring (GG) by turning the ring clockwise

until it unlocks.

□Remove the mounting bracket (A) from the canopy (C) by

loosening the two canopy screws (EE) located in the “L

shaped” slots.

□Remove and save the two canopy screws (FF) in the round

holes. This will enable you to remove the mounting bracket (A).

Assembling the fan

□Loosen, but do not remove, the setscrew (JJ) on the collar

(HH) on top of the fan-motor assembly (E).

□Install the downrod (B) by inserting it into the motor collar

(HH), and turning it clockwise until it is tight.

□Re-tighten the setscrew (JJ) on the collar (HH) on top of the

fan motor assembly (E).

NOTE: This fan is equipped with a safety tab (II). Should

the setscrew (JJ) ever become loose while the fan is

running in reverse, the safety tab (II) will engage and

stop the fan from falling.

CAUTION: To ensure wobble-free operation and to

avoid damage to the fan, the downrod (B) and the

setscrew (JJ) must be completely tightened.

Assembly - Close-to-Ceiling Mount

Routing the wiresClose-To-Ceiling Mounting

□Remove three of the six screws and lock washers (LL)

(every other one) securing the motor collar (HH) to the

top of the fan motor housing (E).

□Route the wires exiting the top of the fan-motor

assembly (E) through the rubber gasket (CC) aligning

the holes in the rubber gasket (CC) with the three

screw holes in the fan-motor assembly (E).

□Route the wires exiting the top of the fan-motor

assembly (E) through the canopy ring (GG), and

the canopy (C) (make sure the slot openings for

the canopy ring and canopy are on top). Place the

canopy (C) over the collar (HH) at the top of the motor

assembly (E).

□Align the mounting holes with the holes in the

motor (E) and fasten, using the three screws and

lock-washers (LL) removed previously. Tighten the

mounting screws securely.

□Remove the canopy ring (GG) from the canopy (C) by

turning the ring clockwise until it unlocks.

□Remove the mounting bracket (A) from the canopy (C) by

loosening the two canopy screws (EE) located in the “L

shaped” slots.

□Remove and save the two canopy screws (FF) in the

round holes. This will enable you to remove the mounting

bracket (A).

□Remove the decorative canopy bottom cover (KK) from the

canopy (C) by pressing the three studs.

9HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly - Hanging the Fan

Attaching the fan to the

electrical box Hanging the fan

□Pass the 120-Volt supply wires through the center hole

in the slide-on mounting bracket (A).

□Install the ceiling slide-on mounting bracket (A) on the

outlet box by sliding the slide-on mounting bracket (A)

over the two screws (MM) provided with the outlet box. If

necessary, use leveling washers (not included) between

the slide-on mounting bracket (A) and the outlet box.

Note that the at side of the slide-on mounting bracket

(A) is toward the outlet box.

□Securely tighten the two mounting screws (MM).

□Carefully lift the fan-motor assembly (E) up to the slide-on

mounting bracket (A).

□Seat the hanger ball portion of the ball/downrod assembly (B)

in the mounting bracket socket. Ensure that the tab on the

slide-on mounting bracket (A) socket is properly seated in the

groove in the hanger ball.

□If using close-to-ceiling mounting, hang the fan on the hook

provided by utilizing one of the holes at the outer rim of the

ceiling canopy (C).

WARNING: To reduce the risk of re, electric shock,

or other personal injury, mount the fan to an outlet

box or supporting system marked “Acceptable for

fan support of 35 lbs. (15.9kg) or less” and use

the mounting screws provided with the outlet box.

NOTE: The mounting bracket (A) is designed to

slide into place on an outlet box with the outlet box

screws (MM).

WARNING: The hook as shown is only to balance

the fan while attaching wiring. Failure to hang as

shown may result in hook breaking, causing the

fan to fall. The hook must pass from inside to the

outside of the canopy.

WARNING: When hanging the fan on the hook (XX)

it is critical that you use one of the non-slotted

(round) holes in the canopy (C).

Assembly - Hanging the Fan (continued)

NOTE: The frequencies on your receiver and hand unit have

been preset at the factory. Before installing the receiver,

make sure the dip switches on the receiver and hand unit are

set to the same frequency. The dip switches on the hand unit

are located inside the battery compartment.

NOTE: The switch marked “O/D” controls the dimming

function of the lights. Use a ballpoint pen or small

screwdriver to set the switch to “O” to disable the dimming

function. Set the switch to “D” to enable the dimming

function.

Setting the code on the remote

control and receiver

□Remove the remote control (K) battery cover by pressing

rmly on the arrow and sliding the cover off.

□Slide the dip switches (ZZ) to your choice of either up or

down. The factory setting is up.

□Slide the dip switches (ZZ) on the receiver (J) to the same

position as set on the remote control (K).

□Install two 1.5V AAA batteries (included).

□Replace the battery cover on the remote control (K).

□Insert the silicone rubber stopper (OO) into the hole on the

receiver (J) to cover the dip switches.

1 2 3 4

D O

1 2 3 4

ON DIP

1 2 3 4

D O

1 2 3 4

NOTE: The battery will weaken with age and should be

replaced before leaking takes place as this will damage the

hand unit. Dispose of used battery properly and keep the

battery out of the reach of children.

4Installing the receiver

□Position the house supply wires (AAA) to one side of the

slide-on mounting bracket (A); position the fan wires (BBB)

to the opposite side.

□Insert the narrow end of the receiver (as shown, at side

towards the ceiling) into the slide-on mounting bracket until

it rests on top of the ball/downrod assembly.

WARNING: To reduce the risk of re or electric shock,

remember to disconnect power. The electrical wiring must

meet all local and national electrical code requirements.

The electrical source and fan must be 110/120 volt, 60Hz.

Do not use this product in conjunction with any variable wall

control. Incorrect wire connection can damage this receiver.

CAUTION: If other fan wires are a different color, have this

unit installed by a licensed electrician.

CAUTION: Do not immerse in water. Do not pull on or cut the

receiver leads shorter. Do not drop or bump the unit.

AAA

BBB

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Home Decorators Collection Lüfter Handbücher

Home Decorators Collection

Home Decorators Collection TRUDEAU YG545A-EB Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection YG583-WH Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection CONNOR 51847 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BRECKENRIDGE YG543-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 1009HDCGLDI Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 51662 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection FAWNDALE 1005 819 911 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection FENCEHAM Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection INTERVALE N609A-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BROUGHTON YG671-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection CASUN 11252AIWNCN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection VARUCHI Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 52111 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection KENSGROVE Series Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BENTLEY III AM183W-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection WESLEY 34776-HBUG Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection WINDWARD 68-WWD Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection YG545A-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection YG768A-MBK Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BENTOYGA 51820 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BAXTAN AM731A-MBK Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection PARKRIDGE YG614-NI Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection ALTURA 68-ATR Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection ARLEIGH Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
