Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

Table of Contents

Safety Rules . . . . . . . . . . . . . . . . . . . . 1

Unpacking Your Fan . . . . . . . . . . . . . . 2

Installing Your Fan . . . . . . . . . . . . . . . 3

Installing the Light Kit. . . . . . . . . . . . .10

Operating Your Transmitter . . . . . . . . . 11

Care of Your Fan . . . . . . . . . . . . . . . . 13

Troubleshooting . . . . . . . . . . . . . . . . . 13

Specifications . . . . . . . . . . . . . . . . . . 14

111-939

548810

792145365136

Safety Rules - Read and Save These Instructions

To reduce the risk of electric shock, insure electricity has been turned off

at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical Code

“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation

should be performed by a qualified licensed electrician.

WARNING: To reduce the risk of electrical shock or fire, do not use this

fan with any solid-state fan speed control device. It will permanently

damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the screws

provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds, Use only NOM

Listed outlet boxes marked “FOR FAN SUPPORT”.

The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge of the blades to the floor.

Avoid placing objects in the path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades. A dry

dust cloth or lightly dampened cloth will be suitable for most cleaning.

After making electrical connections, spliced conductors should be turned

upward and pushed carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the equipment-grounding

conductor on one side of the outlet box and ungrounded conductor on the

other side of the outlet box.

All set screws must be checked and retightened where necessary before

installation.

The appliance is not to be used by persons (including children) with reduced

physical, sensory or metal capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction.

This device complies with part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

10.

11.

12.

13.

TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE BLADE

ARMS (ALSO REFERRED TO AS FLANGES), WHEN INSTALLING THE

BRACKETS, BALANCING THE BLADES OR CLEANING THE FAN. DO NOT

INSERT FOREIGN OBJECTS IN – BETWEEN ROTATING FAN BLADES.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT

WITH THE SCREWS PROVIDED WITH THE OUTLET BOX.

WARNING

Unpack your fan and check the contents. You should have the following items:

Blade Attachment Hardware

(13 Screws and rubber washer)

Blade Arm Attachment Hardware

(9 Screw with lock washer)

Electrical Hardware

(3 Plastic Wire Nuts)

Set of blades (4)

Canopy assembly

Ball/downrod assembly

Coupling cover

Fan motor assembly

Blade arms (4)

Mounting plate

LED light kit

Glass shade

Receiver with 6 wire nuts

Transmitter+holder+2 mounting screws

12V MN21/A23 battery

10.

11.

12.

WARNING

DO NOT INSTALL OR USE FAN IF ANY

PART IS DAMAGED OR MISSING.

CALL TOLL FREE 01-800-004-6633.

Unpacking Your Fan

Installing Your Fan

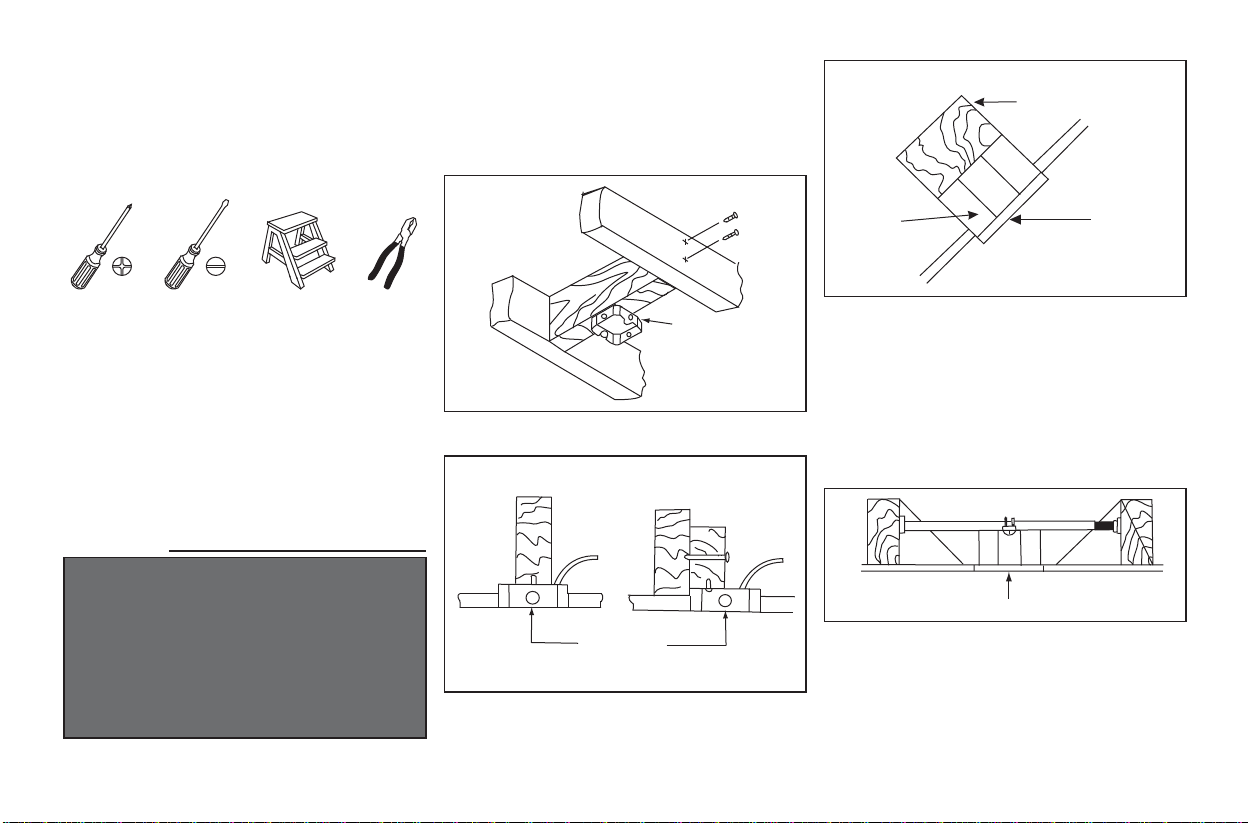

Figures 1~3 are examples of different ways to

mount the outlet box.

If there isn't an existing NOM listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 35 lbs). Do not use plastic outlet boxes.

Tools Required

Mounting Options

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OULET BOX MARKED ACCEPT-

ABLE FOR FAN SUPPORT AND USE THE

MOUNTING SCREWS PROVIDED WITH THE

OULET BOX. OUTLET BOX COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURE

MAY NOT BE ACCEPTABLE FOR FAN SUPPORT

AND MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Outlet Box

Figure 2

Figure 1

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling. The maximum angle

allowable is 18°. If the canopy touches downrod,

remove the decorative canopy bottom cover and

turn the canopy 180°before attaching the canopy

to the mounting plate.

To hang your fan where there is an existing fixture

but no ceiling joist, you may need an installation

hanger bar as shown in Figure 4 (available at any

Home Depot store).

Ceiling

Mounting

Plate

Provide Strong

Support

Recessed

Outlet Box

Figure 3

Figure 4

Phillips screwdriver, straight slot screwdriver, step

ladder and wire cutters.

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly.

Hanging the Fan

WARNING

FAILURE TO PROPERLY INSTALL COTTER

PIN AS NOTED IN STEP 5 COULD RESULT IN

FAN LOOSENING AND POSSIBLY FALLING.

Remove the canopy ring from the canopy.

(Figure 5)

Remove the mounting bracket from the canopy

by loosening the four screws on the top of the

canopy. Remove the two non-slotted screws

and loosen the slotted screws. (Figure 6)

Remove the clevis pin, cotter pin and set

screws from the top of the motor assembly.

(Figure 7)

Take out the setscrew located in the hanger

ball, lower the hanger ball and remove the

cross pin. Remove the hanger ball from the

hanger ball/downrod assembly. (Figure 7)

Remove the ground lead from the downrod

assembly. (Figure 7)

NOTE: If a longer downrod is needed, take out

the screw located in the hanger ball, lower the

hanger ball and remove the pin, remove all 3

pieces from the downrod and assemble them

onto the new longer downrod before

proceeding step 4. (The longer downrod is

available at any Home Depot store)

Carefully feed the motor wires up through the

downrod. Thread the downrod into the collar.

Align the holes and replace the clevis pin and

cotter pin. Tighten the two collar setscrews.

(Figure 8)

Slip coupling cover, canopy ring, and canopy

onto the downrod. Carefully reinstall the

hanger ball onto the downrod and reinstall the

ground lead onto the downrod, being sure that

the cross pin is in the correct position, the

setscrew is tightened and wires are not twisted.

(Figure 8)

Figure 7

Loosen but

do not Remove Remove

Figure 6

Figure 5

Motor Collar

Cotter

Clevis

Downrod

Set screws

Cross pin

Hanger

Ball Set Screw Ground

Lead

Remove the

Canopy Ring

Installing Fan to

the Electrical Box

WARNING

THE TAB IN THE RING MUST REST IN THE

GROOVE OF THE HANGER BALL AS FIGURE 8.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR OTHER PERSONAL INJURY.

MOUNT FAN ONLY TO AN OUTLET BOX OR

SUPPORTING SYSTEM MARKED ACCEPTABLE

FOR FAN SUPPORT AND USE THE MOUNTING

SCREWS PROVIDED WITH THE OUTLET BOX.

Pass the 120-volt supply wires through the

center hole in the ceiling mounting bracket as

shown in Figure 9.

Attach the mounting bracket on the outlet box

by sliding the mounting bracket over the screws

provided with the outlet box. (Figure 9)

Security tighten the two mounting screws.

Carefully lift the fan assembly up to the ceiling

mounting bracket and seat the hanger ball in the

mounting bracket socket. Make sure the tab on

the mounting bracket socket is properly seated

in the groove in the hanger ball (Figure 10).

This will help to balance the ceiling fan.

Figure 10

Groove

Tab

Figure 9

NOM Listed

Outlet Box

Ceiling Mounting

Bracket

Mounting

Screws (Supplied

with Outlet Box) 120V

Wires

Figure 8

Motor Wires

Ceiling Canopy

Pin in Locked

Positioon

Motor Collar

Coupling Cover

Tighten Screw

Firmly

Cotter Pin

Clevis Pin

Downrod

Cross pin

Hanger

Ball

Set Screw

Ground Lead

Making the Electrical

Connections

WARNING

TO AVOID POSSIBLE ELECTRICAL SHOCK, BE

SURE ELECTRICITY IS TURNED OFF AT THE

MAIN FUSE BOX BEFORE WIRING.

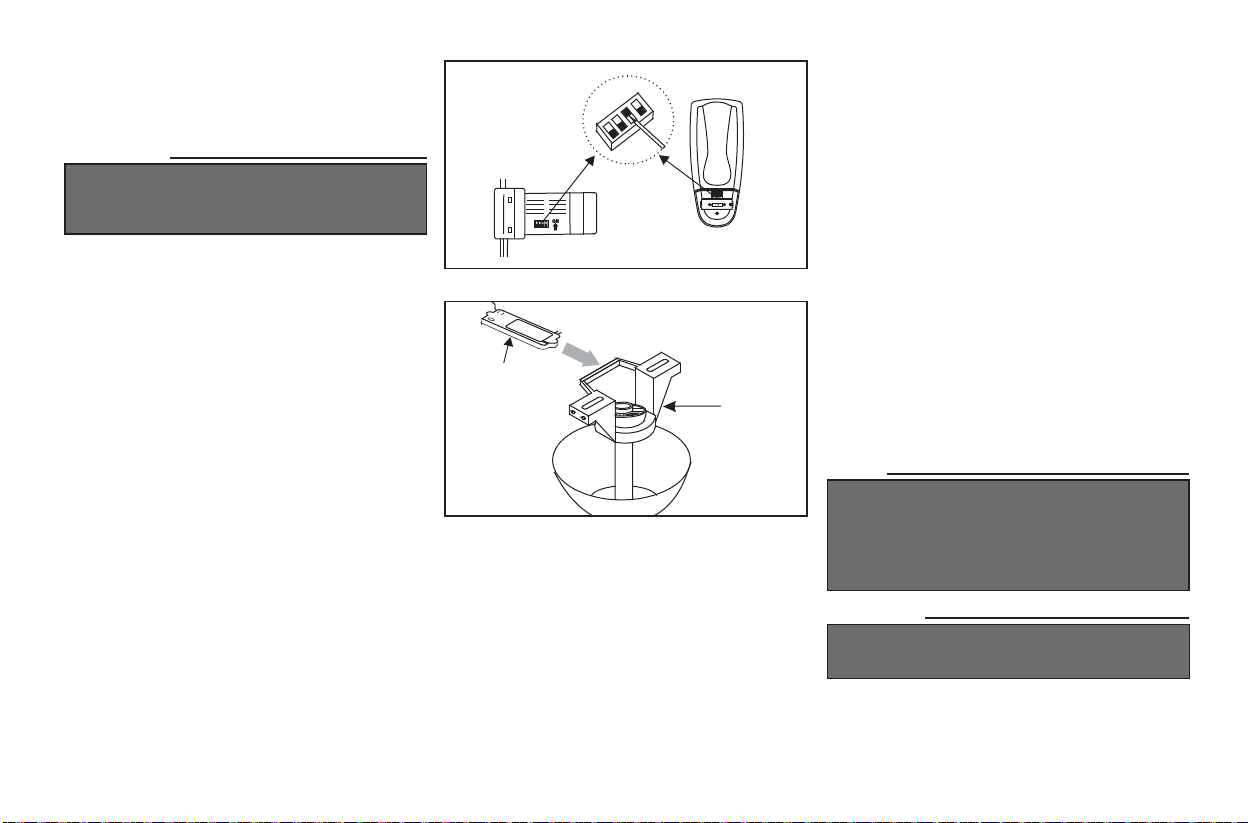

(Figure 13) Motor to receiver electrical

connections: Connect the black wire from the

fan to black wire marked "TO MOTOR L".

Connect the white wire from the fan to the

white wire marked "TO MOTOR N" from the

receiver. Connect the blue wire from the fan to

the blue wire marked "For Light" from the

receiver. Secure the wire connections with the

plastic wire connecting nuts provided.

(Figure 13) Receiver to house supply wires

electrical connections: Connect the black (hot)

wire from the ceiling to the black wire marked

"AC in L" from he receiver. Connect the white

(neutral) wire from the ceiling to the white wire

marked "AC in N" from the receiver. Secure

the wire connections with the plastic wire

connecting nuts provided.

(Figure 13) If your outlet box has a ground

wire (green or bare copper) connect it to the fan

ground wires; otherwise connect the hanging

bracket ground wire to the mounting bracket.

Secure the wire connection with a plastic nut

provided. After connecting the wires spread

them apart so that the green and white wires are

on one side of the outlet box and black and blue

wires are on the other side. Carefully tuck the

wire connections up into the outlet box.

Insert the receiver into the mounting bracket

with the flat side of the receiver facing the

ceiling as Figure 12.

If you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

Follow the steps below to connect the fan to your

household wiring. Use the wire nuts supplied with

your fan. Secure the wire nuts with electrical tape.

Make sure there are no loose strands or

connections.

This remote control unit is equipped with 16 code

combinations to prevent possible interference

from or to other remote units. The frequency

switches on your receiver and transmitter have

been preset at the factory. Please recheck to make

sure the switches on the transmitter and the

receiver are set to the same position, any

combination of settings willoperate the fan as long

as the transmitterand receiver are set to the same

position. (Figure 11)

Figure 11

Figure 12

Receiver

Ceiling

Mounting

Bracket

Frequency Switch

CAUTION

DO NOT USE WITH WALL LIGHT DIMMER

SWITCH.

NOTE

FAN MUST BE INSTALLED AT A MAXIMUM

DISTANCE OF 20 FEET FROM THE

TRANSMITTING UNIT FOR PROPER SIGNAL

TRANSMISSION BETWEEN THE TRANSMITTING

UNIT AND THE FAN'S RECEIVING UNIT.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Home Decorators Collection Lüfter Handbücher

Home Decorators Collection

Home Decorators Collection TRUDEAU YG545A-EB Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection TAGER N383C-MBK Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection EASTON N381B-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection COLEMONT 51820 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection PRATT 56044 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection HEDLEY AM441-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection SARINA CF1004B Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection Trudeau YG545-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection KENNEDY AM747A-GM Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection ACWORTH YG623A-MWH Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection DELMORE 56054 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection HANLON YG533-SST-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection YG583-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection TRUDEAU YG545-EB Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection MERCER 54728 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection CORINTH Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection YG682-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection SFZ-500-R Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection PINE MEADOWS 52-ALLE Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection YG749-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection AM909-NI Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection Merryn Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection YG658-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BAXLEY POINT OUTDOOR YG786-MBK Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
