Home Decorators Collection WINDWARD 68000 Bedienungsanleitung

Questions, problems, missing parts? Before returning to the store,

call Home Decorators Collection Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.

1-800-986-3460

HOMEDEPOT.COM/HOMEDECORATORS

THANK YOU

We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive

to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Home Decorators Collection!

Item #1004 794 977, 1004 794 979,

1004 794 981, 1004 794 975

Model #68000, 68002, 68004 ,68009

ETL Model #68-WWD

USE AND CARE GUIDE

WINDWARD 68-INCH CEILING FAN

Table of Contents ................................................................2

Safety Information...............................................................2

Warranty ............................................................................... 3

Pre-Installation ....................................................................3

Installation............................................................................6

Assembly..............................................................................7

Operation ...........................................................................13

Care and Cleaning.............................................................16

Troubleshooting.................................................................16

1. To reduce the risk of electric shock, ensure the electricity has been

turned off at the circuit breaker or fuse box before you begin.

2. All wiring must be in accordance with the National Electrical Code

ANSI/NFPA 70 and local electrical codes. Electrical installation should

be performed by a qualied licensed electrician.

3. The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 lbs. (15.9 kg). Use

only UL-listed outlet boxes marked “Acceptable for Fan Support of

35 lbs. (15.9 kg) or less.”

4. The fan must be mounted with a minimum of 7 ft (2.1 m) of

clearance from the trailing edge of the blades to the oor.

5. Do not place objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other items, use

caution when working around or cleaning the fan.

7. After making electrical connections, spliced conductors should be

turned upward and pushed carefully up into the outlet box. The

wires should be spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the outlet box.

8. All set screws must be checked and retightened where

necessary before installation.

9. Use only with light kits marked suitable for damp location.

WARNING: To reduce the risk of personal injury,

do not bend the blade brackets (also referred to as

anges) during assembly or after installation. Do

not insert objects in the path of the blades.

WARNING: To reduce the risk of re or electric

shock, do not use this fan with any solid-state speed

control device.

WARNING: Electrical diagrams are for reference

only. If you are using a light kit, refer to the light kit

instructions manual to make the electrical

connections. Optional use of any light kit shall be

UL-listed and marked suitable for use with this fan.

WARNING: To avoid possible electrical shock, turn

the electricity off at the main fuse box before

wiring. If you feel you do not have enough electrical

wiring knowledge or experience, contact a licensed

electrician.

Safety Information

Table of Contents

CAUTION: To reduce the risk of personal injury,

use only the screws provided with the outlet box.

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to outlet box marked

“Acceptable for fan support of 35 lbs. (15.9 kg) or

less”, and use screws provided with the outlet box.

READ AND SAVE THESE INSTRUCTIONS.

WARNING: To reduce the risk of re or electric shock,

this fan should only be used with fan speed control

part no. MDF40S-H04R, manufactured by Dawnsun

Electronic Co., LTD.

CAUTION: Do NOT use this fan with a dimmer switch

or wall control. Using a dimmer switch or wall control

will damage the fan.

CAUTION: Changes or modications not expressly

approved by the party responsible for compliance

could void the user’s authority to operate the

equipment.

WARNING: To reduce the risk of electric shock, this

fan must be installed with an isolating wall switch.

3HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Pre-Installation

Warranty

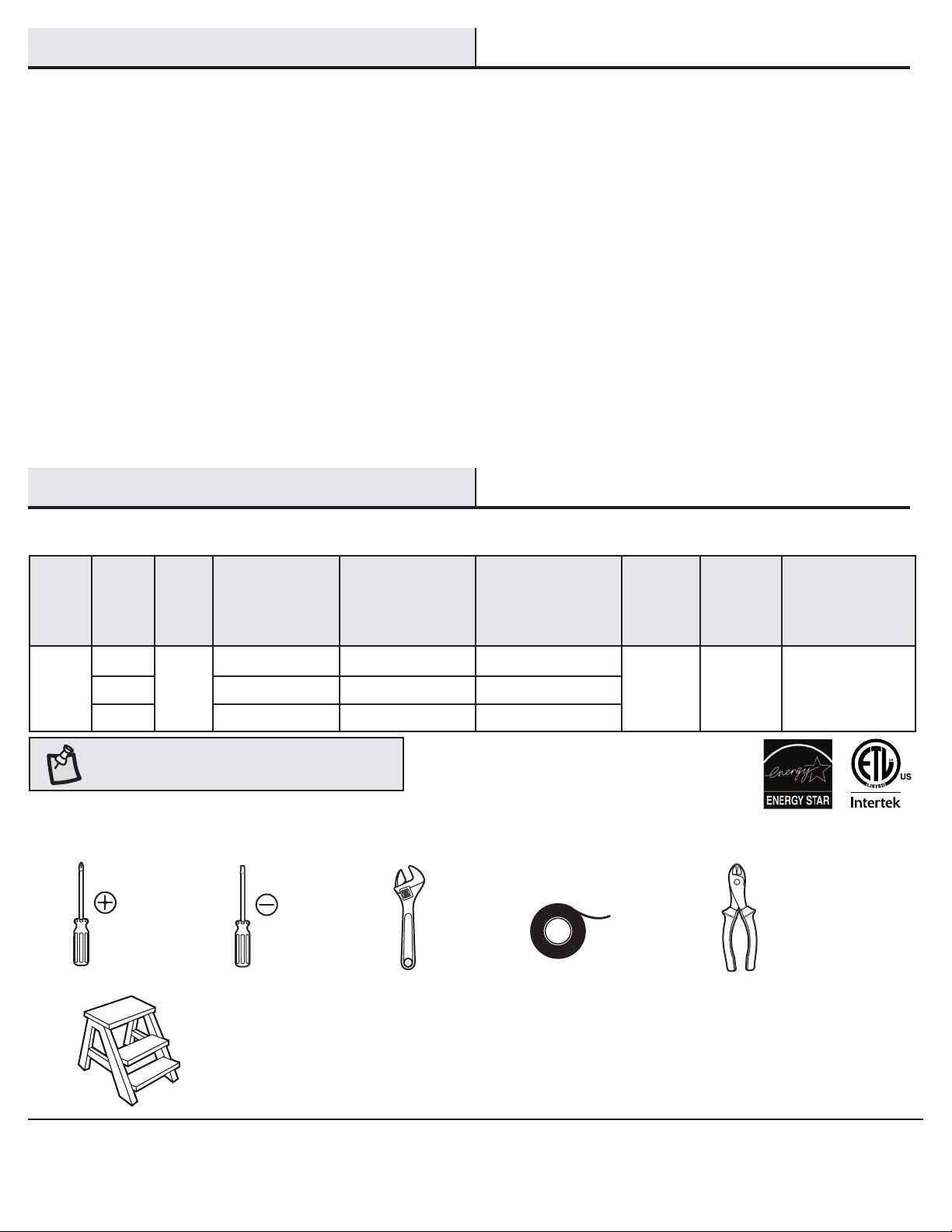

SPECIFICATIONS

NOTE: These are approximate measures. They do not

include the Amps and Wattage used by the light kit.

Size Speed Volts

Fan Power

Consumption

(without lights)

WATT

Airow

CFM

Airow Efciency

(Higher Is Better)

CFM/WATT

Net

Weight

Gross

Weight Cubic Feet

68 in.

Low

120

3 4,956 1,652

24.9 lb

(11.3 kg)

28.66 lb

(13 kg) 2.415 cu. ft.

Medium 14 8,044 574

High 36 10,770 299

TOOLS REQUIRED

Phillips

screwdriver

Flat blade

screwdriver

Adjustable

wrench

Electrical

tape

Wire cutter

/ Stripper

Step ladder

The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a

lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free from defects in

workmanship and material at the time of shipment from the factory for a period of ve years after the date of purchase by the original purchaser.

The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the

time of shipment from the factory for a period of three years after the date of purchase by the original purchaser. We agree to correct such defects

without charge or at our option replace with a comparable or superior model if the product is returned. To obtain warranty service, you must present

a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part, such as by

accident, misuse, improper installation, or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this

warranty does not cover any changes in brass nish, including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their

longest useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.

Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Interline hereby disclaims any

and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The

duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not

allow a limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,

consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by law.

Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This

warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior warranties.

Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.

Contact the Customer Service Team at 1-800-283-7048.

Part Description Quantity

AA Blade attachment screws 19

BB Plastic wire connecting nut 3

CC Hanger pin 1

DD Locking pin 1

Pre-Installation (continued)

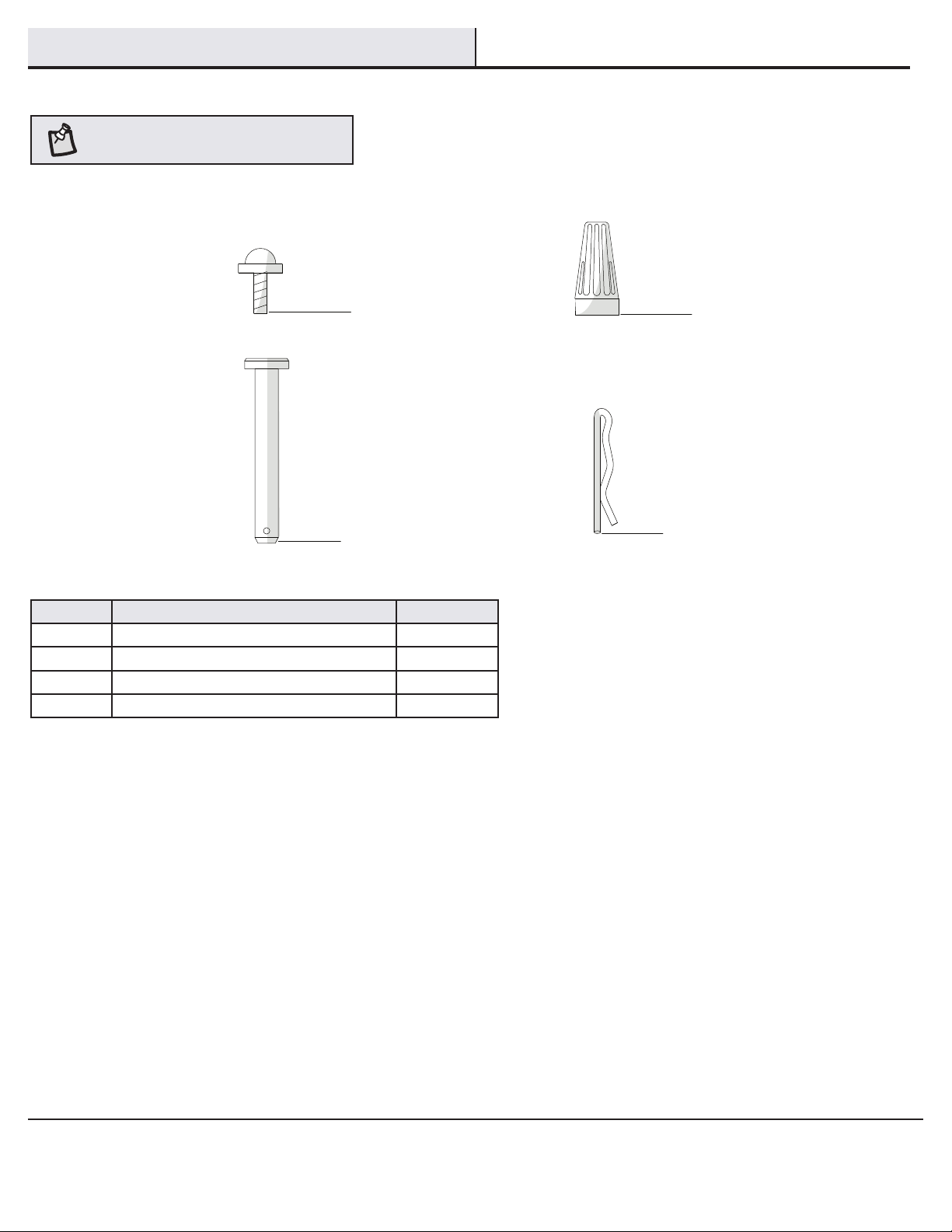

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

AA BB

CC DD

5HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Part Description Quantity

ASlide-on mounting bracket

(inside canopy) 1

B Ball/downrod assembly 1

C Canopy with canopy ring attached 1

D Decorative motor collar cover 1

E Fan-motor assembly 1

F Light kit pan 1

Part Description Quantity

G Blade 6

H Glass shade 1

I Light kit tter assembly 1

J Remote control (batteries included) 1

K Support plate 6

L Batteries 2

IMPORTANT: This product and/or components are

governed by one or more of the following U.S. Patents:

5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117

and other patents pending.

Pre-Installation (continued)

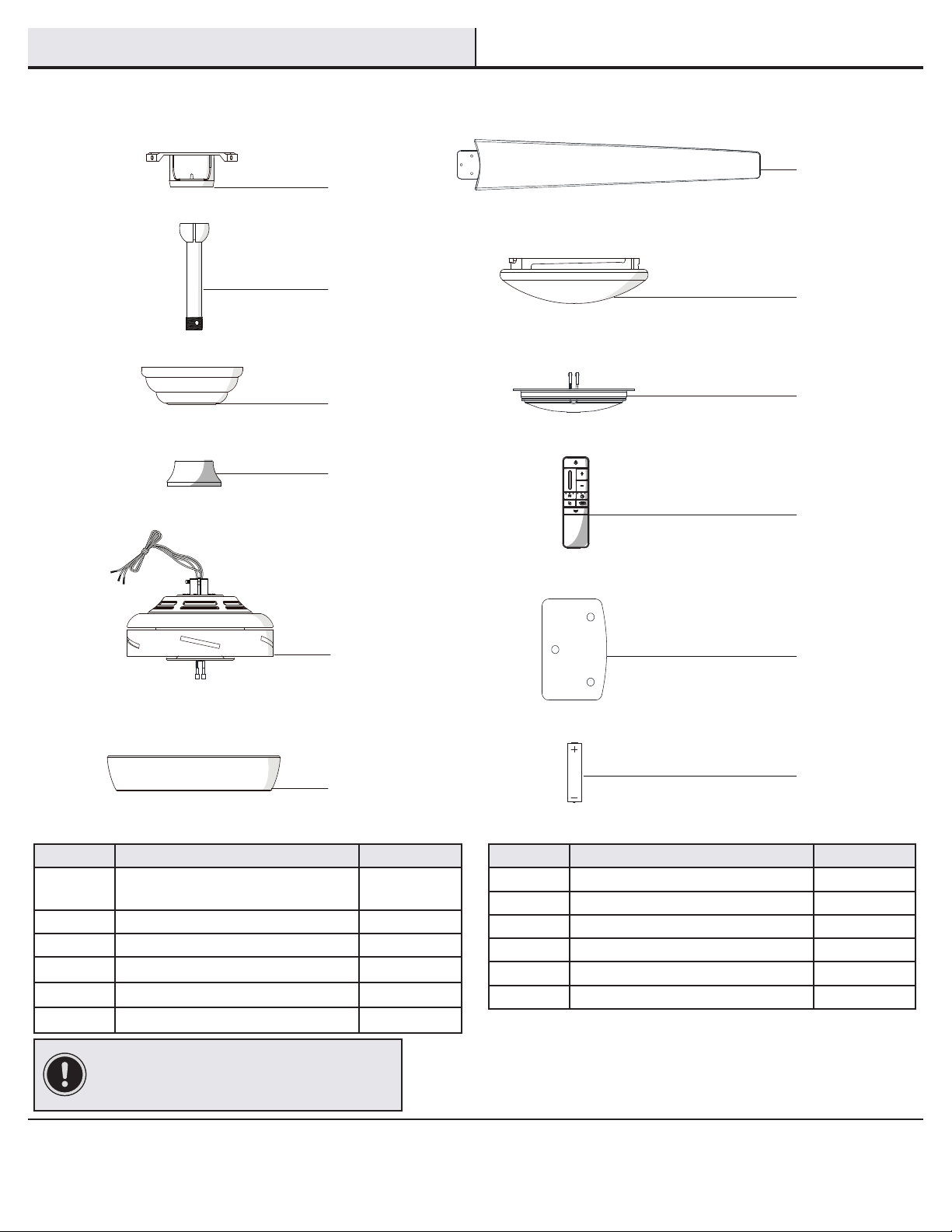

PACKAGE CONTENTS

2H 4H 8H

Installation

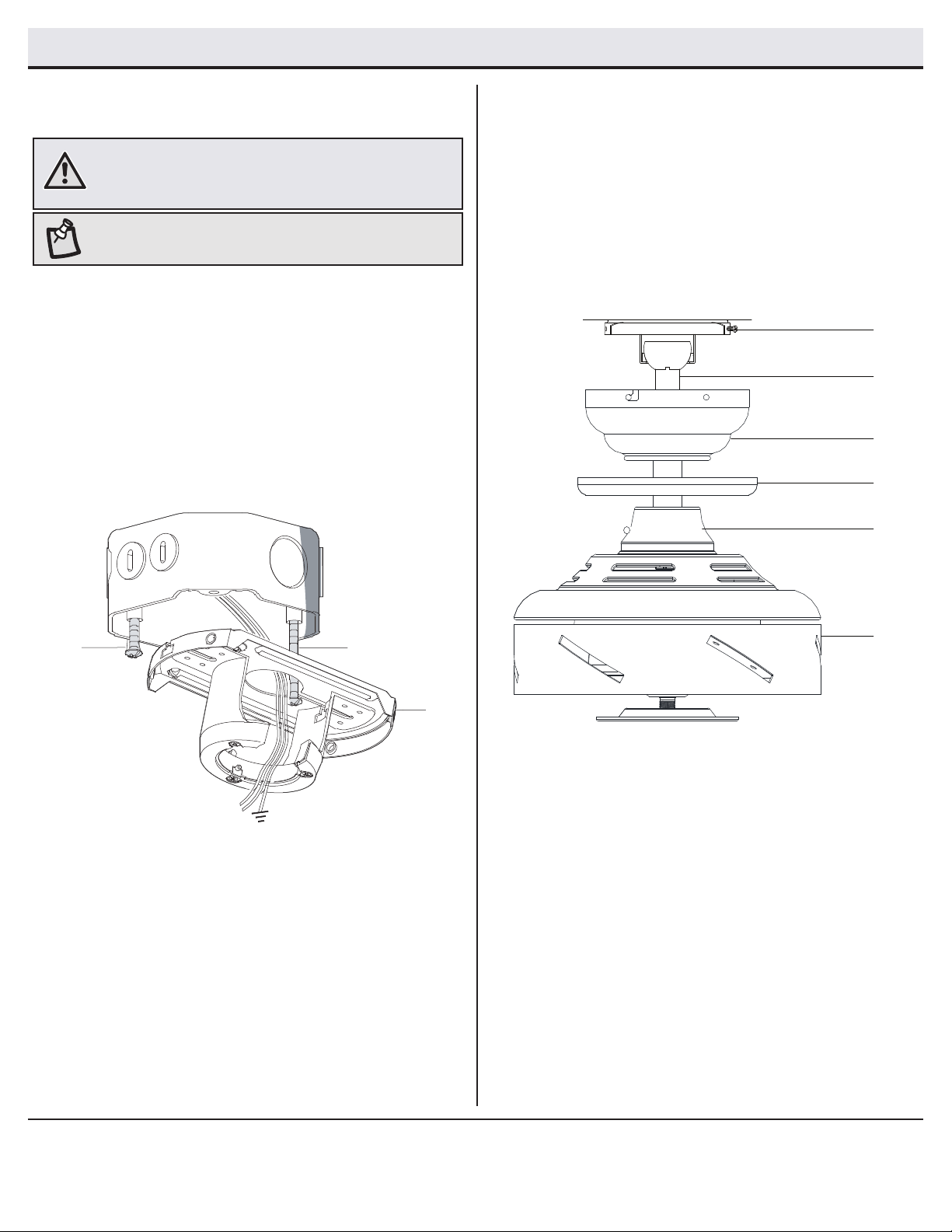

MOUNTING OPTIONS

WARNING: To reduce the risk of re, electric shock or

personal injury, mount to outlet box marked “Acceptable

for fan support of 35 lbs. (15.9 kg) or less”, and use

screws provided with the outlet box. An outlet box

commonly used for the support of lighting xtures may

not be acceptable for fan support and may need to be

replaced. If in doubt, consult a qualied electrician.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box directly to the building structure. Use

the appropriate fasteners and materials. The outlet box and

support structure must be securely mounted and capable of

reliably supporting a minimum of 35 lbs. (15.9 kg). Use only

UL-listed outlet boxes marked “Acceptable for fan support

of 35 lbs. (15.9 kg) or less” Do not use a plastic outlet box.

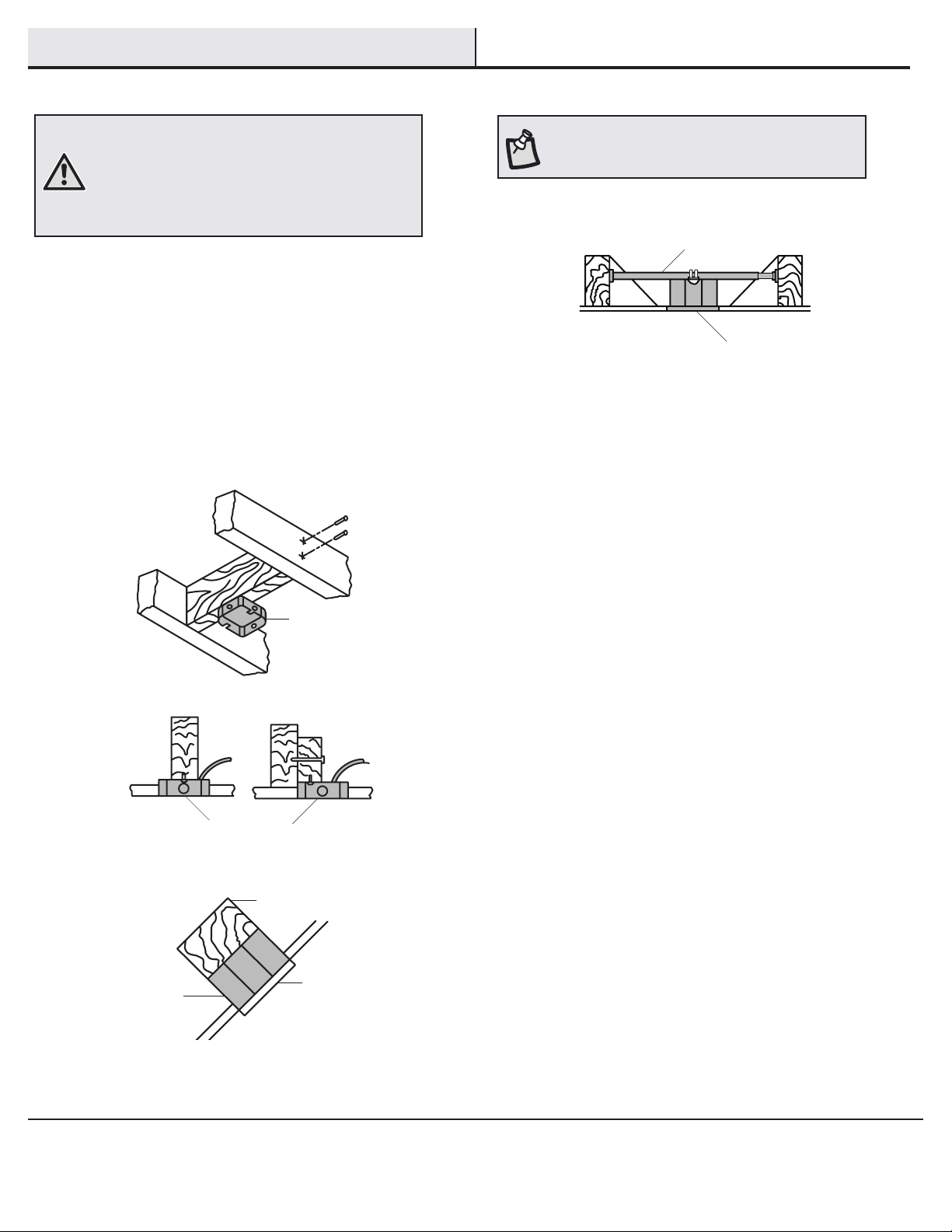

The illustrations below show three different ways to mount the

outlet box.

If the canopy touches the downrod, then remove the decorative canopy

bottom cover, and turn the canopy 180° before attaching the canopy to

the mounting plate.

To hang your fan where there is an existing xture but no ceiling joist,

you may need an installation hanger bar as shown above

(available at any Home Depot store).

NOTE: You may need a longer downrod to maintain

proper blade clearance when installing on a steep, sloped

ceiling. The maximum angle allowable is 30° away from

horizontal.

Outlet Box

Recessed

Outlet

Box

Provide Strong

Support

Ceiling

Mounting

Plate

Outlet Box

Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

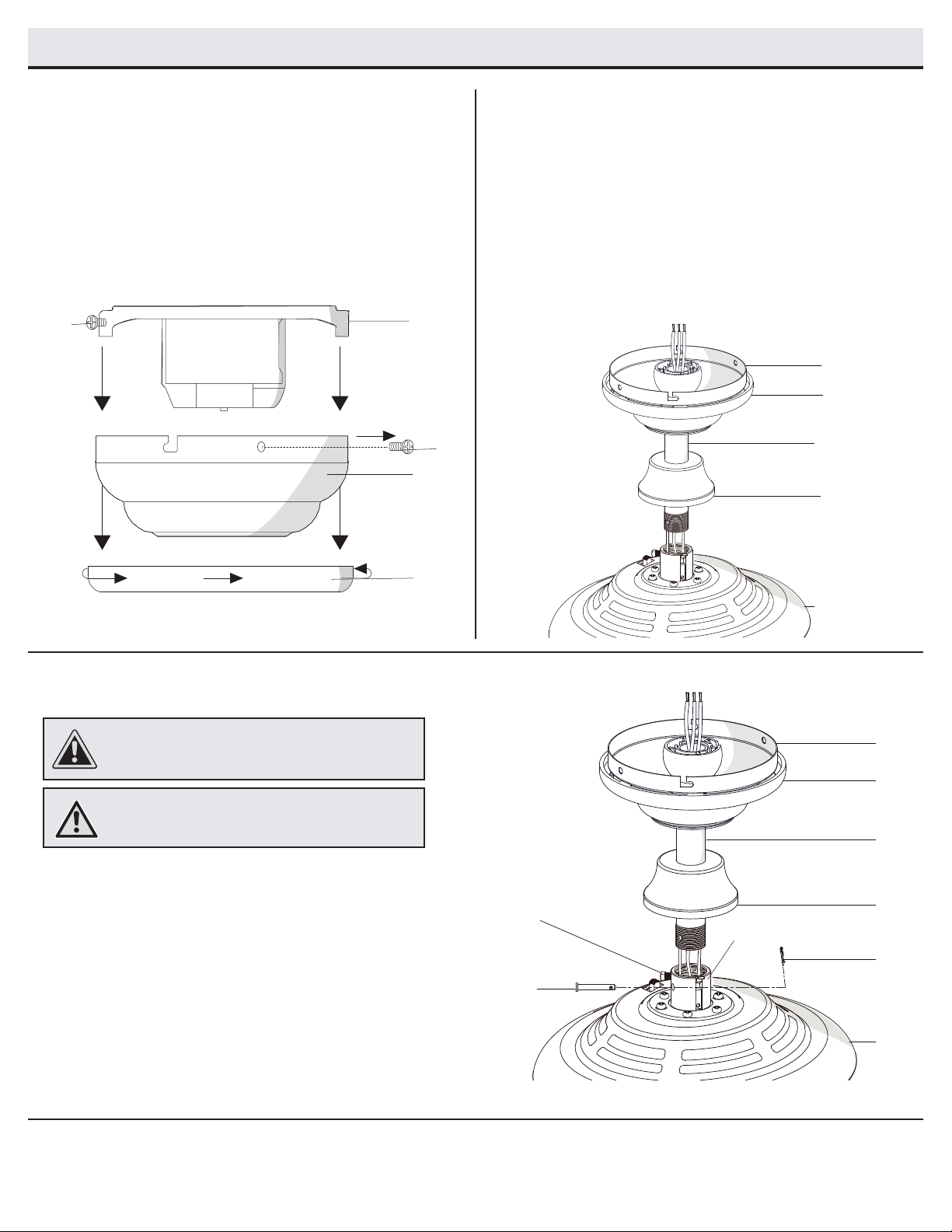

Assembly - Standard Ceiling Mount

Routing the wires

Assembling the fan

Preparing for mounting

□Remove the canopy ring (FF) from the canopy (C) by turning

the ring counter clockwise until it unlocks.

□Remove the mounting bracket (A) from the canopy (C) by

loosening the two canopy screws (SS) located in the “L

shaped” slots.

□Remove and save the two canopy screws (II) in the round

holes. This will enable you to remove the mounting bracket (A).

□Route the wires exiting the top of the fan motor assembly

(E) through the center of the canopy ring (FF). Make sure the

slots on the canopy ring (FF) are on top.

□Insert the ball/downrod (B) through the canopy (C) and slide

the decorative motor collar cover (D) onto the end of the

ball/downrod (B). Make sure the slots on the canopy (C) are

on top.

□Route the wires exiting the top of the fan motor assembly (E)

through the downrod (B) as shown.

□Loosen, but do not remove, the setscrew (KK) on the collar (PP)

on top of the fan-motor assembly (E).

□Install the downrod (B) by inserting it into the motor collar (PP),

and turning it clockwise until the holes at the bottom of the ball/

downrod assembly (B) align with the holes in the collar on top of

the fan-motor assembly (E).

□Carefully insert the hanger pin (CC) through the holes in the collar

and ball/downrod assembly (B). Be careful not to jam the hanger

pin (CC) against the wiring inside the ball/downrod assembly (B).

□Insert the locking pin (DD) through the hole hear the end of the

hanger pin (CC) until it snaps into its locked position.

□Re-tighten the setscrew (KK) on the collar (PP) on top of the fan-

motor assembly (E).

WARNING: Failure to properly install the locking

pin (DD) could result in the fan becoming loose and

possibly falling.

CAUTION: To ensure wobble-free operation and to avoid

damage to the fan, the downrod (B) and the setscrew (KK)

must be completely tightened.

SS A

Assembly - Hanging the Fan

Attaching the fan to the electrical

box Hanging the fan

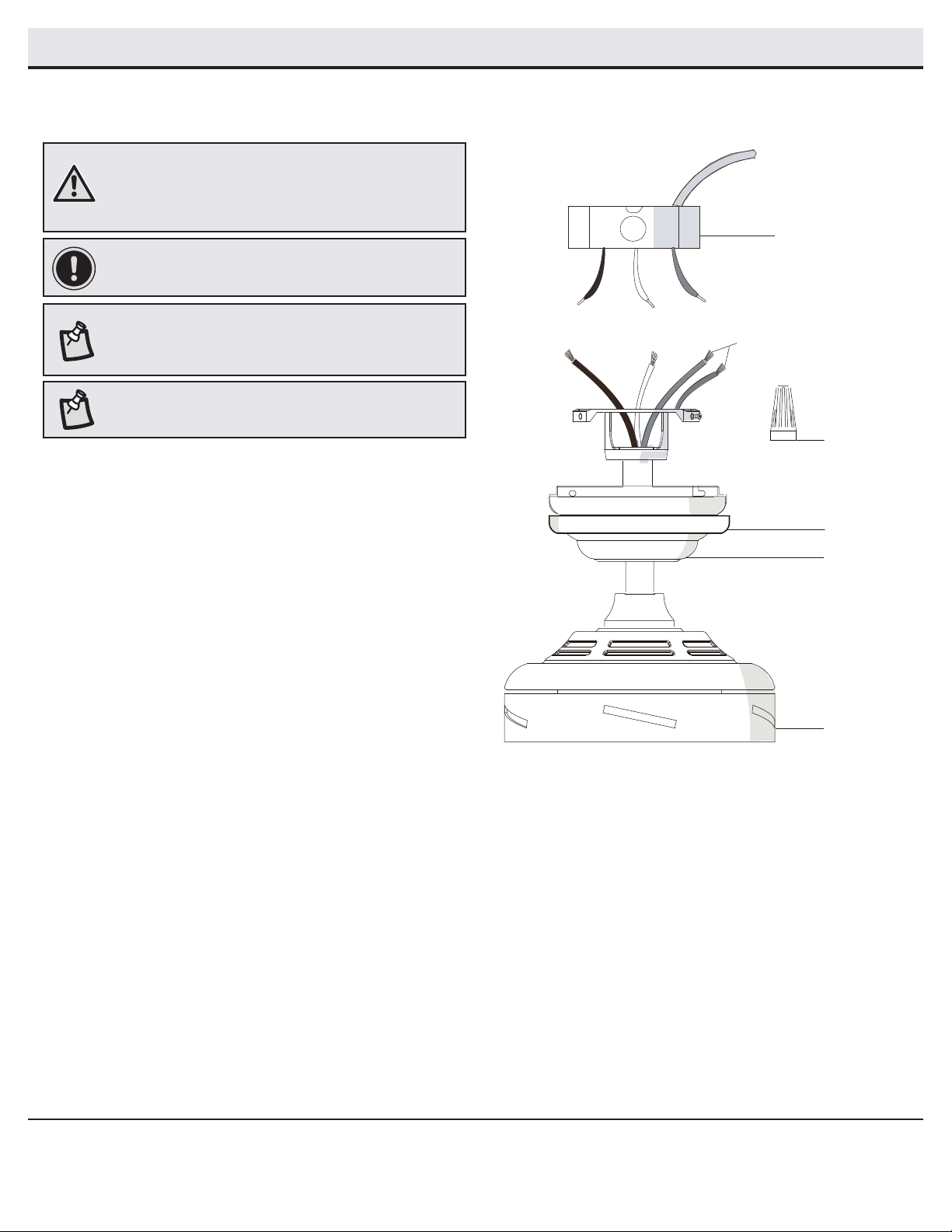

□Loosen the two mounting screws (JJ) in the outlet box.

□Pass the 120-Volt supply wires through the center hole in the

mounting bracket (A).

□Slide the mounting bracket (A) on to the mounting screws (JJ)

and center the mounting bracket (A) in relation to the outlet box.

If necessary, use leveling washers (not included) between the

slide-on mounting bracket (A) and the outlet box. The at side of

the slide-on mounting bracket (A) should face toward the outlet

box, as shown.

□Securely tighten the two mounting screws (JJ).

□Carefully lift the fan-motor assembly (E) up to the slide-on

mounting bracket (A).

□Insert the ball portion of the ball/downrod assembly into

the socket of the slide-on mounting bracket (A).

□Turn the ball/downrod assembly clockwise until it is seated

with the tab of the slide-on mounting bracket (A) aligned

with the slot in the ball.

WARNING: To reduce the risk of re, electric shock or personal

injury, mount to outlet box marked “Acceptable for fan support

of 35 lbs. 15.9 kg) or less”, and use screws provided with the

outlet box.

NOTE: The mounting bracket (A) is designed to slide into place on

an outlet box with the outlet box screws (JJ) installed.

JJ JJ

9HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly - Hanging the Fan (continued)

Making the electrical connection

IMPORTANT: Use the plastic wire connectors (BB) supplied with

your fan. Secure the connectors with electrical tape and ensure

there are no loose strands or connections.

WARNING: Each wire nut supplied with this fan is designed to

accept up to one 12-gauge house wire and two wires from the fan.

If you have larger than 12-gauge house wiring or more than one

house wire to connect to the fan wiring, consult an electrician for

the proper size wire nuts to use.

□The fan comes with 78 in. lead wires for use with an extended

ball/downrod assembly. If using the ball/downrod assembly (B)

provided, you can cut the lead wires to your desired length (no

shorter than 12 in.). This will make extra room in the canopy (C).

If you do not wish to cut the wires, you will need to neatly wrap

them.

□Connect the fan motor green wires to the household green or

bare wire using a wire connecting nut (BB).

□Connect the fan motor white wires to the household white wire

using a wire connecting nut (BB).

□Connect the fan motor black wires to the household black wire

using a wire connecting nut (BB).

□Secure each wire connecting nut using electrical tape.

□Turn the wire connecting nut (BB) upward and push the wiring

into the outlet box (MM).

NOTE: The fan comes with 78 in. lead wires for use with an

extended ball/ downrod assembly. If using the ball/downrod

assembly (B) provided, you can cut the lead wires to your desired

length (no shorter than 12 in.)

NOTE: The blades must be installed before attempting to operate

the fan. If the blades are not installed, the motor will not function

properly.

Outlet box

in the ceiling (MM)

Green or bare wire

Black White

Black White Green(2)

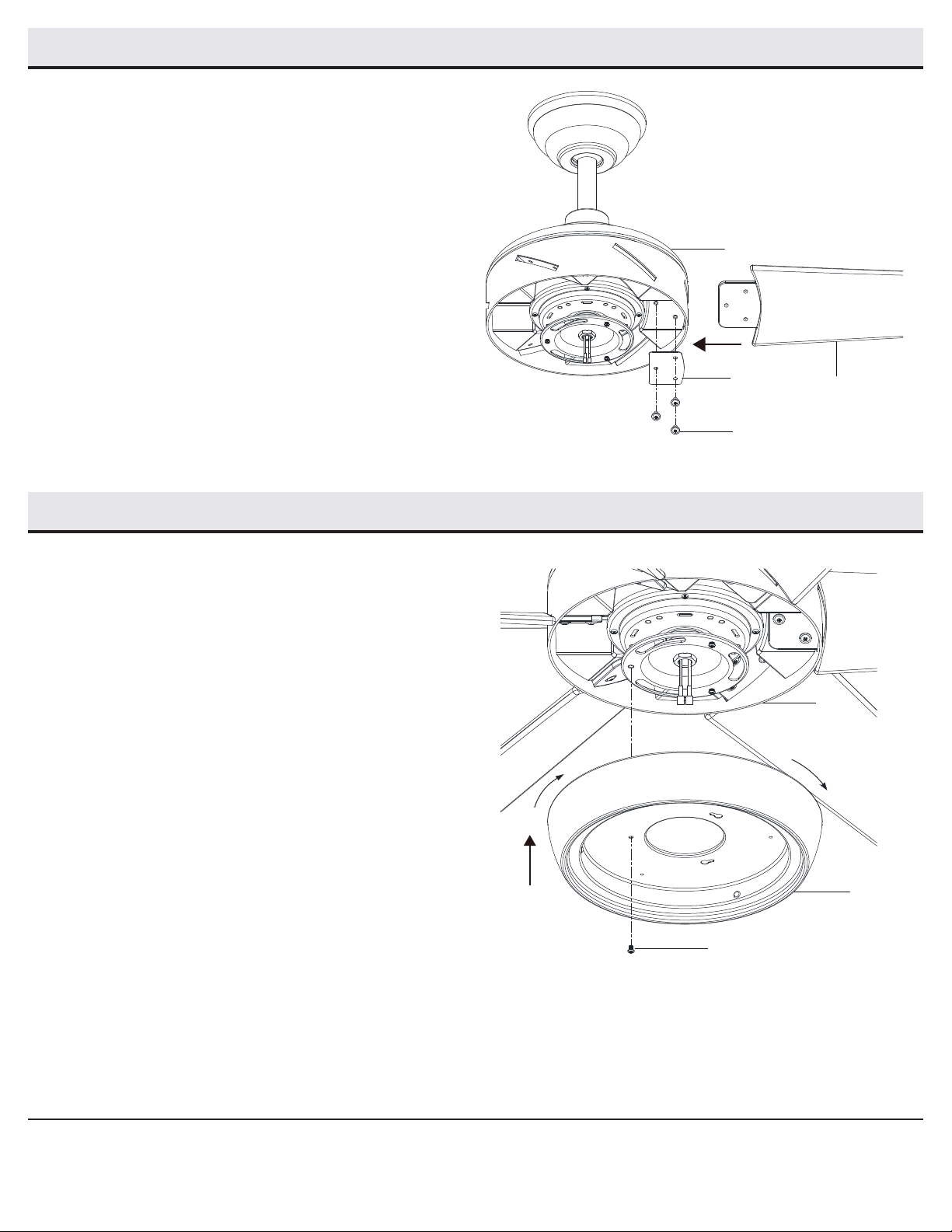

Attaching the fan blades

□Attach a blade (G) to the fan motor housing (E) by rst

inserting the blade (G) into the slot in the side of the fan

motor housing (E).

□Align the holes of support plate (K) to the blade (G) holes

and insert the screw (AA) into the blade. Repeat for the two

remaining screws.

□Tighten each screw (AA) securely.

□Repeat these steps for the remaining blades (G).

Assembly - Attaching the Fan Blades

Assembly - Attaching the Accessories

Installing the light kit pan

□Remove one screw (RR) from the black bracket below the fan

motor assembly (E), and loosen but do not remove the other

two screws.

□Push the light kit pan (F) up to the fan motor assembly (E) so

that the two loosened screw heads t into the keyhole slots.

Turn the light kit pan (F) clockwise.

□Re-install the screw (RR) that was removed in the rst step.

□Make sure all the screws are rmly tightened.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Home Decorators Collection Lüfter Handbücher

Home Decorators Collection

Home Decorators Collection Easton Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection GAMALI 60-FORY Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection OSSA CF2001-N Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection HEXTON 52-MOBY Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BENTLEY III AL14-22-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection TAHITI BREEZE Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection YG612-EB Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BENSON YG654-MBK Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection RIMGATE 56048 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection GRAMERCY YG513-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection YG583-WH Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection CLERMONT Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection ASHBY PARK 59600 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection AM183W-NI Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 52111 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection ELLARD YG629A-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection KENSGROVE YG493OD Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection MONTPELIER AM472-GM Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection HERALD AM429-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection LAKE GEORGE AM127-NI Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 7982HDCBN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection PIERSSON Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 731 146 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection SALEEN YG458-GM Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
